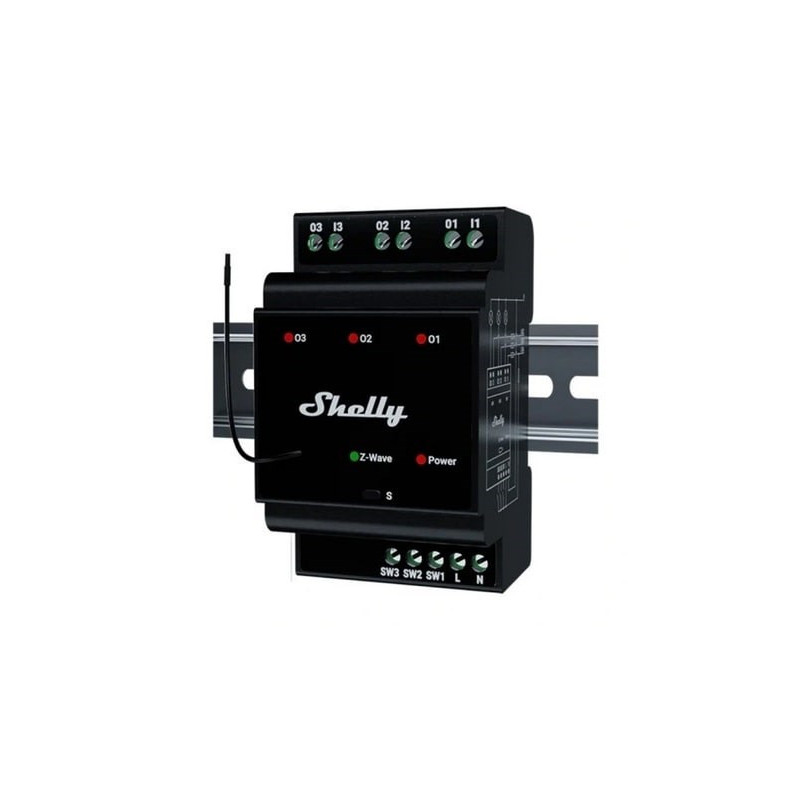

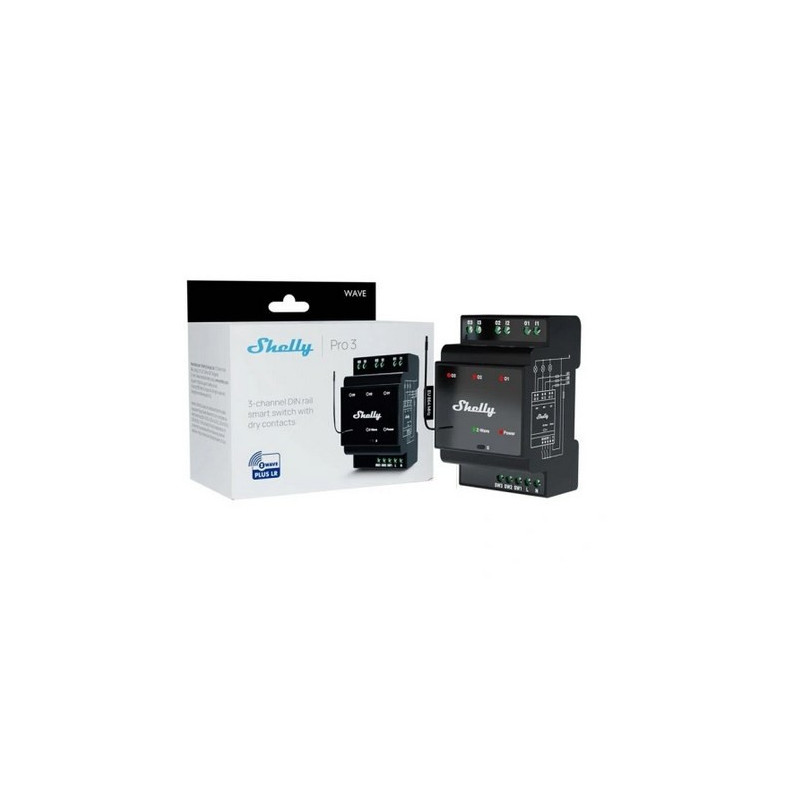

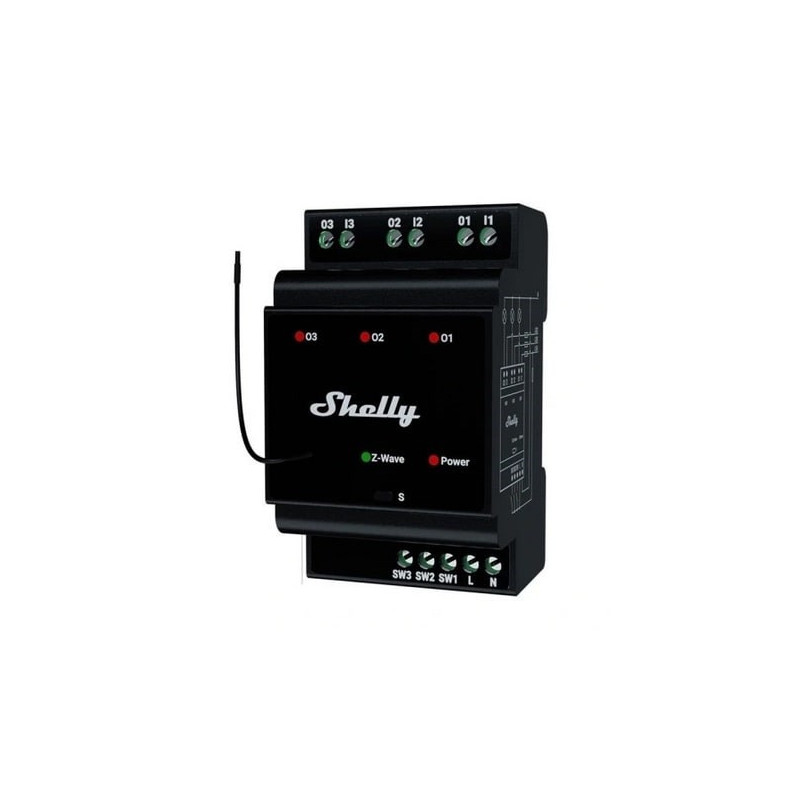

Shelly Qubino Wave Pro 3 3-channel Din Z-wave Bus Relay
Product reference:
6-3800238071998
Shelly Qubino Wave Pro 3 3-channel Din Z-wave Bus Relay
Shelly Qubino Wave Pro 3 3-channel Din Z-wave Bus Relay
Product reference:
6-3800238071998
Shelly Qubino Wave Pro 3 3-channel Din Z-wave Bus Relay
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
6 - 11
business days
| DIN rail mounting | Yes |
| Product type | Smart relay |
| Security | AES-128 |
| Remotely operated | Yes |
| Maximum current | 48 A 25 A |
| Transmit power | 25 mW |
| Maximum indoor range | 40 m |
| LED indicators | Yes |
| Frequency range | 864 MHz (Long Range), 868.4 MHz (Mesh) |
| Overheat protection | Yes |
| Product colour | Black |
| Connectivity | Z-Wave |
| Channels quantity | 3 channels |
| Housing material | Plastic |
| Cable section | 0.5 - 2.5 mm² |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 0.3 W |
| Operating relative humidity (H-H) | 30 - 70% |
| Operating temperature (T-T) | -20 - 40 °C |
| Height | 96 mm |
| Length | 53 mm |
| Width | 59 mm |
| Weight | 150 g |
