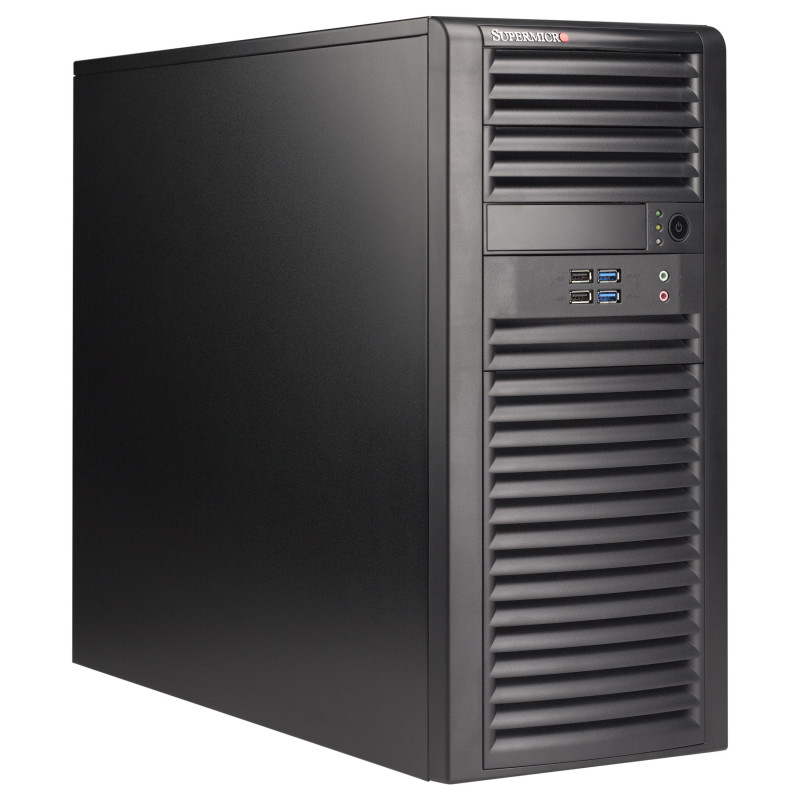

Supermicro CSE-732D4-668B computer case

Supermicro CSE-732D4-668B. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply: 668 W. Front fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 3.5,5.25". Width: 193 mm, Depth: 525 mm, Height: 424 mm

Supermicro's SC732 chassis features a unique and highly-optimized design, allowing most configuration of the chassis to be accomplished without tools or screws. The chassis is equipped with a high-efficiency power supply and high-performance fans provide ample optimized cooling. Four 3.5" HDD drive bays and four optional 2.5" HDD drive bays offer maximum storage capacity.

Design

Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX
Number of 3.5" bays: 5
Number of 5.25" bays: 2
Number of internal 3.5" bays: 4
Number of external 5.25" bays: 2
Number of expansion slots: 7
Feature: On/off button
LED indicators: HDD, Network, Power, System
Feature: Cable lock slot
Cable lock slot type: Kensington
Certification: 80 Platinum Level Certified

Power supply

Feature: Power supply included
Power supply: 668 W
Feature: ATX power connector (20+4 pin)

Ports & interfaces

Audio output: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Number of front fans supported (max): 1
Front fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm

Storage

Supported HDD sizes: 3.5,5.25"
Number of HDDs supported: 6

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 193 mm
Depth: 525 mm
Height: 424 mm
Weight: 12.7 kg

Logistics data

Harmonized System (HS) code: 84733080
