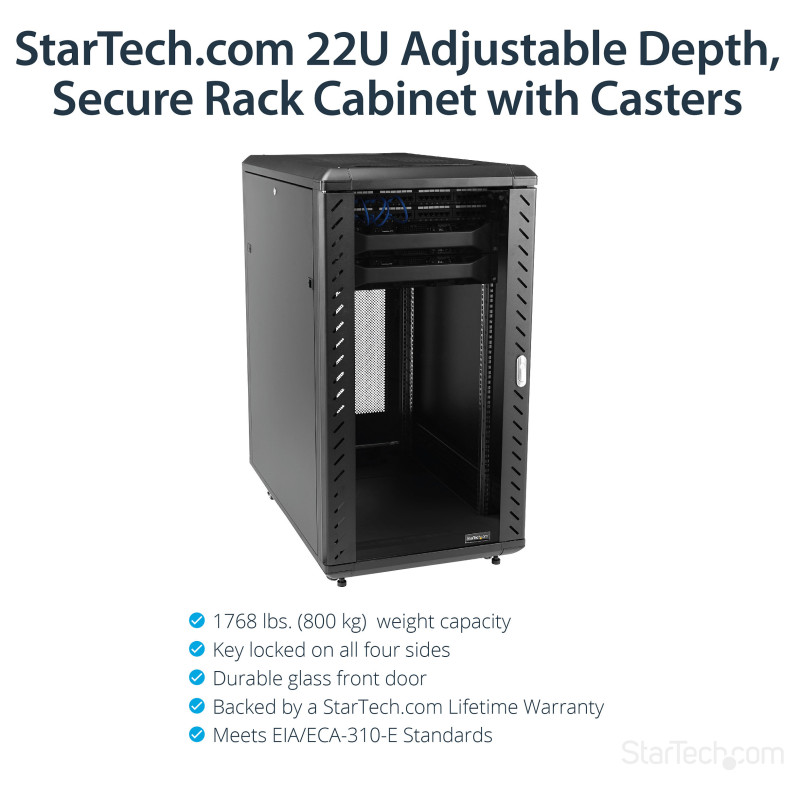

StarTech.com RK2236BKF rack cabinet

StarTech.com 22U Enterprise-Grade Flat Pack Server Rack Cabinet, 19in Enclosed 4-Post Rack with 29in (75cm) Mounting Depth and 1764lb (800kg) Weight Capacity. Type: Freestanding rack, Rack capacity: 22U, Maximum weight capacity: 800 kg, Key lock, Castor wheels. Weight: 62.6 kg. Product colour: Black

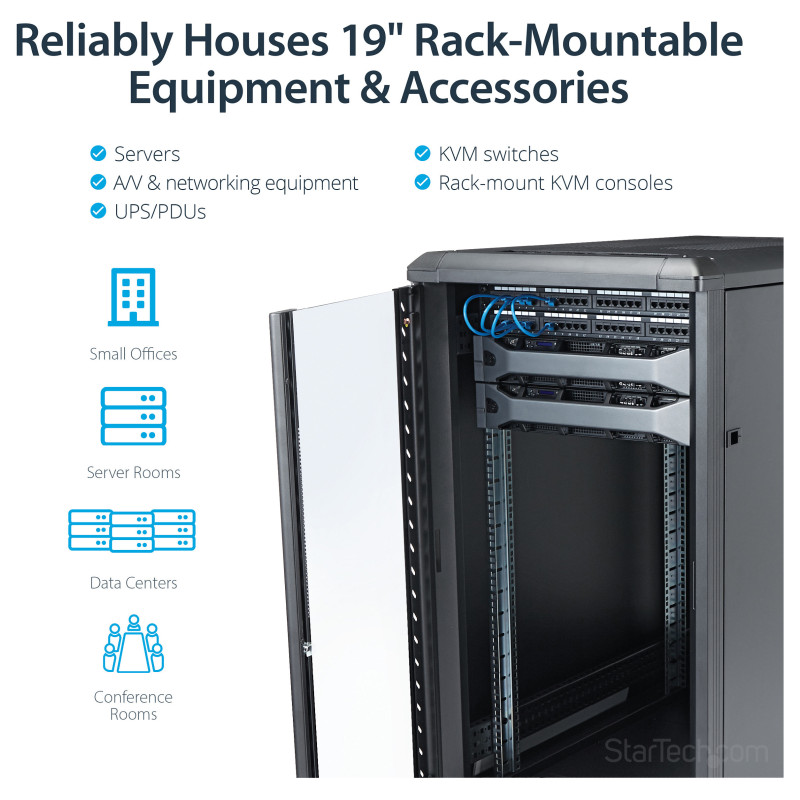

Securely store servers, network and telecommunications equipment in this 22U server rack

This server rack provides 22U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19" rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs.).

Hassle-free equipment installation

This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.

With adjustable mounting rails you can easily change the rail depth to up to 32.7 in. (830 mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.

The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.

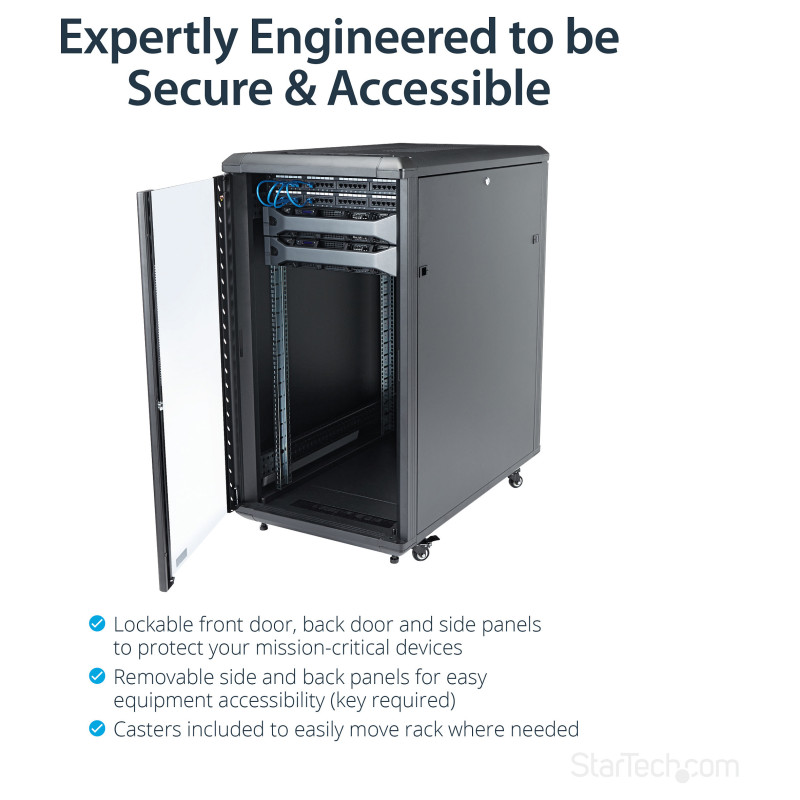

Securely protect your equipment while still being able to see it

To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.

The rack also has removable side panels with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.

Save money, with a cost effective, compact shipping container

The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.

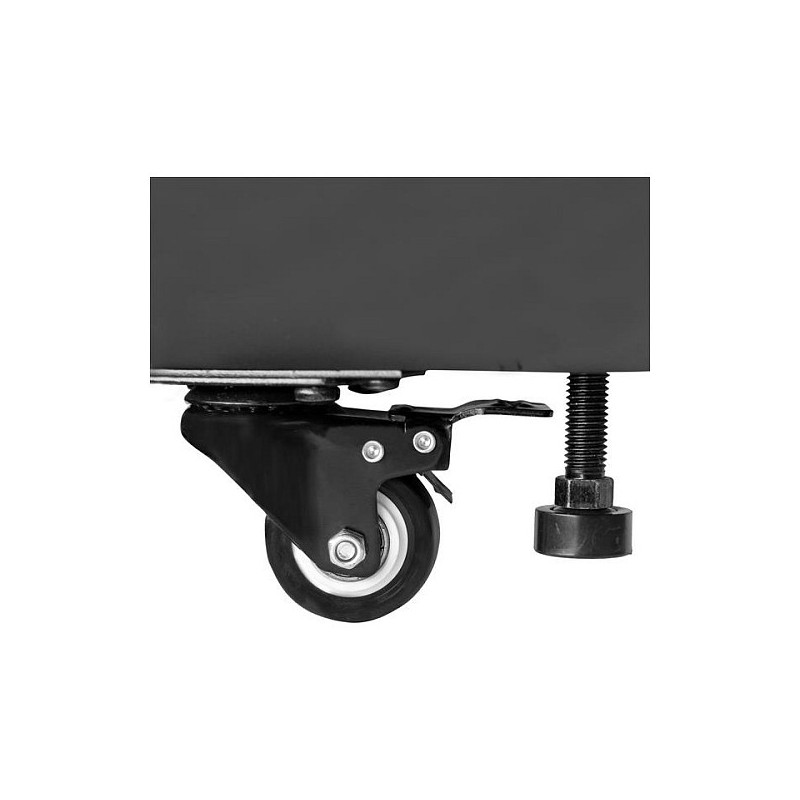

Maximum Maneuverability, with casters included

The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.

Ensure your equipment is running at an optimal temperature

The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that's cost effective and ensures your equipment runs at an optimal temperature.

The top ceiling panel features square venting holes that are cage nut compatible, which provide mounting points that enable you to add additional equipment at the top of your rack.

Features

Rack capacity: 22U
Type: Freestanding rack
Maximum weight capacity: 800 kg
Product colour: Black
Material: Steel
Frame type: Closed
Product design: 4-post
Back door construction: Steel
Front door construction: Steel
Feature: Removable front door
Feature: Key lock
Feature: Side panel key lock
Number of fans: 0 fan(s)
Mounting hole shape: Square
Feature: Castor wheels
Certification: REACH

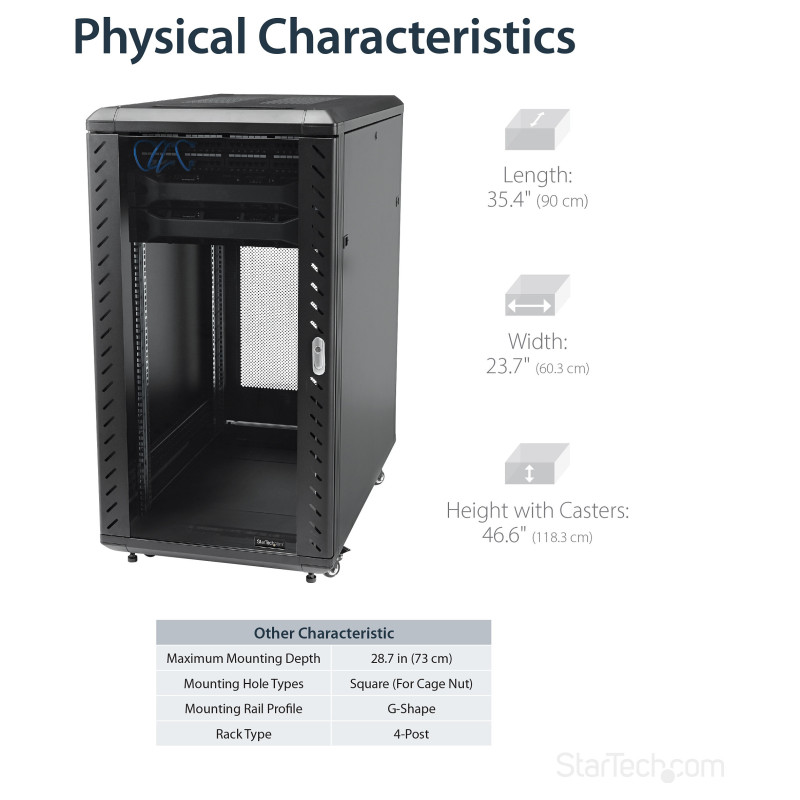

Weight & dimensions

Width: 603 mm
Depth: 1005 mm
Height: 1112 mm
Inner width: 58 cm
Inner depth: 99 cm
Weight: 62.6 kg
Mounting depth (min): 14 cm
Mounting depth (max): 83 cm

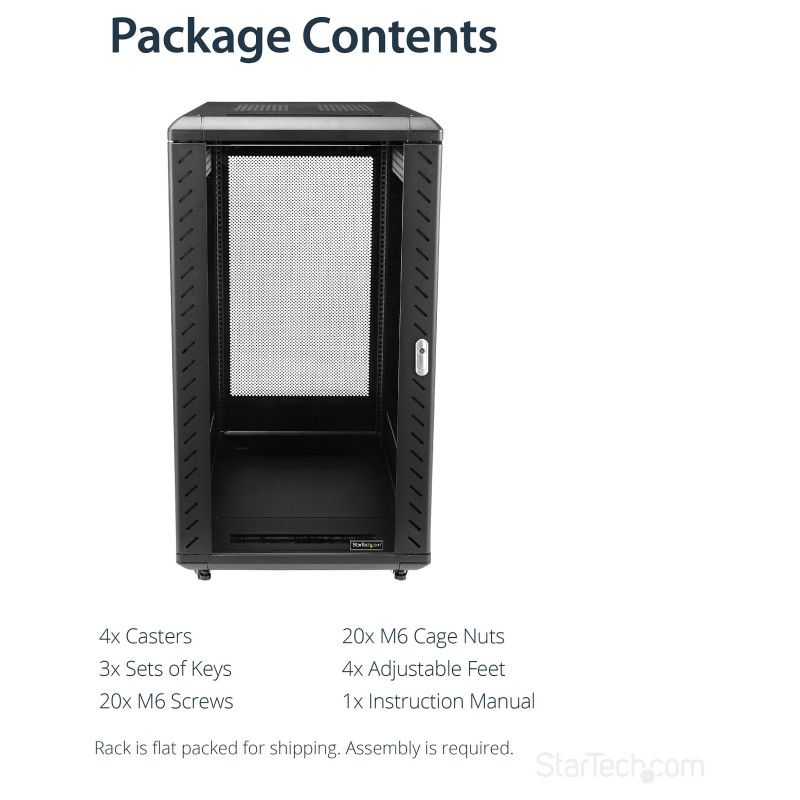

Packaging data

Feature: Nuts included
Number of nuts: 20
Feature: Screws included
Number of screws: 20
Feature: Mounting kit
Package width: 1183 mm
Package depth: 1068 mm
Package height: 300 mm
Package weight: 75.3 kg

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85381000
Master (outer) case width: 1200 mm
Master (outer) case length: 1175 mm
Master (outer) case height: 292 mm
Products per master (outer) case: 4 pc(s)

Other features

Compliance industry standards: EIA/ECA-310-E
