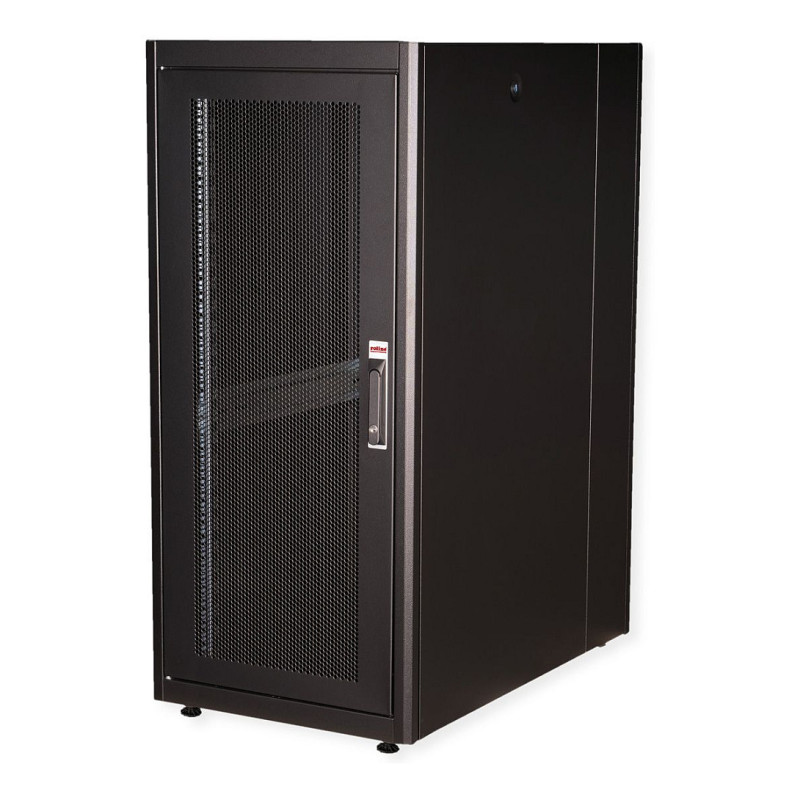

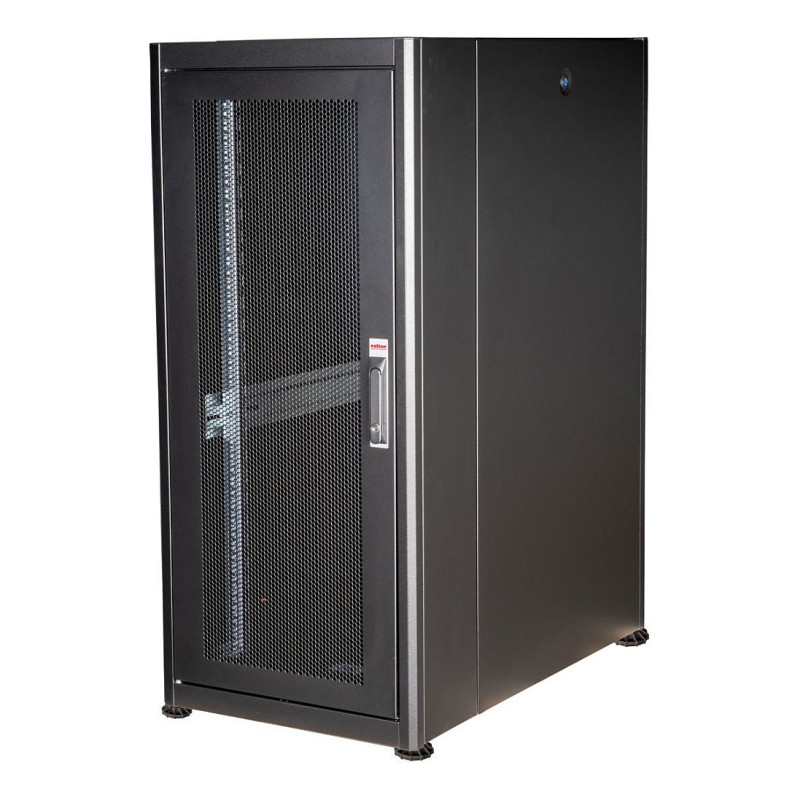

ROLINE 26.21.0203 rack cabinet

ROLINE 19-inch server cabinet Basic 26 U, 600x1000 WxD perforated black. Type: Freestanding rack, Rack capacity: 26U, Maximum weight capacity: 600 kg, Adjustable feet, Rack rails, International Protection (IP) code: IP20. Weight: 70 kg. Product colour: Black

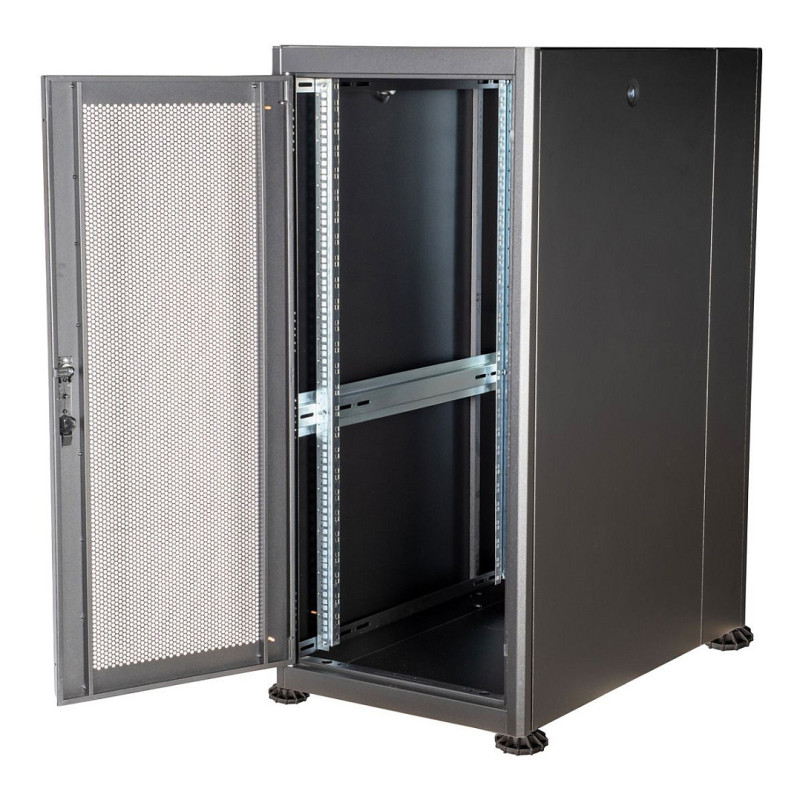

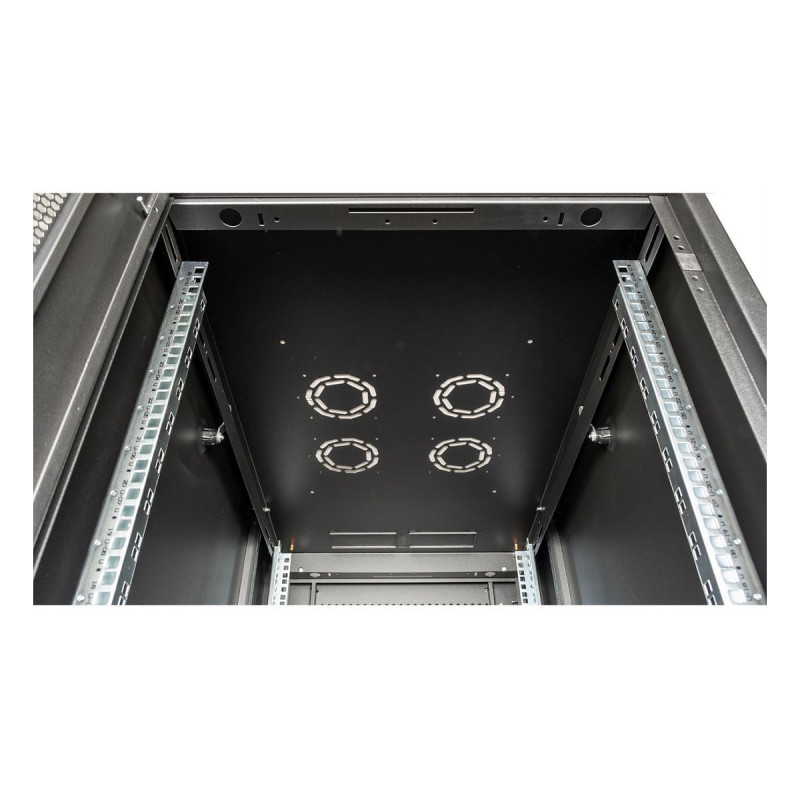

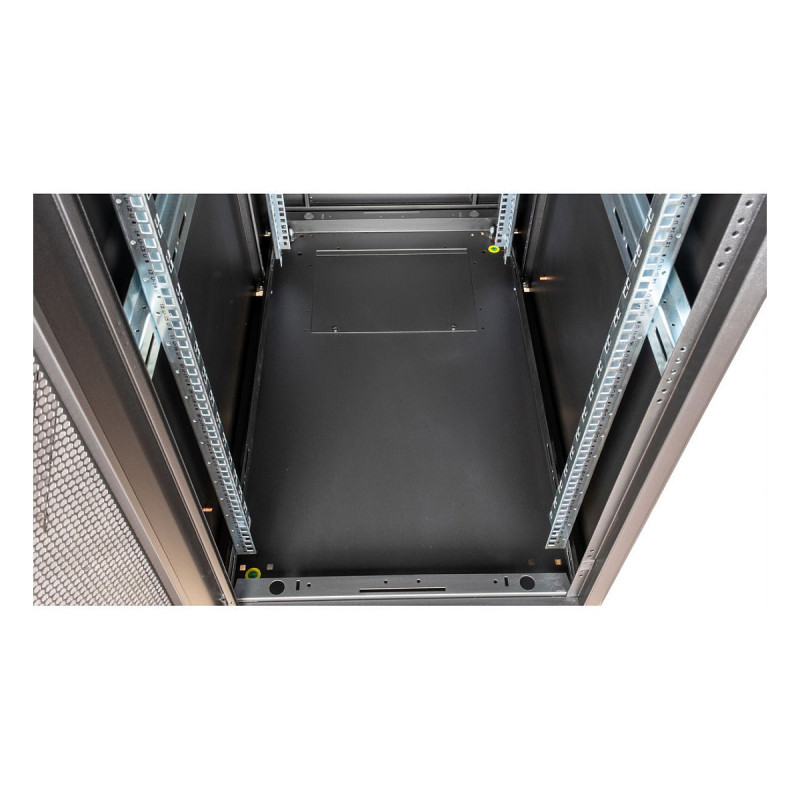

The network cabinets in the ROLINE Basic series were developed to enable simple and particularly cost-efficient network expansion. Strategically placed cable inlets ensure effortless installation depending on the application. The cable inlet is located in the base chassis, protected by a screwed cover plate and positioned in the rear centre area. For enclosures from 800 mm width, additional cable inlets with plastic covers are added on the left and right. These are also integrated in the roof (once for 600 mm enclosure width, three times for 800 mm enclosure width). The roof chassis also has a punched-out area for the installation of a fan module. Two pairs of galvanised 19" profile rails are installed inside, which can be read in both directions and can be adjusted in depth. They are also connected to additional depth struts in the enclosure. Each cabinet consists of a robust steel construction with a material thickness of up to 1.5 mm sheet steel.

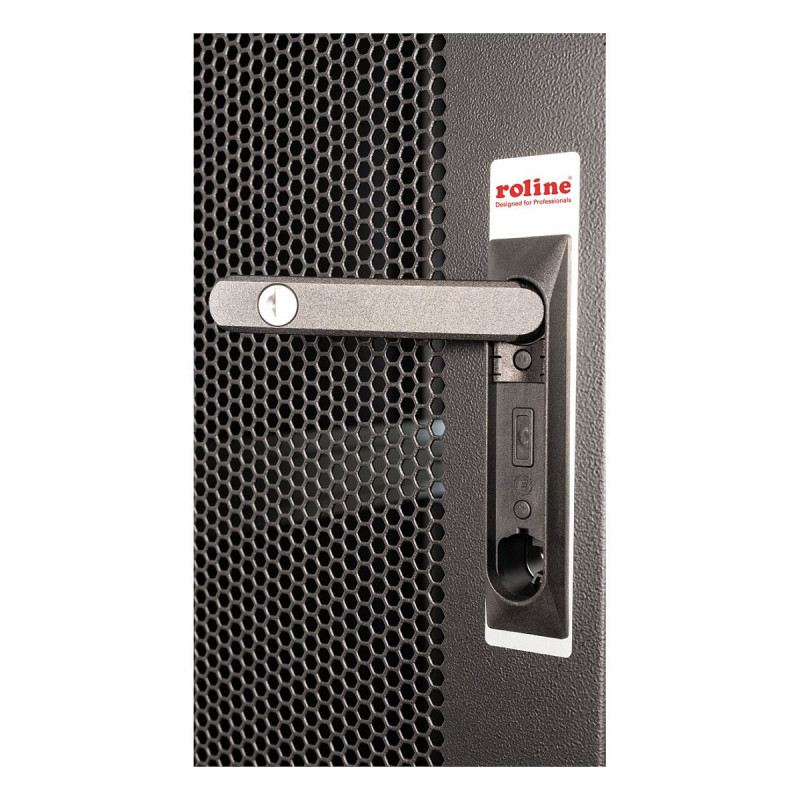

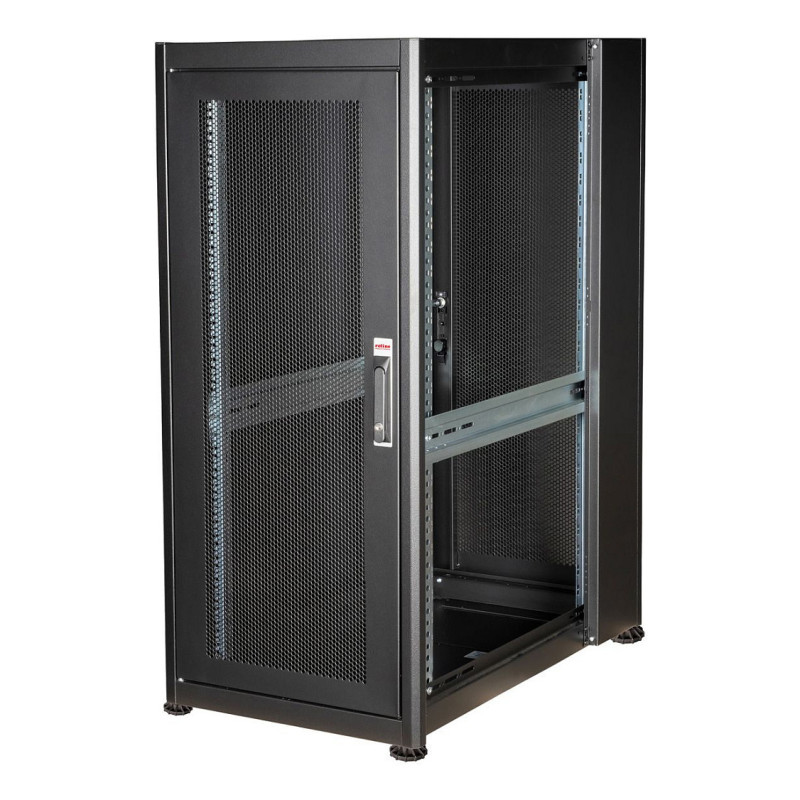

The colouring is done using electrostatic powder coating in the standard colours grey (RAL 7035) and black (RAL 9005). Removable side and rear panels as well as a lockable and removable front door improve accessibility. It is possible to change the door hinge. Thanks to their demountable design, the cabinets can also be completely dismantled if required.

Features

Rack capacity: 26U
Type: Freestanding rack
Maximum weight capacity: 600 kg
Product colour: Black
Material: Steel
Front door construction: Perforated
Removable back door: Yes
Removable front door: Yes
Removable side panels: Yes
Side panels included: Yes
Rack rails: Yes
Adjustable feet: Yes
Cooling type: Passive
International Protection (IP) code: IP20

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 1000 mm
Height: 1300 mm
Weight: 70 kg
Mounting depth (min): 63 cm
Mounting depth (max): 95 cm

Packaging data

Mounting kit: Yes
Quick installation guide: Yes
Package width: 680 mm
Package depth: 1080 mm
Package height: 1440 mm
Package weight: 73.6 kg
