ROLINE 26.21.0185 rack cabinet

ROLINE 19-inch wall-mounted housing Basic 5 U, short black. Type: Wall mounted rack, Rack capacity: 5U, Maximum weight capacity: 30 kg, Key lock, Rack rails, International Protection (IP) code: IP20. Weight: 8.5 kg. Product colour: Black

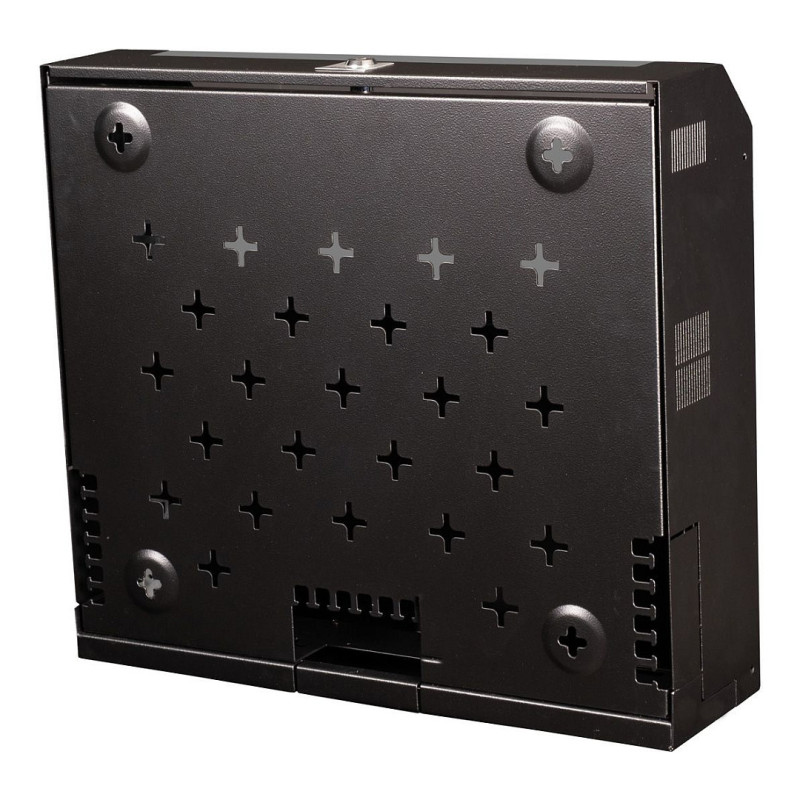

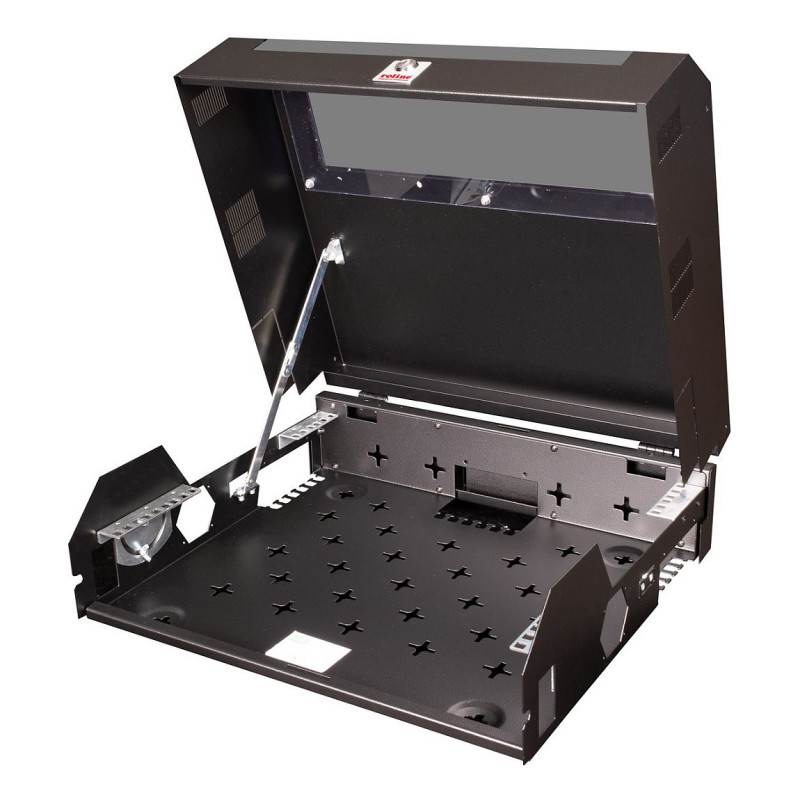

The wall-mounted enclosures in the ROLINE Basic series are perfect for housing active and passive components. They stand out from many other enclosures thanks to their simple and, above all, time-saving installation. Thanks to their modern design, they blend harmoniously into any office or home. The enclosure offers two separate mounting options: At the front is a rotatable vertical 3U rail, which can alternatively be positioned horizontally or at an angle. At the rear is a fixed horizontal 2U rail, which is suitable for passive network components, for example. The punched mounting holes in the entire lower housing area also allow the installation of non 19" components such as switches and routers. Alternatively, a mounting plate can be attached for this purpose.

Features

Rack capacity: 5U
Type: Wall mounted rack
Maximum weight capacity: 30 kg
Product colour: Black
Material: Steel
Front door construction: Glass

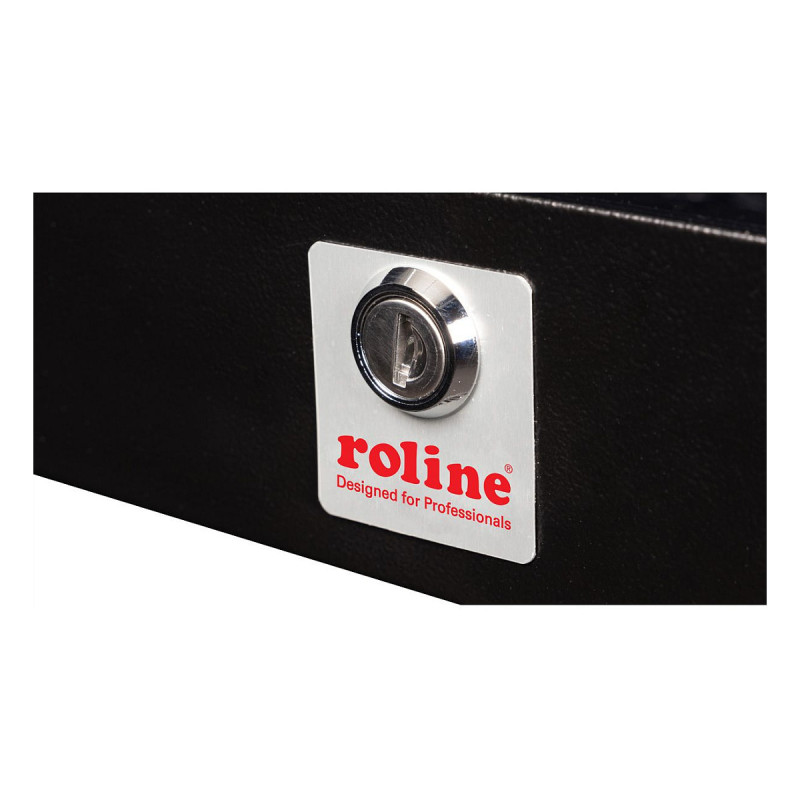

Key lock: Yes
Rack rails: Yes
Cooling type: Passive
International Protection (IP) code: IP20

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 500 mm
Depth: 475 mm
Weight: 8.5 kg

Packaging data

Mounting kit: Yes
Quick installation guide: Yes
Package width: 520 mm
Package depth: 500 mm
Package height: 160 mm
Package weight: 10.5 kg
