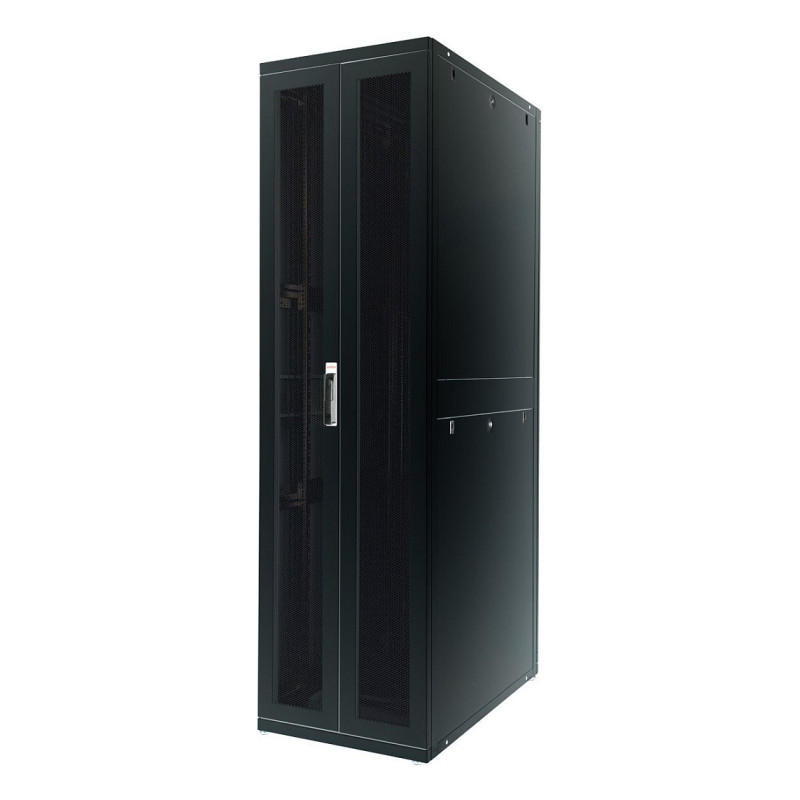

ROLINE 26.21.0166 rack cabinet

ROLINE 19-inch server rack Pro 47 U, 600x1000 WxD black. Type: Freestanding rack, Rack capacity: 47U, Maximum weight capacity: 1000 kg, Adjustable feet, International Protection (IP) code: IP20. Weight: 117.7 kg. Product colour: Black

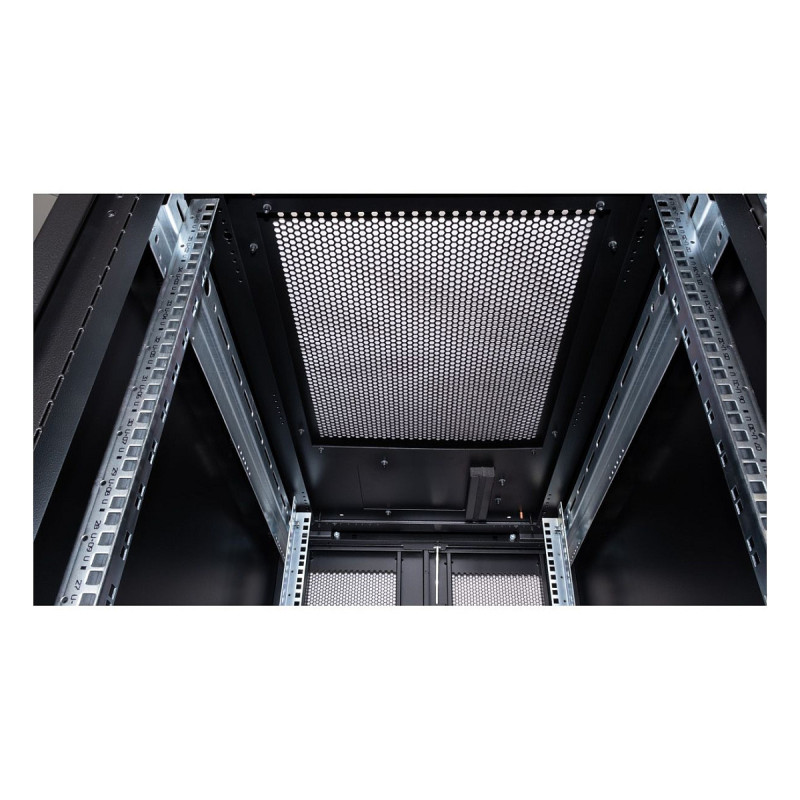

The server enclosures in the ROLINE Pro series have been specially developed for convenient and flexible network cabling. Inlets with brushes, a slide-on inlet with a foam rubber seal and an additional brush inlet in the base chassis are located on the sides of the roof and base (from 800 mm enclosure width), offering a wide range of possible applications. Perforated single-leaf front doors and double-leaf rear doors, each with a swivel handle and profile half cylinder, ensure improved air circulation. The roof has a perforated cover that allows easy installation of a fan module.

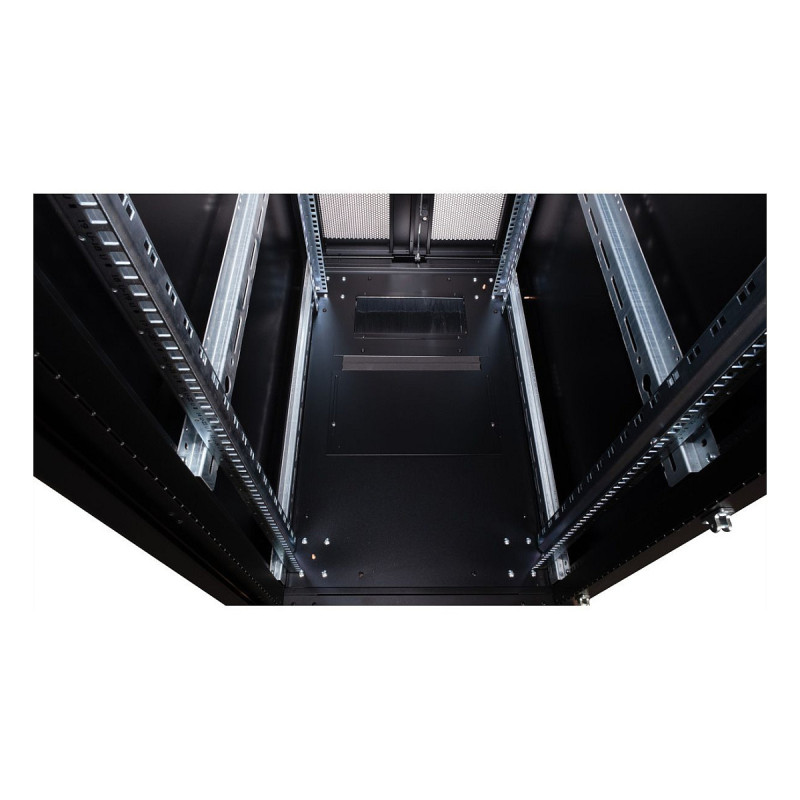

Two pairs of galvanised 19" profile rails are mounted inside the cabinet, which are equipped with height units that can be read in both directions and are adjustable in depth. They are also connected with depth braces. Each cabinet consists of a robust steel construction with a material thickness of up to 2.0 mm. The cabinets are electrostatically powder-coated and available in the standard colours grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels (horizontally divided from 42U) and doors improve accessibility. The door hinges can also be changed. The entire construction can be dismantled, meaning that the cabinets can be completely removed if required.

Features

Rack capacity: 47U
Type: Freestanding rack
Maximum weight capacity: 1000 kg
Product colour: Black
Material: Steel
Front door construction: Perforated
Feature: Removable back door
Feature: Removable front door
Feature: Removable side panels
Feature: Side panels included
Feature: Adjustable feet
Cooling type: Passive
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 1000 mm
Height: 2194 mm
Weight: 117.7 kg
Mounting depth (min): 67.5 cm
Mounting depth (max): 87.5 cm

Packaging data

Feature: Mounting kit
Feature: Quick installation guide
Package width: 680 mm
Package depth: 1040 mm
Package height: 2372 mm
Package weight: 126 kg
