ROLINE 26.21.0158 rack cabinet

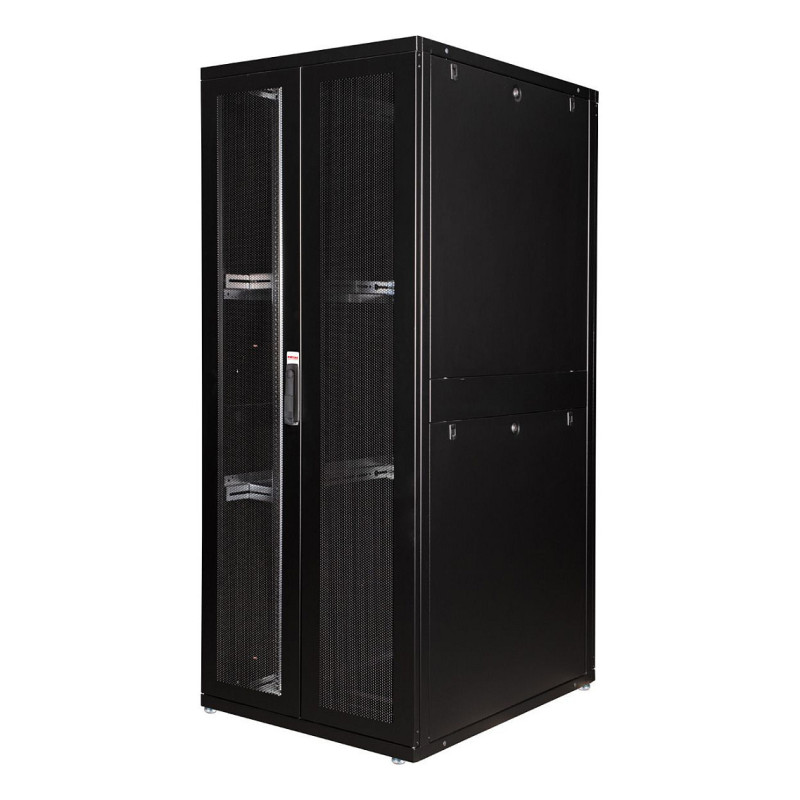

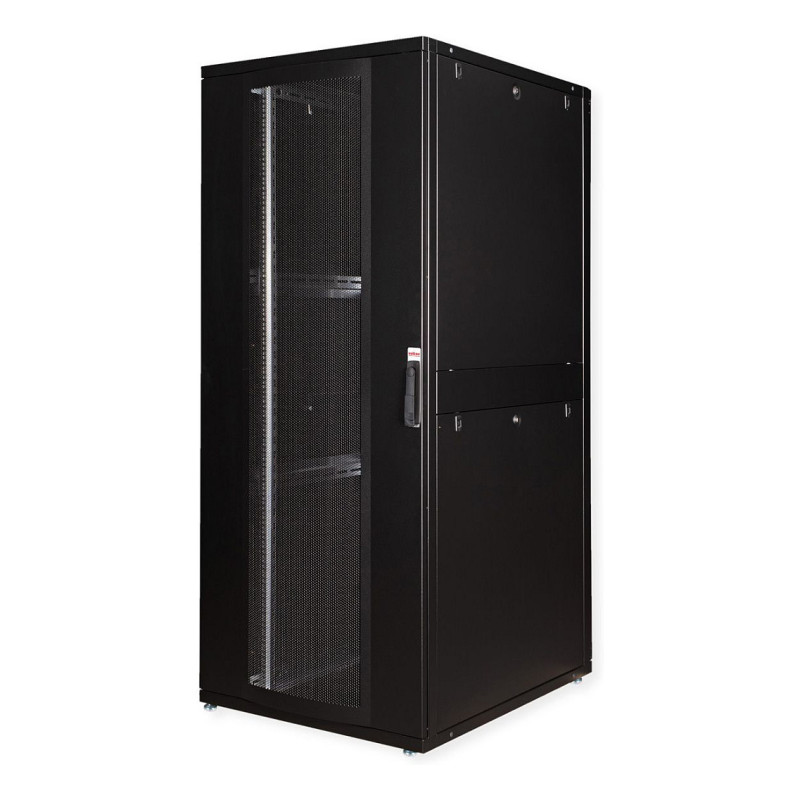

ROLINE 19-inch server rack Pro 42 U, 800x1000 WxD black. Type: Freestanding rack, Rack capacity: 42U, Maximum weight capacity: 1000 kg, Adjustable feet, International Protection (IP) code: IP20. Weight: 125.8 kg. Product colour: Black

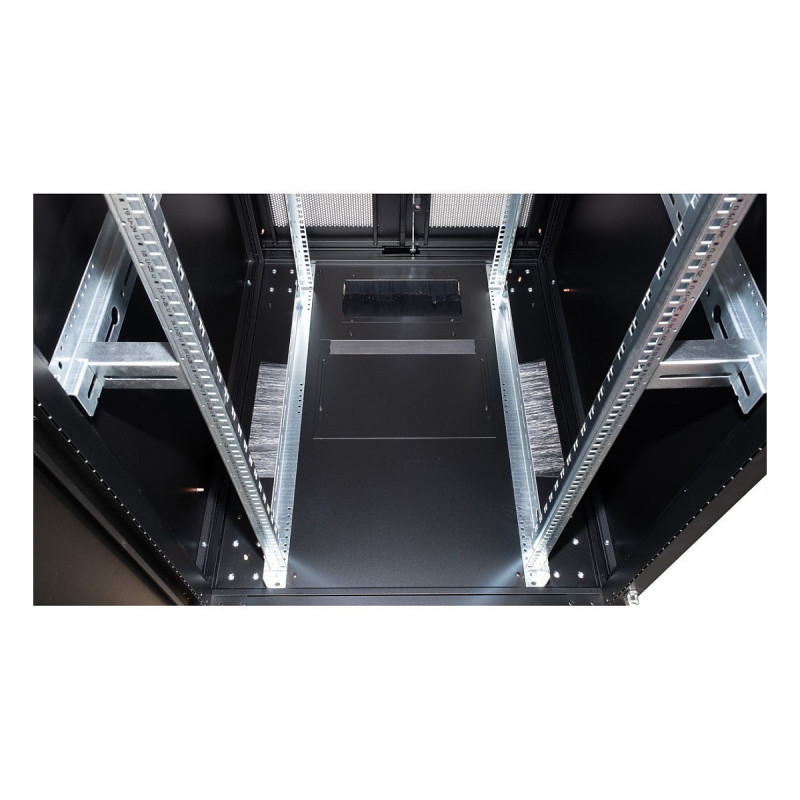

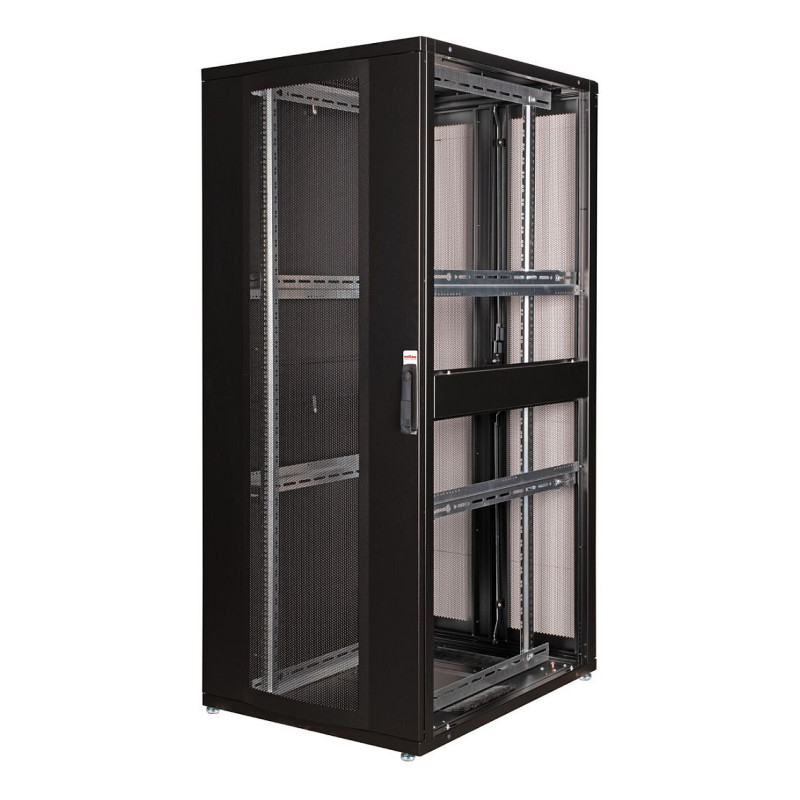

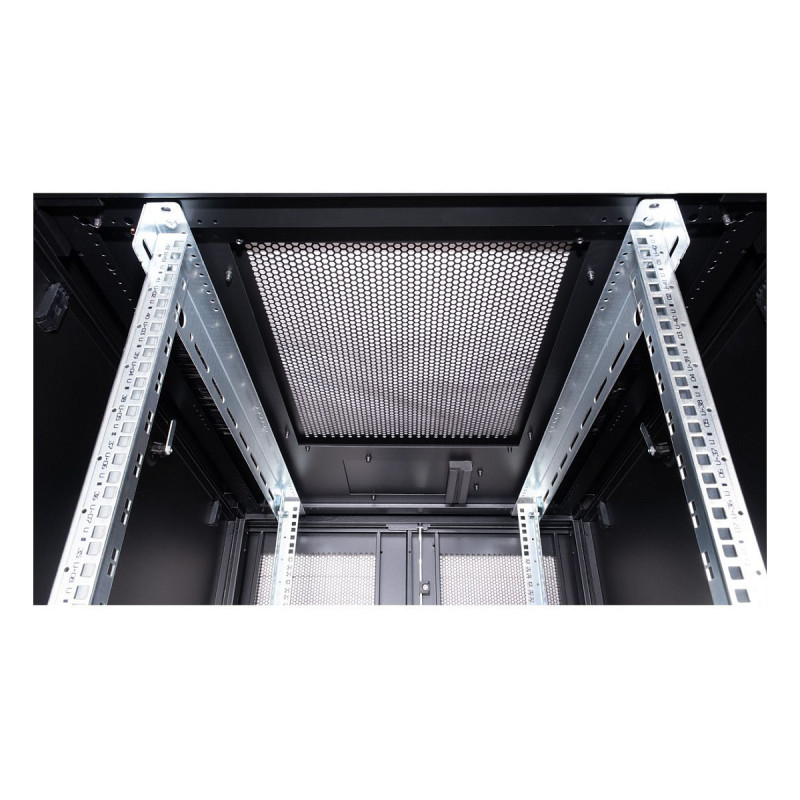

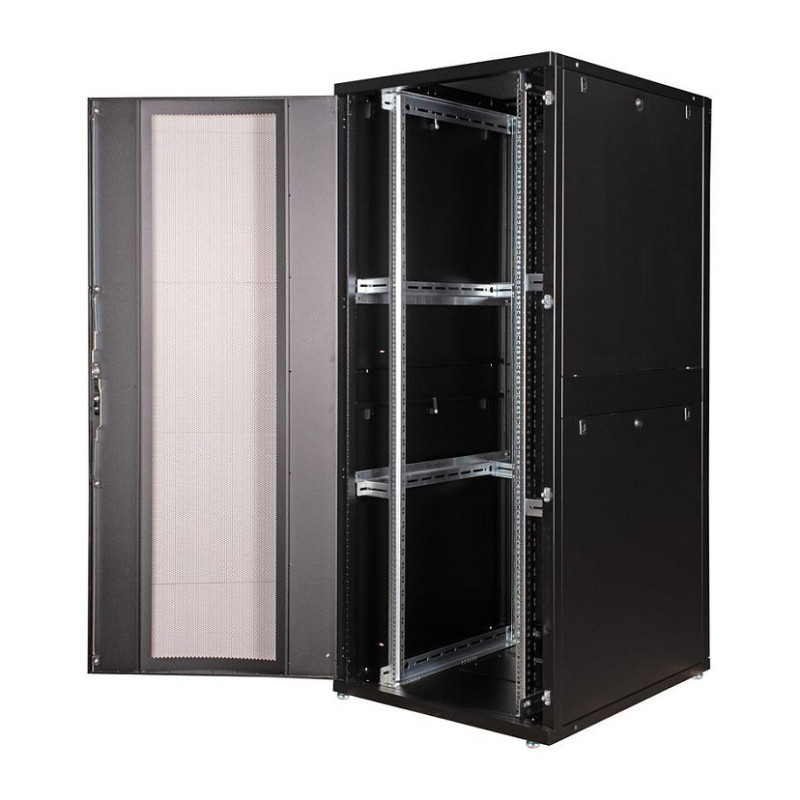

The server enclosures in the ROLINE Pro series have been specially developed for convenient and flexible network cabling. Inlets with brushes, a slide-on inlet with a foam rubber seal and an additional brush inlet in the base chassis are located on the sides of the roof and base (from 800 mm enclosure width), offering a wide range of possible applications. Perforated single-leaf front doors and double-leaf rear doors, each with a swivel handle and profile half cylinder, ensure improved air circulation. The roof has a perforated cover that allows easy installation of a fan module.
Two pairs of galvanised 19" profile rails are mounted inside the cabinet, which are equipped with height units that can be read in both directions and are adjustable in depth. They are also connected with depth braces. Each cabinet consists of a robust steel construction with a material thickness of up to 2.0 mm. The cabinets are electrostatically powder-coated and available in the standard colours grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels (horizontally divided from 42U) and doors improve accessibility. The door hinges can also be changed. The entire construction can be dismantled, meaning that the cabinets can be completely removed if required.

Features

Rack capacity: 42U
Type: Freestanding rack
Maximum weight capacity: 1000 kg
Product colour: Black
Material: Steel
Front door construction: Perforated
Removable back door: Yes
Removable front door: Yes
Removable side panels: Yes
Side panels included: Yes
Adjustable feet: Yes
Cooling type: Passive
International Protection (IP) code: IP20

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 800 mm
Depth: 1000 mm
Height: 1970 mm
Weight: 125.8 kg
Mounting depth (min): 67.5 cm
Mounting depth (max): 87.5 cm

Packaging data

Mounting kit: Yes
Quick installation guide: Yes
Package width: 850 mm
Package depth: 1040 mm
Package height: 2150 mm
Package weight: 133.1 kg
