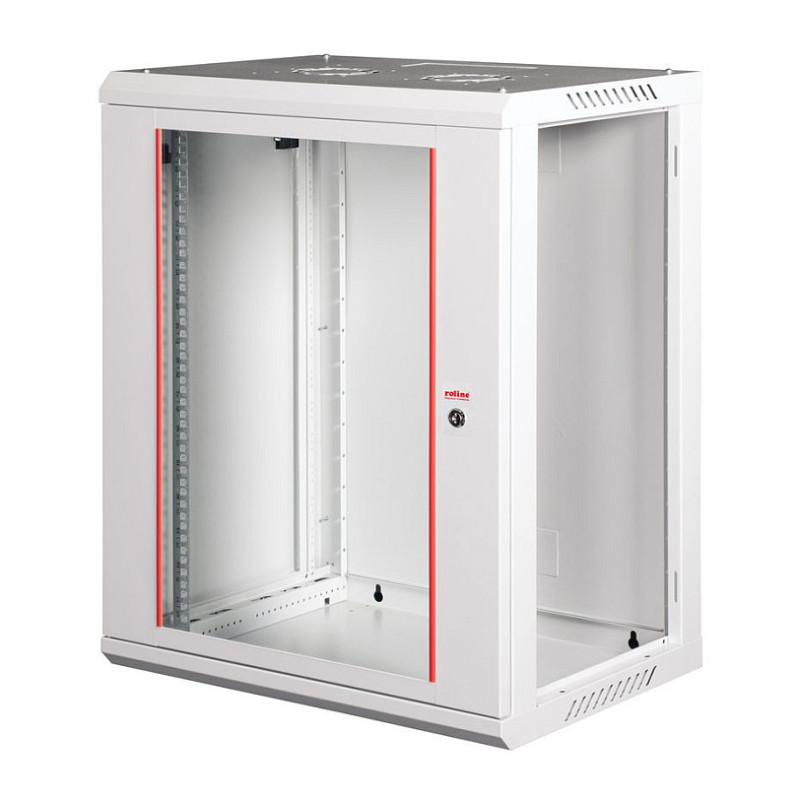

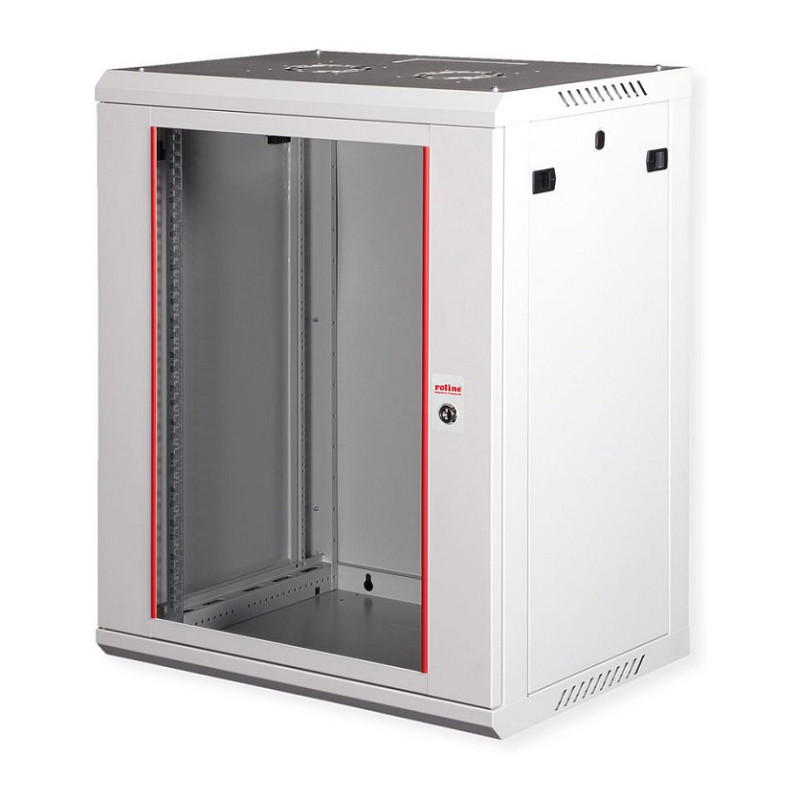

ROLINE 26.21.0127 rack cabinet

ROLINE 26.21.0127. Type: Wall mounted rack, Rack capacity: 18U, Maximum weight capacity: 80 kg, Rack rails, International Protection (IP) code: IP20. Weight: 20.6 kg. Product colour: Grey

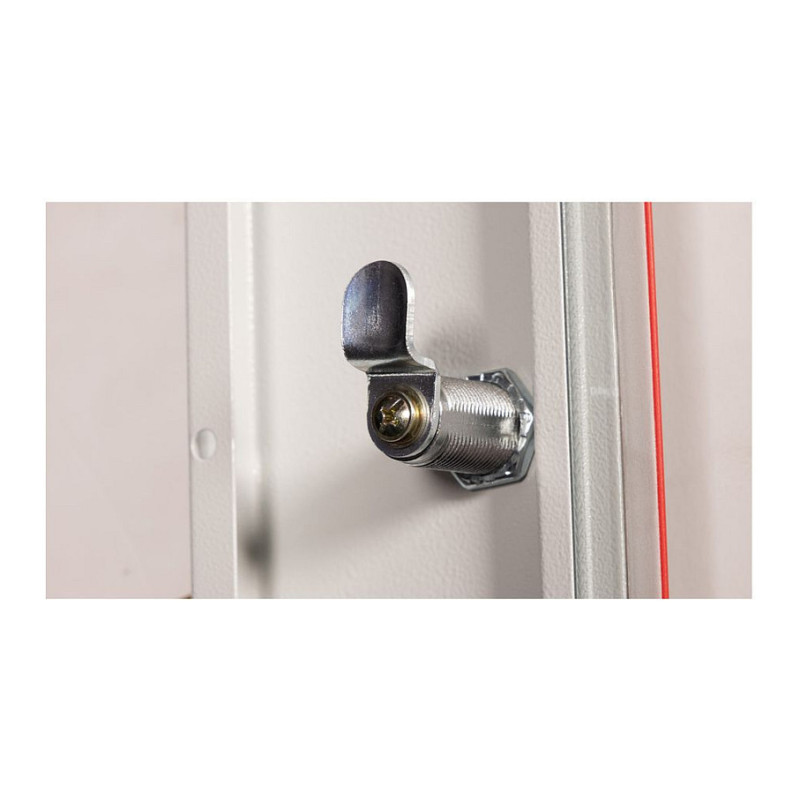

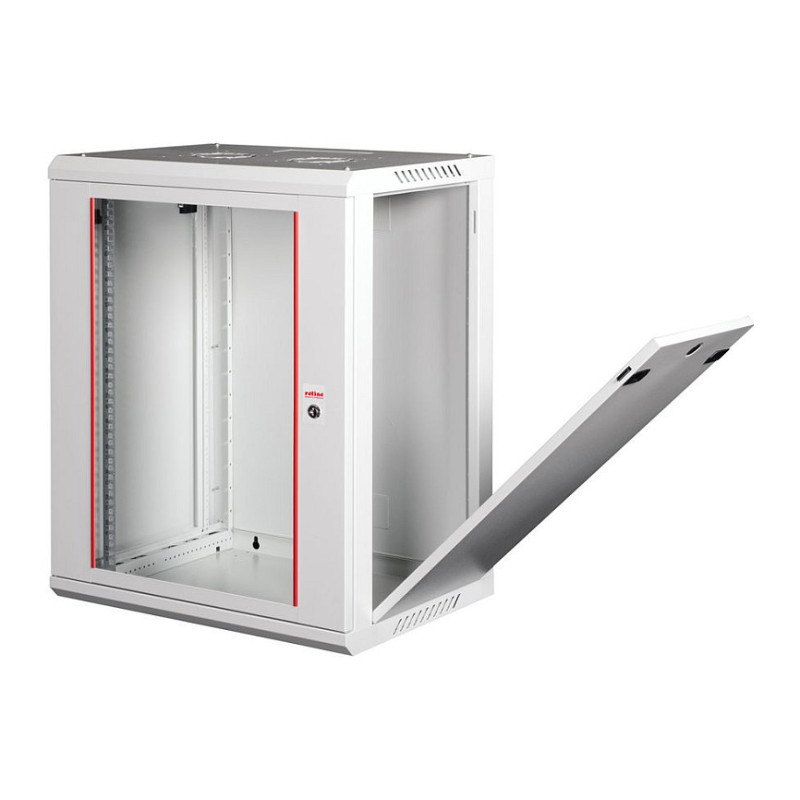

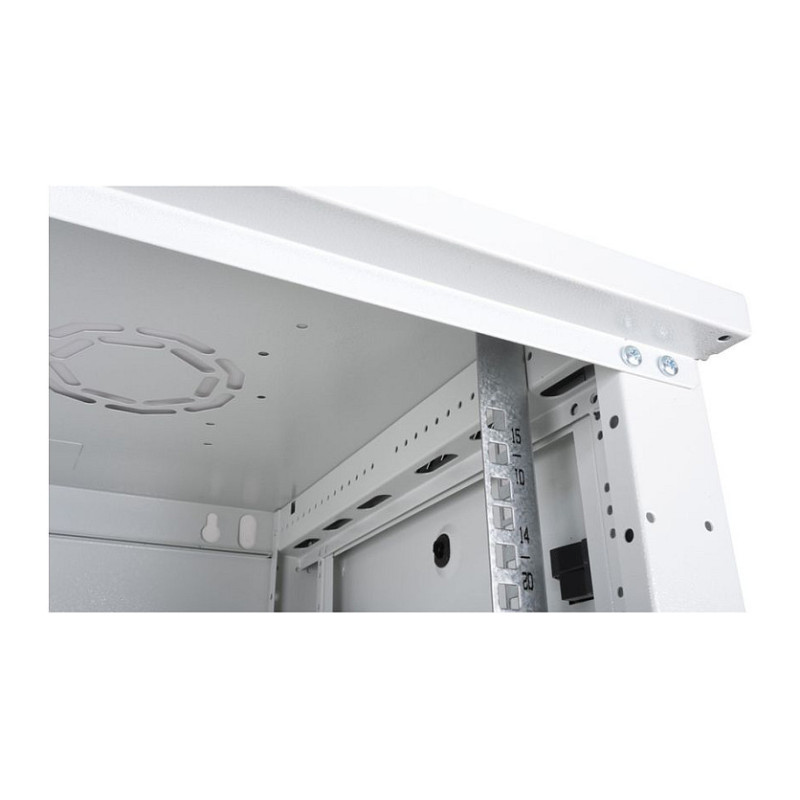

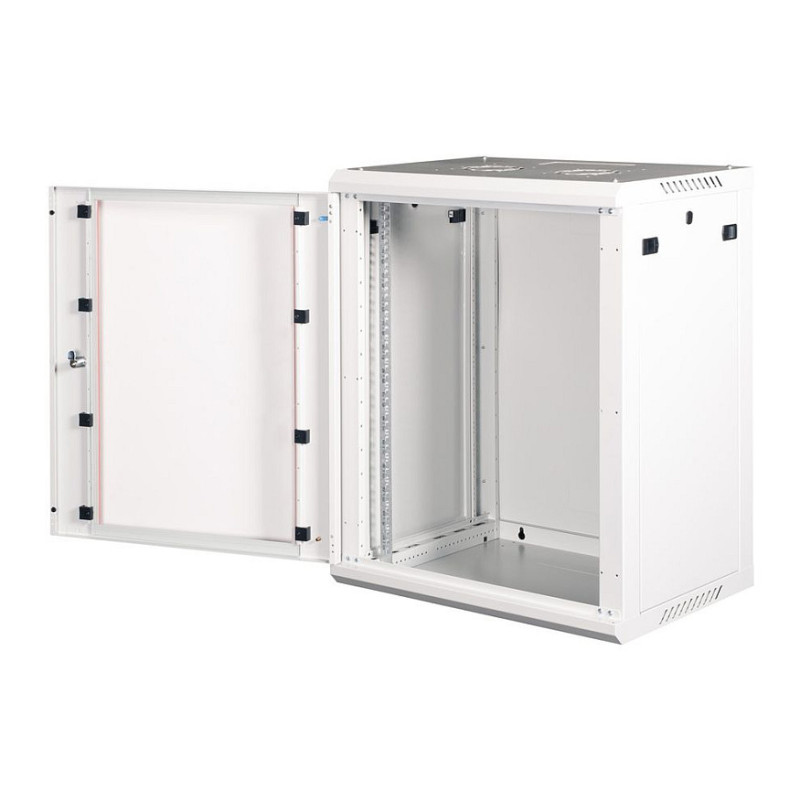

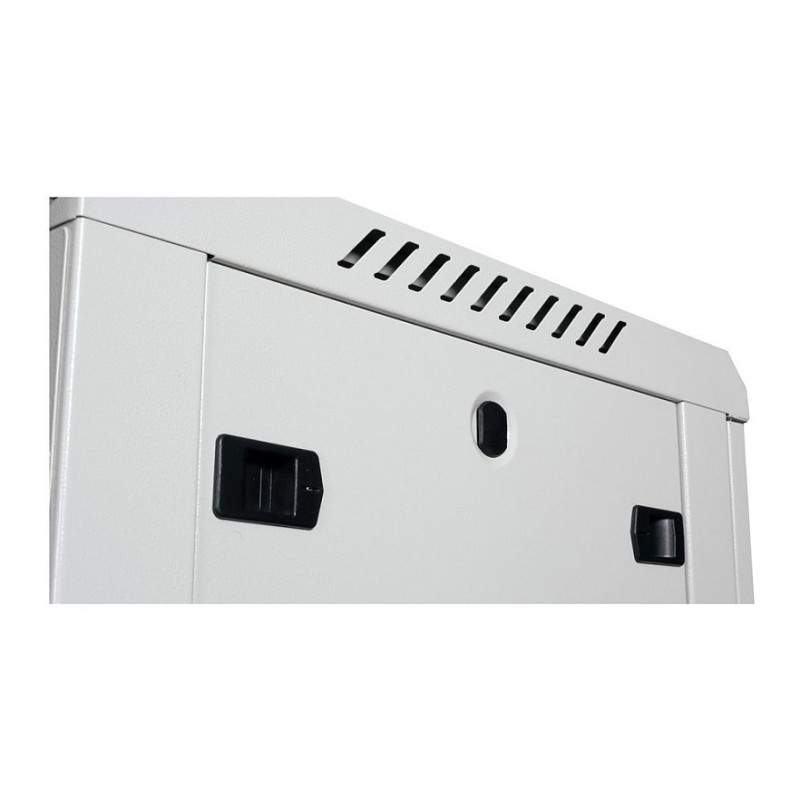

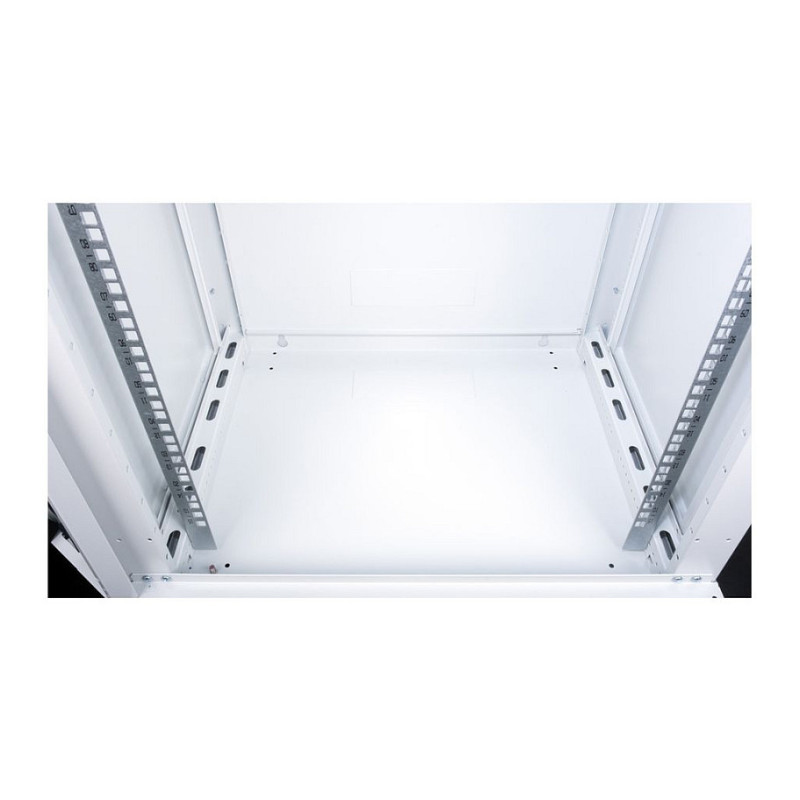

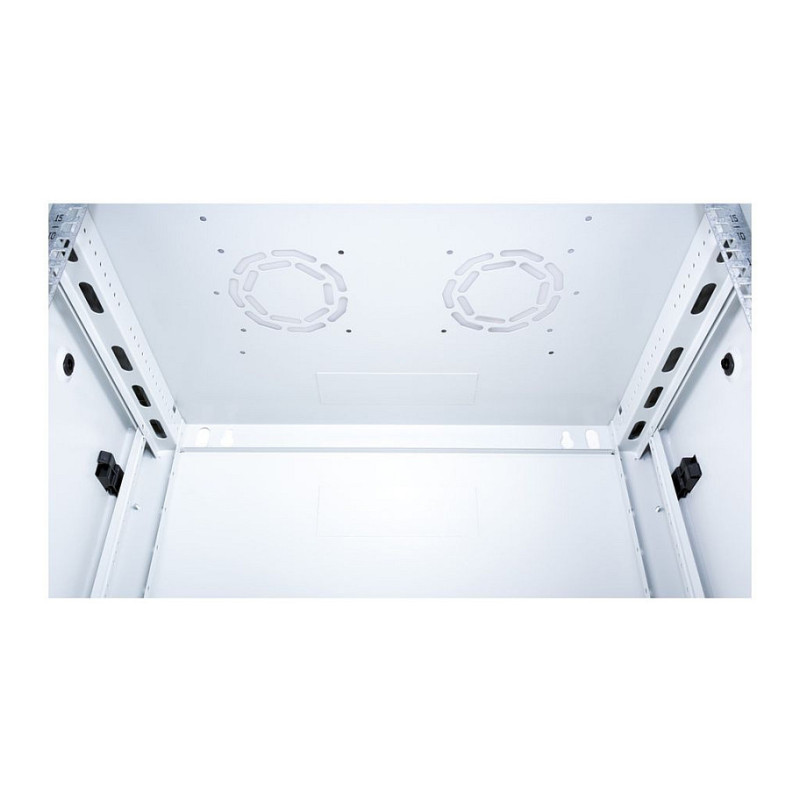

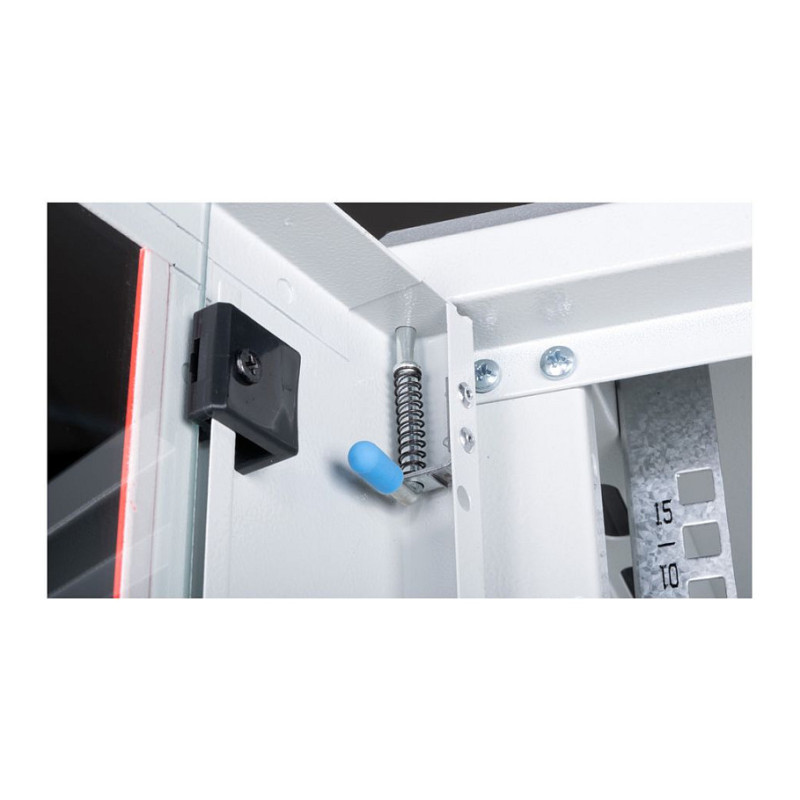

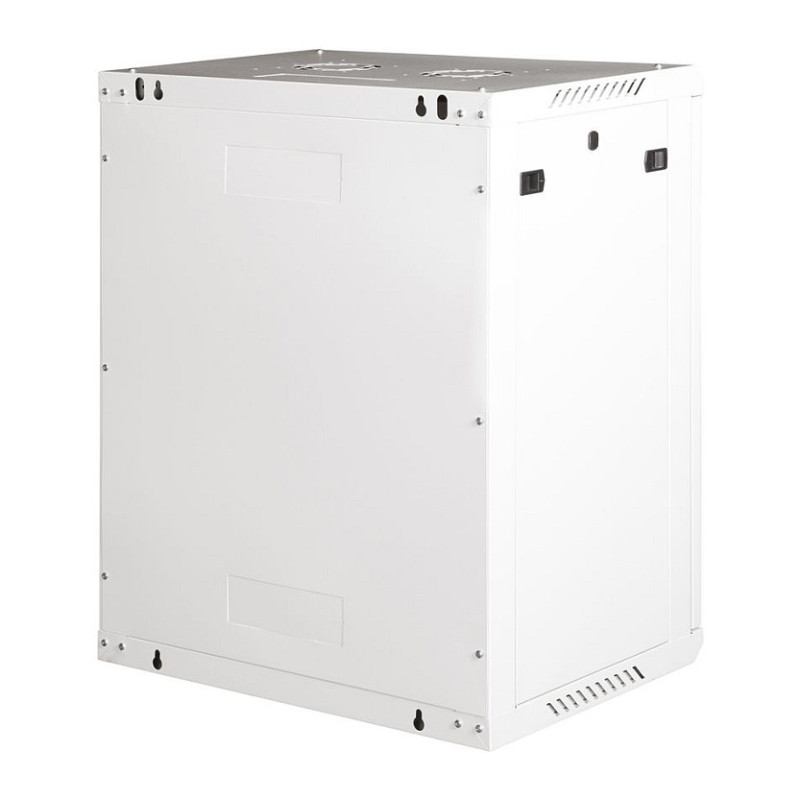

The wall-mounted enclosures in the ROLINE Basic Plus series have been specially designed for flexible network cabling. This series represents an ideal balance between the ROLINE PRO and ROLINE Basic series. The base plate and the roof are equipped with a punched cable inlet. In addition, a punched-out area in the roof makes it possible to accommodate a fan module. Inside, a pair of galvanised profile rails with height units of 483 mm (19") are installed, which are also adjustable in depth. The robust steel constructions of the cabinets are made of strong sheet steel and are available powder-coated in grey (RAL 7035) or black (RAL 9005). The side panels are fitted with a quick-release fastener and are removable, which improves accessibility. An optional lock can also be installed in the side panels. Wall mounting is carried out in two simple steps: Firstly, the rear panel is screwed to the wall and then connected to the housing. Optional levelling feet or castors can be used to make the cabinets free-standing.

Features

Rack capacity: 18U
Type: Wall mounted rack
Maximum weight capacity: 80 kg
Product colour: Grey
Material: Steel
Front door construction: Glass
Removable back door: No
Removable front door: Yes
Removable side panels: Yes
Side panels included: Yes
Rack rails: Yes
Adjustable feet: No
International Protection (IP) code: IP20

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 450 mm
Height: 912 mm
Weight: 20.6 kg

Packaging data

Mounting kit: Yes
Quick installation guide: Yes
Package width: 630 mm
Package depth: 480 mm
Package height: 933 mm
Package weight: 22.9 kg
