ROLINE 26.21.0089 rack cabinet

ROLINE 19-inch wall-mounted housing Pro 16 U, 600x600 WxD IP55 outdoor grey. Type: Wall mounted rack, Rack capacity: 16U, International Protection (IP) code: IP55. Weight: 49 kg. Product colour: Grey

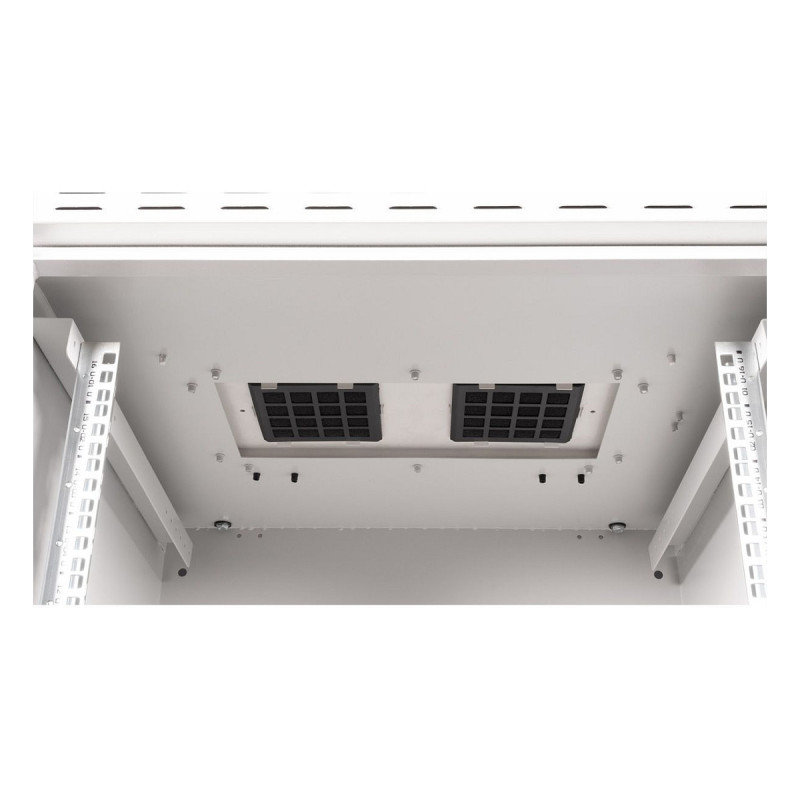

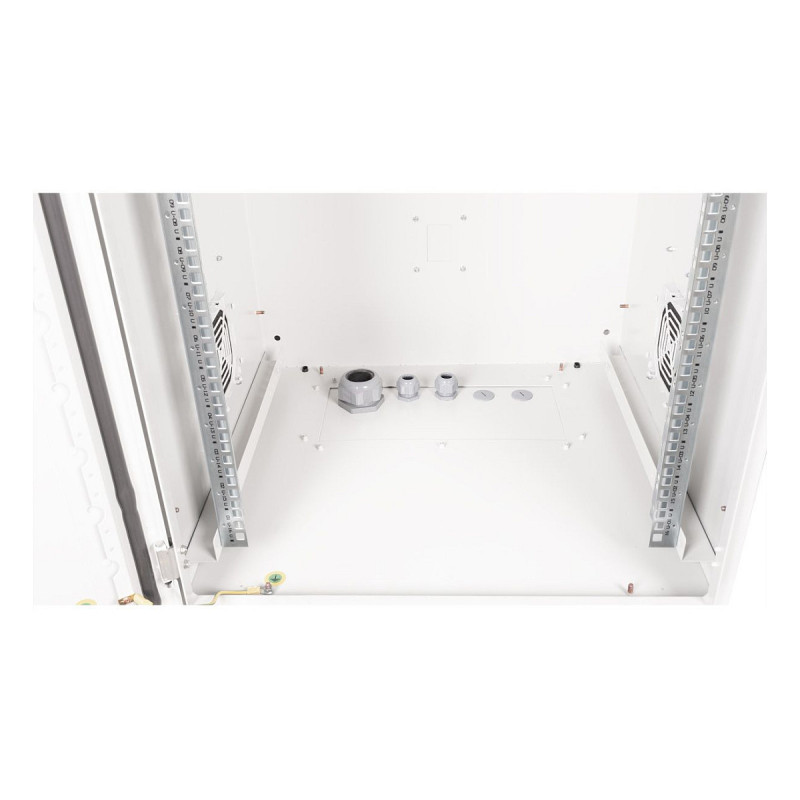

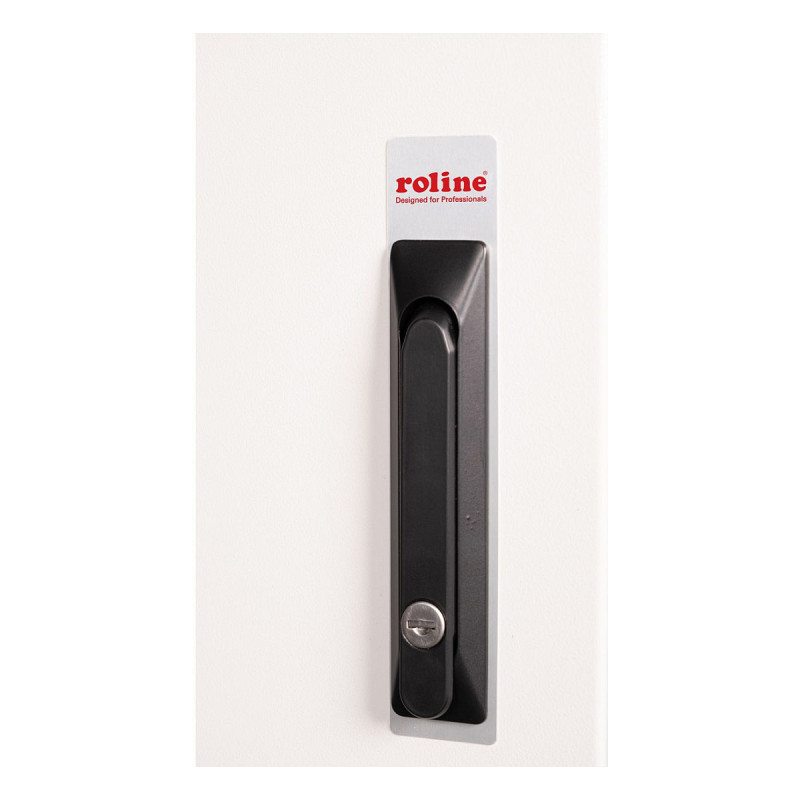

The outdoor network enclosures for wall mounting have been developed in accordance with protection class IP55 and are specially designed for use in harsh environments, particularly outdoors. The wall-mounted enclosures offer a 3-point locking system with lockable swivelling handle and insulated PG cable glands. Integrated ventilation filter housings ensure ventilation and provide protection against water and dust in accordance with IP54. These enclosures are ideal for outdoor areas that are exposed to environmental influences such as rain, hail and splash water. The roof chassis is equipped with a filtered area for the installation of a fan module. Inside there is a pair (from 600 mm depth two pairs) of galvanised 19" profile rails, which can be read in both directions and are adjustable in depth. Each cabinet consists of a robust steel construction with a material thickness of up to 2.0 mm.
The colouring is done by electrostatic powder coating in the standard colour grey (RAL 7035). Wall mounting is carried out using the enclosed mounting brackets. Optionally, the cabinets can be used with a base as a free-standing solution or attached to poles using a mounting set.

Features

Rack capacity: 16U
Type: Wall mounted rack
Product colour: Grey
Material: Steel
Front door construction: Steel
Removable front door: Yes
Cooling type: Passive
International Protection (IP) code: IP55

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 600 mm
Height: 891 mm
Weight: 49 kg
Mounting depth (min): 26 cm
Mounting depth (max): 53.5 cm

Packaging data

Mounting kit: Yes
Package width: 690 mm
Package depth: 630 mm
Package height: 910 mm
Package weight: 52 kg
