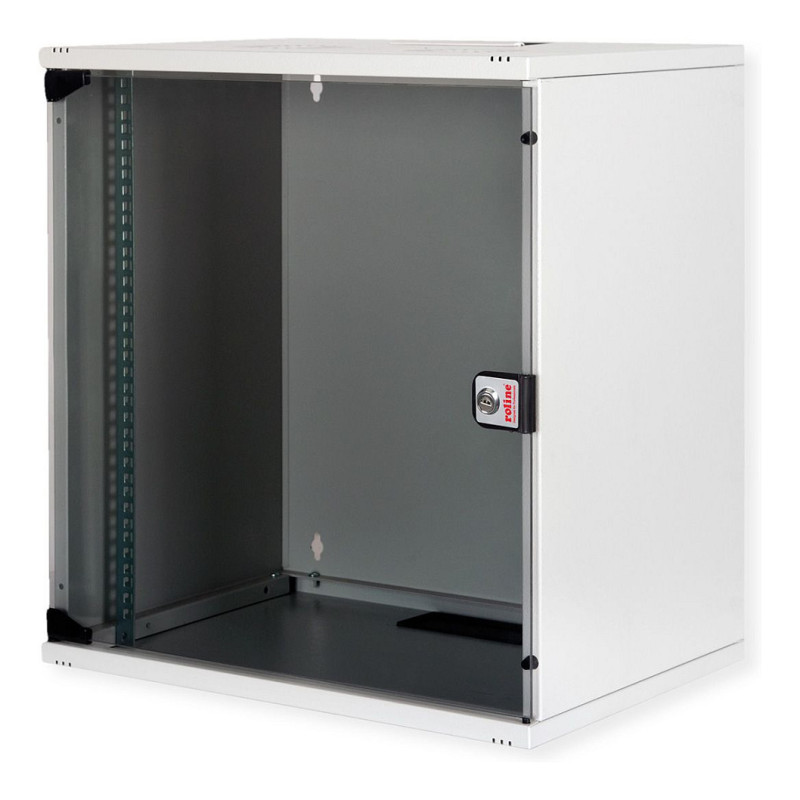

ROLINE 26.21.0018 rack cabinet

ROLINE 19-inch wall-mounted housing Basic 12 U, 540x400 WxD kit grey. Type: Wall mounted rack, Rack capacity: 12U, Key lock, Rack rails, International Protection (IP) code: IP20. Weight: 13.5 kg. Product colour: Grey

The 19" wall-mounted cabinets in the ROLINE Basic series are supplied unassembled as a flat pack (kit). Available in four different height units and equipped with a full glass door and cable entries with brushes on the top and bottom, they are ideal for sub-distribution or for setting up a small to medium-sized network. Inside, a pair of galvanised 19" profile rails with readable height units are installed, which are adjustable in depth. Each enclosure consists of a robust steel construction made of up to 1.5 mm thick sheet steel and is available electrostatically powder-coated in the standard colours grey (RAL 7035) and black (RAL 9005). The door hinge can be changed if required. Installation is quick and easy thanks to the enclosed installation instructions.

Features

Rack capacity: 12U
Type: Wall mounted rack
Product colour: Grey
Material: Steel
Front door construction: Glass

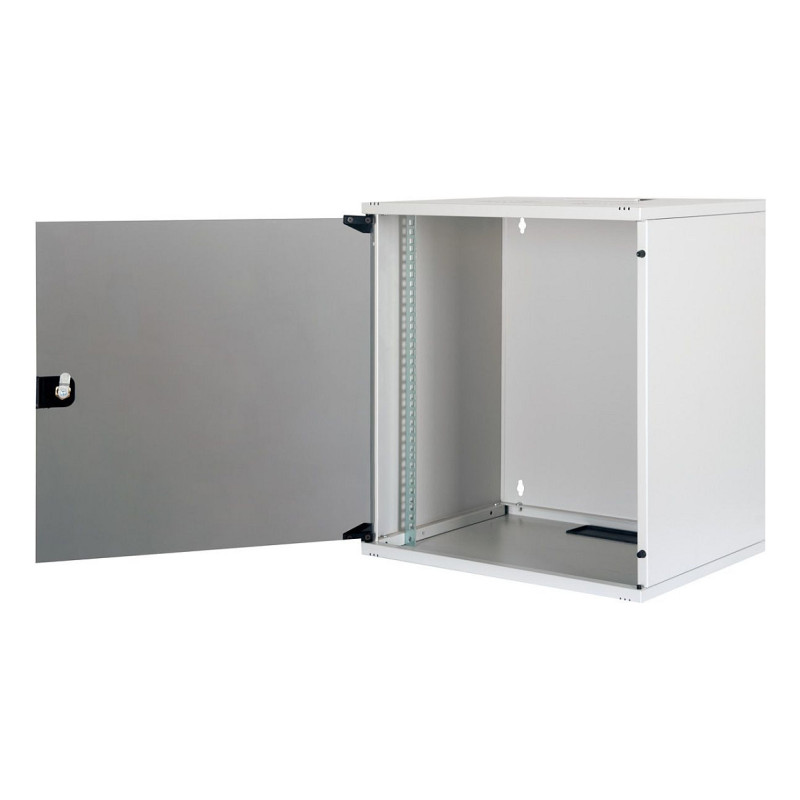

Feature: Removable front door
Feature: Side panels included
Feature: Key lock
Feature: Rack rails
Cooling type: Passive
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 540 mm
Depth: 400 mm
Height: 595 mm
Weight: 13.5 kg
Mounting depth (min): 36 cm
Mounting depth (max): 38 cm

Packaging data

Feature: Quick installation guide
Package width: 580 mm
Package depth: 650 mm
Package height: 90 mm
Package weight: 14.9 kg
