ROLINE 26.21.0005 rack cabinet

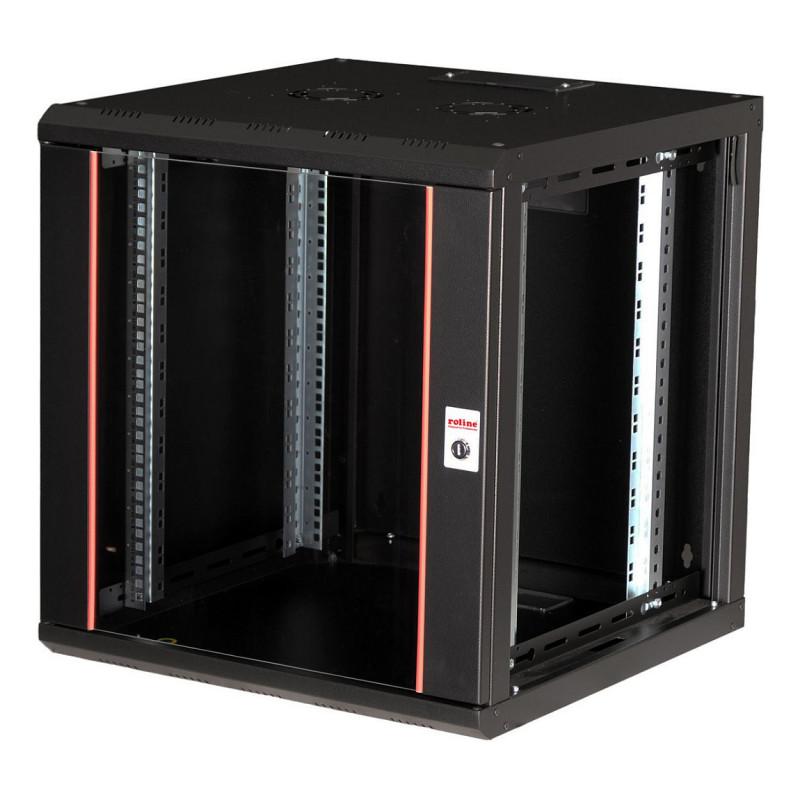

ROLINE 19-inch wall-mounted housing Pro 12 U, 600x600 WxD black. Type: Wall mounted rack, Rack capacity: 12U, Key lock, Rack rails, International Protection (IP) code: IP20. Weight: 28 kg. Product colour: Black

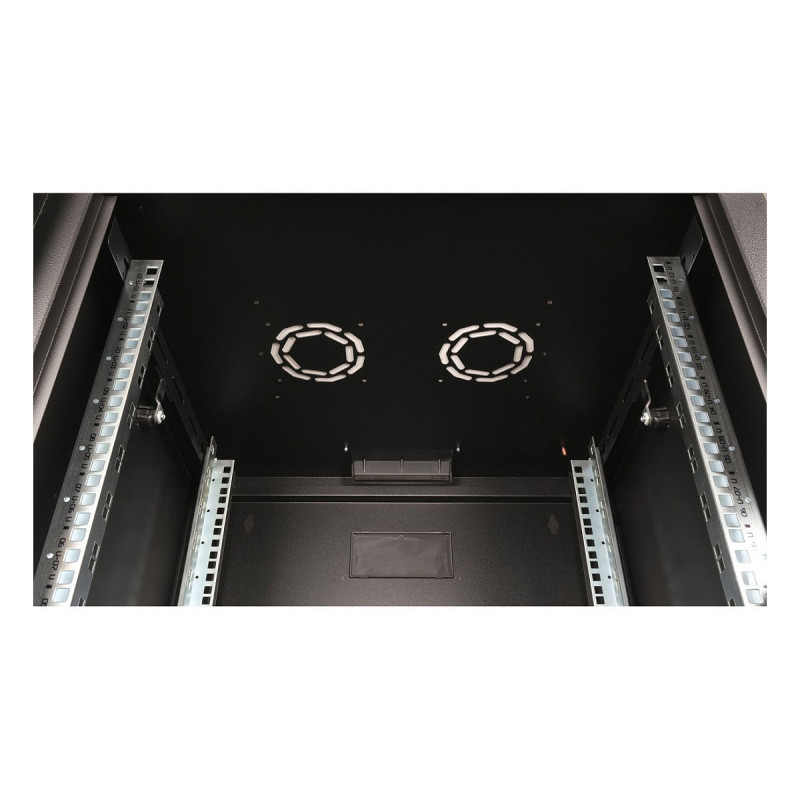

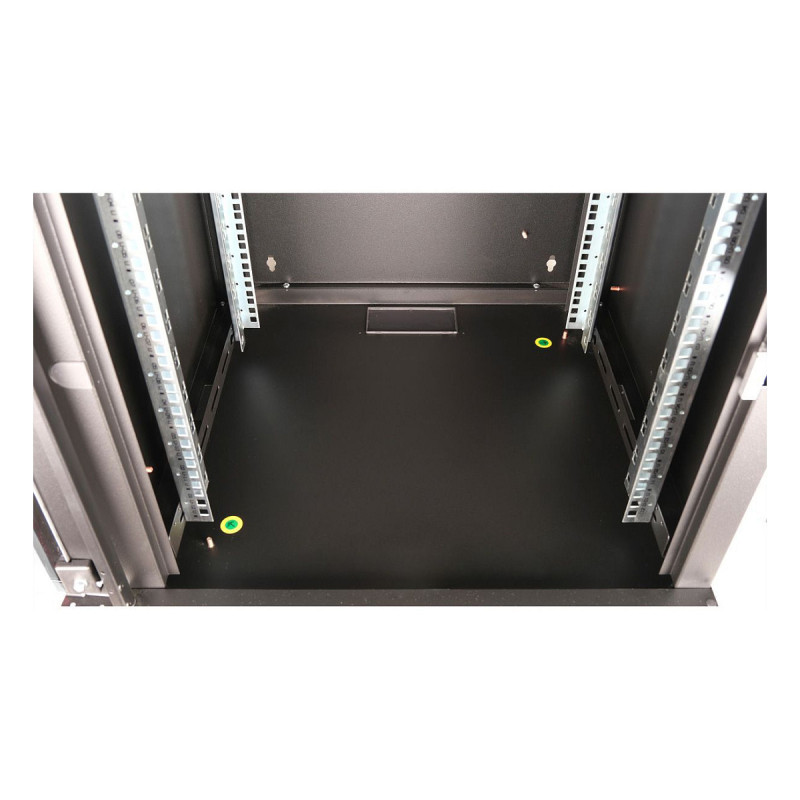

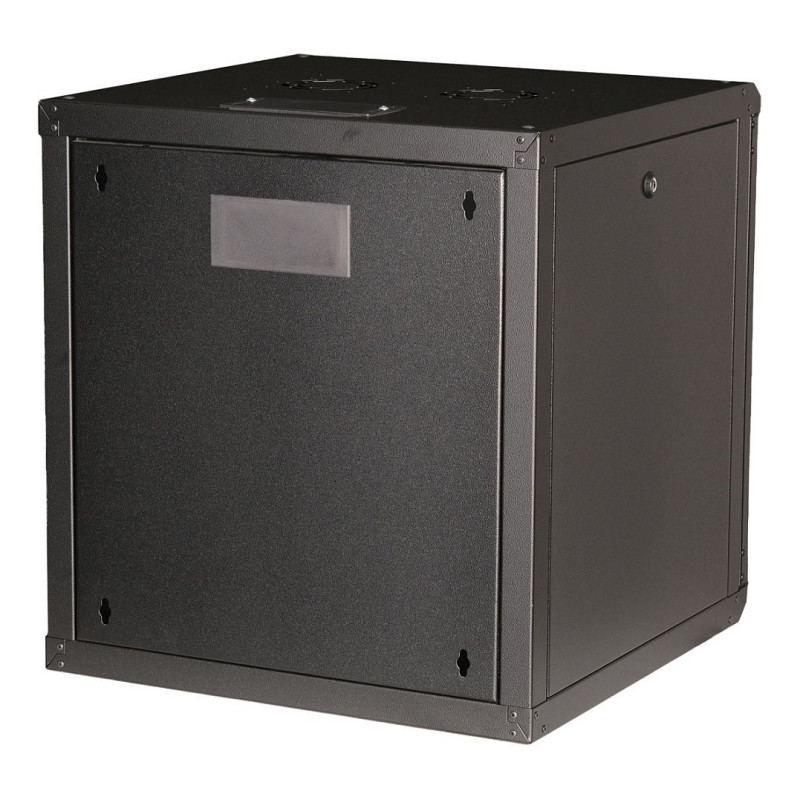

The wall-mounted enclosures in the ROLINE Pro series have been specially designed for flexible network cabling. Each enclosure has a slide-on cable inlet in the roof with a foam rubber seal. The rear panel and the base plate are equipped with punched cable inlets and plastic covers. The roof chassis has a punched-out area to accommodate a fan module. Inside, two pairs of galvanised profile rails with height units of 483 mm (19") are installed, which are also adjustable in depth. The robust steel constructions of the cabinets are made of up to 1.5 mm thick sheet steel and are available powder-coated in grey (RAL 7035) or black (RAL 9005). The side panels and front door are modular, lockable and removable, which improves accessibility. Wall mounting is carried out in two simple steps: Firstly, the rear panel is screwed to the wall and then connected to the housing. Optional levelling feet or castors can be used to make the enclosures free-standing.

Features

Rack capacity: 12U
Type: Wall mounted rack
Product colour: Black
Material: Steel
Front door construction: Glass

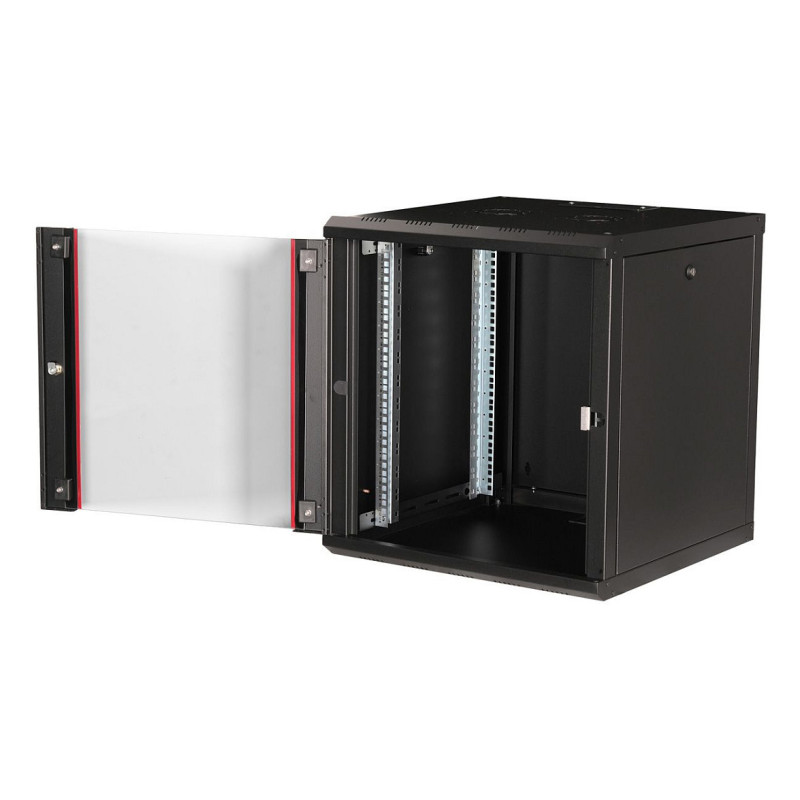

Feature: Removable front door
Feature: Removable side panels

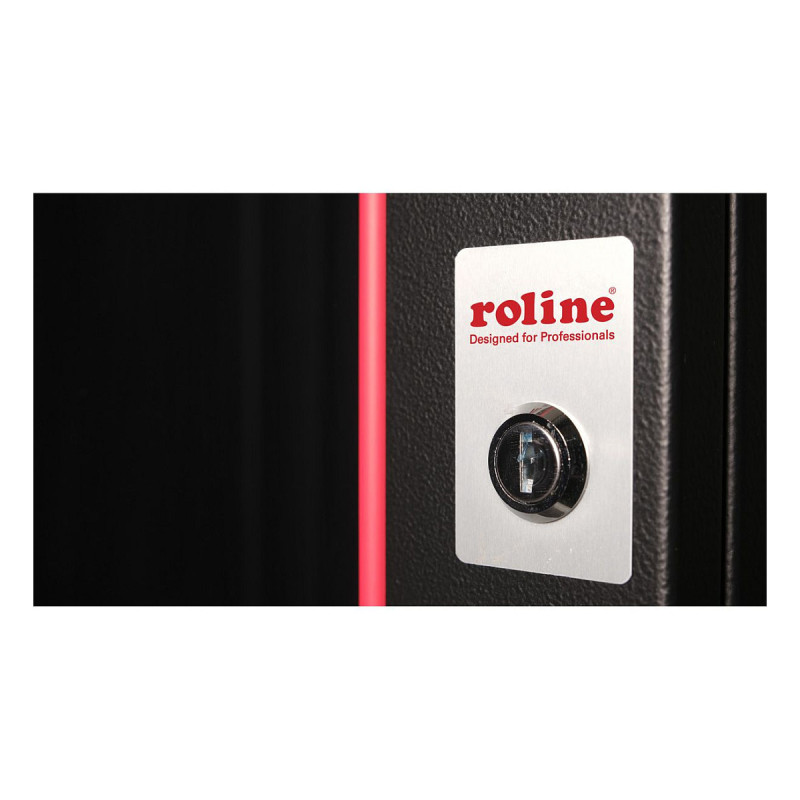

Feature: Key lock
Feature: Rack rails
Cooling type: Passive
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 600 mm
Height: 640 mm
Weight: 28 kg
Mounting depth (min): 32 cm
Mounting depth (max): 45 cm

Packaging data

Feature: Mounting kit
Feature: Quick installation guide
Package width: 650 mm
Package depth: 650 mm
Package height: 690 mm
Package weight: 31 kg
