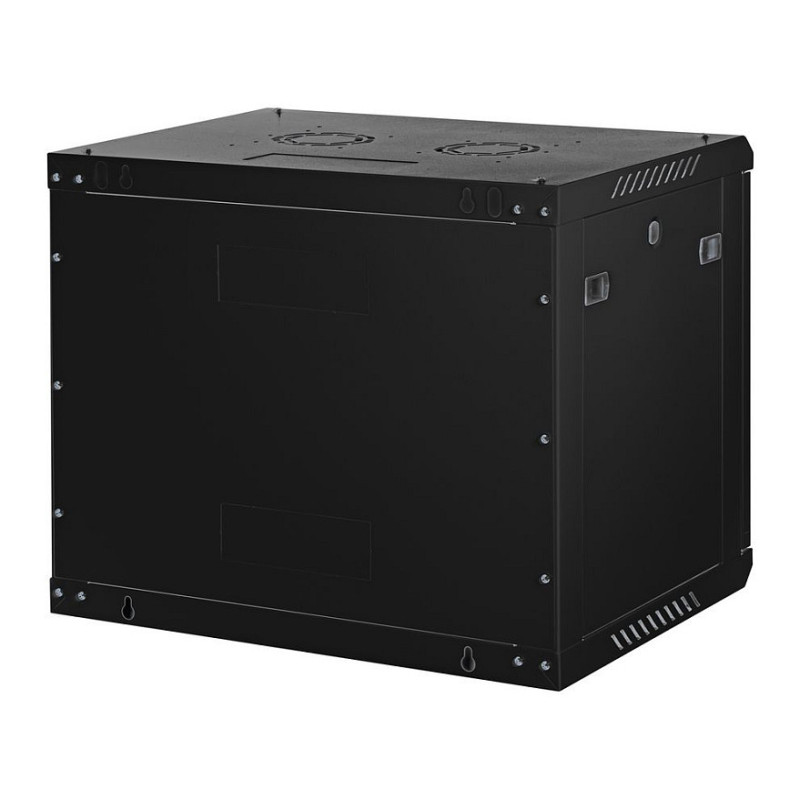

ROLINE 26.21.0284 rack cabinet

ROLINE 26.21.0284. Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 80 kg, Rack rails, International Protection (IP) code: IP20. Weight: 13.4 kg. Product colour: Black

The wall-mounted enclosures in the ROLINE Basic Plus series have been specially designed for flexible network cabling. This series represents an ideal balance between the ROLINE PRO and ROLINE Basic series. The base plate and the roof are equipped with a punched cable inlet. In addition, a punched-out area in the roof makes it possible to accommodate a fan module. Inside, a pair of galvanised profile rails with height units of 483 mm (19") are installed, which are also adjustable in depth. The robust steel constructions of the cabinets are made of strong sheet steel and are available powder-coated in grey (RAL 7035) or black (RAL 9005). The side panels are fitted with a quick-release fastener and are removable, which improves accessibility. An optional lock can also be installed in the side panels. Wall mounting is carried out in two simple steps: Firstly, the rear panel is screwed to the wall and then connected to the housing. Optional levelling feet or castors can be used to make the cabinets free-standing.

Features

Rack capacity: 9U
Type: Wall mounted rack
Maximum weight capacity: 80 kg
Product colour: Black
Material: Steel
Front door construction: Glass
Feature: Removable front door
Feature: Removable side panels
Feature: Side panels included
Feature: Rack rails
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 450 mm
Height: 512 mm
Weight: 13.4 kg

Packaging data

Feature: Mounting kit
Feature: Quick installation guide
Package width: 630 mm
Package depth: 480 mm
Package height: 533 mm
Package weight: 14.9 kg
