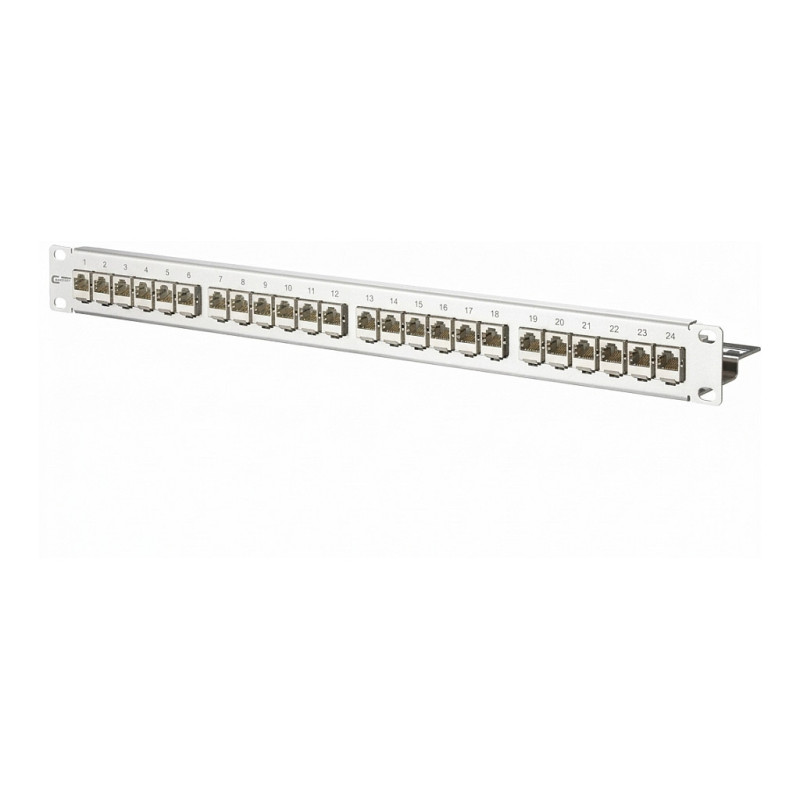

METZ CONNECT 130921-E patch panel

METZ CONNECT 130921-E. Networking standards: IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, Ethernet interface type: 10 Gigabit, Cable types supported: Cat6a. Mounting: Rack mounting, Rack capacity: 1U, Product colour: White. Compliance certificates: RoHS. Width: 442 mm, Height: 100 mm, Depth: 44.5 mm. Package width: 520 mm, Package length: 4.6 cm, Package height: 180 mm
- 19 inch 1RU stainless steel module frame with 24 individual "E-DAT modul" modules
- component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
- compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
- tested: Link to 500 MHz
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- easy to install connection of 2 to 4-pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC)
- marking of conductor assignment to T568A or T568B
- integrated cable support with optional strain relief
- grounding bolt M6 x 10 with nut and lock washer
- incl. 30 cm grounding cable
- all fully shielded modules connected by means of grounding rail

Network

Networking standards: IEEE 802.3af, IEEE 802.3an, IEEE 802.3at
Ethernet interface type: 10 Gigabit
Ports quantity: 24
Cable types supported: Cat6a

Design

Product colour: White
Mounting: Rack mounting
Rack capacity: 1U

Power

Feature: Power over Ethernet (PoE)

Certificates

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 70 °C

Weight dimensions

Width: 442 mm
Height: 100 mm
Depth: 44.5 mm

Packaging data

Package width: 520 mm
Package length: 4.6 cm
Package height: 180 mm
Package weight: 1.8 kg
Package type: Box
