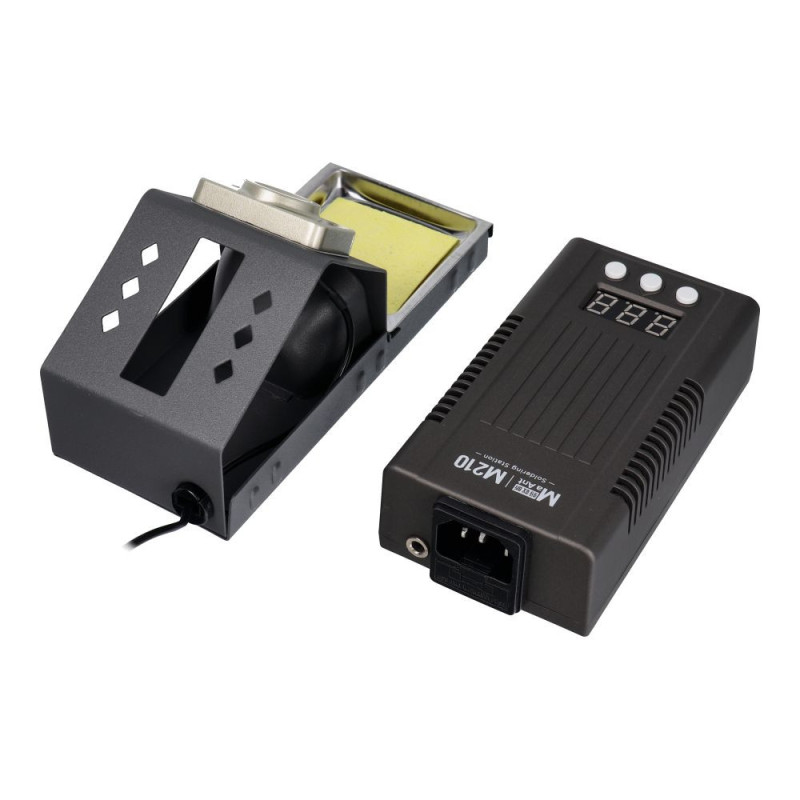

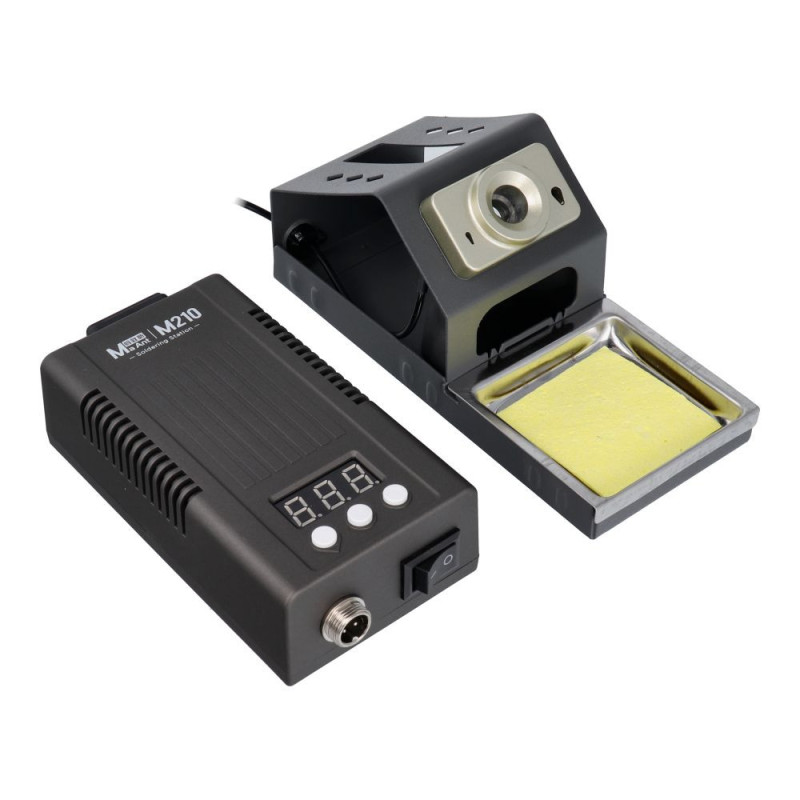

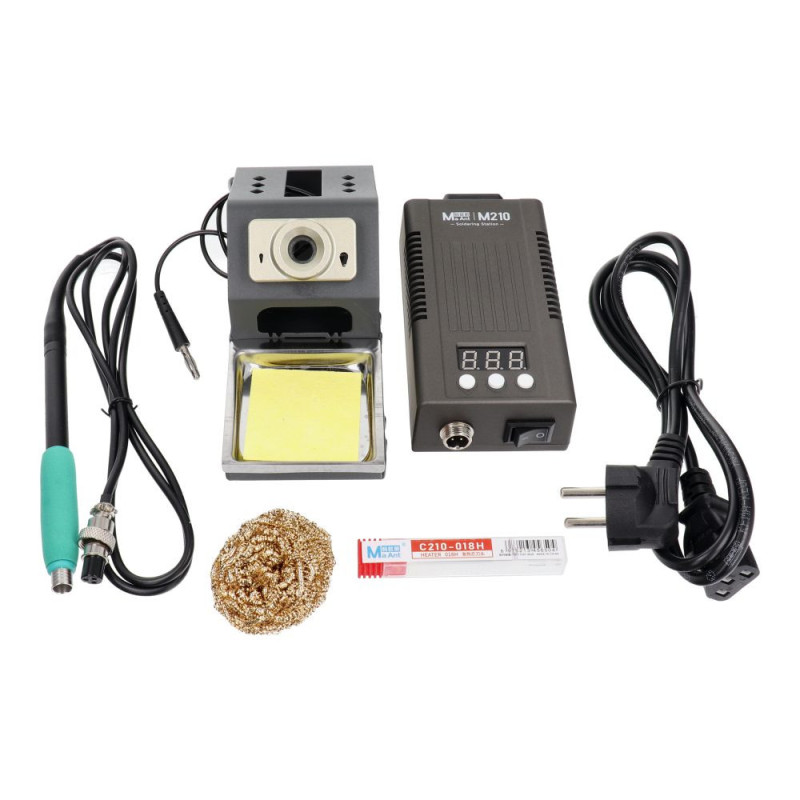

MAANT M210 Micro-Soldering Station

The MAANT M210 intelligent micro-soldering station is designed for professional electronic repair workshops, combining cutting-edge performance and an intuitive interface.

It features digital temperature management, a tool detection sensor, and advanced power control, tailored to the requirements of technicians in telephony, embedded computing, and microelectronics.

Its compact design allows for easy installation on a workstation, while its backlit OLED screen provides clear visibility of real-time parameters.

The system automatically manages temperature profiles based on detected faults, ensuring precise heating/cooling cycles and extending the lifespan of soldering tips.

Advantages:
Ultra-precise temperature for delicate work on SMD components
Automatic shutdown in case of inactivity for safety and longevity
Memorized profiles for different tasks (desoldering, fine soldering...)
Simple interface , easily customizable even without a manual
Robust construction designed for demanding environments
Firmware updates via USB to stay up to date

Technical Specifications:
Maximum power: 80 W
Temperature range: 150°C - 480°C, precision ±1°C
Screen: 1.3" OLED, wide angles, temperature display, setpoint, time
Automatic presence sensor at rest (standby mode)
Storage: of 5 user profiles
Tip compatibility: T12 series (soldering iron sold separately)
Connectivity: USB-C (firmware update), 24V DC input
Protection: overheating protection, stabilized power supply, ceramic thermal sensor
Casing: robust aluminum alloy,
Dimensions: 120 × 100 × 90 mm
Approximate weight: 1 kg (main unit only)
