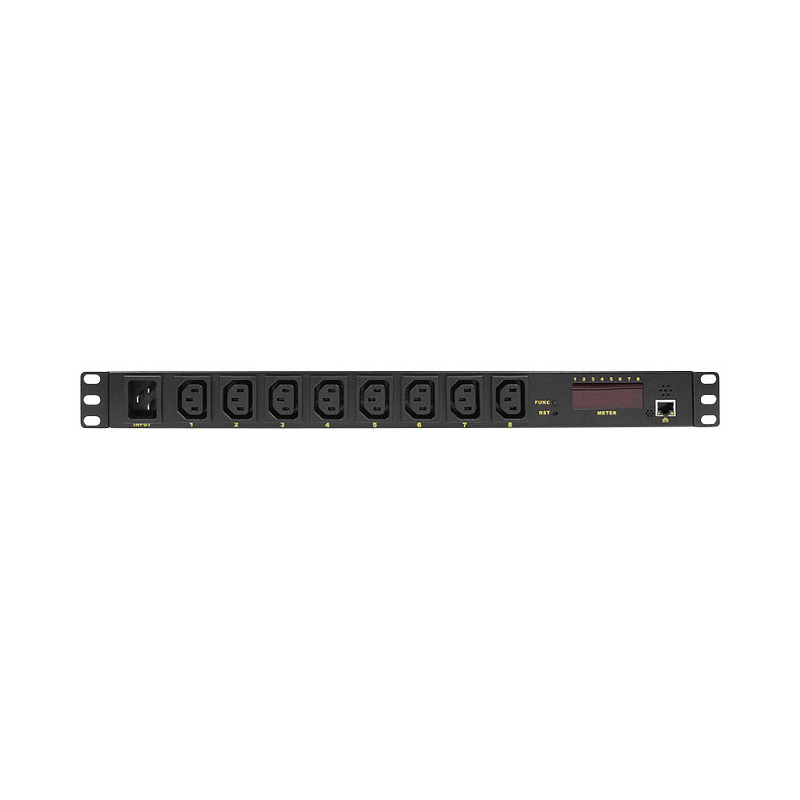

LogiLink PDU8P01 power distribution unit (PDU)

LogiLink PDU8P01. PDU types: Monitored, Rack capacity: 1U, Product colour: Black. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Monitoring: Current, Humidity, Temperature, Voltage. Nominal input voltage: 110-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS

Whether as an extension or as an option to be able to connect even more devices for example to a single wall oulet, LogiLink's power strip LPS262U enables you to do both. The 2 safety sockets are arranged at an angle of 45°, making it easier to plug in angled plugs. In addition, the LPS262U has sockets with safety shutter, a black/white textile cable and 3 USB-A ports for charging a smartphone, for example. Another special feature is the angled flat plug with earthing contact on the connecting cable, because it fits ideally behind furniture or in other narrow places where normal plugs are just too bulky. With the multiple power strip from LogiLink you gain a practical helper for every room, because due to its cable length of 1.5m you now have even more freedom when placing your devices, whether it is at home or in the office.

Design

PDU types: Monitored
Rack capacity: 1U
Product colour: Black

Ports & interfaces

AC outlets quantity: 8 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler
Ethernet LAN (RJ-45) ports: 1

Features

LED indicators: Yes

Management features

Monitoring: Current, Humidity, Temperature, Voltage

Power

Nominal input voltage: 110-240 V
AC input frequency: 50 - 60 Hz
Maximum current: 20 A
Power protection features: Overload

Certificates

Compliance certificates: RoHS

Packaging data

Package width: 485 mm
Package depth: 430 mm
Package height: 300 mm
Package volume: 2400 cm³

Logistics data

Master (outer) case width: 520 mm
Master (outer) case length: 430 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 15 kg
Products per master (outer) case: 6 pc(s)
