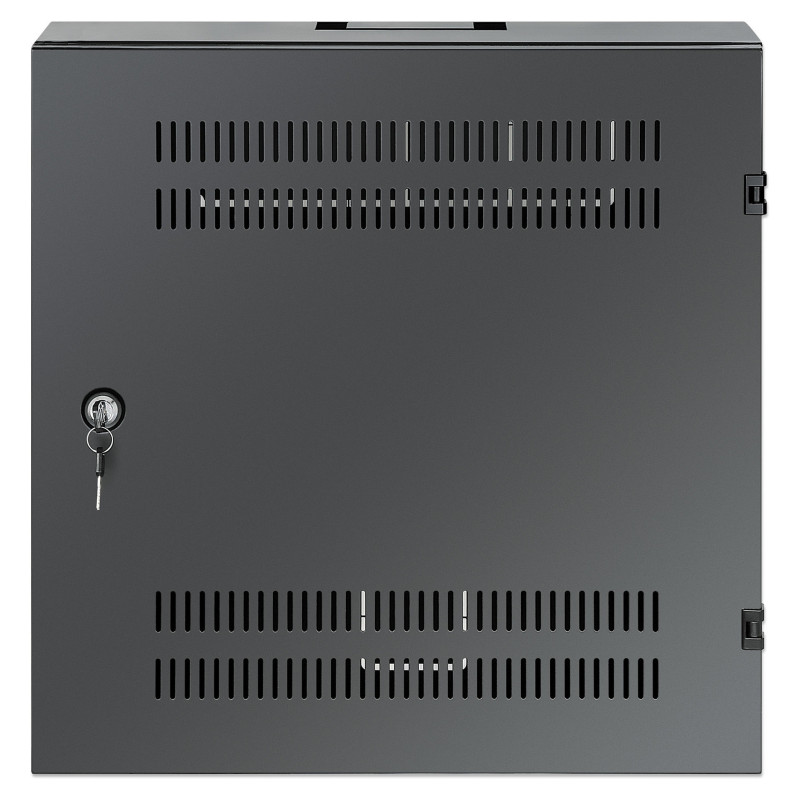

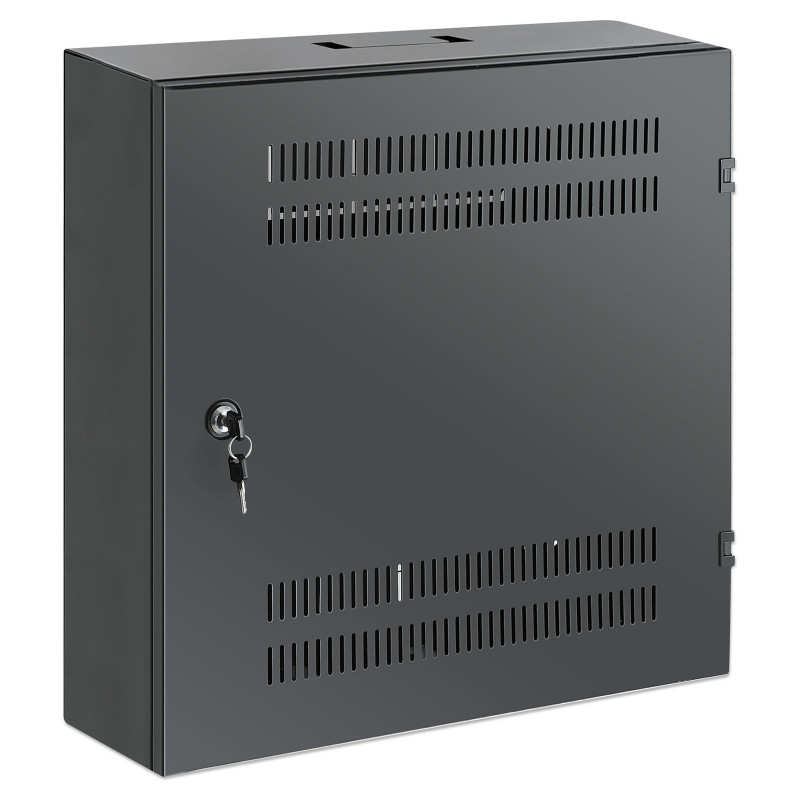

Intellinet 713689 rack cabinet

Intellinet Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Black RAL 7021. Type: Wall mounted rack, Rack capacity: 2U/4U, Maximum weight capacity: 60 kg, Key lock, International Protection (IP) code: IP20. Weight: 8.5 kg. Product colour: Black

Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more

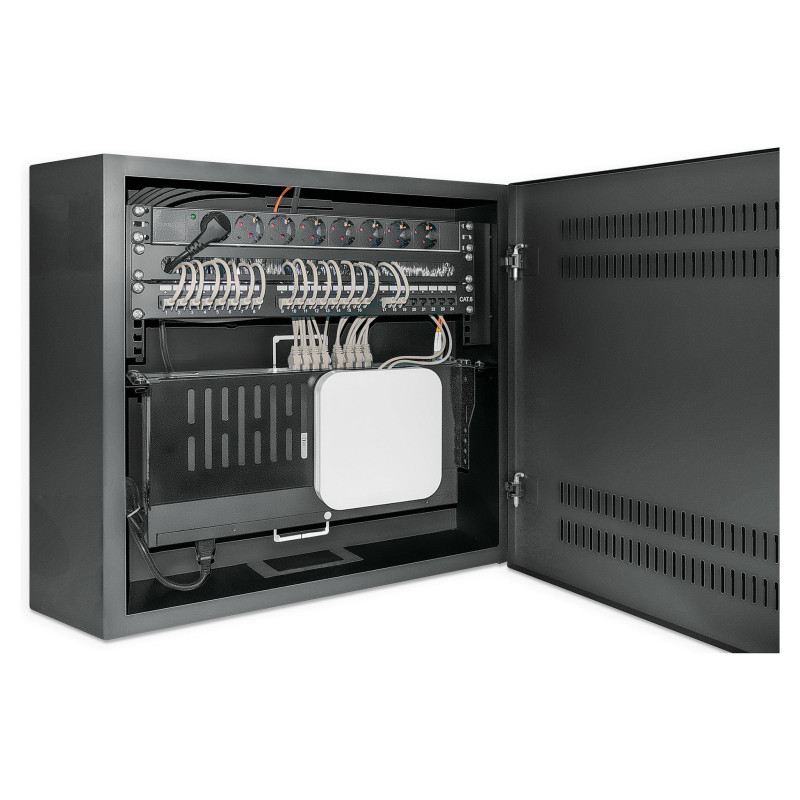

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

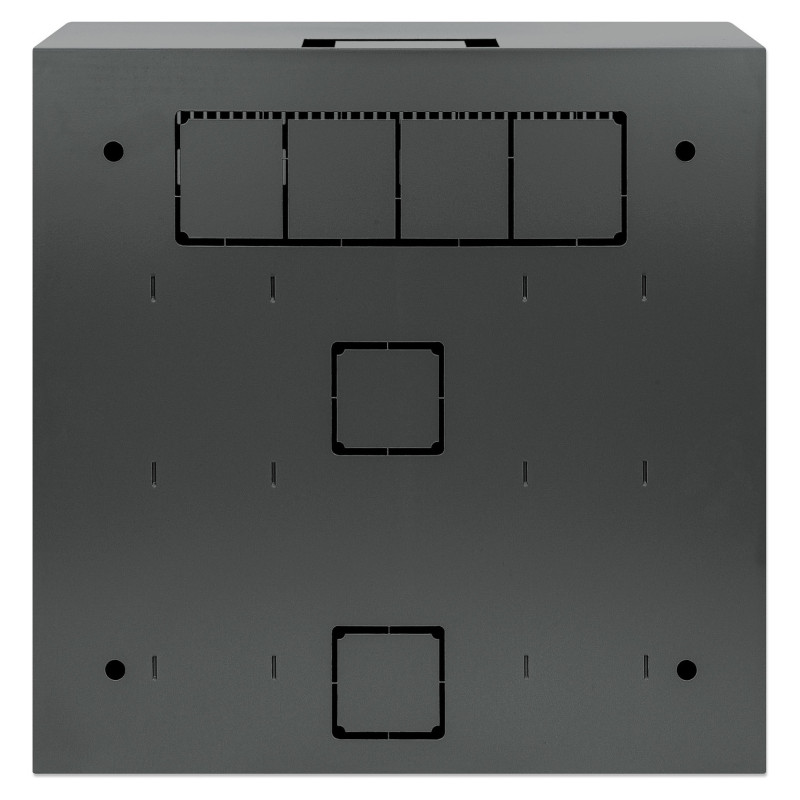

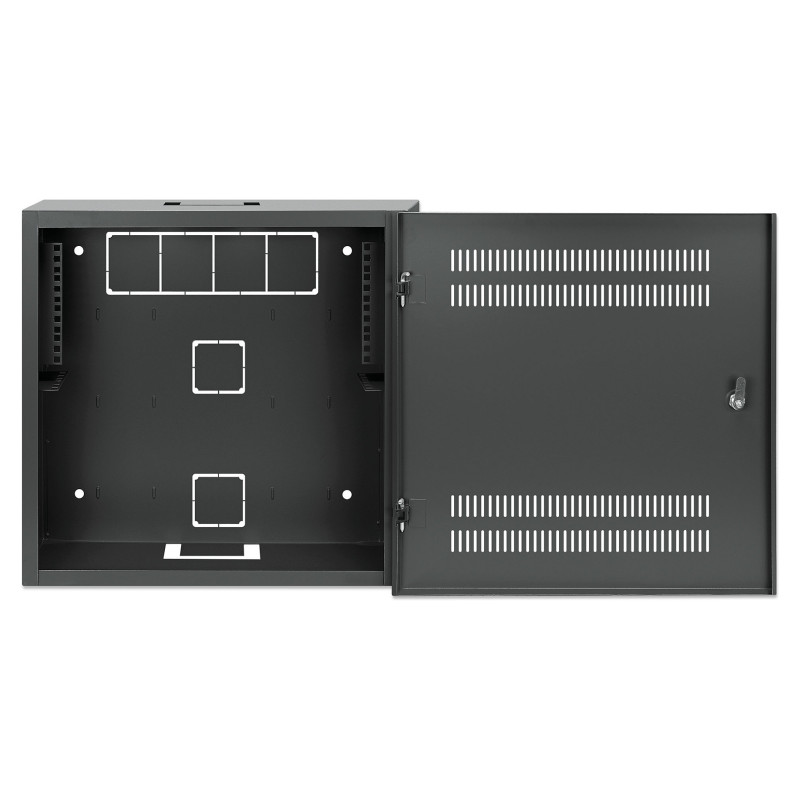

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.

Features

Rack capacity: 2U/4U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Steel
Feature: Key lock
International Protection (IP) code: IP20
Certification: RoHSIP20 Protection RatingANSI/EIA 310-EIEC 60297-2

Weight & dimensions

Width: 550 mm
Depth: 540 mm
Height: 170 mm
Weight: 8.5 kg

Packaging data

Feature: Nuts included
Number of nuts: 12
Feature: Screws included
Number of screws: 12

Technical details

Compliance certificates: RoHS
