Intellinet 713641 rack cabinet

Intellinet Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Gray RAL 7035. Type: Wall mounted rack, Rack capacity: 2U/4U, Maximum weight capacity: 60 kg, Key lock, International Protection (IP) code: IP20. Weight: 8.5 kg. Product colour: Grey
Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more

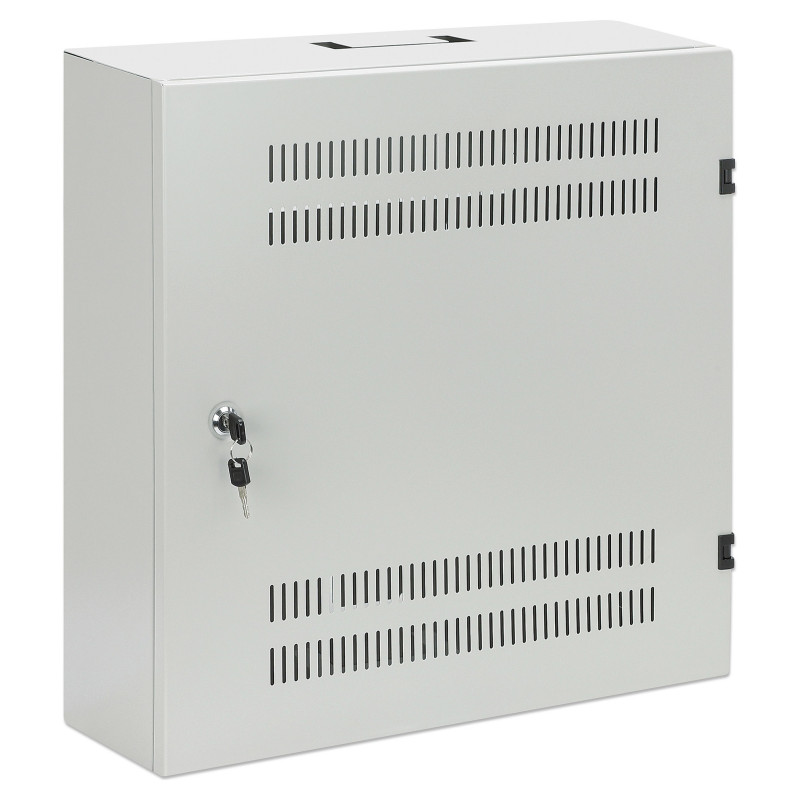

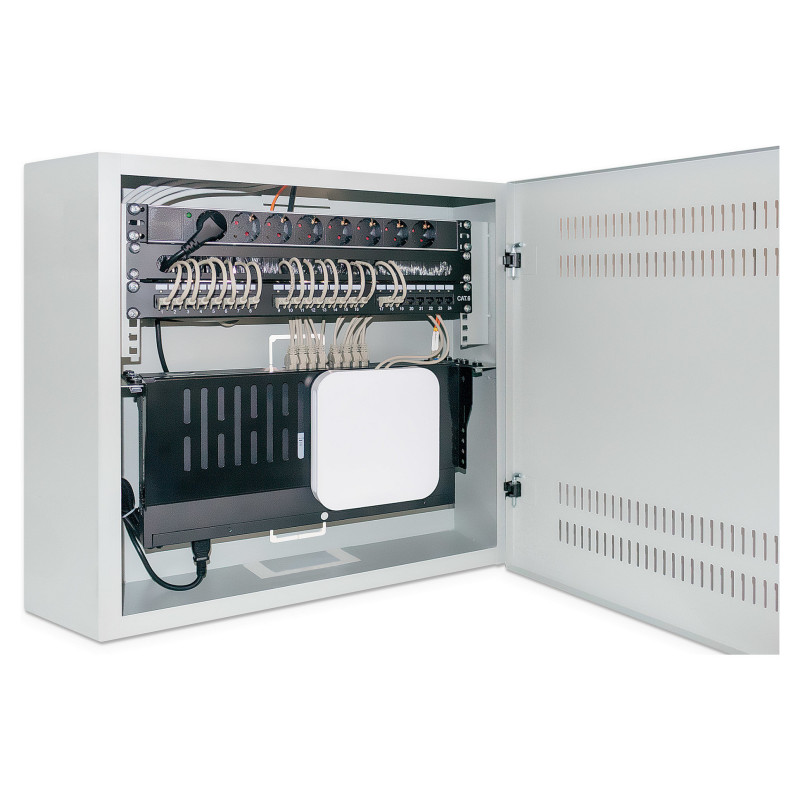

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

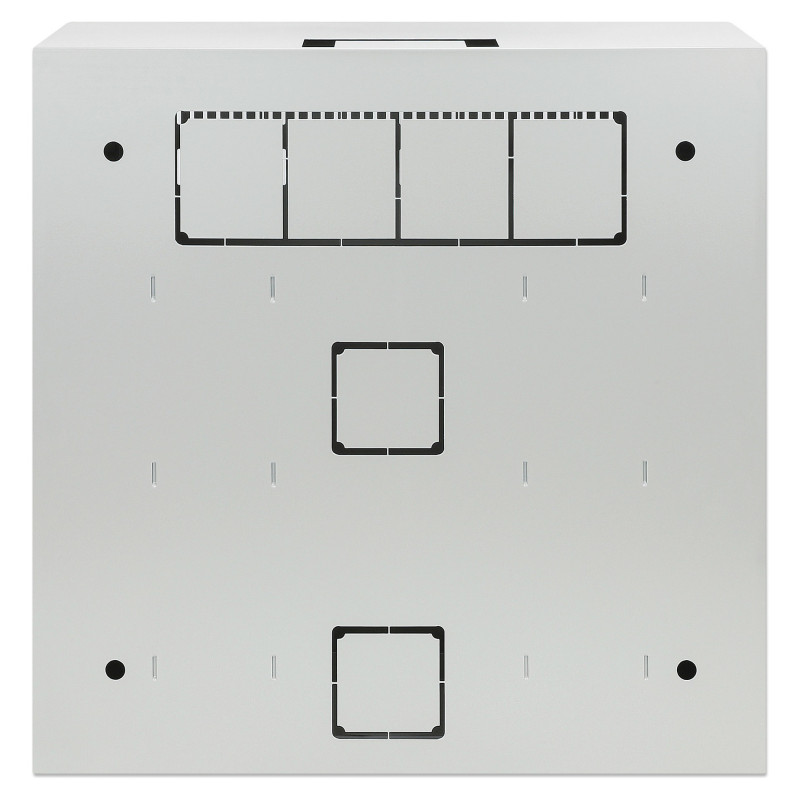

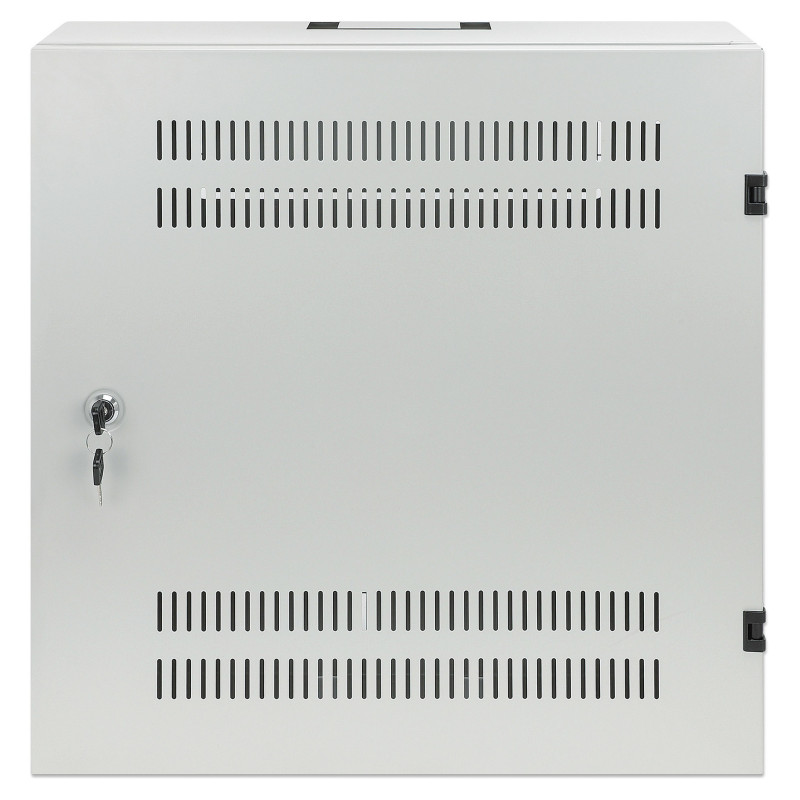

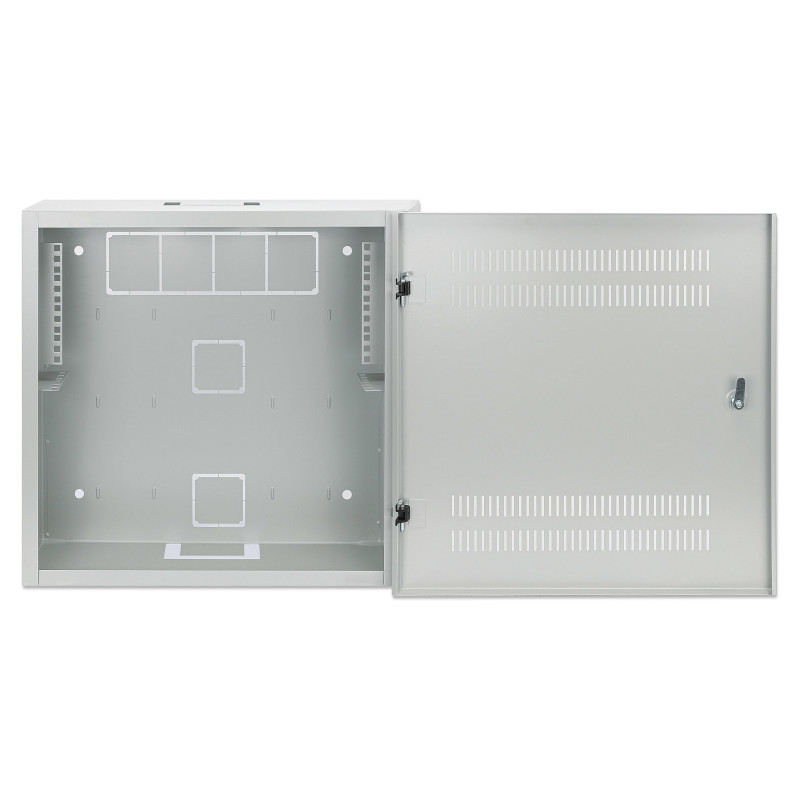

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.

Features

Rack capacity: 2U/4U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Grey
Material: Steel
Frame type: Closed
Product design: 4-post
Front door construction: Steel
Feature: Key lock
Feature: Front door key lock
International Protection (IP) code: IP20
Feature: Ventilation holes

Weight dimensions

Width: 550 mm
Depth: 170 mm
Height: 540 mm
Weight: 8.5 kg

Packaging data

Feature: Nuts included
Number of nuts: 12
Feature: Screws included
Number of screws: 12
Number of washers included: 12
Package width: 545 mm
Package depth: 555 mm
Package height: 205 mm

Technical details

Feature: Sustainability compliance
Compliance certificates: RoHS

Logistics data

Master (outer) case width: 560 mm
Master (outer) case length: 560 mm
Master (outer) case height: 190 mm
Master (outer) case gross weight: 9.5 kg
Products per master (outer) case: 1 pc(s)
