Extralink EX.12912 rack cabinet

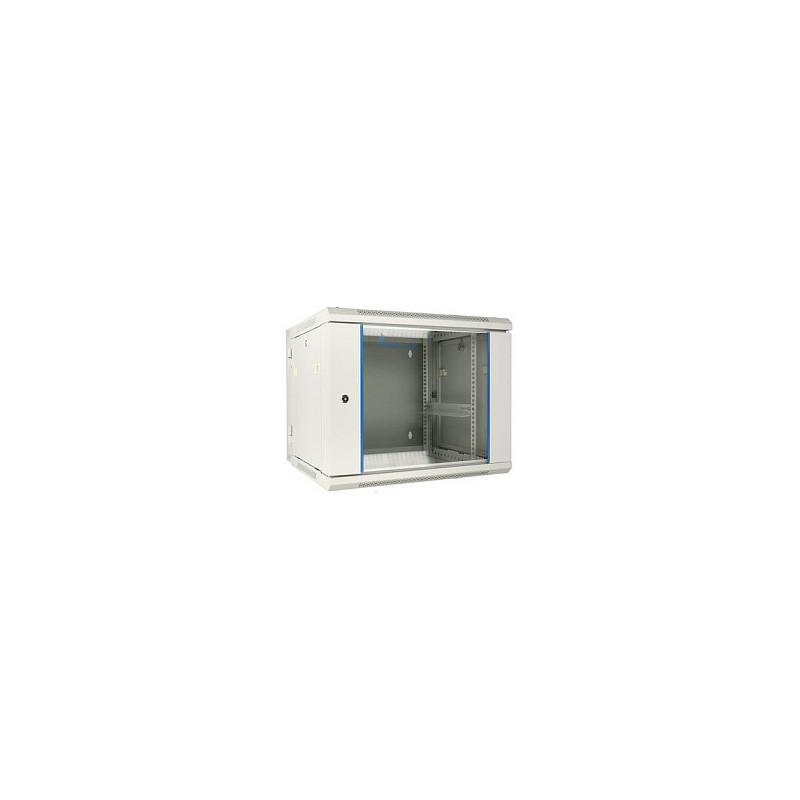

Extralink Rackmount cabinet 12U 600x600 AZH Gray wall mounted, swing type. Type: Wall mounted rack, Rack capacity: 12U, Maximum weight capacity: 60 kg, Key lock, Rack rails, Product colour: Grey

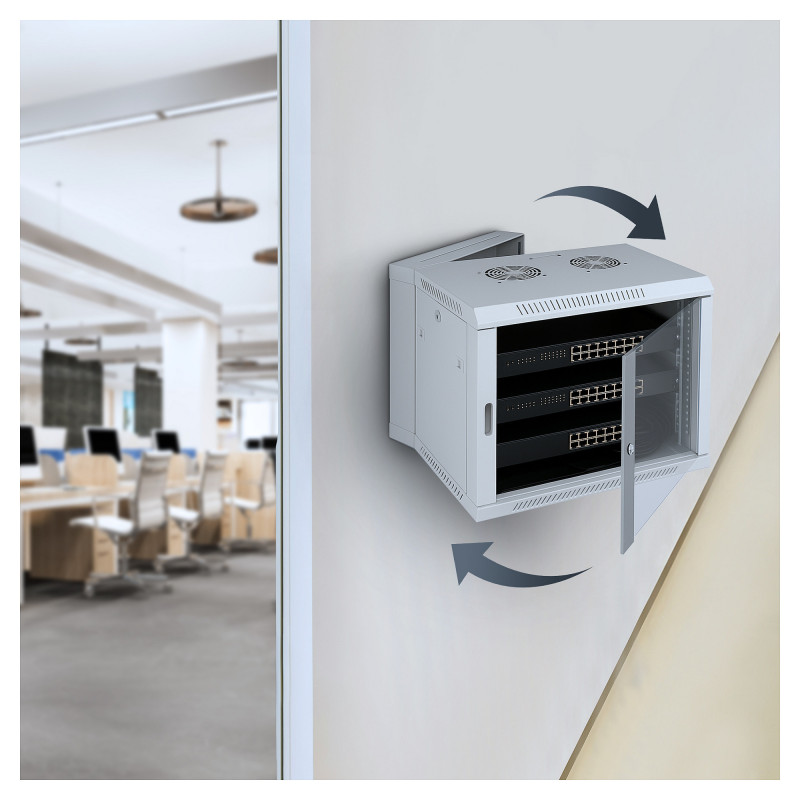

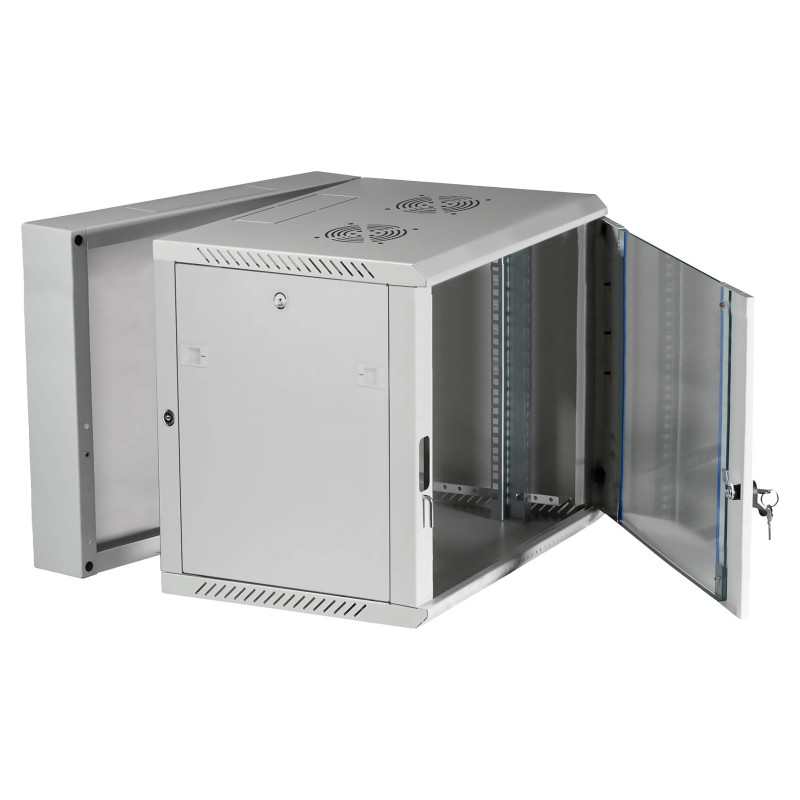

The two-section rack cabinet by EXTRALINK - AZH, with a height of 12U and dimensions of 600 × 600, is the perfect solution for wall mounting in offices, server rooms, and CCTV control rooms. The external walls of the cabinet are made of cold-rolled steel, ensuring durability and resistance to damage. The front doors, equipped with tempered glass, can open both left and right, facilitating access to the interior. The two-section design of the cabinet allows for easy access to installed components from the back.

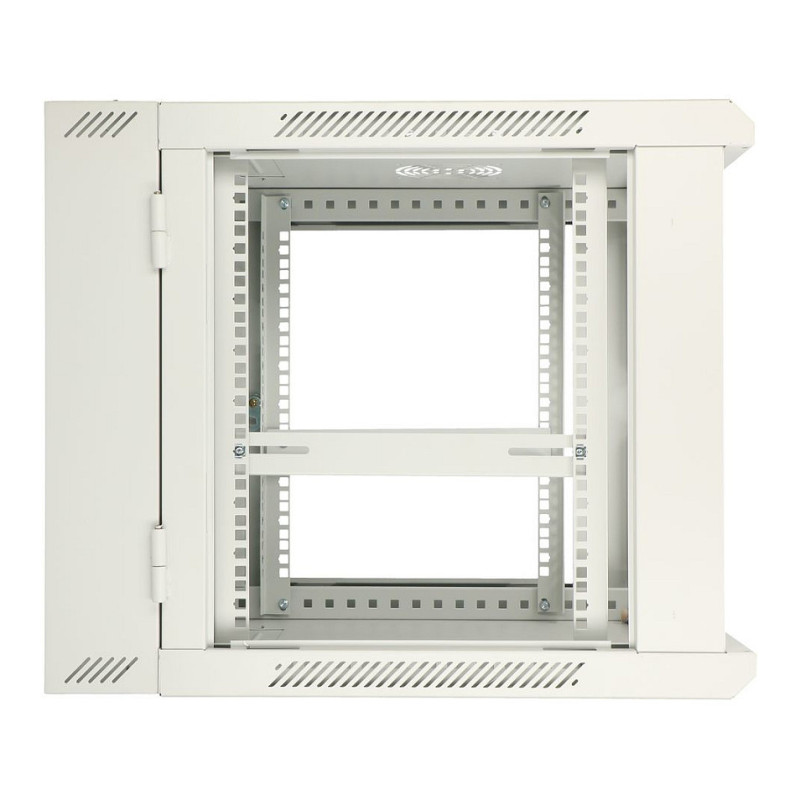

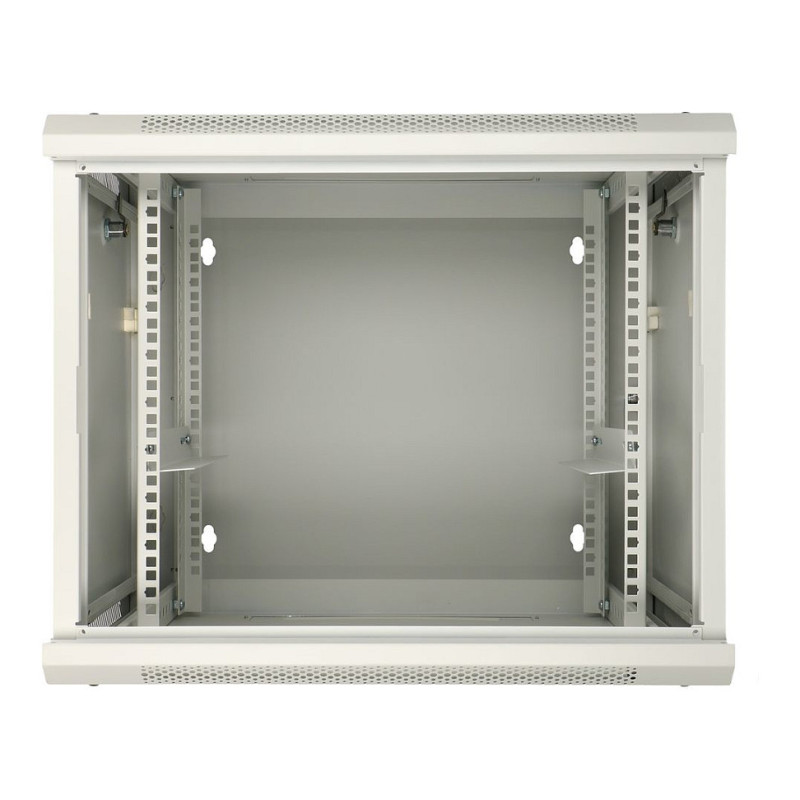

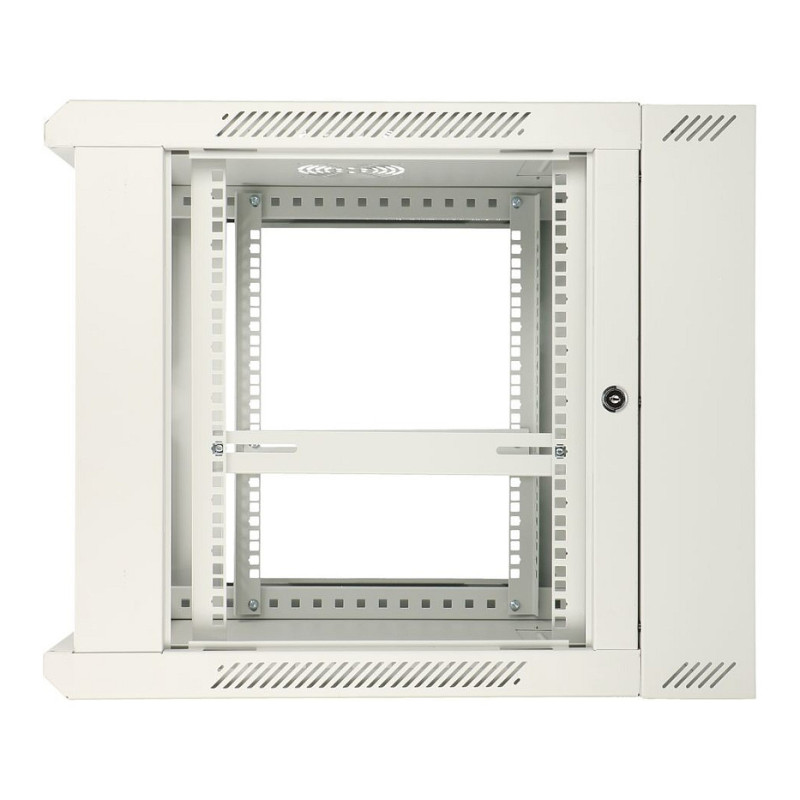

The cabinet features clearly marked vertical rails, making it easy to mount devices. The height marking is 12U (from the English unit), and the total height of the cabinet is 64 cm, making it suitable for various applications.

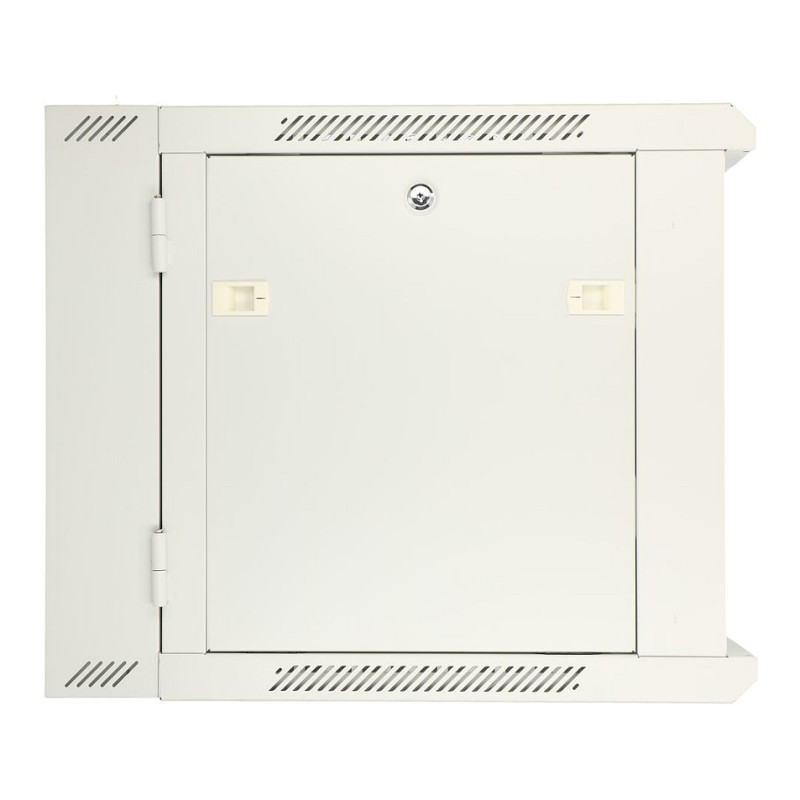

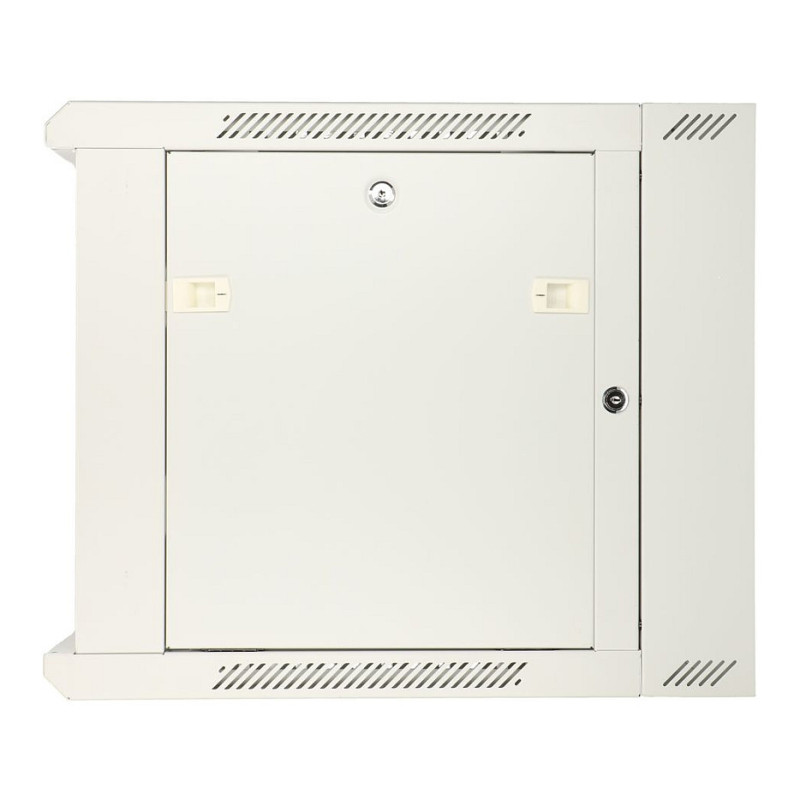

An additional advantage of the cabinet is the easy disassembly of the side walls. Thanks to the latches on the side panels, disassembly is quick and simple, and the locks and keys included provide extra security.

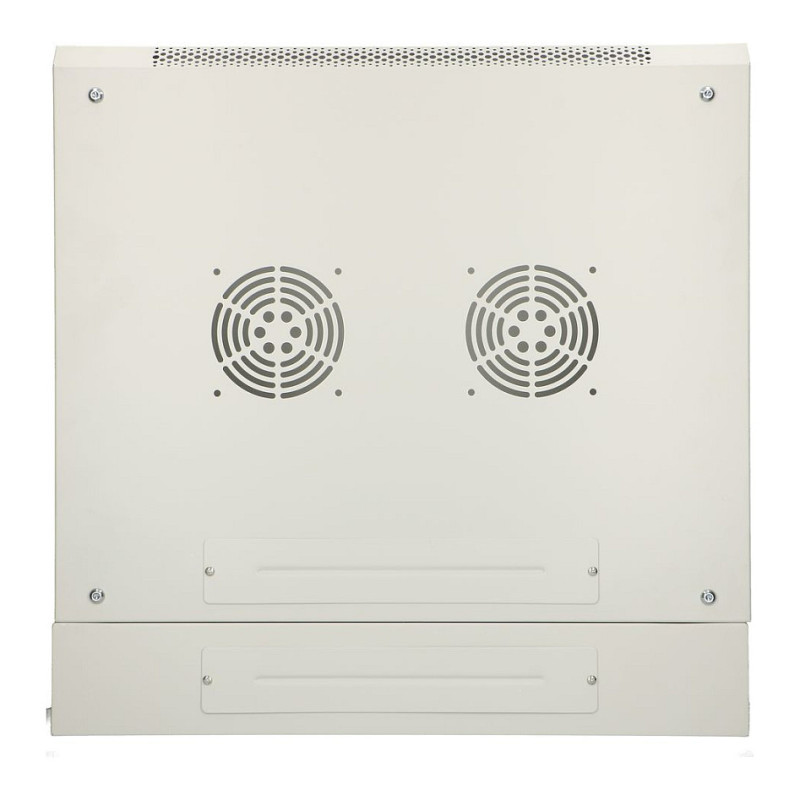

The cabinet's ceiling is adapted for fan installation, allowing for effective cooling of installed devices. The ceiling has two spots for fans and two additional cable pass-throughs, facilitating the organization of the internal space.

Features

Rack capacity: 12U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Grey
Material: Metal, Tempered glass
Frame type: Closed
Back door construction: Metal
Front door construction: Tempered glass
Side panel construction: Metal
Feature: Removable front door
Feature: Removable side panels
Feature: Side panels included
Feature: Key lock
Feature: Front door key lock
Feature: Side panel key lock
Feature: Rack rails

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 600 mm
Height: 640 mm
