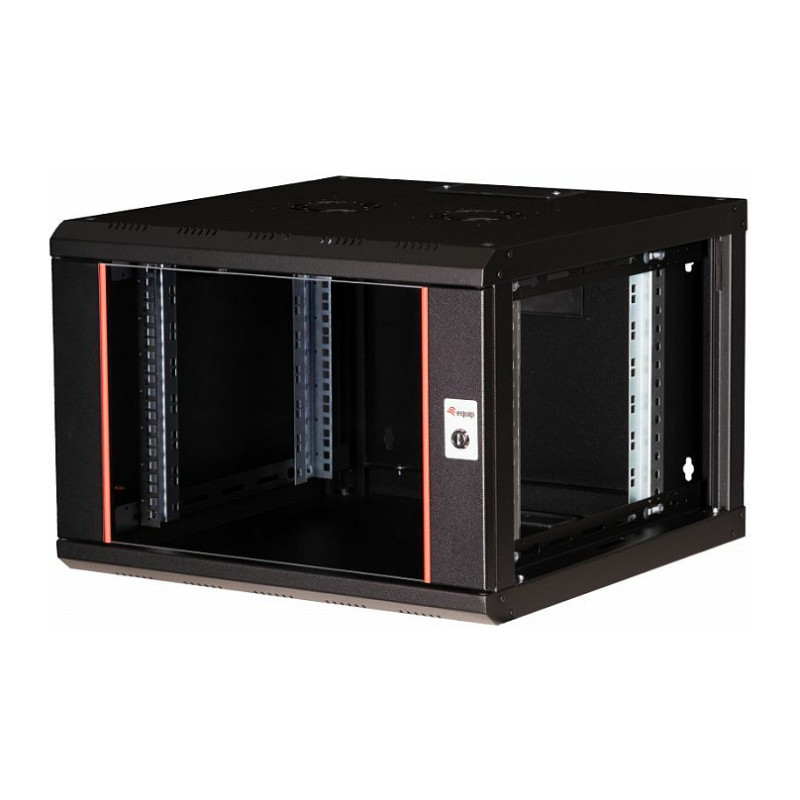

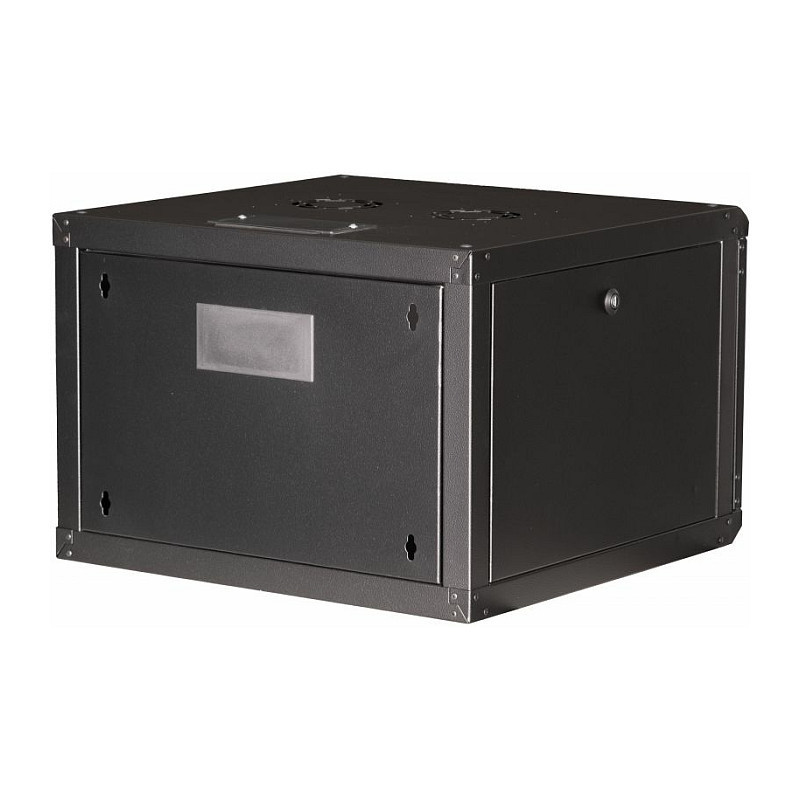

Equip EPM-07-6060-B-CBAA rack cabinet

Equip Pro Mount 19' Cabinet, 07U, 600X600MM, RAL9005 Black. Type: Wall mounted rack, Rack capacity: 7U, Key lock, Rack rails. Weight: 18 kg. Product colour: Black

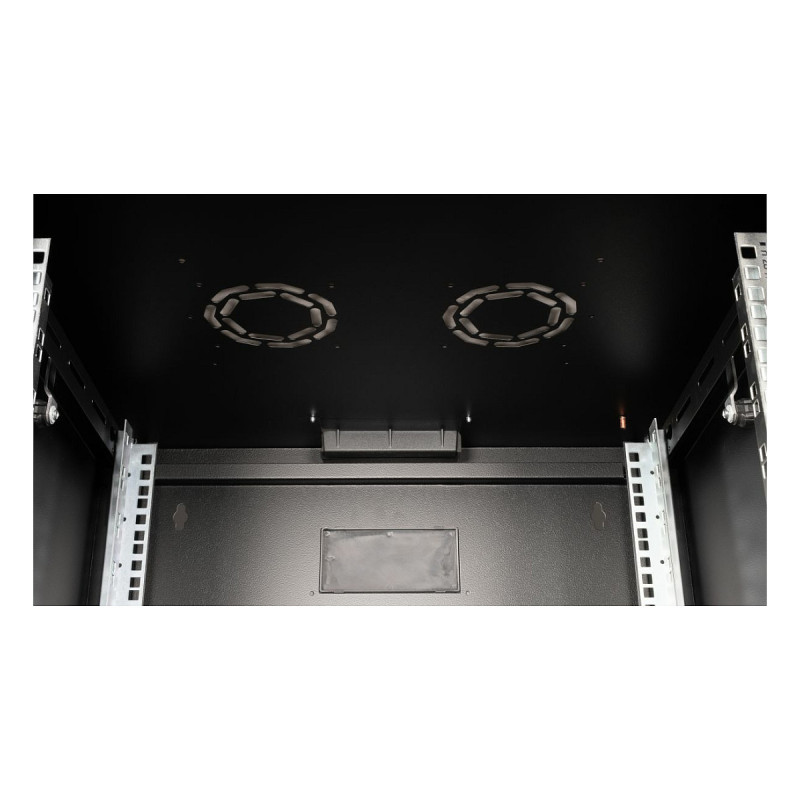

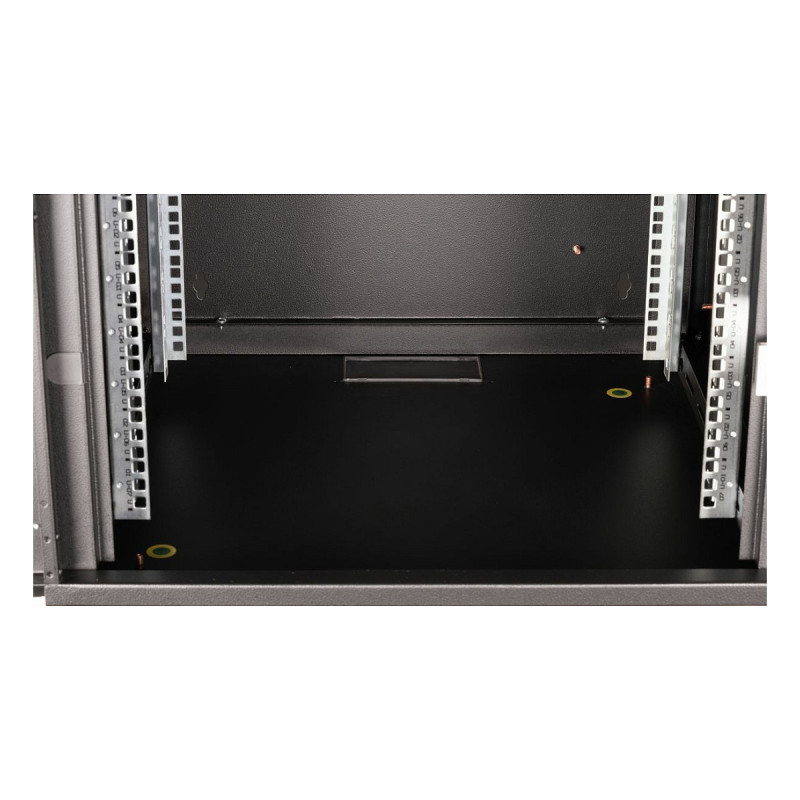

Our Wall Mounting 'Pro Mount' Cabinets are tailored for a hassle-free and efficient setup of both active and passive network components, emphasizing sleek cable management. Constructed from steel sheets up to 1.5 mm thick, every rack stands out for its robustness and durability. These cabinets are beautifully finished with a powder coating in shades of grey (RAL 7035) and black (RAL 9005). Wall mounting has been simplified for users, and for those preferring standalone configurations, individual leveling feet or castors are available. The door and side panels are designed for easy detachment, with the option to switch the door's orientation from right to left. For enhanced air circulation, the roof features integrated ventilation slots. Each cabinet is equipped with a set of two pre-mounted 483 mm (19") profile rails. These rails are galvanized, feature height unit markings readable from both directions, and are adjustable in depth. The back frame also incorporates 483 mm (19") punch-outs. Prioritizing efficient cable management, the roof boasts a sliding cable entry panel with a rubber seal. Punched-out cable entries with plastic covers are found on the rear wall and base, and the rear frame offers brushes on both the top and bottom. To fulfill a variety of operational demands, an extensive range of accessory options, such as cable management tools and shelves, is available.

Features

Rack capacity: 7U
Type: Wall mounted rack
Product colour: Black
Material: Steel
Frame type: Closed
Product design: 4-post
Back door construction: Steel
Front door construction: Tempered glass
Side panel construction: Steel

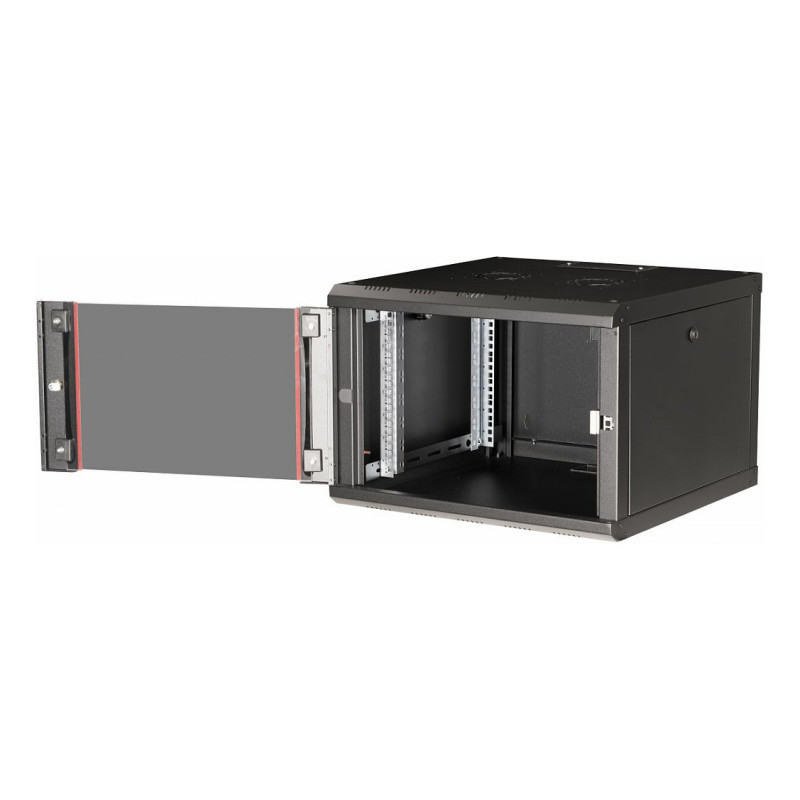

Feature: Removable front door
Feature: Removable side panels
Feature: Side panels included

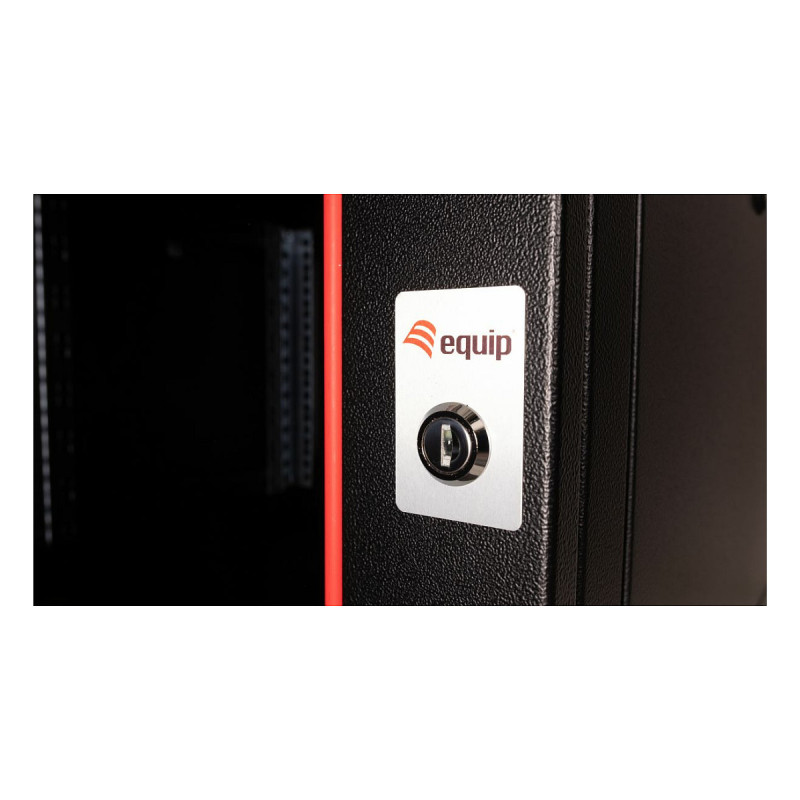

Feature: Key lock
Feature: Front door key lock
Feature: Rack rails
Rack rail thickness: 1.5 mm
Feature: Adjustable stand
Feature: Adjustable depth
Cooling type: Passive
Mounting hole shape: Square
Door opening angle: 210°
Feature: Preassembled

Weight & dimensions

Size (imperial): 40.1 cm (15.8")
Width: 600 mm
Depth: 600 mm
Height: 418 mm
Inner width: 59.5 cm
Inner depth: 59 cm
Inner height: 31.1 cm
Weight: 18 kg
Mounting depth (min): 32 cm
Mounting depth (max): 45 cm

Packaging data

Feature: Nuts included
Number of nuts: 8
Feature: Screws included
Number of screws: 8
Feature: Wall mounting kit
Feature: Mounting kit
Feature: Grounding kit
Feature: Quick installation guide
Feature: Manual
Package width: 1300 mm
Package depth: 1300 mm
Package height: 480 mm

Technical details

Pallet gross weight: 438 kg
Pallet net height: 2.55 m
Pallet net length: 130 cm
Pallet net width: 130 cm
Pallet net weight: 18 kg
Total carbon footprint (kg of CO2e): 3.078

Logistics data

Country of origin: Turkey
Harmonized System (HS) code: 853710980019
Products per master (outer) case: 1 pc(s)

Other features

Master (outer) cases per pallet: 20 pc(s)
Products per pallet: 20 pc(s)
