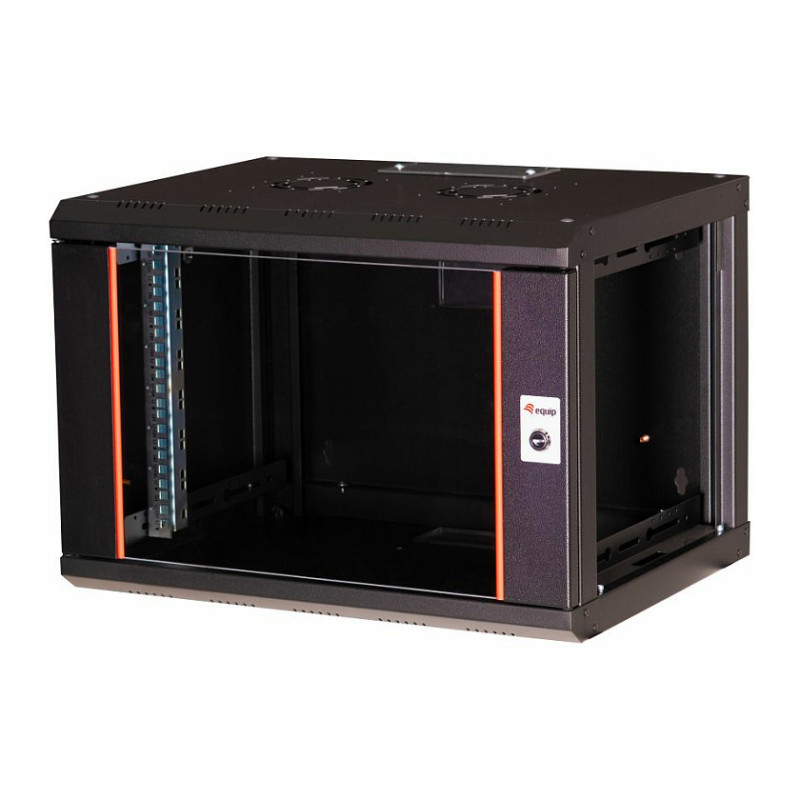

Equip EPM-07-6045-B-CBAA rack cabinet

Equip Pro Mount 19' Cabinet, 07U, 600X450MM, RAL9005 Black. Type: Wall mounted rack, Rack capacity: 7U, Key lock, Rack rails. Weight: 14.5 kg. Product colour: Black

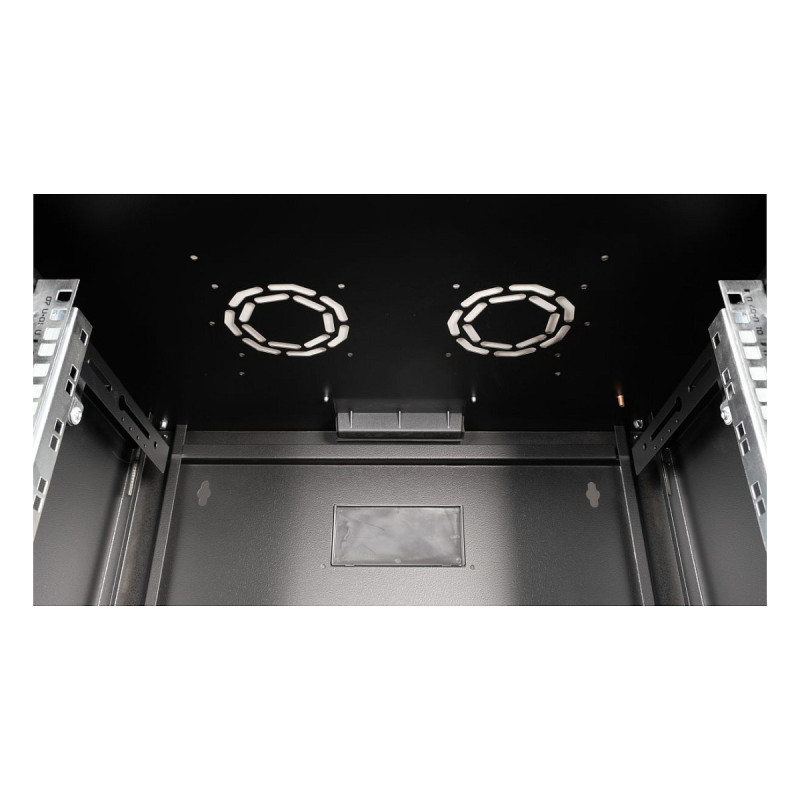

Introducing the Equip Eco Mount Wall Mount Cabinets—designed for seamless integration and efficient management of network components, emphasizing sophisticated cable organization. Constructed from robust 1.5 mm thick steel sheets, these cabinets are paragons of durability and security, ensuring the protection of your valuable equipment. Choose from elegant shades of grey (RAL 7035) and black (RAL 9005) to enhance both functionality and aesthetics. Available in 10" or 19" variants, the Equip Eco Mount series offers a smooth experience exclusively for wall-mounted configurations. The door design allows easy reorientation from right to left to suit your spatial requirements. To maintain an optimal operational environment, the cabinets are equipped with integrated ventilation slots at the top.Our design prioritizes effective cable management. The top and bottom each have a cable entry covered with a removable plastic cover for easy cable routing and protection.
We offer a broad range of accessories, like cable management tools and shelves, to meet diverse operational needs. The Equip Eco Mount Wall Mount Cabinets allow you to enhance your IT infrastructure confidently and efficiently. Choose our cabinets for a smarter, more organized, and reliable network solution. Opt for either the 10" or 19" model and elevate your IT environment's performance today.
Please note, these cabinets are not pre-assembled. Assembly is straightforward, and we provide an instructional video to guide you through the process.

Features

Rack capacity: 7U
Type: Wall mounted rack
Product colour: Black
Material: Steel
Frame type: Closed
Product design: 2-post
Back door construction: Steel
Front door construction: Tempered glass
Side panel construction: Steel

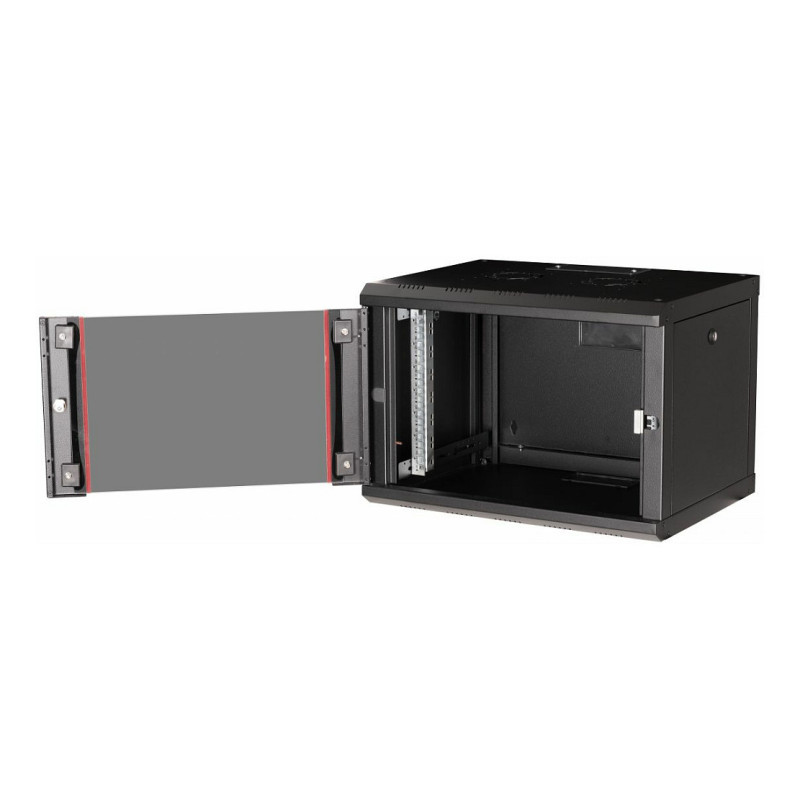

Feature: Removable front door
Feature: Removable side panels
Feature: Side panels included

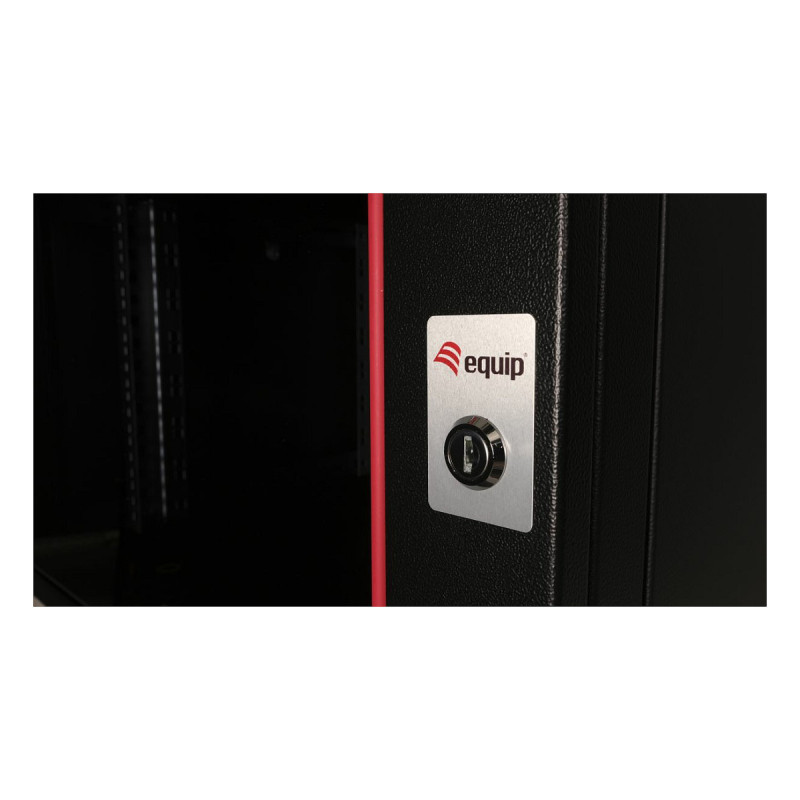

Feature: Key lock
Feature: Front door key lock
Feature: Rack rails
Rack rail thickness: 1.5 mm
Feature: Adjustable stand
Feature: Adjustable depth
Cooling type: Passive
Mounting hole shape: Square
Door opening angle: 210°
Feature: Preassembled

Weight & dimensions

Size (imperial): 34 cm (13.4")
Width: 600 mm
Depth: 450 mm
Height: 418 mm
Inner width: 59.5 cm
Inner depth: 44 cm
Inner height: 31.1 cm
Weight: 14.5 kg
Mounting depth (min): 30.5 cm
Mounting depth (max): 37 cm

Packaging data

Feature: Nuts included
Number of nuts: 8
Feature: Screws included
Number of screws: 8
Feature: Wall mounting kit
Feature: Mounting kit
Feature: Grounding kit
Feature: Quick installation guide
Feature: Manual
Package width: 2500 mm
Package depth: 520 mm
Package height: 480 mm

Technical details

Pallet gross weight: 356 kg
Pallet net height: 2.55 m
Pallet net length: 52 cm
Pallet net width: 110 cm
Pallet net weight: 16 kg
Total carbon footprint (kg of CO2e): 2.4795

Logistics data

Country of origin: Turkey
Harmonized System (HS) code: 853710980019

Other features

Master (outer) cases per pallet: 20 pc(s)
Layers per pallet: 1 pc(s)
Products per pallet: 20 pc(s)
