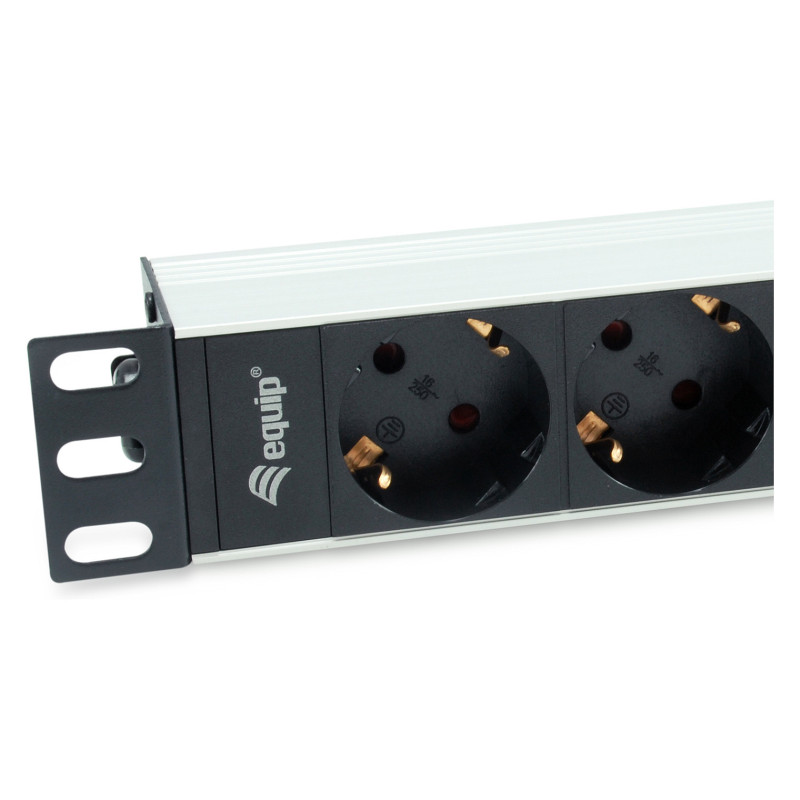

Equip 333311 power distribution unit (PDU)

Equip 333311. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 4 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Cable length: 1.5 m, Cable type: H05VV-F 3G 1.5 mm². Nominal input voltage: 220 - 240 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Certification: CE
The equip® Power Distribution Unit is a sturdily-built product designed to distribute clear and crisp electricity. The product is thoroughly tested to ensure the functionality and reliability. Attached with an 1.5m cable, easy-to-install mechanical design, this is the ideal choice for the 10" cabinet system installation.

Design

PDU types: Basic
Rack capacity: 1U
Mounting: Horizontal
Housing material: Aluminium
Product colour: Black, Silver

Ports interfaces

AC outlets quantity: 4 AC outlet(s)

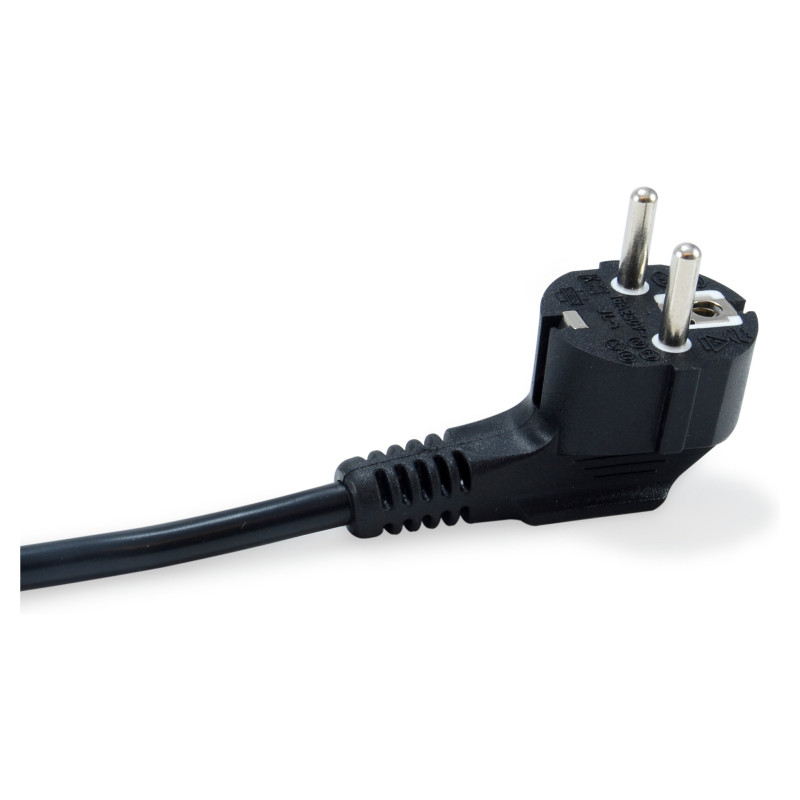

Power plug: Type F
AC outlet types: Type F

Features

Cable length: 1.5 m
Cable type: H05VV-F 3G 1.5 mm²

Power

Nominal input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 16 A
Maximum power: 3500 W

Certificates

Certification: CE

Weight dimensions

Width: 254 mm
Depth: 45 mm
Height: 45 mm
Weight: 550 g

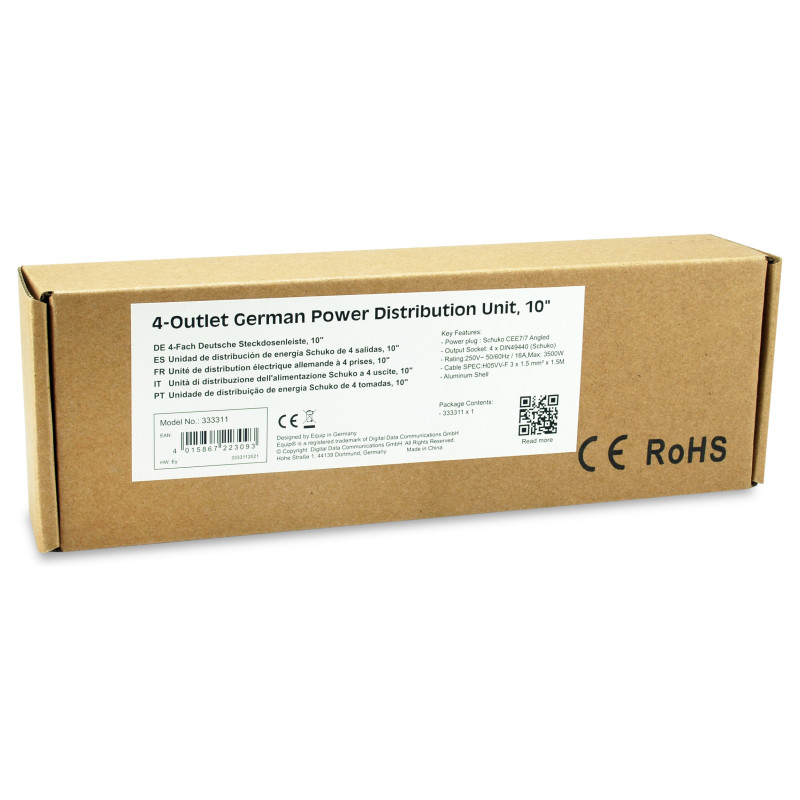

Packaging data

Package weight: 660 g
Package width: 90 mm
Package depth: 55 mm
Package height: 280 mm
Package type: Box

Logistics data

Country of origin: China
