Equip 333310 power distribution unit (PDU)

Equip 333310. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Cable length: 1.8 m, Cable type: H05VV-F 3G 1.5 mm². Nominal input voltage: 220 - 240 V, Maximum current: 10 A, AC input frequency: 50 - 60 Hz. Certification: CE

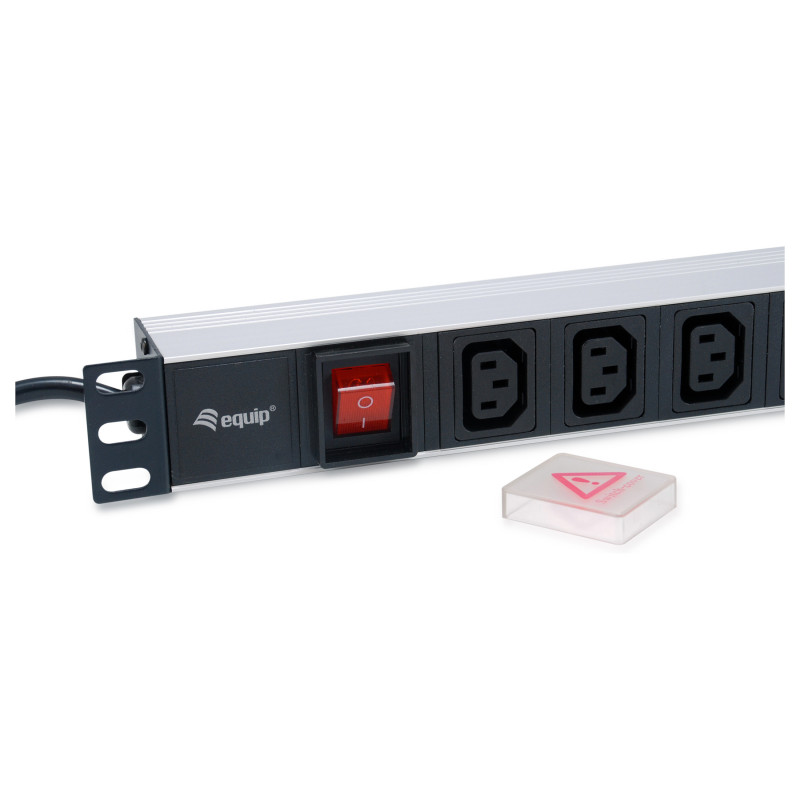

The equip® Power Distribution Unit is a sturdily-built product designed to distribute clear and crisp electricity. The product is thoroughly tested to ensure the functionality and reliability. Attached with an 1.8m cable, built with a power on/off switch, easy-to-install mechanical design, this is the ideal choice for the 19" cabinet system installation.

Design

PDU types: Basic
Rack capacity: 1U
Mounting: Horizontal
Housing material: Aluminium
Product colour: Black
On/off switch: Yes

Ports interfaces

AC outlets quantity: 8 AC outlet(s)

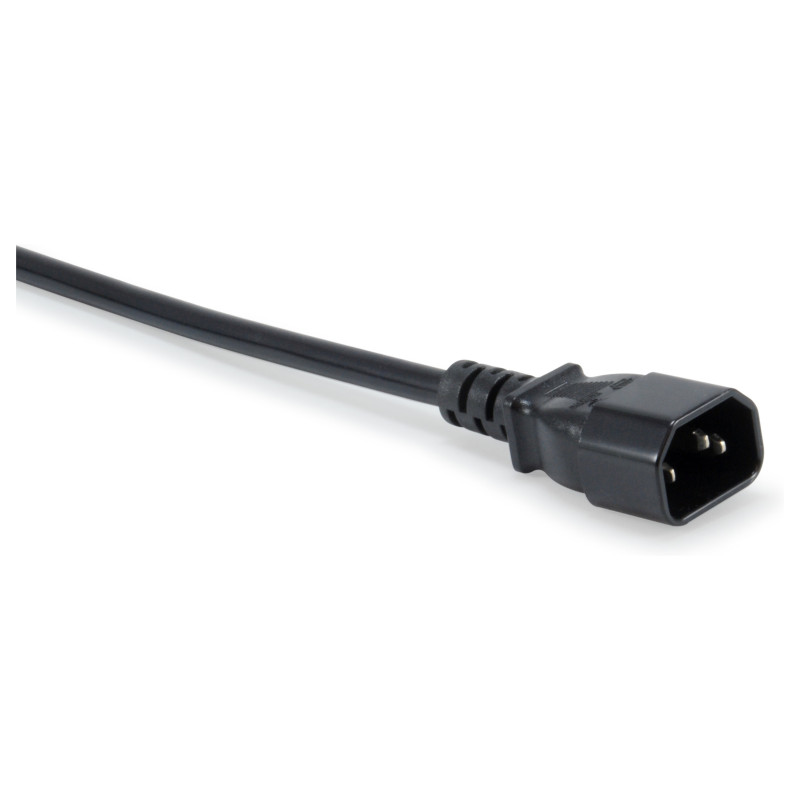

Power plug: C14 coupler
AC outlet types: C13 coupler

Features

Cable length: 1.8 m
Cable type: H05VV-F 3G 1.5 mm²

Power

Nominal input voltage: 220 - 240 V
AC input frequency: 50 - 60 Hz
Maximum current: 10 A
Maximum power: 2500 W

Certificates

Certification: CE

Weight dimensions

Width: 482.6 mm
Depth: 45 mm
Height: 45 mm
Weight: 790 g

Packaging data

Package weight: 920 g
Package width: 90 mm
Package depth: 60 mm
Package height: 515 mm
Package type: Box

Logistics data

Country of origin: China
