Equip 333309 power distribution unit (PDU)

Equip 7-Outlet German Power Distribution Unit with Surge Protection and Switch. Rack capacity: 1U, Housing material: Aluminium, Product colour: Black, Silver. AC outlets quantity: 7 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Cable length: 1.8 m. Nominal input voltage: 250 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Compliance certificates: CE, RoHS

The equip power distribution unit is a high-quality and robust product that was developed for the supply of power in data cabinets and ensures safety with its integrated surge protection. The power strip is carefully tested to ensure functionality and reliability. A 1.8m long supply cable and a built-in on/off switch complete the functionality of this power distribution unit. The optimized design also makes it easy to install. The ideal choice for 19" cabinet system installation.

Design

Rack capacity: 1U
Housing material: Aluminium
Product colour: Black, Silver

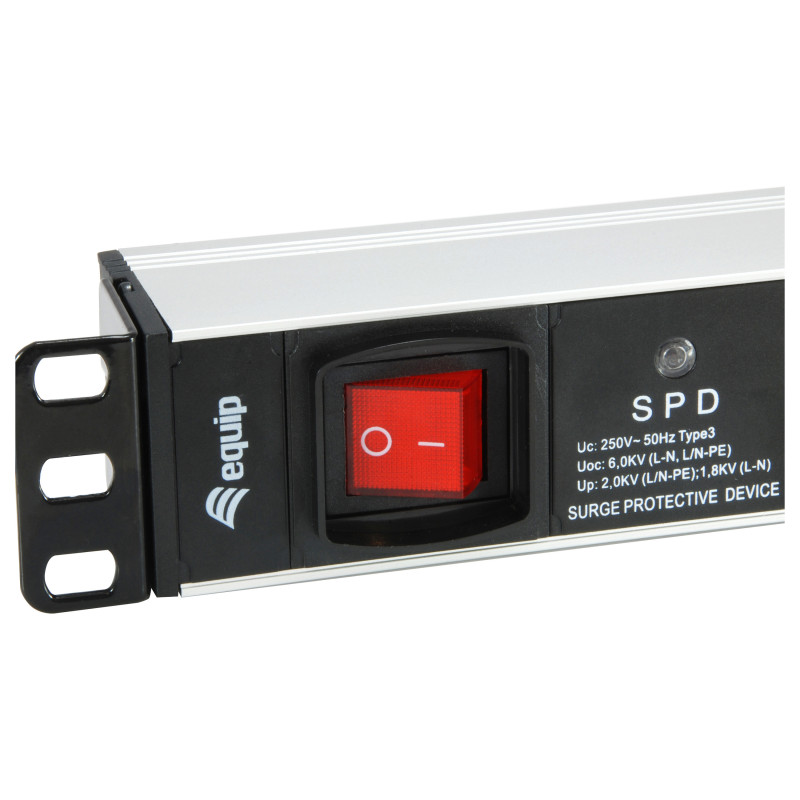

Feature: On/off switch

Ports & interfaces

AC outlets quantity: 7 AC outlet(s)

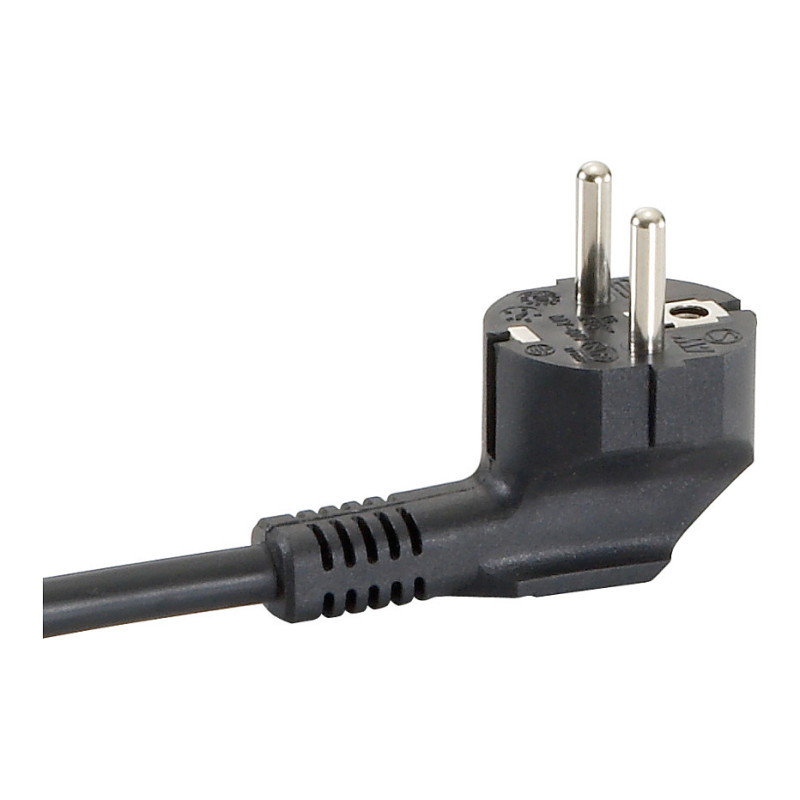

Power plug: Type F

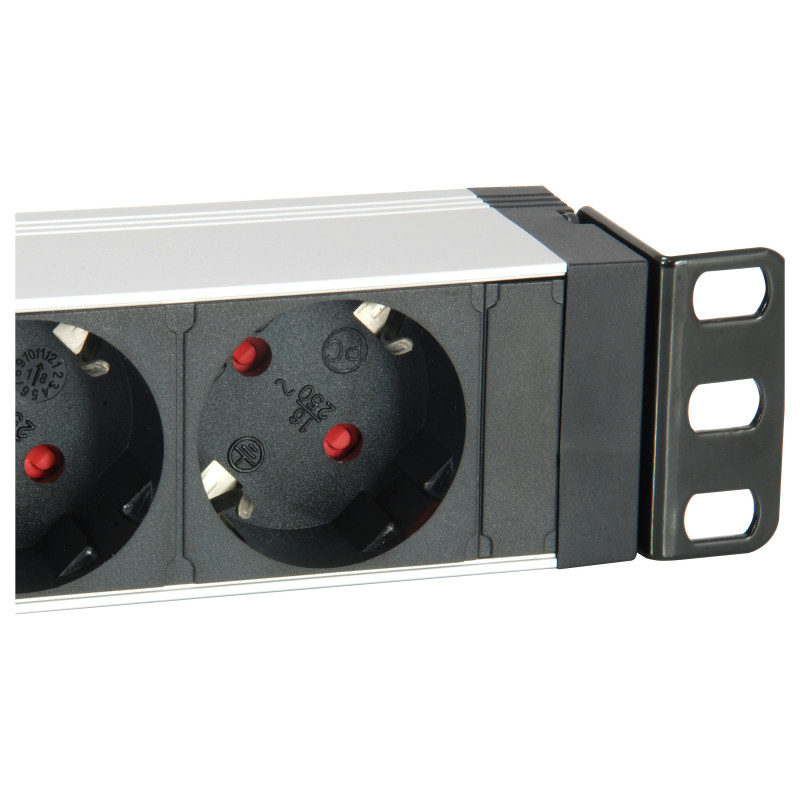

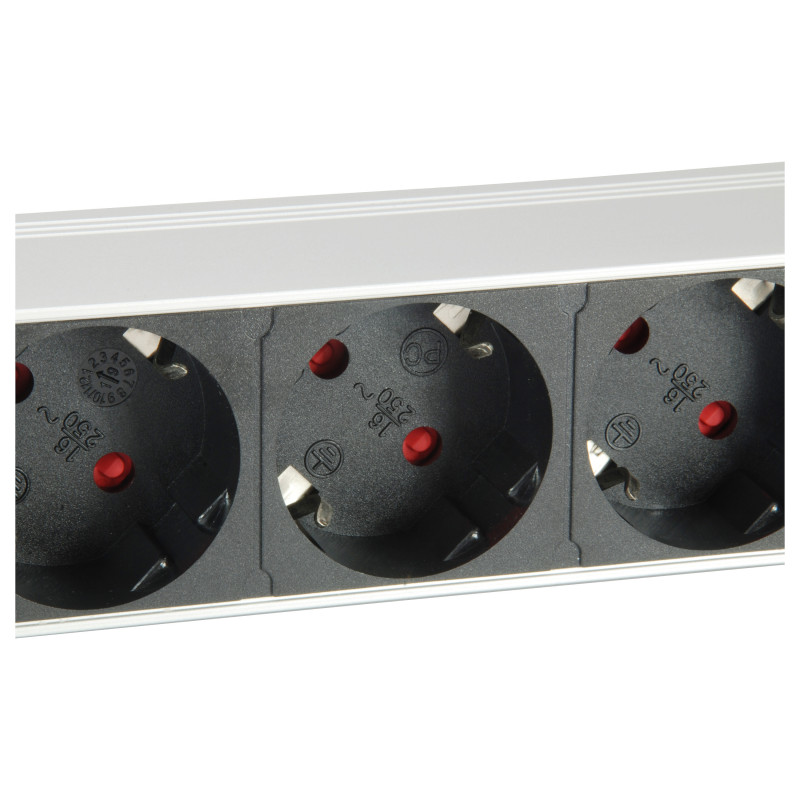

AC outlet types: Type F

Features

Cable length: 1.8 m

Power

Nominal input voltage: 250 V
AC input frequency: 50 - 60 Hz
Maximum current: 16 A
Maximum power: 3500 W
Feature: Surge protection

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 45 mm
Depth: 45 mm
Height: 482.6 mm
Weight: 790 g

Packaging data

Package weight: 920 g
Package width: 90 mm
Package depth: 60 mm
Package height: 515 mm

Logistics data

Country of origin: China
Master (outer) case width: 305 mm
Master (outer) case length: 490 mm
Master (outer) case height: 520 mm
Master (outer) case gross weight: 24 kg
Products per master (outer) case: 25 pc(s)
