Equip 327425 patch panel

Equip 24-Port Cat.5e Shielded Patch Panel, Black. Connector(s): RJ-45, Cable types supported: Cat5e. Mounting: Rack mounting, Rack capacity: 1U, Product colour: Black. Compliance certificates: RoHS, Certification: CE. Width: 482.6 mm, Height: 44.5 mm, Depth: 110.5 mm. Package width: 500 mm, Package depth: 125 mm, Package height: 55 mm

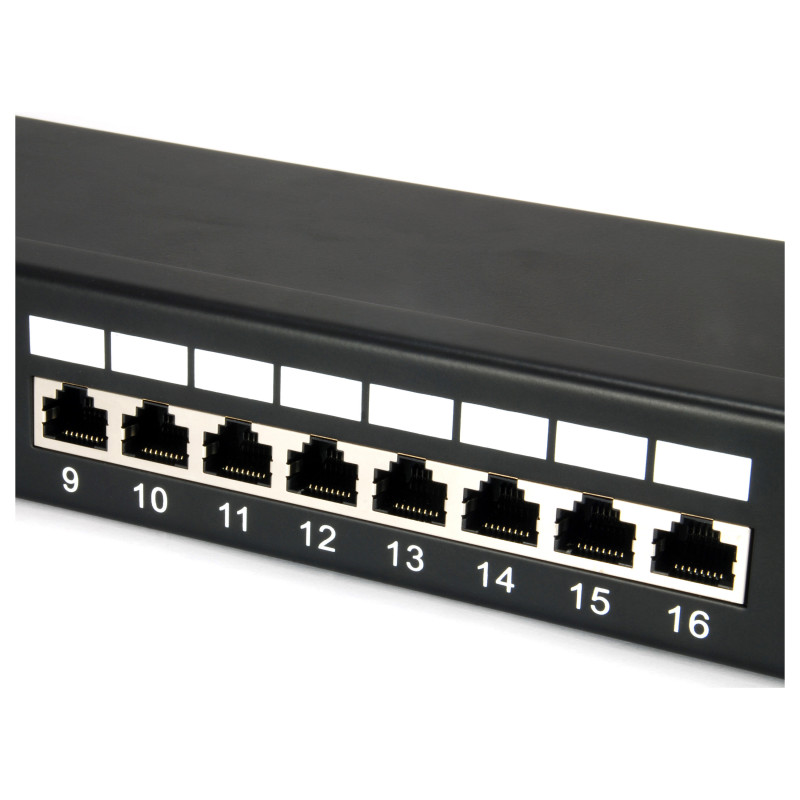

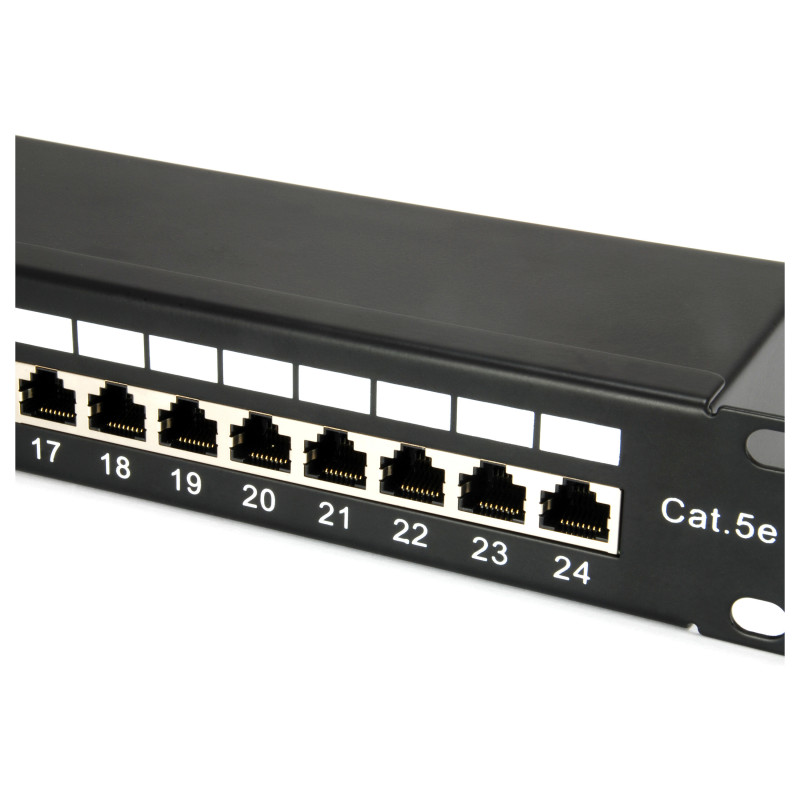

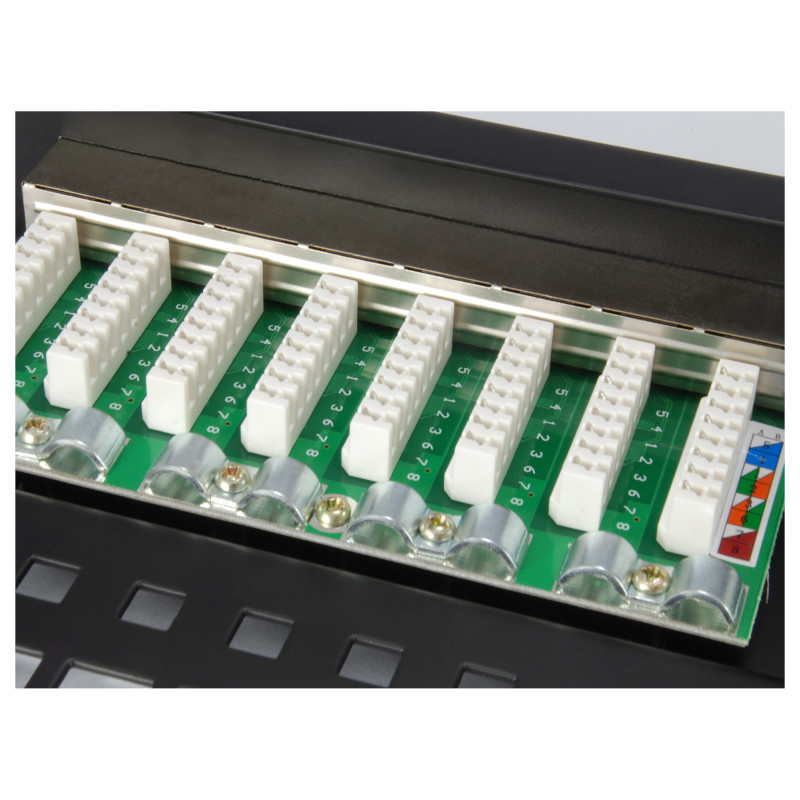

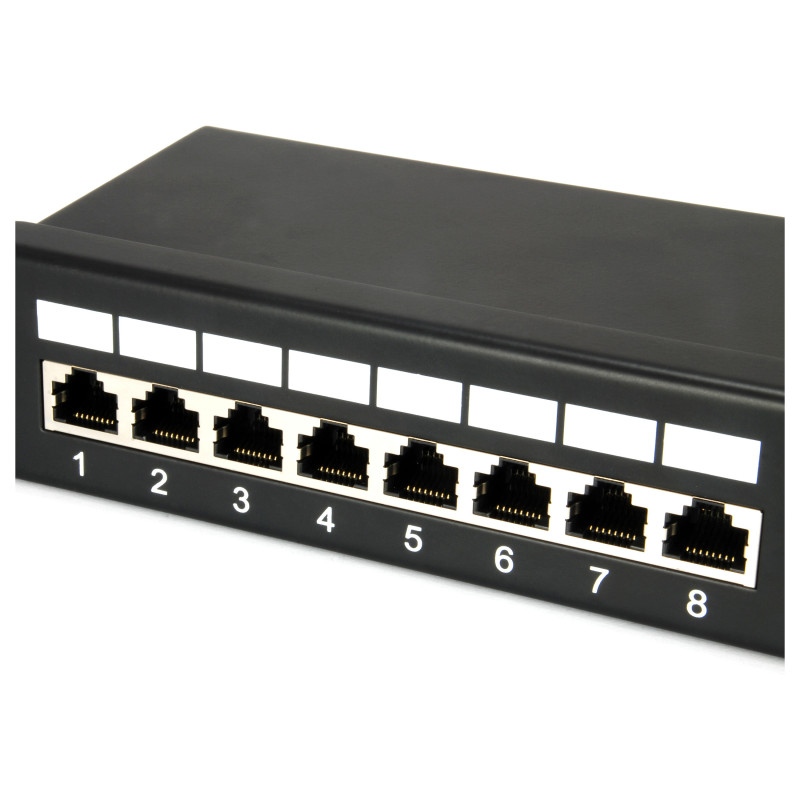

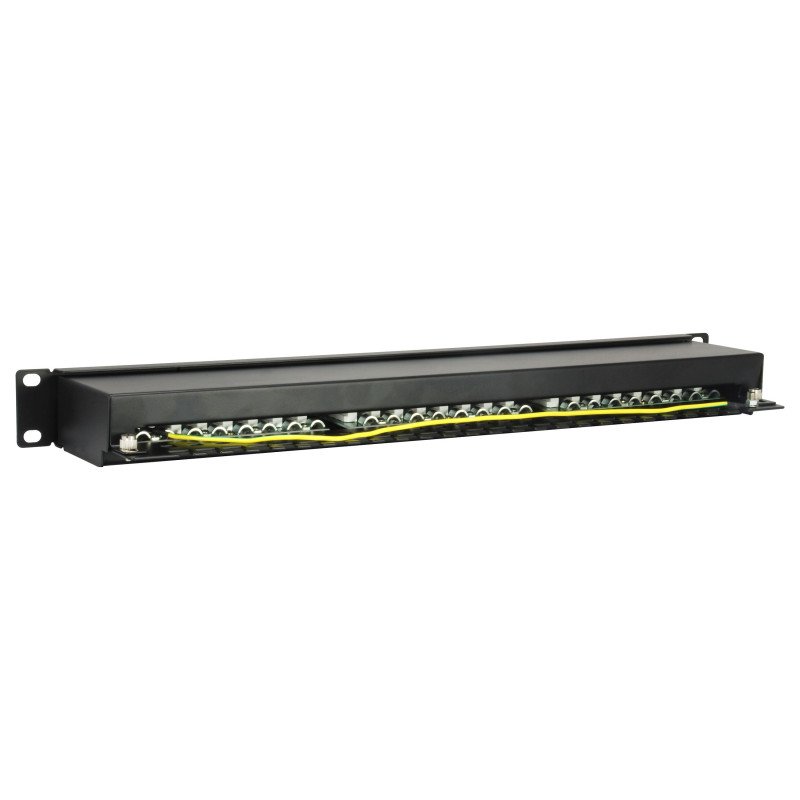

The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 24 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.

Network

Ports quantity: 24
Connector(s): RJ-45
Cable types supported: Cat5e

Design

Product colour: Black
Mounting: Rack mounting
Rack capacity: 1U

Certificates

Compliance certificates: RoHS
Certification: CE

Weight dimensions

Width: 482.6 mm
Height: 44.5 mm
Depth: 110.5 mm
Weight: 1.5 kg

Packaging data

Package width: 500 mm
Package depth: 125 mm
Package height: 55 mm
Package weight: 1.65 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 85371098
Master (outer) case width: 515 mm
Master (outer) case length: 180 mm
Master (outer) case height: 270 mm
Master (outer) case gross weight: 10.5 kg
Products per master (outer) case: 6 pc(s)
