Equip 208014

Equip 12-Port Cat.6 Shielded Patch Panel, Light Grey. Ethernet interface type: Gigabit Ethernet, Maximum data transfer rate: 1000 Mbit/s, Connector(s): RJ-45. Rack capacity: 1U, Product colour: Grey, Material: Steel. Compliance certificates: RoHS. Width: 94.5 mm, Height: 44.5 mm, Depth: 254 mm. Package width: 145 mm, Package depth: 55 mm, Package height: 270 mm

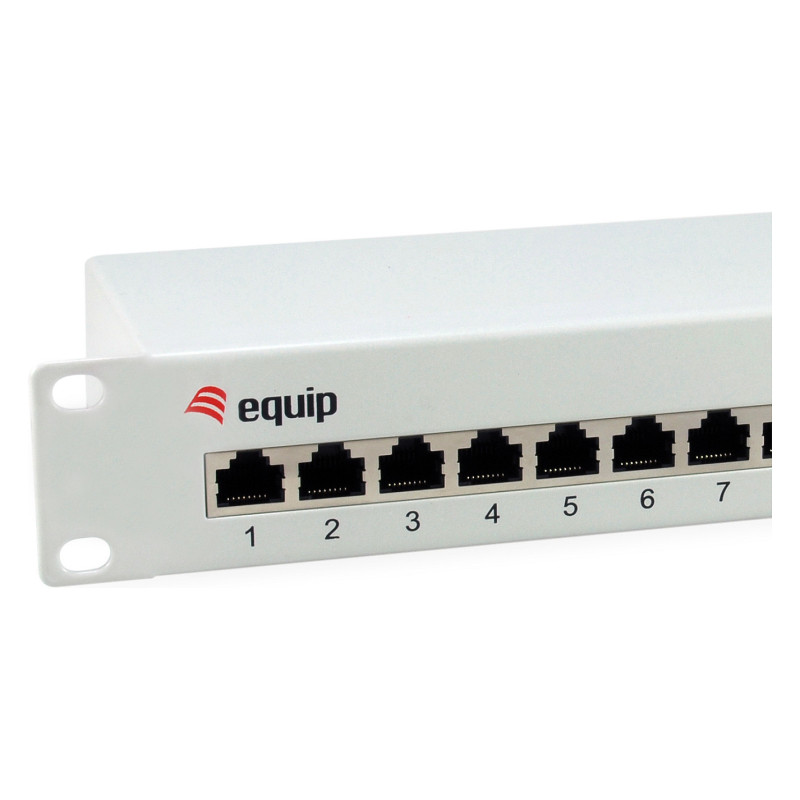

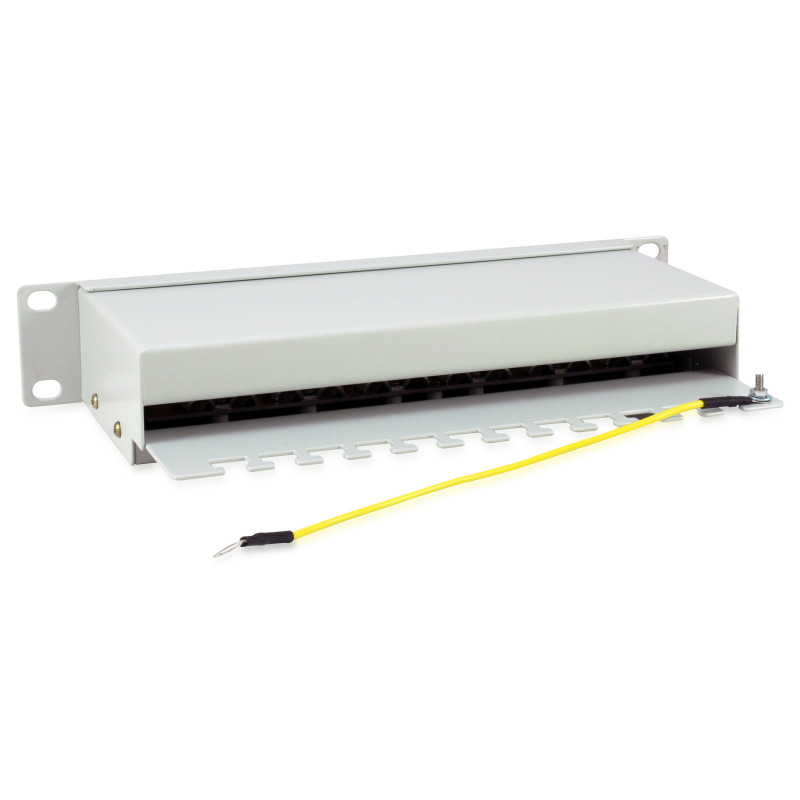

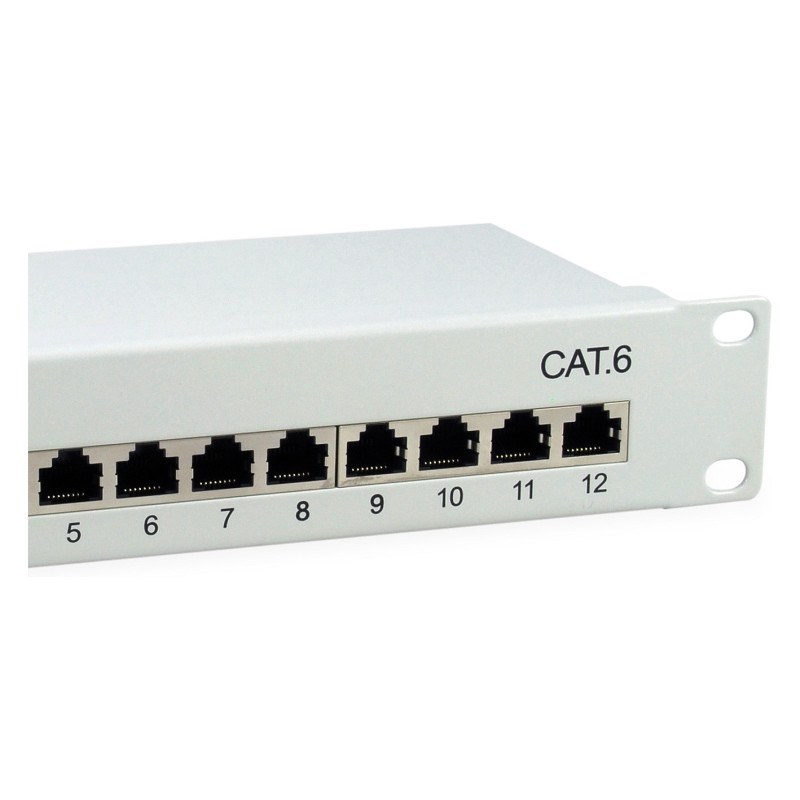

The equip® Patch Panel is a 10" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 12 shielded RJ45 ports, this patch panel is recommended to connect with equip® shielded patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.

Network

Ethernet interface type: Gigabit Ethernet
Maximum data transfer rate: 1000 Mbit/s
Ports quantity: 12
Connector(s): RJ-45
Cable types supported: Cat6, Cat6e

Design

Product colour: Grey
Material: Steel
Rack capacity: 1U

Certificates

Compliance certificates: RoHS

Weight dimensions

Width: 94.5 mm
Height: 44.5 mm
Depth: 254 mm
Weight: 80 g

Packaging data

Package width: 145 mm
Package depth: 55 mm
Package height: 270 mm
Package weight: 960 g

Logistics data

Country of origin: China
Harmonized System (HS) code: 85371098
Master (outer) case width: 295 mm
Master (outer) case length: 320 mm
Master (outer) case height: 325 mm
Master (outer) case gross weight: 10.3 kg
Products per master (outer) case: 10 pc(s)
