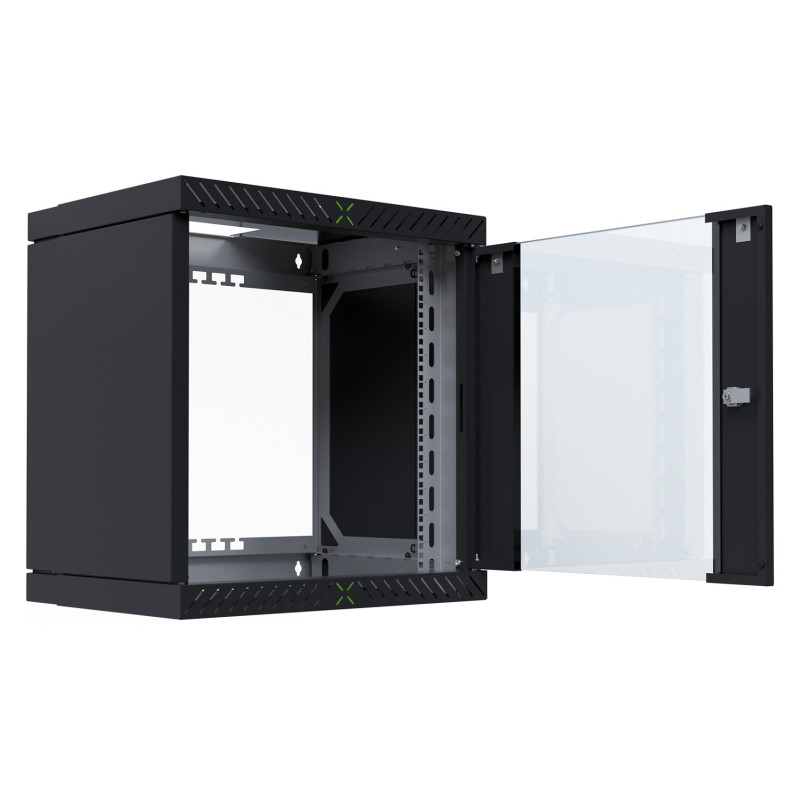

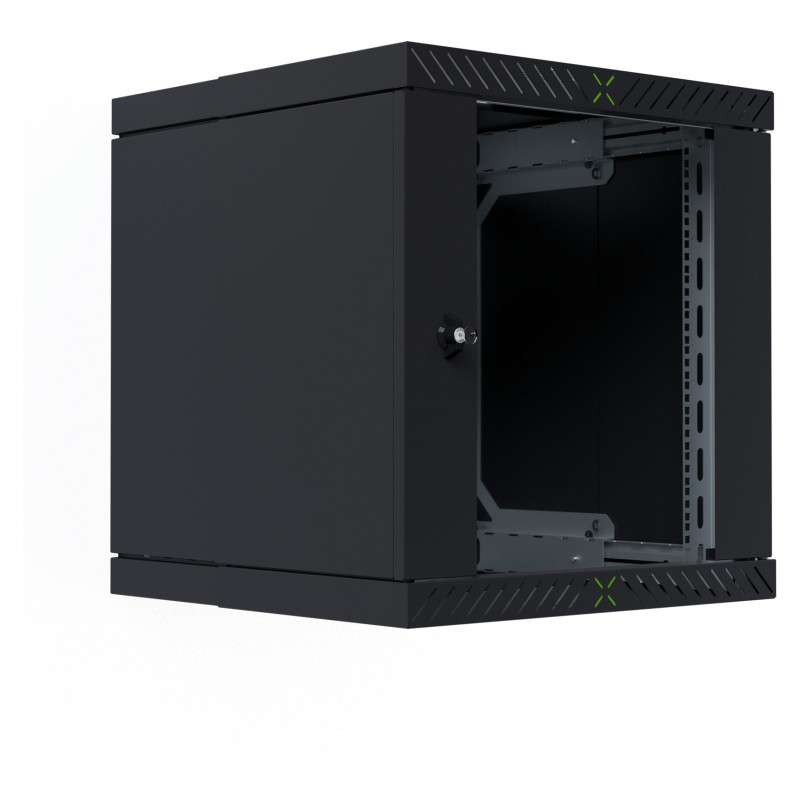

EFB Elektronik WGX-1206TS.G1 rack cabinet

EFB Elektronik WGX-1206TS.G1. Type: Wall mounted rack, Rack capacity: 12U, Maximum weight capacity: 60 kg, Key lock, International Protection (IP) code: IP20, Product colour: Black

Steel sheet housing with swiveling frame, self-ventilated, not pre-assembled
Housing continuously depth adjustable from 400 .. 600 mm
Secured side walls, can only be removed after opening front door
Inside front-sided 2 x 19" profile, additionally depth-adjustable by 50 mm
Front door with window of certified safety-glass (4 mm) and latch locking
Door stop changeable due to stable, spring-loaded metal hinges
Door angle adjustable due to adjustable hinges
Door opening angle 120°
Roof and bottom with pre-punched openings for cable entry (190 x 90 mm)
Rear sided open frame with additionally positions for cable management
Roof and bottom prepared for accommodation of single fan Art.-No. 691664
Cabinet parts inside completely grounded, M5 grounding bolt at base frame
Max. load 60 kg (statically equally distributed), protection degree IP20
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x key, earthing cable

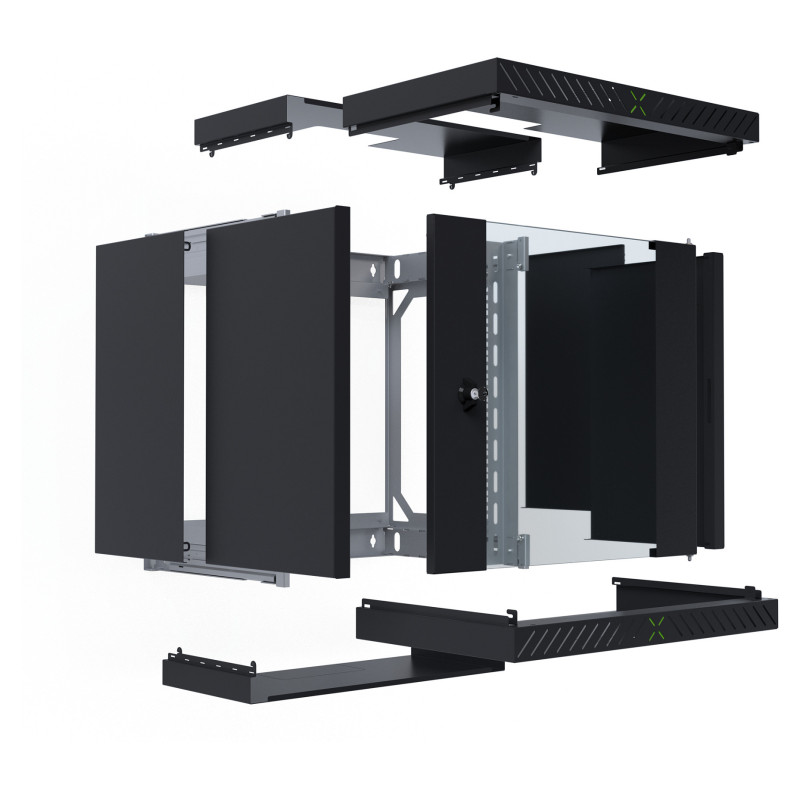

Delivery un-assembled in transport packaging (3 packages, rear frame + outer parts + front door)

Features

Rack capacity: 12U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Steel
Front door construction: Glass
Feature: Key lock
Cooling type: Passive
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 600 mm
Height: 600 mm
