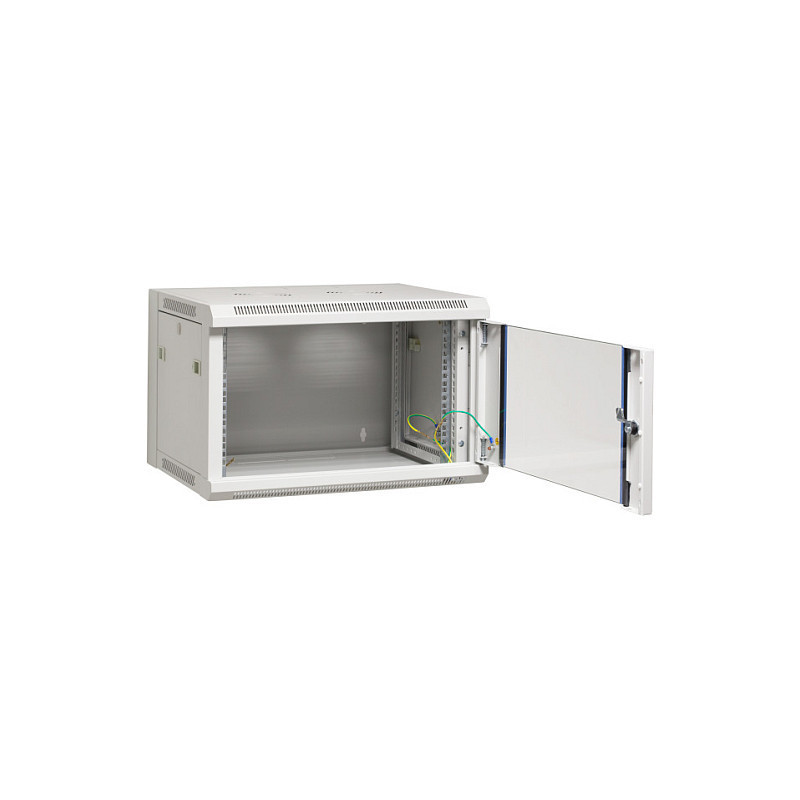

EFB Elektronik 691715FGR.1 rack cabinet

EFB Elektronik 691715FGR.1. Type: Wall mounted rack, International Protection (IP) code: IP20
Steel sheet housing with screwed frame
Not pre-assembled, self-ventilated
Side wall removable with quick fastener
Roof, bottom and rear wall with pre-punched openings for cable entry (230 x 41 mm)
Roof prepared for mounting of 2 x single fan (Art.-No. 691664)
Inside 2 x 19" rails front-sided, depth-adjustable
Front door with window of certified safety glass with lock (thickness 4 mm)
Cabinet parts completely earthed
Max. load 60 kg
Protection degree IP20
Paint finish RAL7035, lichtgrau
Included accessories: 2 x key

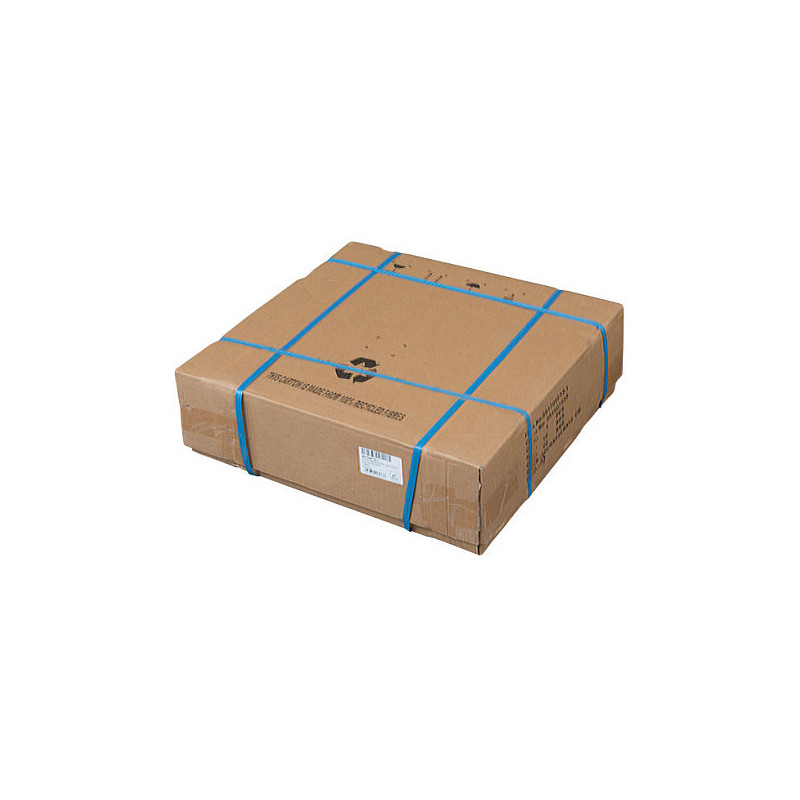

Delivery unassembled in transport packaging (1 carton)

Features

Type: Wall mounted rack
Material: Steel
International Protection (IP) code: IP20

Weight dimensions

Width: 570 mm
Depth: 450 mm
Height: 770 mm

Logistics data

Harmonized System (HS) code: 85381000
