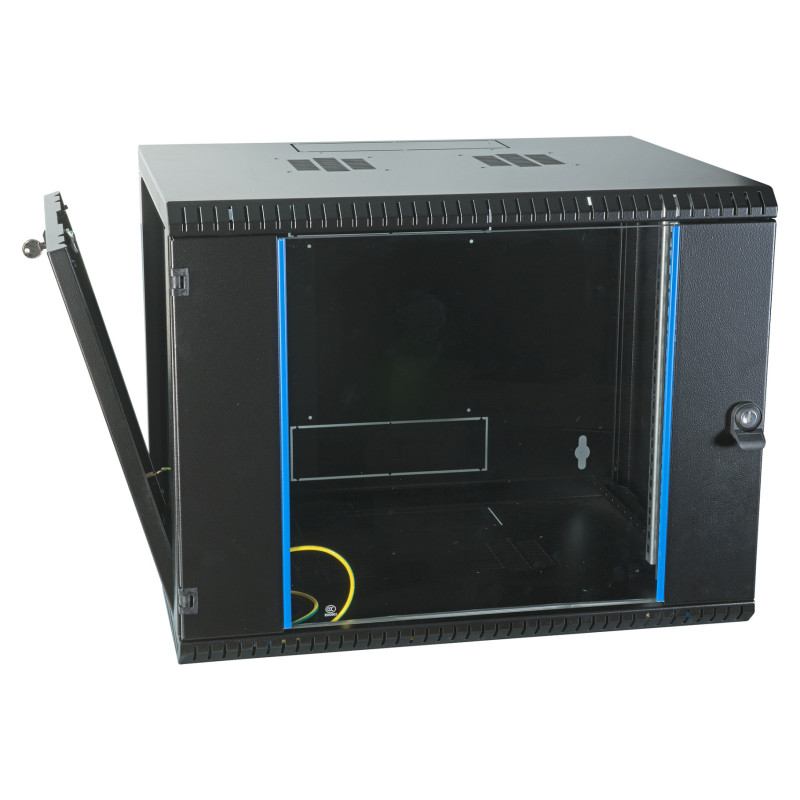

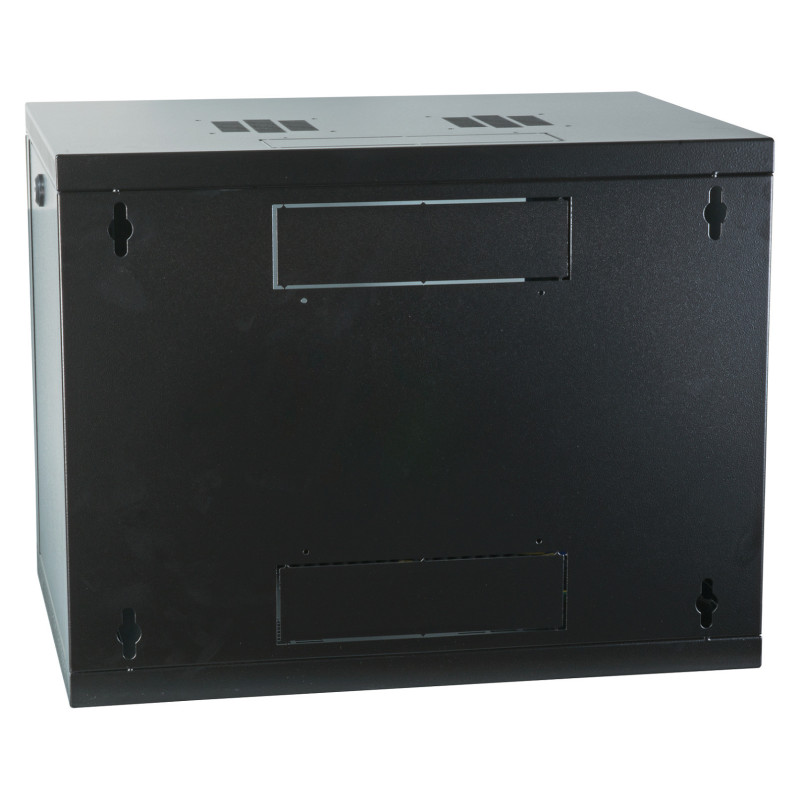

EFB Elektronik 691709VTS.60 rack cabinet

EFB Elektronik 691709VTS.60. Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 50 kg, International Protection (IP) code: IP20, Product colour: Black
- Steel sheet housing with welded frame, completely pre-assembled, self-ventilated
- NEW: Prepared for Plug Play 2-fan unit Art.-No. 691656xx
- NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
- NEW: Front door with metal hinges for increased stability
- Side walls removable, lockable, locks equal to door lock
- Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
- Front-sided 2 x 19" profile rails, galvanised, depth-adjustable
- Front door with latch locking and window made of certified safety glass (thickness 4 mm)
- Internal earthing of all cabinet sections
- Paint finish RAL9005, jet black
- Protection degree IP20
- Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
- Delivery in transport packaging, from 30 kg / 12U on disposable pallet

Features

Rack capacity: 9U
Type: Wall mounted rack
Maximum weight capacity: 50 kg
Product colour: Black
Material: Steel
Front door construction: Glass/Steel
Cooling type: Passive
International Protection (IP) code: IP20

Weight dimensions

Width: 600 mm
Depth: 600 mm
Height: 465 mm
