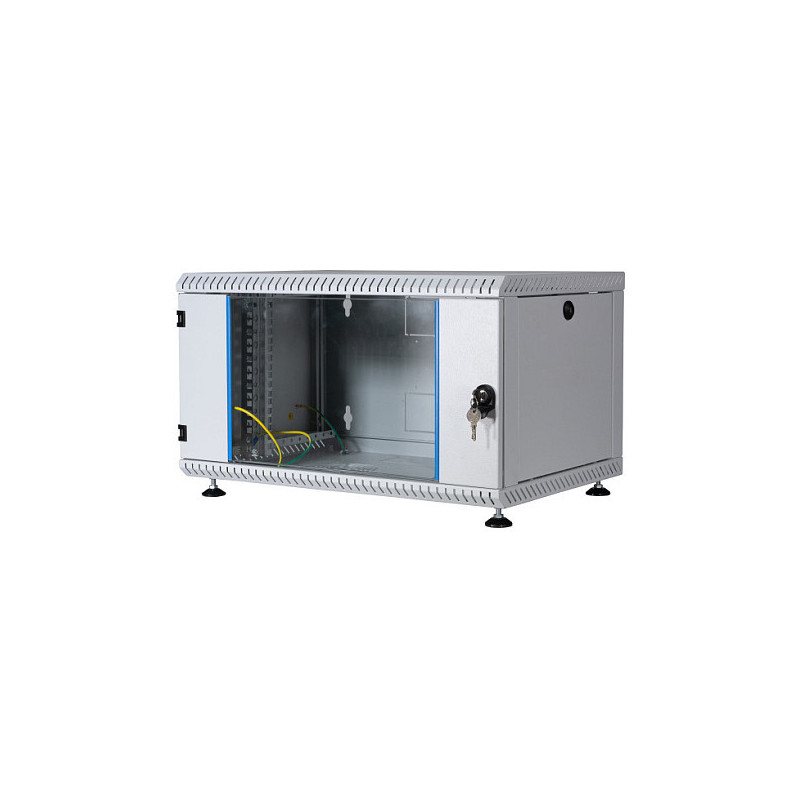

EFB Elektronik 691704VGR.40 rack cabinet

EFB Elektronik 691704VGR.40. Type: Wall mounted rack, Rack capacity: 4U, Maximum weight capacity: 50 kg, Key lock, International Protection (IP) code: IP20, Product colour: Grey

Steel sheet housing with welded frame, completely pre-assembled, self-ventilated
NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx

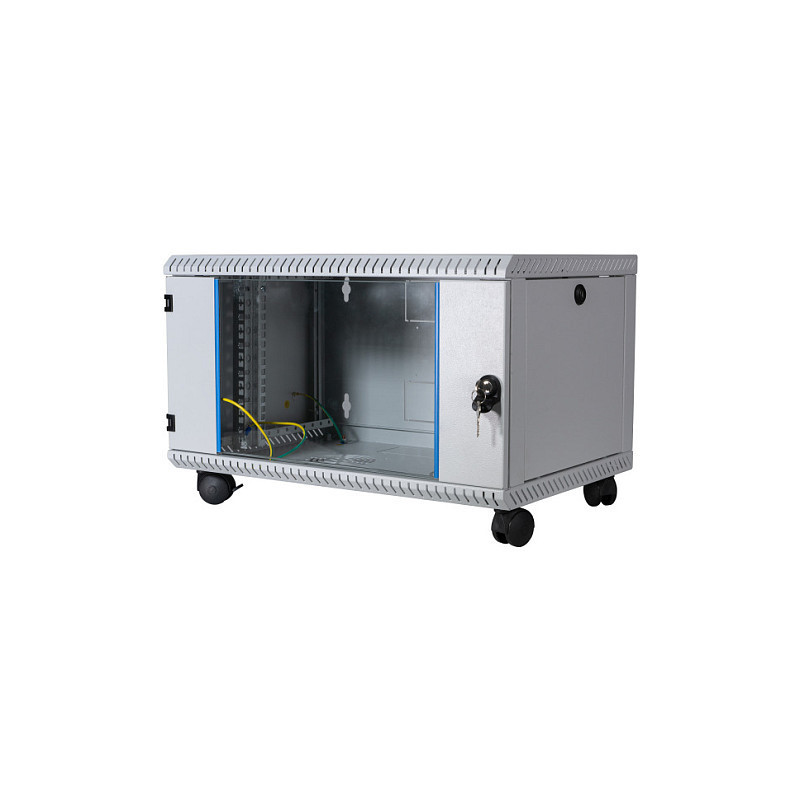

NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19" profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet

Features

Rack capacity: 4U
Type: Wall mounted rack
Maximum weight capacity: 50 kg
Product colour: Grey
Material: Steel
Feature: Key lock
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 400 mm
Height: 240 mm

Packaging data

Feature: Nuts included

Logistics data

Harmonized System (HS) code: 85381000
