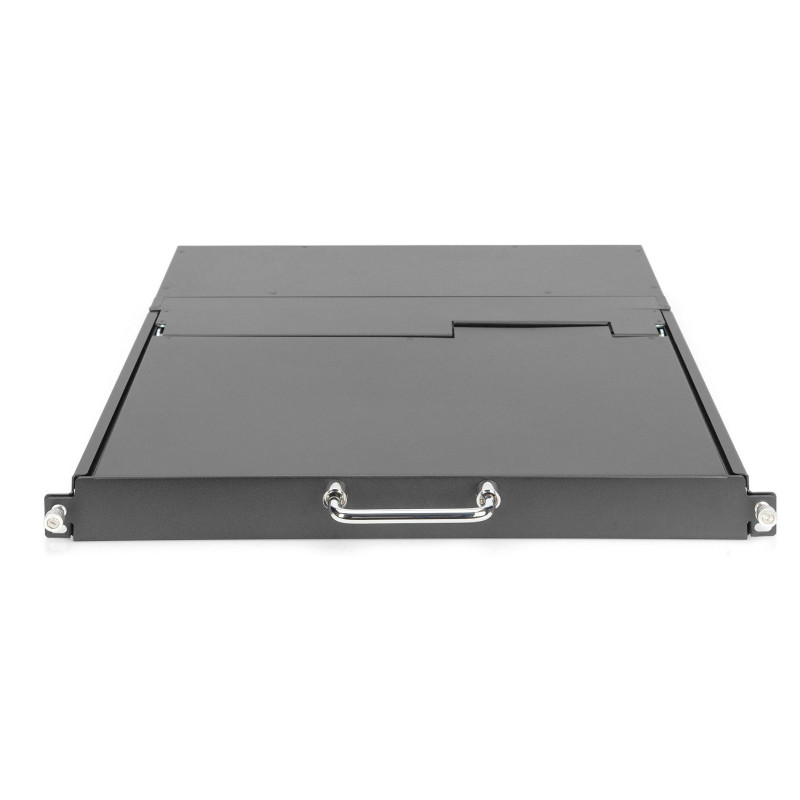

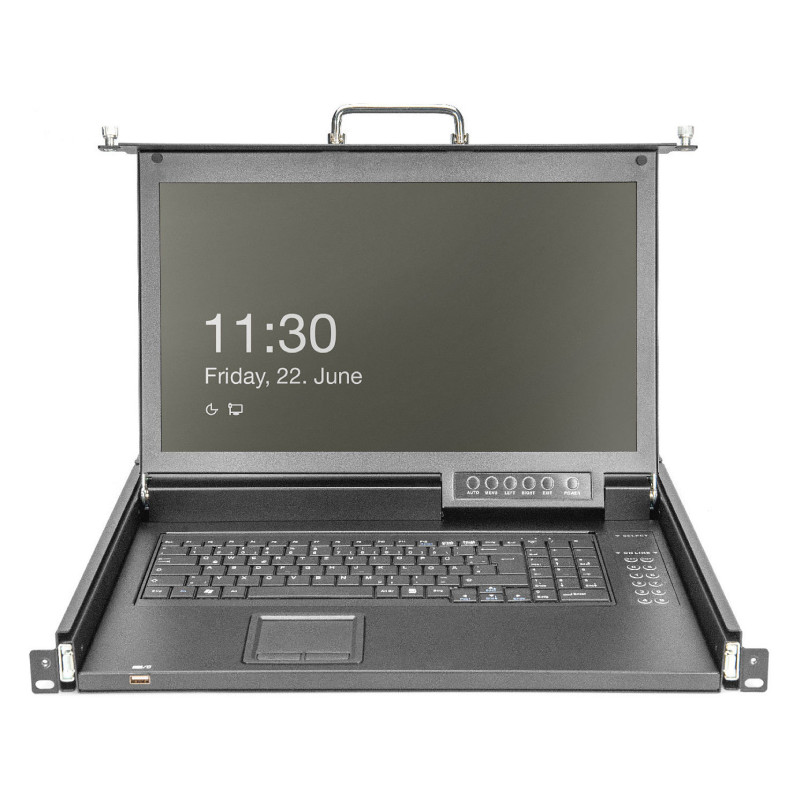

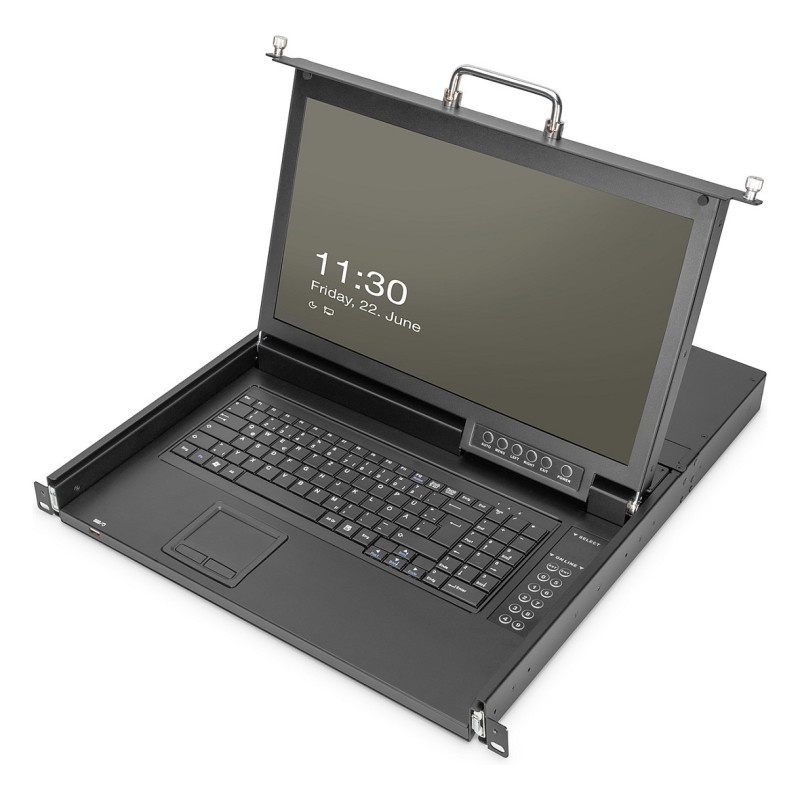

Digitus DS-72220-4GE rack console

Digitus 17" HD LCD KVM console, 8-port Cat 5, German keyboard. Display diagonal: 43.2 cm (17"), Display resolution: 1920 x 1080 pixels, Contrast ratio (typical): 1000:1. Keyboard language: German, Keyboard layout: QWERTZ. Width: 509 mm, Height: 45 mm, Depth: 445 mm. Package weight: 19.1 kg, Package width: 755 mm, Package depth: 625 mm
Maximum flexibility in managing the server farm
- Resolution: 1920x1080 at 60 Hz
- Contrast ratio: 1000:1
- Supports: 16.7 M colors

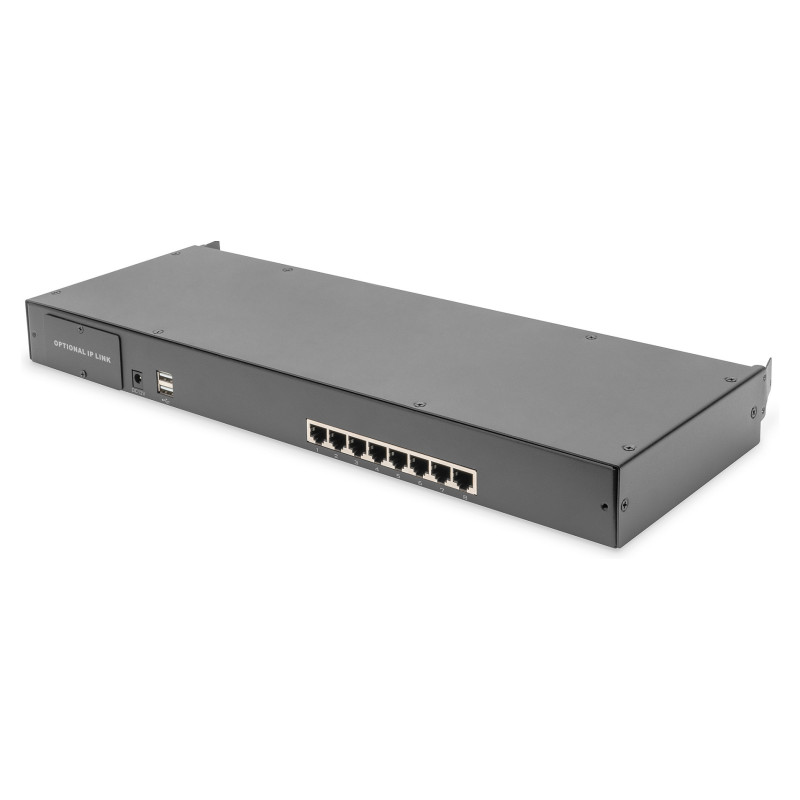

- Includes 8-port Cat-5 KVM switch
- Mouse touch board with two function buttons
- Gross weight: 19.15 kg
- Space-saving housing (1U), black (RAL 9005)
- Interface: Cat 5
Thanks to its modular design, the DIGITUS® 17" HD TFT console offers a wide range of individual configuration options so that it can be adapted to the area of application of the console. This makes the console cost-saving and it can be upgraded or retrofitted with additional modules at any time. The flexible configuration guarantees that the console is highly future-proof. The modular console consists of a 17" monitor, an 8-port Cat 5 KVM switch and the touchpad.

Display

Display diagonal: 43.2 cm (17")
Display resolution: 1920 x 1080 pixels
Contrast ratio (typical): 1000:1
Aspect ratio: 16:9
Display type: TFT
Display number of colours: 16.78 million colours

Technical details

Product colour: Black
Rack capacity: 1U

Ports interfaces

RJ-45 ports quantity: 8
USB 2.0 Type-A ports quantity: 1
DC-in jack: Yes

Keyboard

Built-in touchpad: Yes
Keyboard language: German
Keyboard layout: QWERTZ

Weight dimensions

Width: 509 mm
Height: 45 mm
Depth: 445 mm
Weight: 13.8 kg
Mounting depth (min): 80 cm
Mounting depth (max): 120 cm

Packaging data

Package weight: 19.1 kg
Package width: 755 mm
Package depth: 625 mm
Package height: 186 mm
Package volume: 87768.8 cm³

Packaging content

Mounting brackets included: Yes
Quick installation guide: Yes
AC adapter included: Yes
