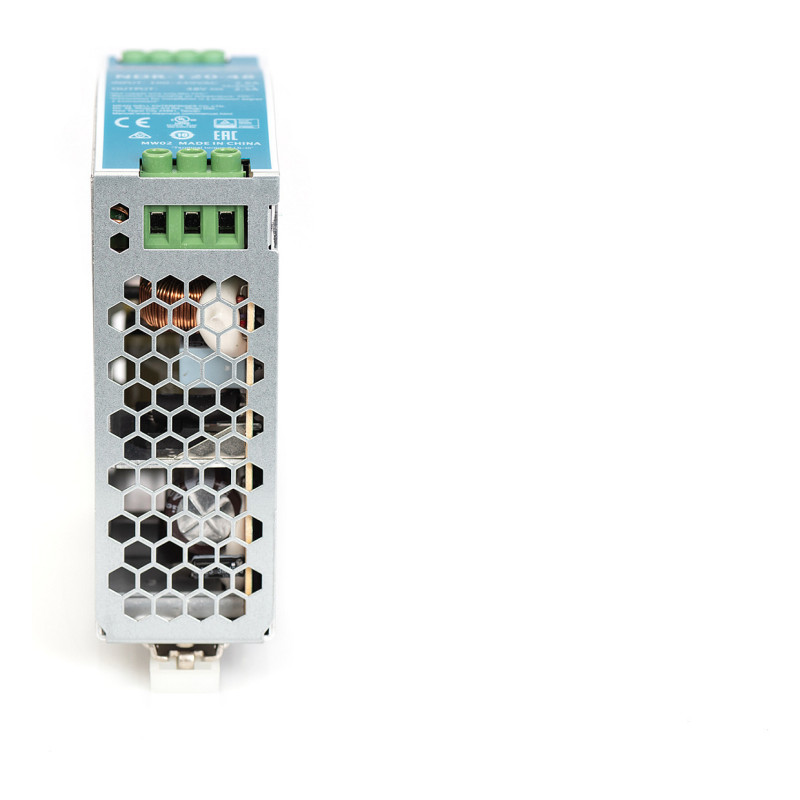

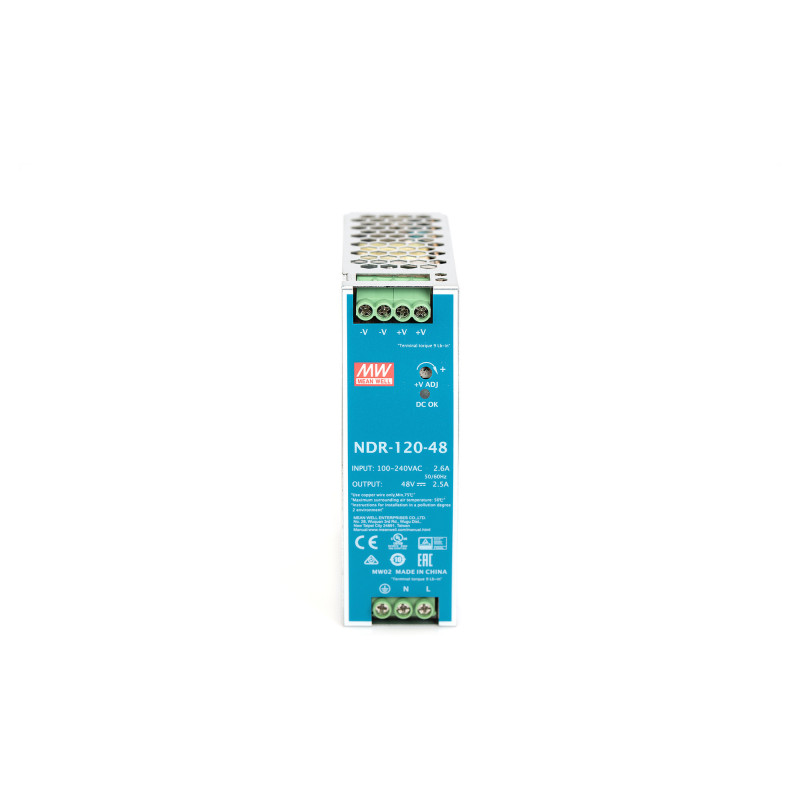

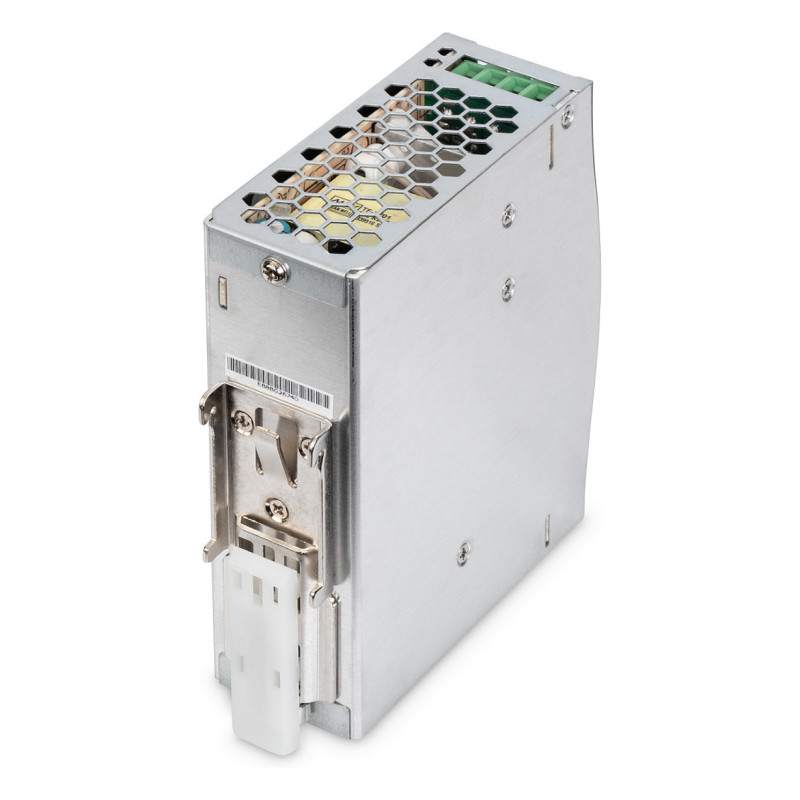

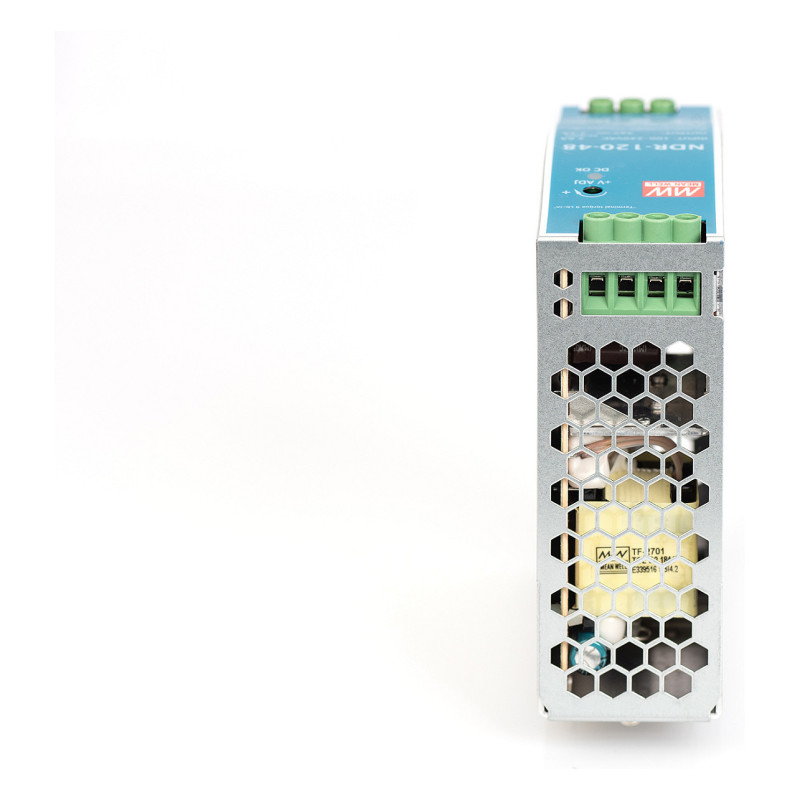

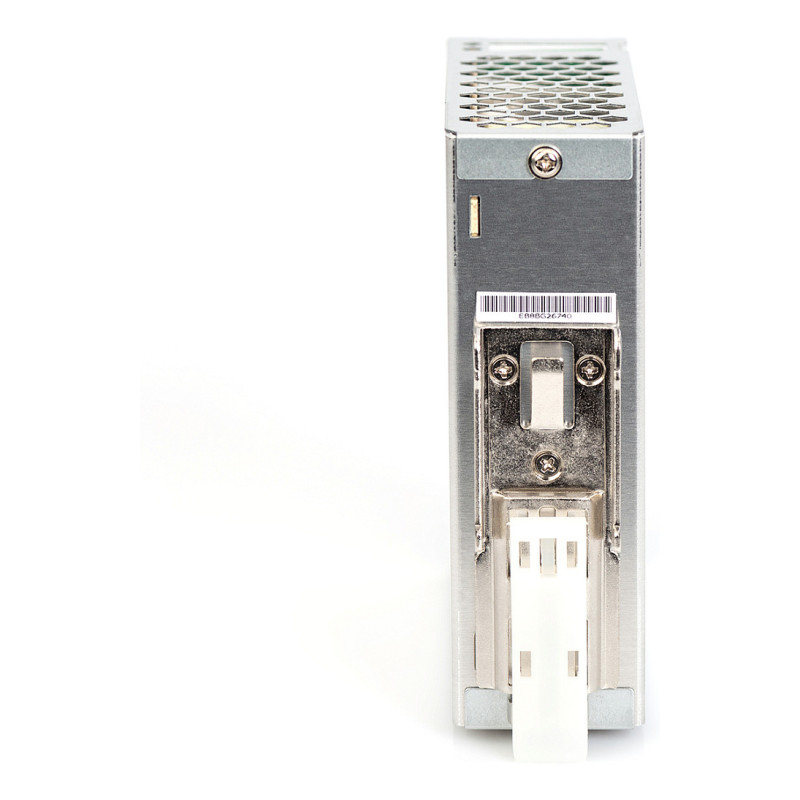

Digitus DN-PWR12048 power supply unit

Digitus Industrial Power Supply 48V DC, 120W. Total power: 120 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Product colour: Green, Silver. Country of origin: Taiwan
Compact size and wide temperature range
- Wide range AC input between 90V AC ~ 264V AC
- DIN rail TS-35/7.5 or TS-35/15 support
- 48V DC output voltage
- 120W output wattage
DIGITUS® economical slim DIN rail power supply series adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The series adopts wide range AC input beween 90V AC to 264V AC and is design with metal housing, enhancing the unit´s power dissipation. DIN rail power suply series offer a working efficiency of 88% and can operate between -20°C ~ 60°C. It is equipped with over-load, short-circuit, over-voltage and over-temperature protection, which makes it a competitive power supply solution for industrial applications.

Power

Total power: 120 W
AC input voltage: 90 - 264 V
AC input frequency: 47 - 63 Hz
Efficiency: 88%
Power protection features: Overload

Design

Product colour: Green, Silver

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 20 - 95%

Logistics data

UK Trade Tariff code: 85044085
Harmonized System (HS) code: 84733020
Country of origin: Taiwan
