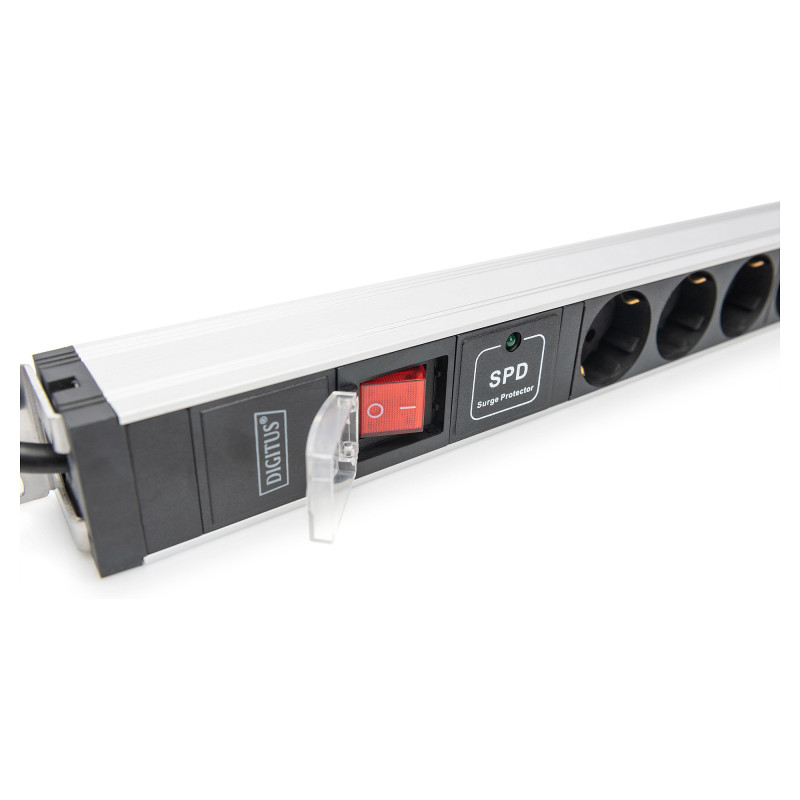

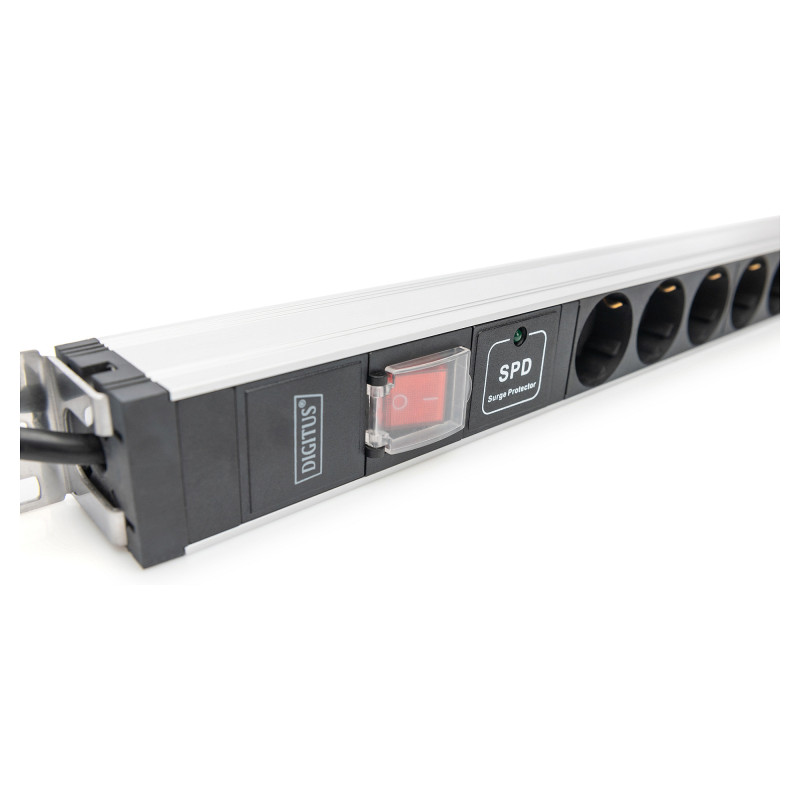

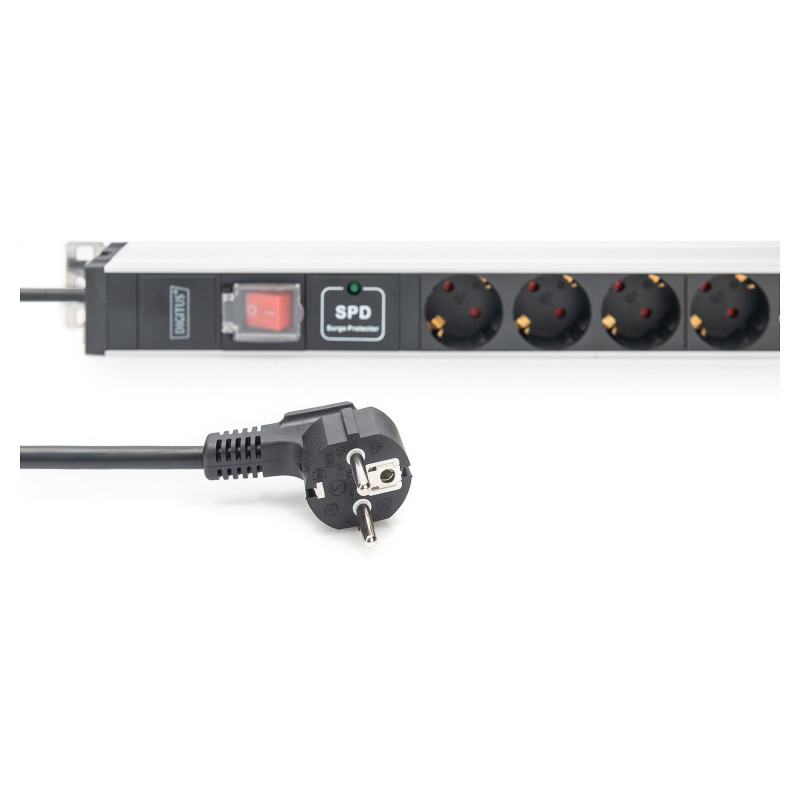

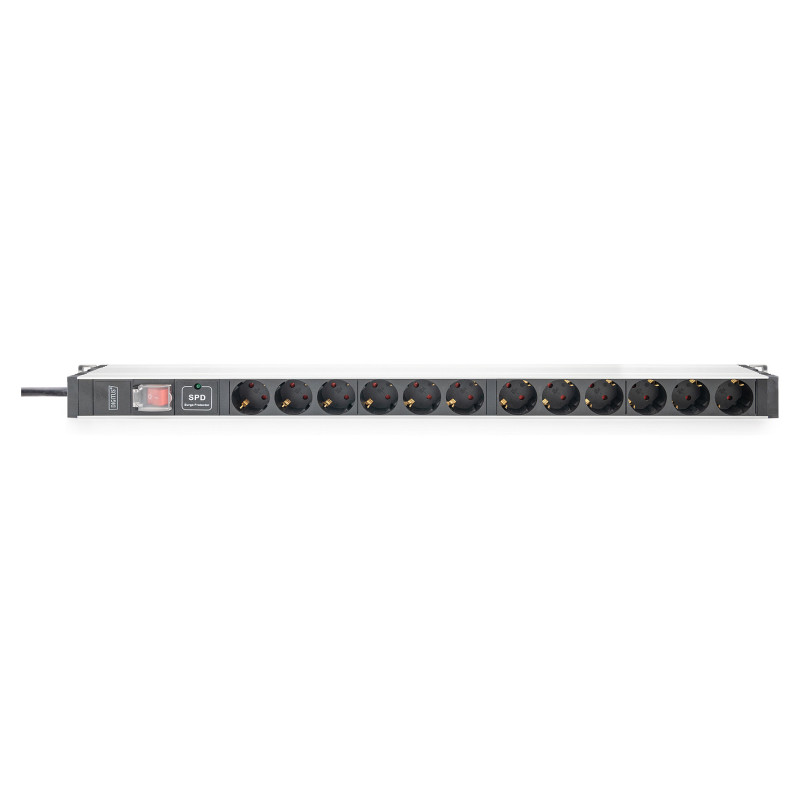

Digitus DN-95435 power distribution unit (PDU)

Digitus Socket strip with aluminum profile with switch and surge protection, 12-way safety sockets, 2 m cable safety plug. Rack capacity: 1U, Type: Single-phase, Mounting: Vertical. AC outlets quantity: 12 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Width: 45 mm, Depth: 45 mm, Height: 643.9 mm. Package weight: 486.349 g, Package width: 900 mm, Package depth: 120 mm
Secure and professional power supply in the network / server rack area
- Perfect power distribution for your network and IT rack
- Illuminated switch is protected against accidental switch-off
- Integrated overvoltage protection protects connected loads from overvoltage
- Sockets are rotated by 45° for optimum space management and easy access
The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories and the home. The power strip can be mounted vertically in the cabinet. Overvoltage protection protects consumers from overvoltage. Depending on the type of cabinet, it is possible to mount the socket strip with the taps pointing to the right or left.

Design

Type: Single-phase
Rack capacity: 1U
Mounting: Vertical
Housing material: Aluminium, Plastic
On/off switch: Yes

Ports interfaces

AC outlets quantity: 12 AC outlet(s)
Power plug: Type F
AC outlet types: Type F
Master AC outlets quantity: 12

Power

Nominal input voltage: 230 V
AC input frequency: 50 - 60 Hz
Maximum current: 16 A
Output voltage: 230 V
Load capacity: 3600 VA
Number of phases: 1
Power protection features: Over voltage
Surge protection: Yes

Weight dimensions

Width: 45 mm
Depth: 45 mm
Height: 643.9 mm
Size (imperial): 48.3 cm (19")

Packaging content

Manual: Yes
Rack mount kit: Yes

Packaging data

Package weight: 486.349 g
Package width: 900 mm
Package depth: 120 mm
Package height: 58 mm
Package volume: 6264 cm³

Logistics data

Country of origin: China
