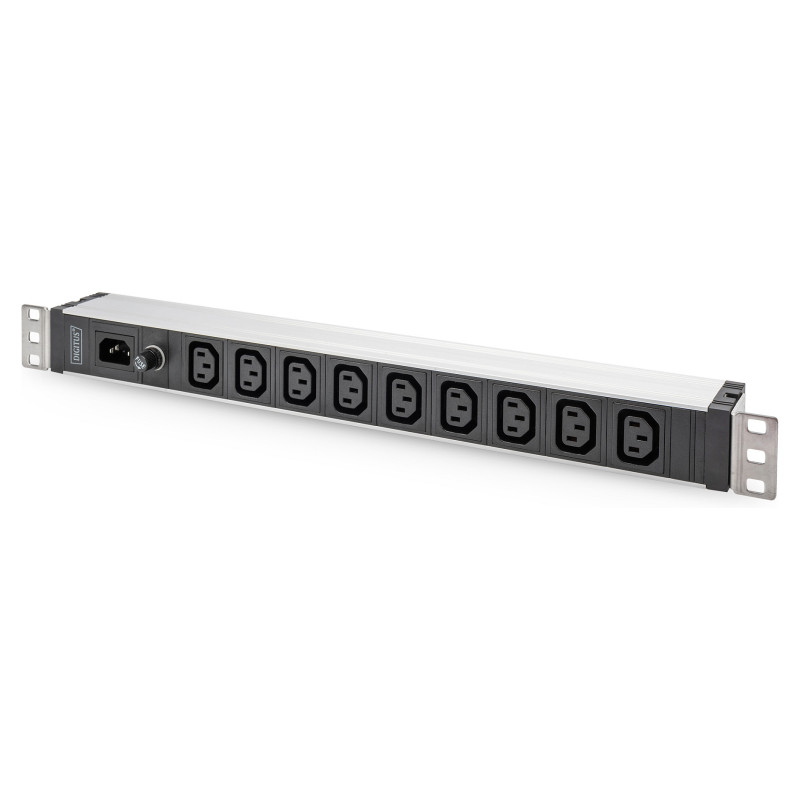

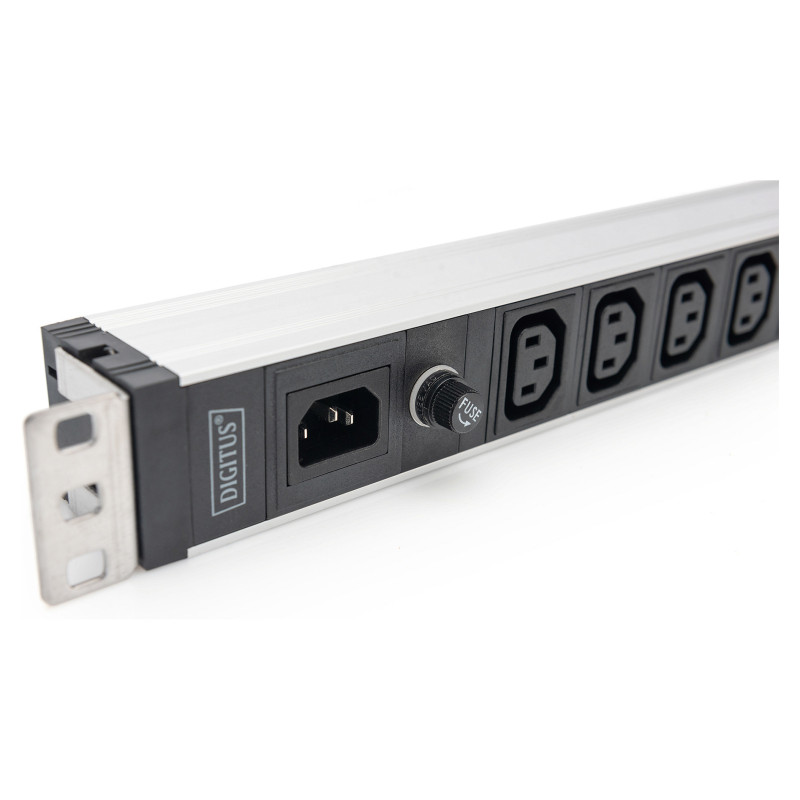

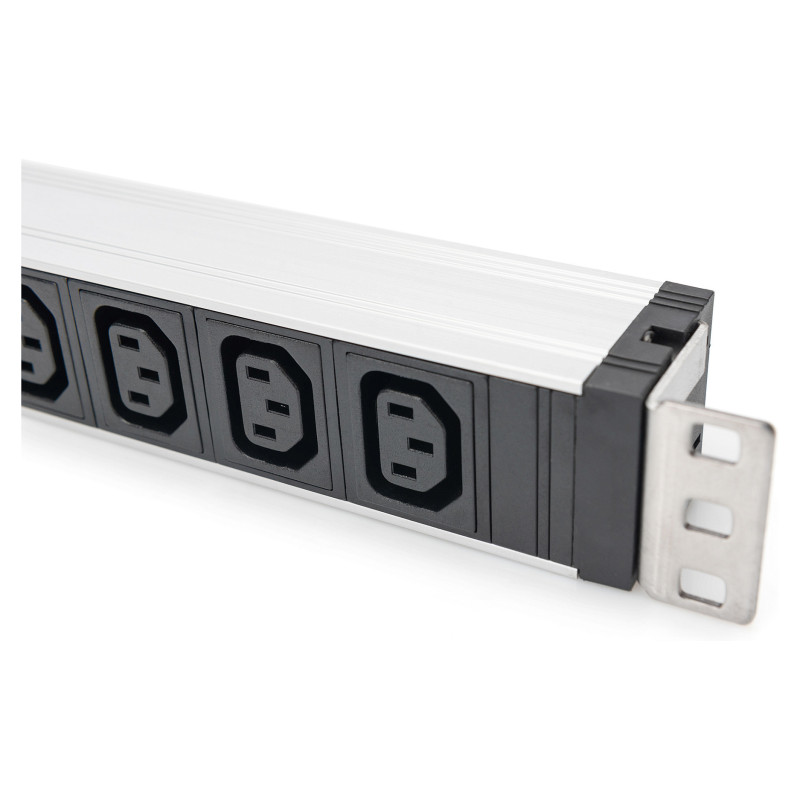

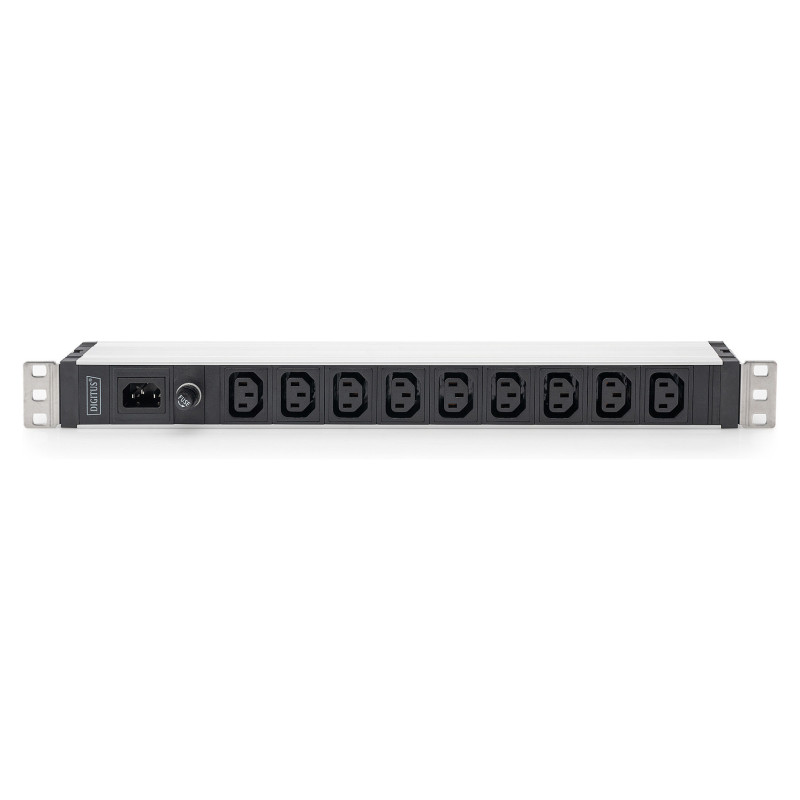

Digitus DN-95429 power distribution unit (PDU)

Digitus Socket strip with aluminum profile, 9-way, IEC C14 input. Rack capacity: 1U, Type: Single-phase, Mounting: Horizontal. AC outlets quantity: 9 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Nominal input voltage: 230 V, Maximum current: 10 A, Block 1 output current: 10 A. Width: 45 mm, Depth: 45 mm, Height: 482.6 mm. Package weight: 892 g, Package width: 510 mm, Package depth: 97 mm
Safe and professional power supply in the 482.6 mm (19") range
- Perfect power distribution for connection to a UPS (IEC-60320 C14 input)
- Compact design, 19" 1U housing
- 10A input fuse protects the PDU and the connected loads from overload.
- The sockets offer optimum space management and easy access
The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology and laboratories. With its IEC60320 C13 input plug, the PDU is ideal for use as an additional 19" distribution board for a UPS.

Design

Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal
Housing material: Aluminium, Plastic

Ports interfaces

AC outlets quantity: 9 AC outlet(s)
Power plug: C14 coupler
AC outlet types: C13 coupler
Master AC outlets quantity: 9

Power

Nominal input voltage: 230 V
Maximum current: 10 A
Block 1 output current: 10 A
Output voltage: 230 V
Load capacity: 2300 VA
Number of phases: 1

Weight dimensions

Width: 45 mm
Depth: 45 mm
Height: 482.6 mm
Size (imperial): 48.3 cm (19")

Packaging data

Package weight: 892 g
Package width: 510 mm
Package depth: 97 mm
Package volume: 2869.26 cm³

Logistics data

Country of origin: China
