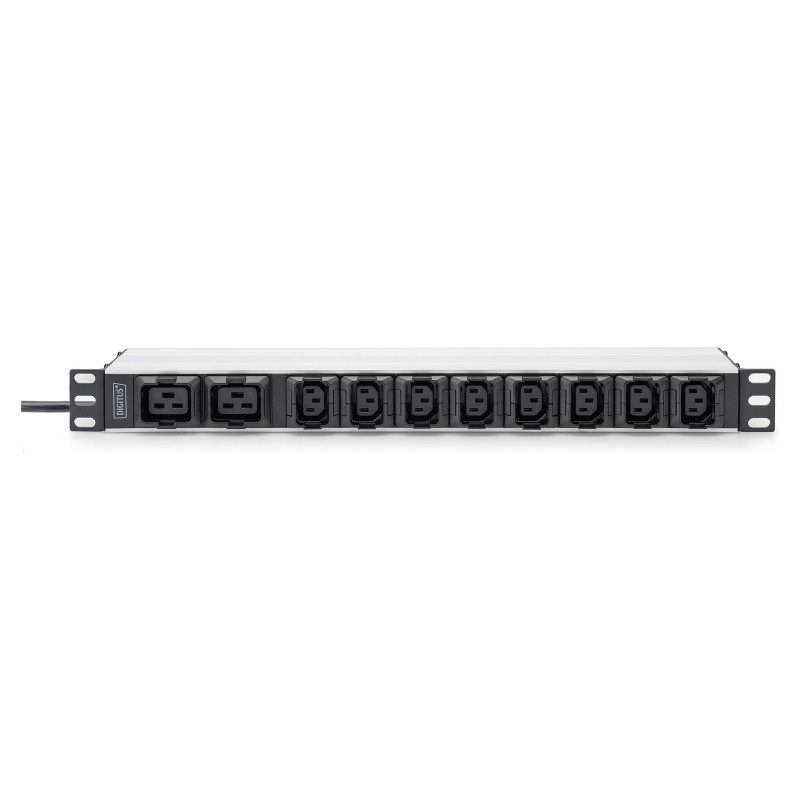

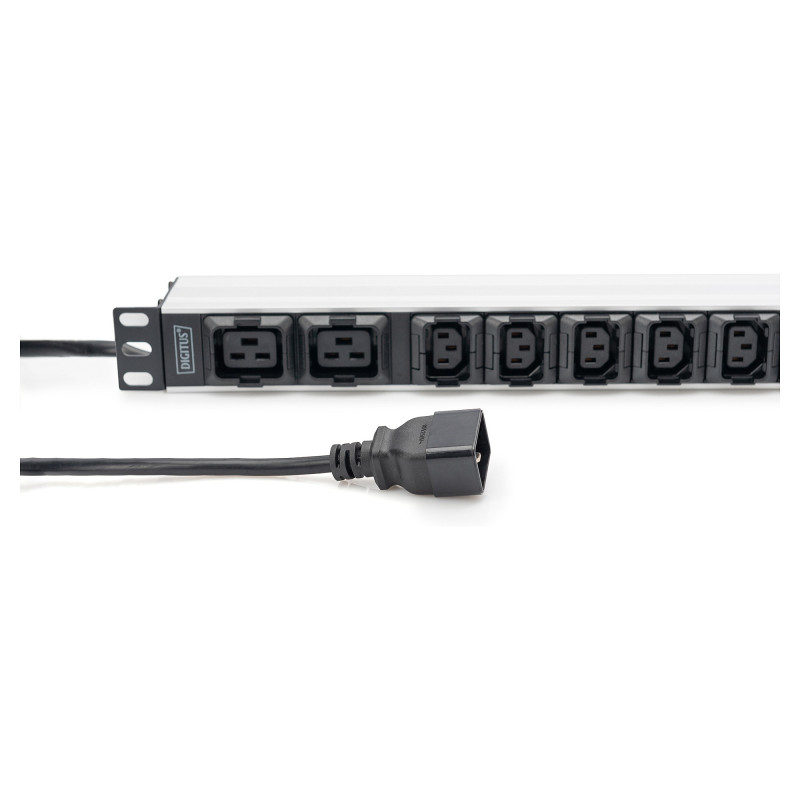

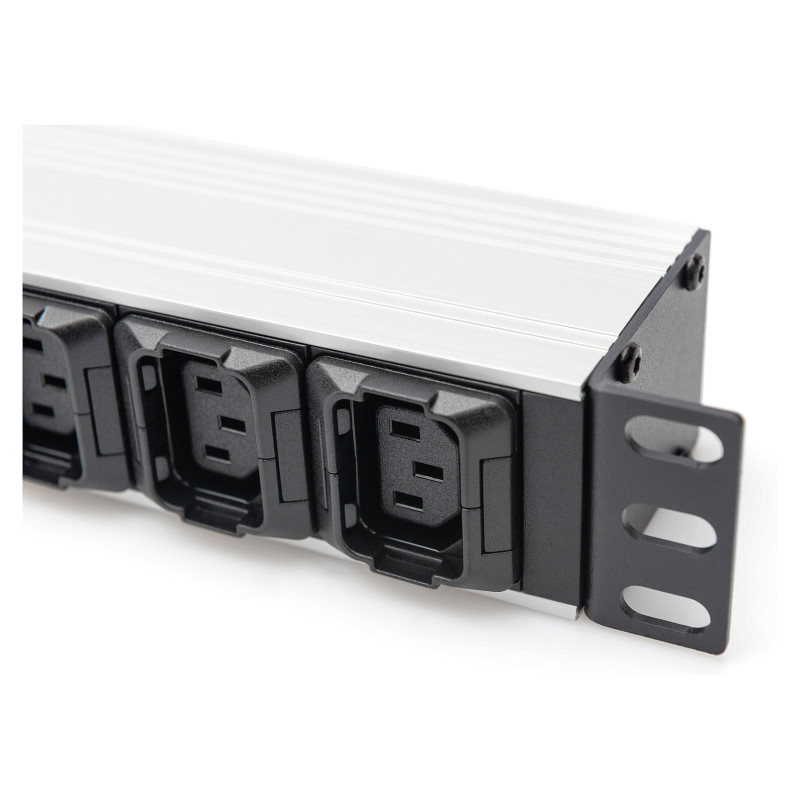

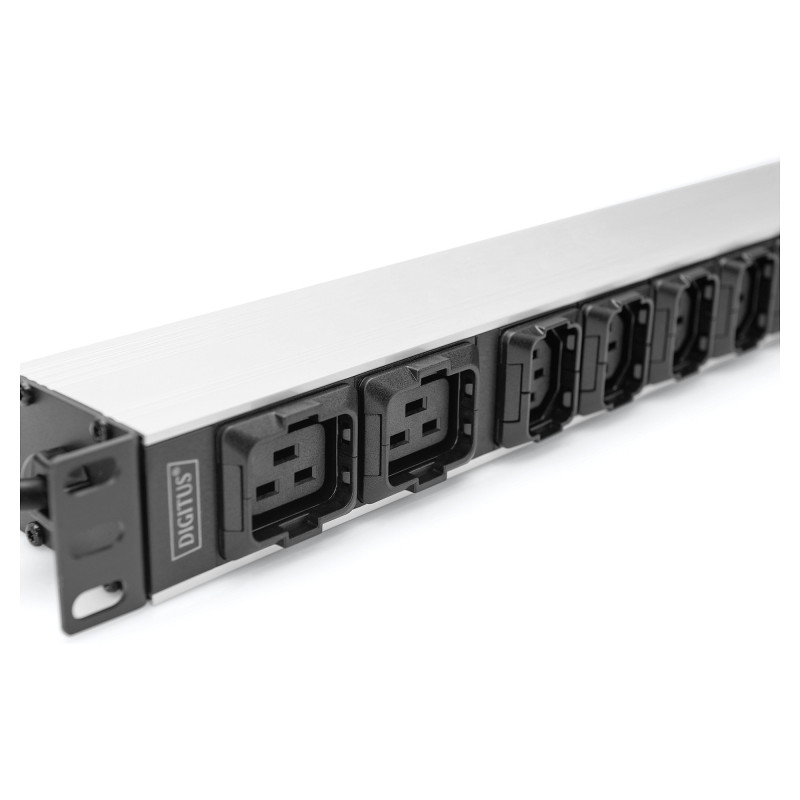

Digitus DN-95427 power distribution unit (PDU)

Digitus Socket strip with aluminum profile, 10-way, 2 m supply cable, IEC C20 plug. Rack capacity: 1U, Type: Single-phase, Housing material: Aluminium, Plastic. AC outlets quantity: 10 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Cable length: 2 m. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Width: 45 mm, Depth: 60 mm, Height: 482.6 mm

Safe and professional power supply in the 19" range

- Perfect power distribution for your network and IT rack
- Optimum power distribution for connection to a UPS (IEC-60320 C20 input connector)
- The sockets offer optimum space management and easy access
- Integrated pull-out protection on each output, protects C13 and C19 standard cables from unintentional unplugging

The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology and laboratories. With its IEC60320 C13 and C19 input plugs, the PDU is ideal for use as an additional 19" distribution board for a UPS. The individual C13 and C19 outlets are equipped with pull-out protection.

Design

Type: Single-phase
Rack capacity: 1U
Housing material: Aluminium, Plastic

Ports & interfaces

AC outlets quantity: 10 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler, C19 coupler
Master AC outlets quantity: 8
Slave AC outlets quantity: 2

Features

Cable length: 2 m

Power

Nominal input voltage: 230 V
AC input frequency: 50 - 60 Hz
Maximum current: 16 A
Output voltage: 250 V
Load capacity: 3600 VA
Number of phases: 1

Weight & dimensions

Width: 45 mm
Depth: 60 mm
Height: 482.6 mm
Weight: 850 g
Size (imperial): 48.3 cm (19")

Packaging content

Feature: Manual
Feature: Rack mount kit

Logistics data

Country of origin: China
