Digitus DN-91411-LF patch panel

Digitus Modular Patch Panel for Keystone Jack 1U Rack Mount - Unloaded. Cable types supported: Cat5e, Cat6, Cat6a. Mounting: Rack mounting, Rack capacity: 1U, Product colour: Black. Package width: 520 mm, Package depth: 120 mm, Package height: 50 mm. Country of origin: China, Master (outer) case width: 540 mm, Master (outer) case length: 310 mm

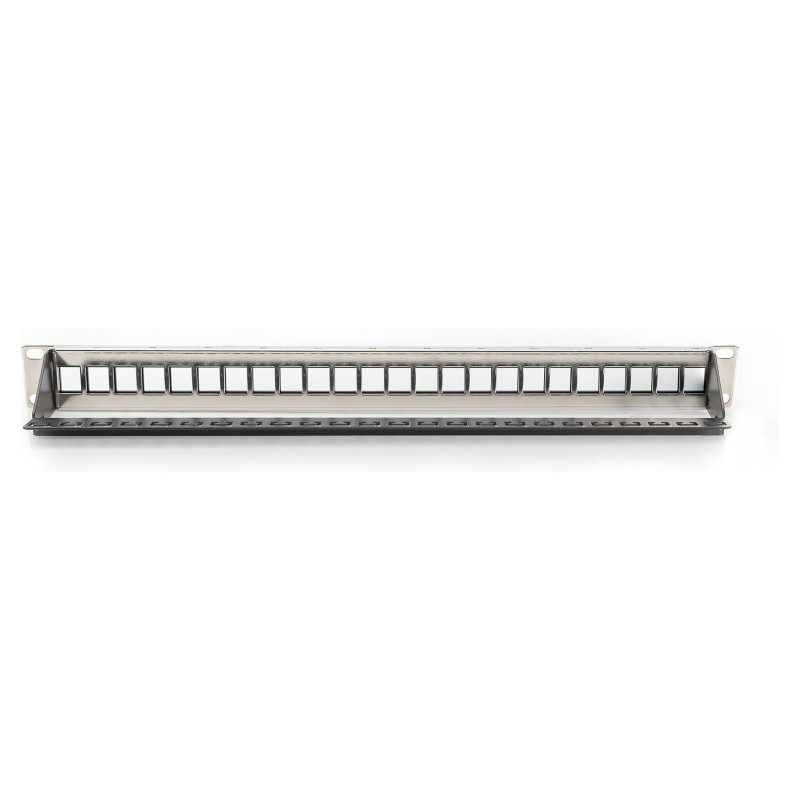

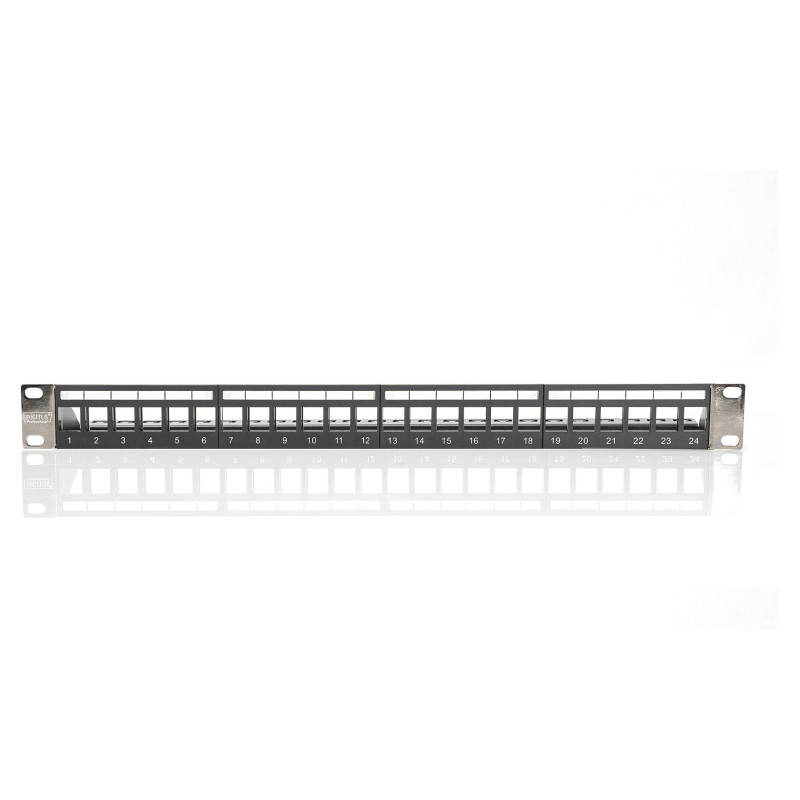

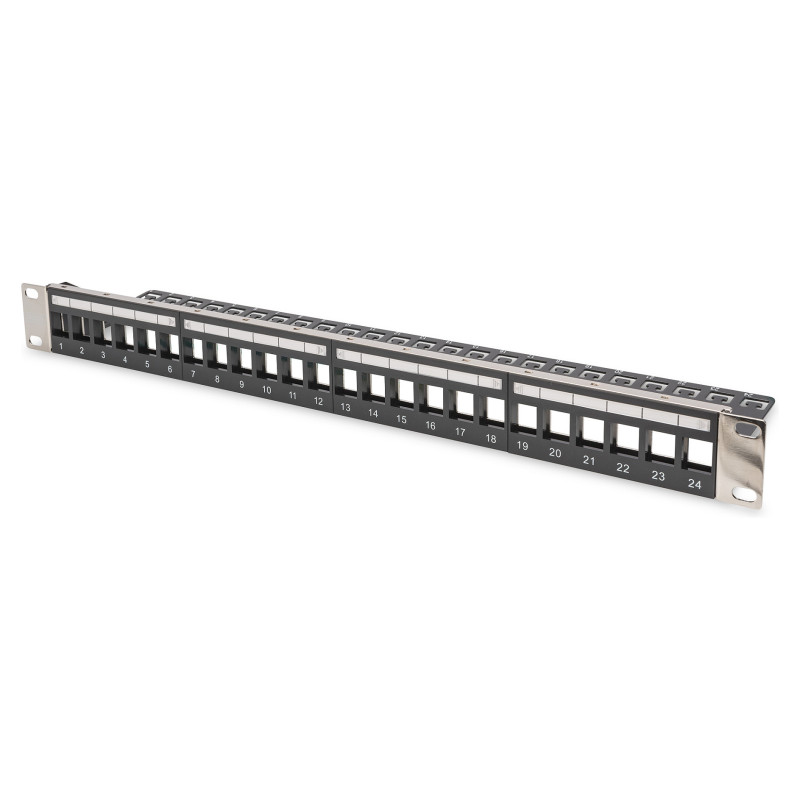

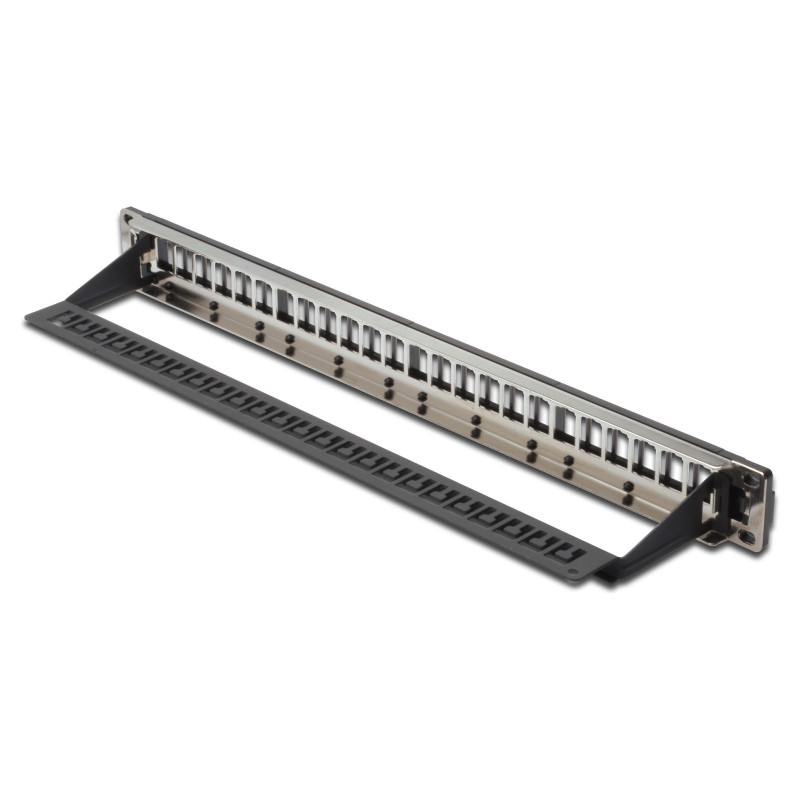

DIGITUS® modular patch panel are specially designed for 19" rack installation and for mounting DIGITUS® keystone jacks. The modular patch panel is available in two different colors, grey RAL 7035 and black RAL 9005. The material consists of SPCC, 1.55 mm cold-rolled carbon steel in compliance with JIS G3141-1996. The front part of the modular patch panel is manufactured of ABS High-Impact UL-94V-0. The rear management tray with special designed cable tie positions, is delivered as snapping in tool for simple installation.

Network

Ports quantity: 24
Cable types supported: Cat5e, Cat6, Cat6a

Design

Product colour: Black
Material: Acrylonitrile butadiene styrene (ABS), Steel
Mounting: Rack mounting
Rack capacity: 1U

Operational conditions

Operating temperature (T-T): -20 - 75 °C

Packaging data

Package width: 520 mm
Package depth: 120 mm
Package height: 50 mm
Package weight: 770 g
Package volume: 3120 cm³

Logistics data

UK Trade Tariff code: 83024900
Country of origin: China
Harmonized System (HS) code: 85371098
Master (outer) case width: 540 mm
Master (outer) case length: 310 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 7.7 kg
Products per master (outer) case: 10 pc(s)
