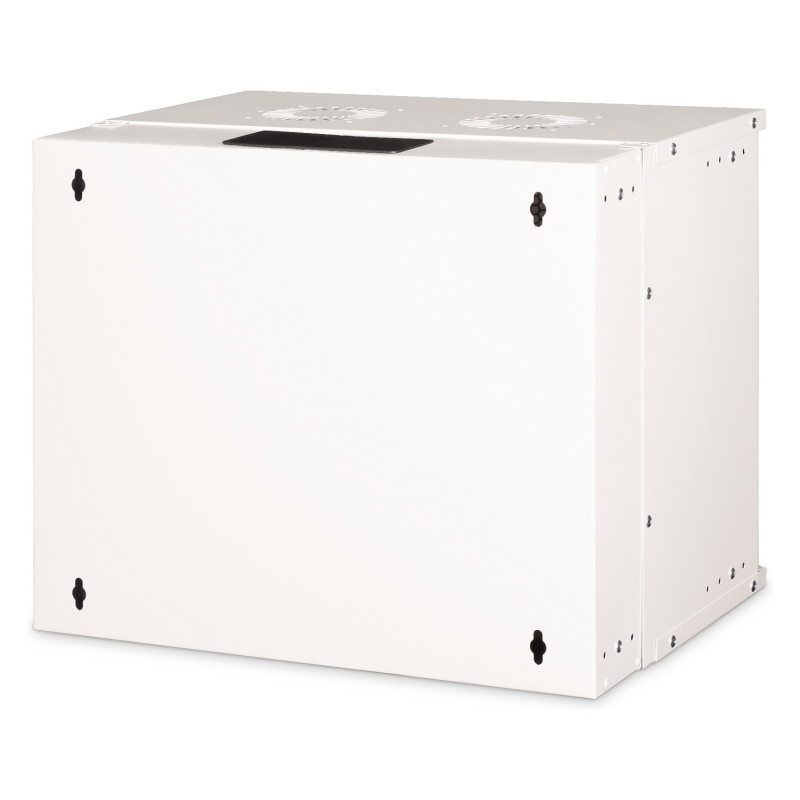

Digitus DN-49209 rack cabinet

Digitus Wall-mounted enclosure SOHO Pro - 483 mm (19") - 540x400 mm (WxD). Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 60 kg, Key lock, Cable management, International Protection (IP) code: IP20, Product colour: Light grey

The DIGITUS® wall-mounted enclosure SOHO Pro series is characterized by its efficient delivery in an optimized flat pack and particularly user-friendly installation.

- Compact housing for 483 mm (19") installations
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws

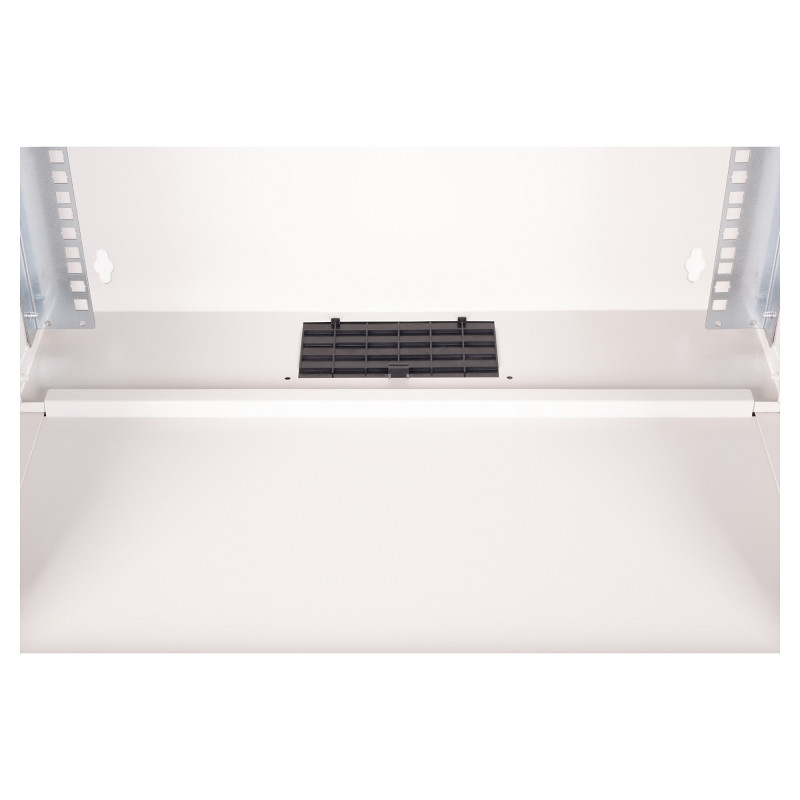

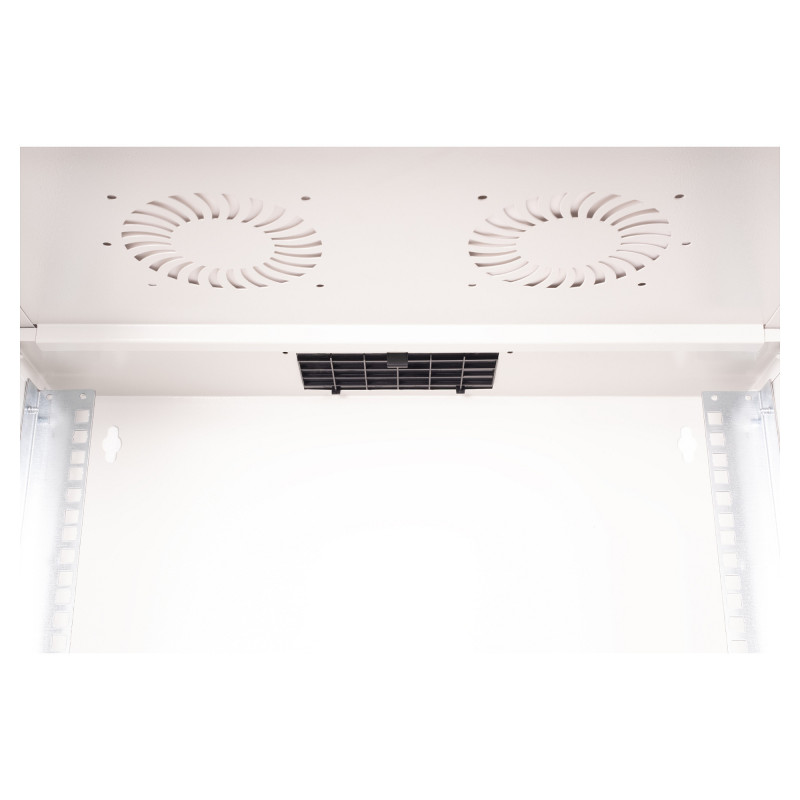

- Flexible cable routing options thanks to protected openings in the roof and floor

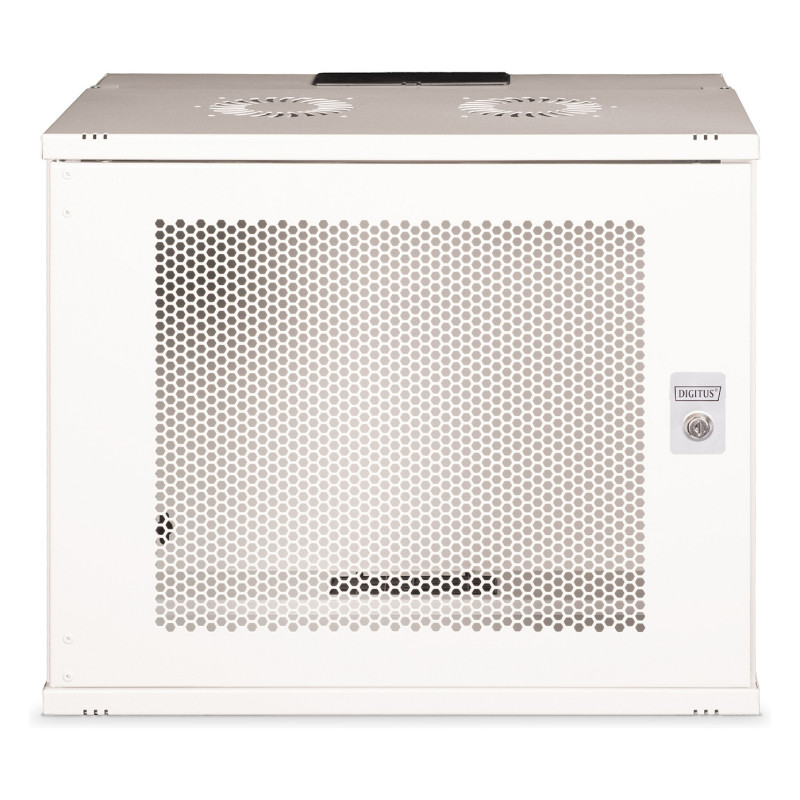

- Lockable steel front door with perforation, 200° door opening angle

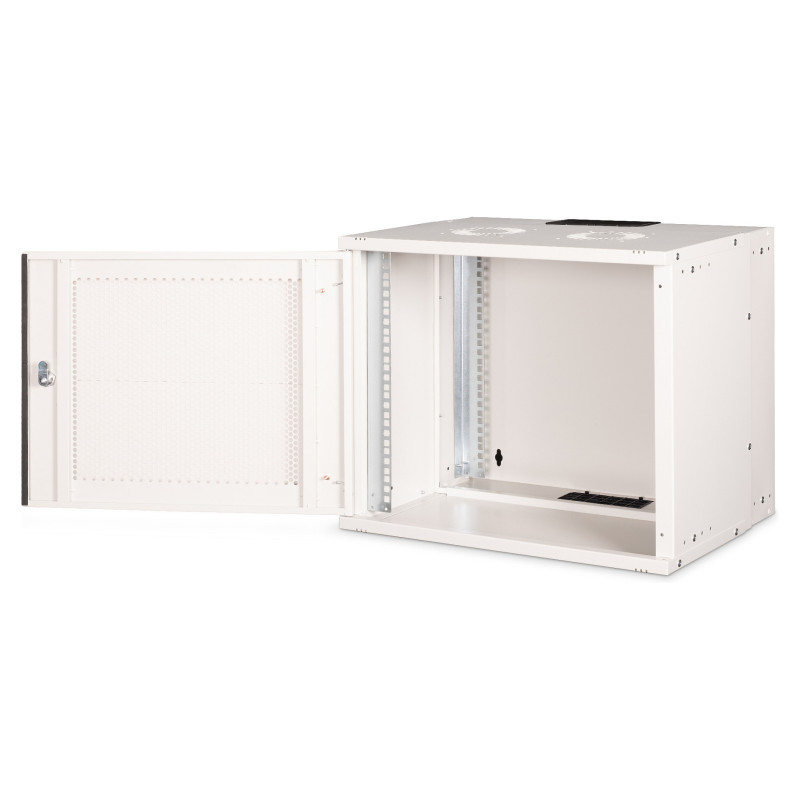

- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg

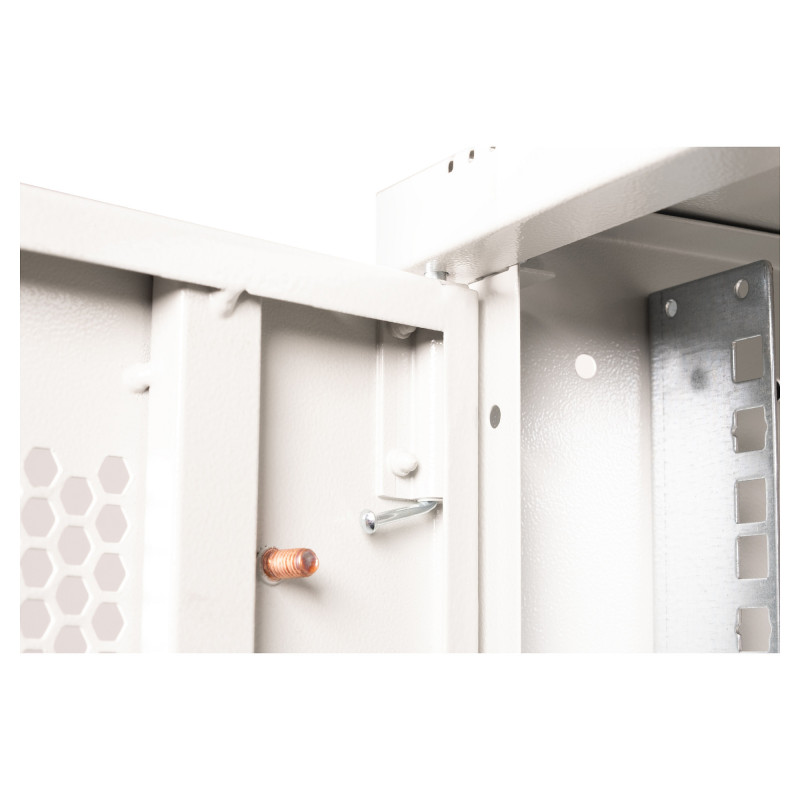

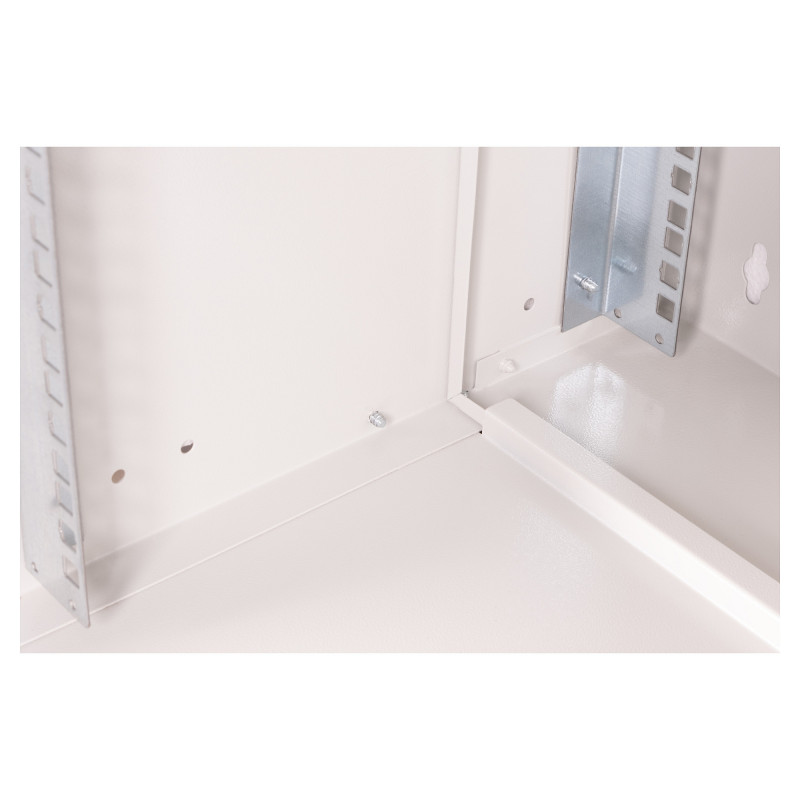

Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO Pro series, you can install your network wherever you want. The variant with a front door made of perforated sheet steel is available in three height units (7U, 9U, 12U). All cabinets are equipped with a cable entry in the top and bottom. Two pairs of galvanized 483 mm (19") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.

Features

Rack capacity: 9U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Light grey
Material: Steel
Back door construction: Steel
Front door construction: Perforated
Side panel construction: Steel
Feature: Side panels included

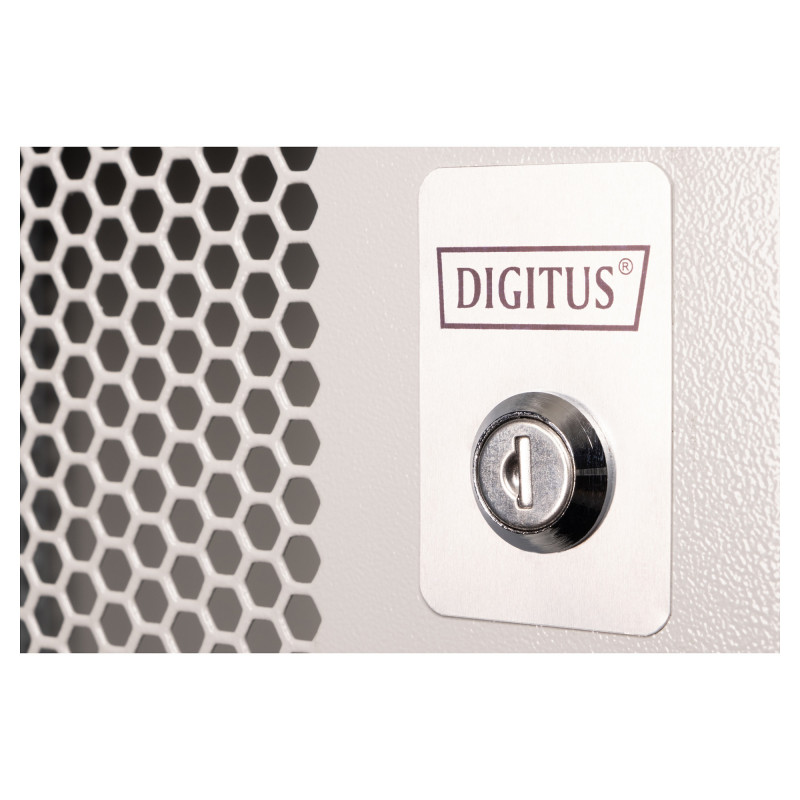

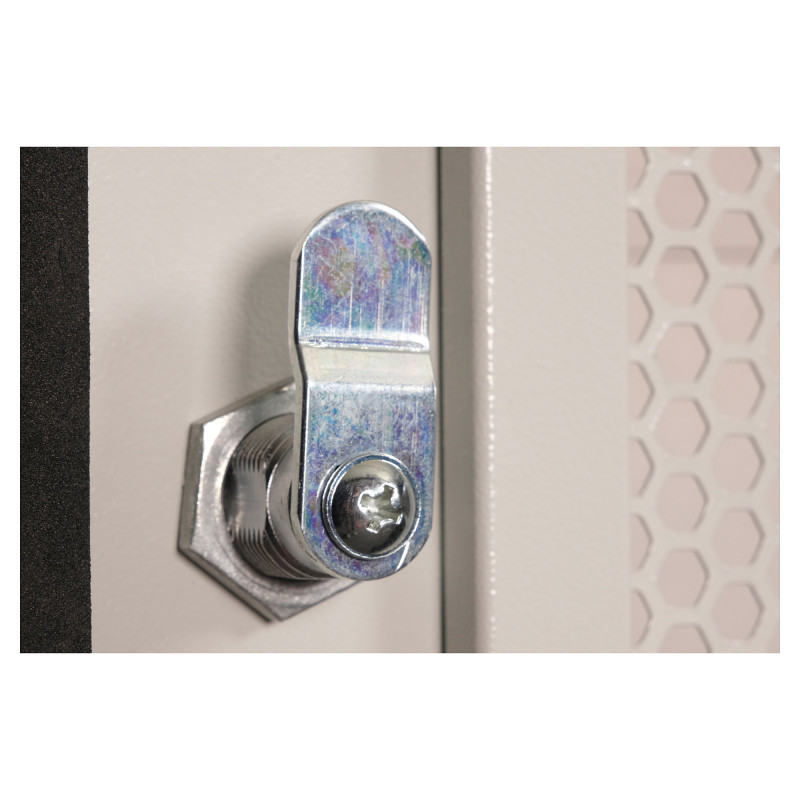

Feature: Key lock
Feature: Front door key lock
Feature: Cable management
Door opening angle: 200°
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 48.3 cm (19")
Width: 540 mm
Depth: 400 mm
Height: 460 mm
Mounting depth (max): 32.7 cm

Packaging data

Feature: Quick installation guide
Package width: 590 mm
Package depth: 460 mm
Package height: 190 mm
Package volume: 51566 cm³
Package weight: 15.3 kg
