Digitus DN-37115 rack cabinet

Digitus Dynamic-N series wall-mounted enclosure - 600x600 mm (WxD), unmounted. Type: Wall mounted rack, Rack capacity: 16U, Maximum weight capacity: 60 kg, Key lock, Cable management, Rack rails, International Protection (IP) code: IP20, Assembly required. Weight: 26.9 kg. Product colour: Black
The unassembled delivery of the wall-mounted enclosures ensures optimized transport options. Assembly can be carried out quickly and easily.
- Optimum ventilation and air extraction

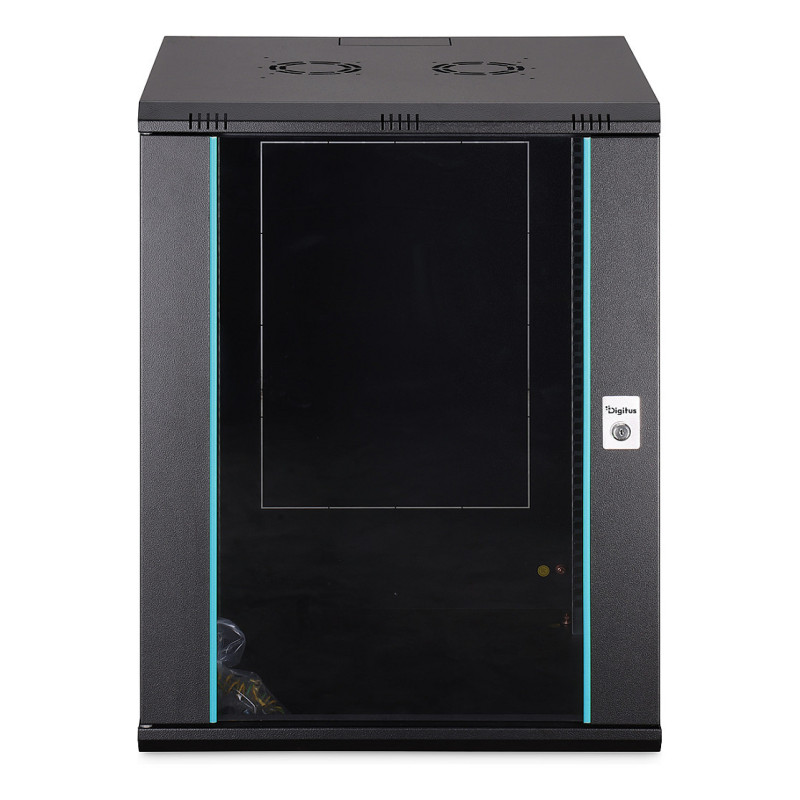

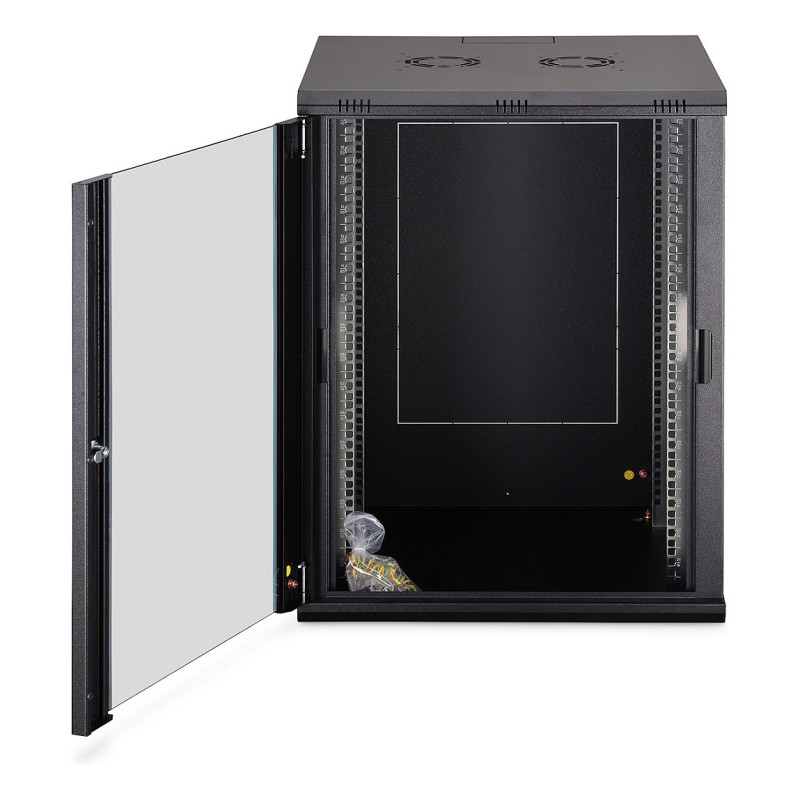

- Lockable safety glass door with steel frame

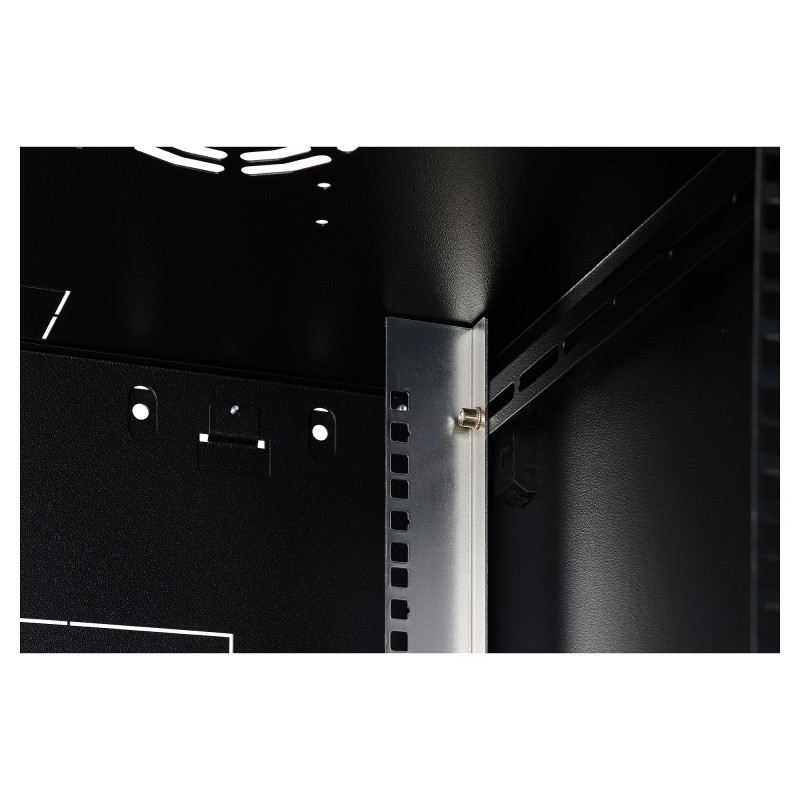

- 483 mm (19") profile rails at the front and rear inside the enclosure, galvanized
- Supplied unassembled
- Easy wall mounting thanks to enclosed mounting plate
The Dynamic-N series network cabinets for wall mounting have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing. For simplified logistics, the Dynamic-N series is supplied unassembled in a space-saving flat pack. The wall-mounted housing can be installed quickly and easily using the enclosed installation instructions.

Features

Rack capacity: 16U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Steel, Glass
Frame type: Closed
Back door construction: Steel
Front door construction: Glass/Steel

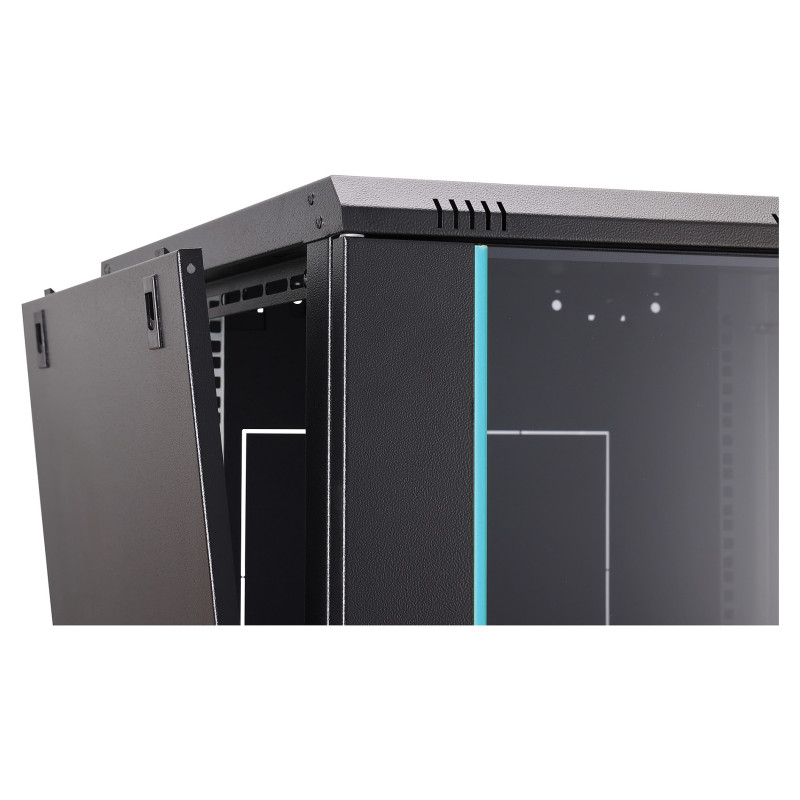

Side panel construction: Steel
Removable back door: Yes
Removable front door: Yes
Removable side panels: Yes
Side panels included: Yes
Side panel style: Blind
Back door style: Blind
Front door style: Glass door

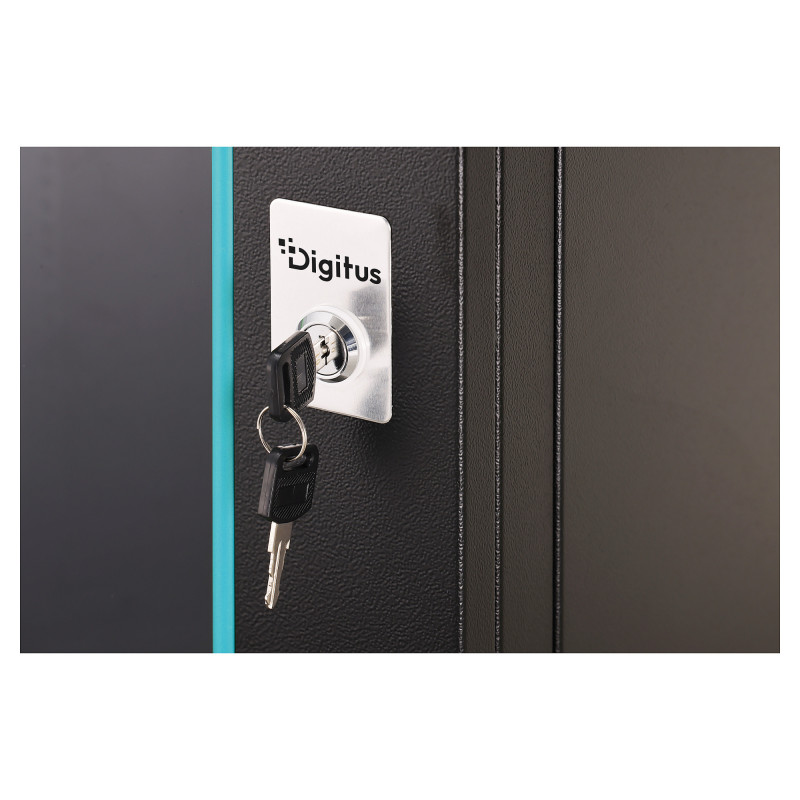

Key lock: Yes
Front door key lock: Yes
Rack rails: Yes
Cooling type: Active
Cable management: Yes
Door opening angle: 230°
Locking points: 1
Assembly required: Yes
International Protection (IP) code: IP20
Preassembled: No

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 600 mm
Height: 785 mm
Weight: 26.9 kg

Packaging data

Mounting kit: Yes

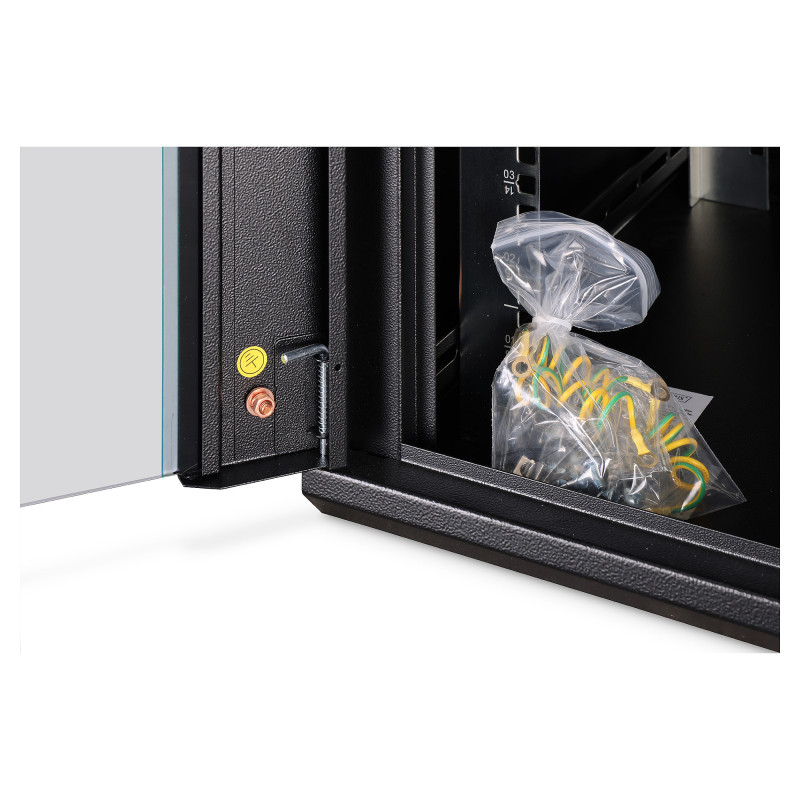

Grounding kit: Yes
Manual: Yes
Package width: 830 mm
Package depth: 650 mm
Package height: 280 mm
Package weight: 30 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)
Shipping (inner) case length: 83 cm
Shipping (inner) case width: 65 cm
Shipping (inner) case height: 28 cm
Master (outer) case width: 830 mm
Master (outer) case length: 650 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 30 kg
Products per master (outer) case: 1 pc(s)
