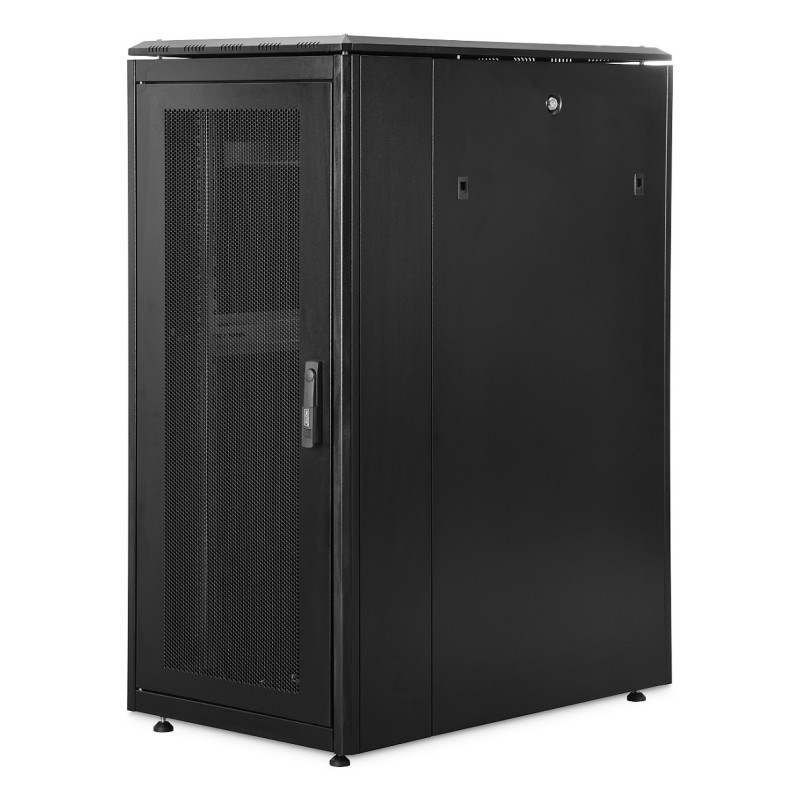

Digitus DN-31300-B rack cabinet

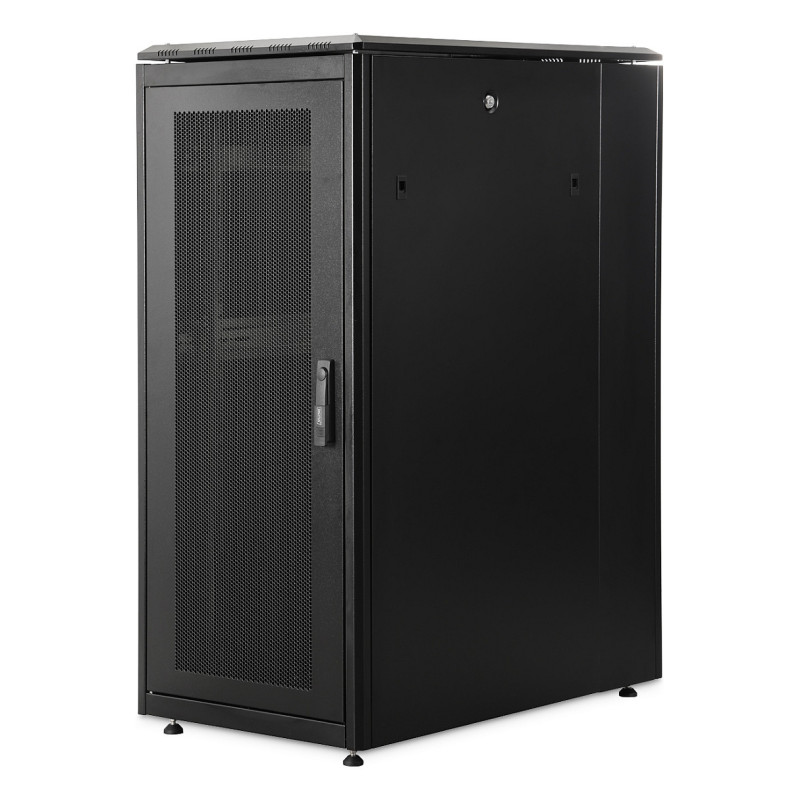

Digitus Server cabinet Unique Server-N series - 600x1000 mm (WxD). Type: Freestanding rack, Rack capacity: 26U, Maximum weight capacity: 1200 kg, Key lock, Adjustable feet, Cable management, International Protection (IP) code: IP20. Weight: 77 kg. Product colour: Black
The DIGITUS® server cabinets of the Unique Server-N series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.
- High load capacity of the 483 mm (19") profile rails of up to 1200 kg

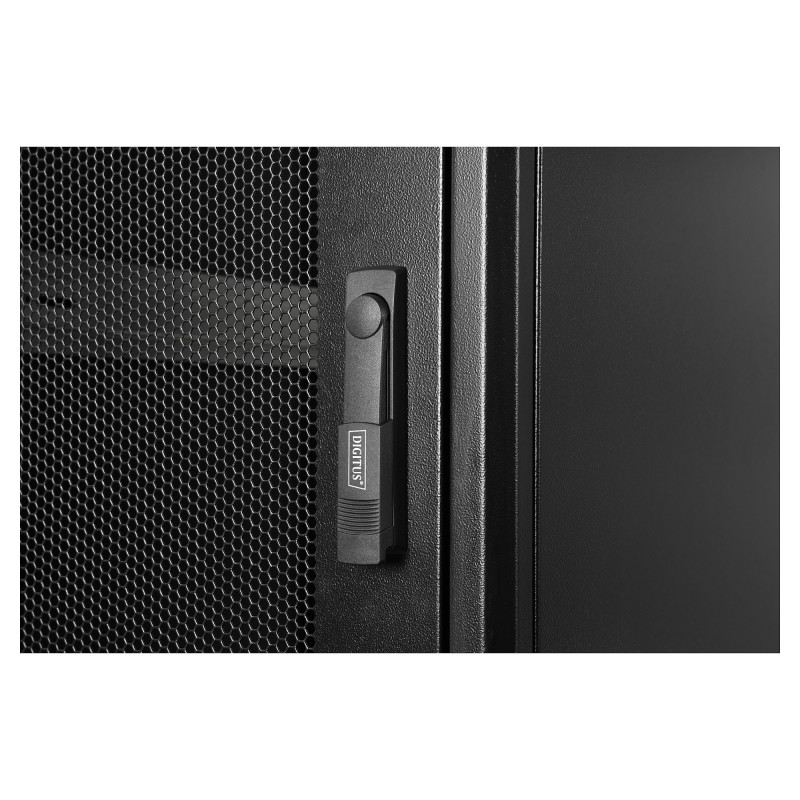

- Swivel handle with profile half-cylinder lock incl. type 333 key on the front and rear door

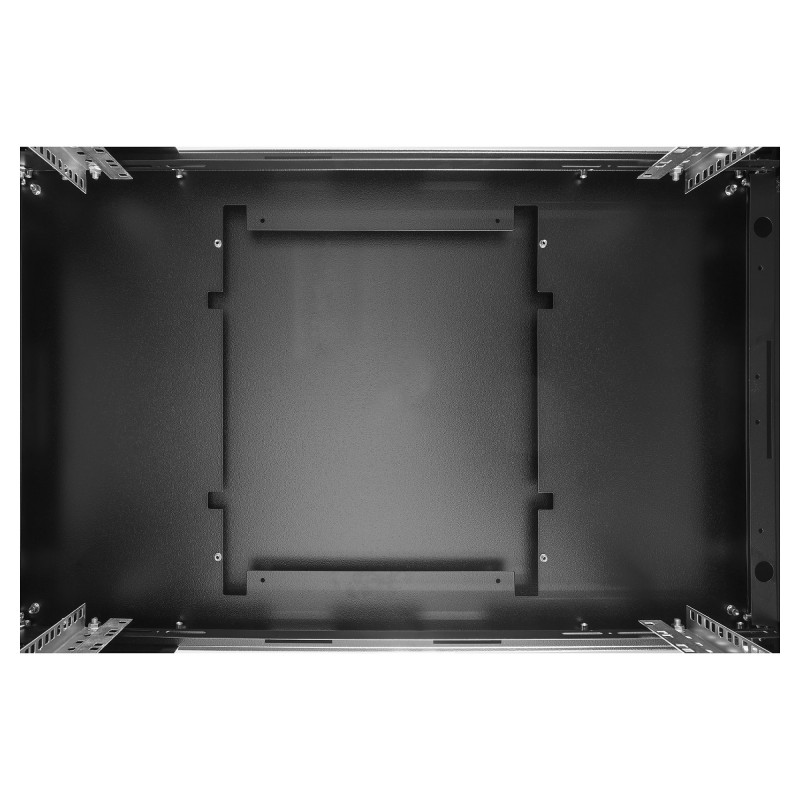

- Modular, openable base chassis with removable 19" blind panels

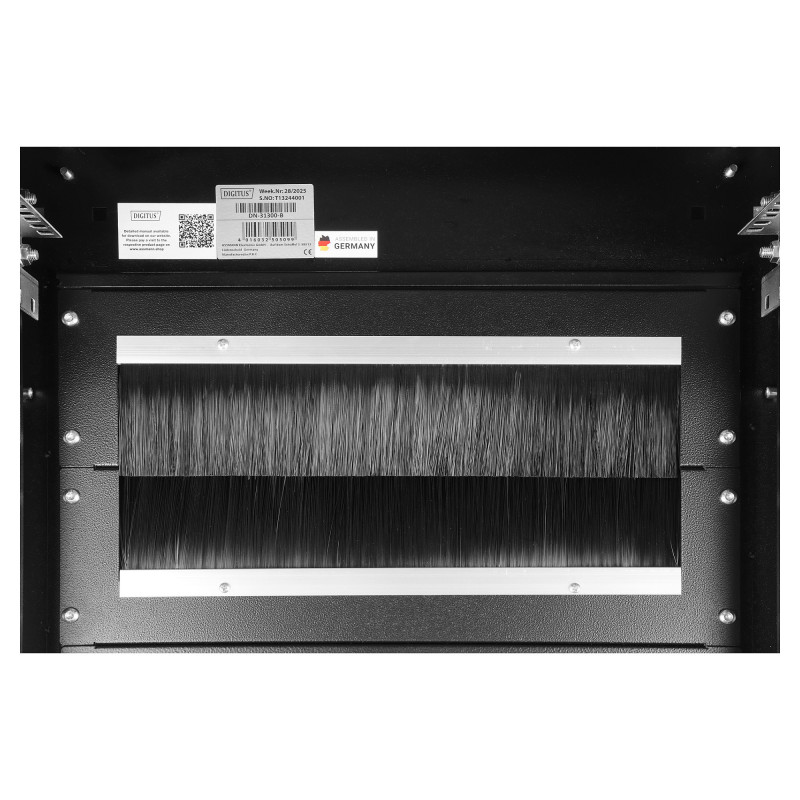

- Flexible cable routing options thanks to generous cable inlets with brushes in the base
- Integrated PDU holders in the rear cabinet area on the left and right
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

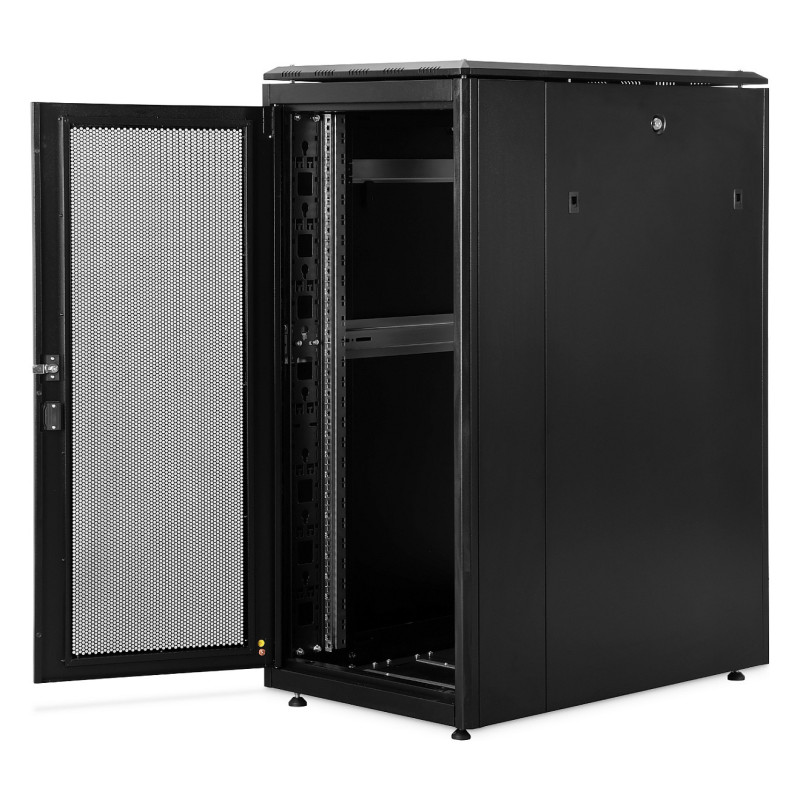

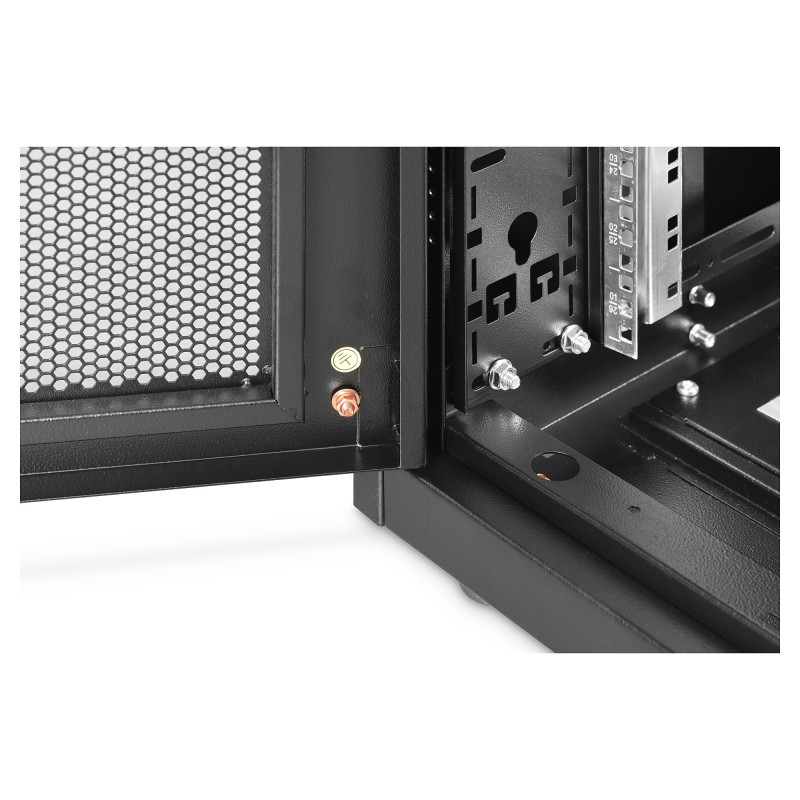

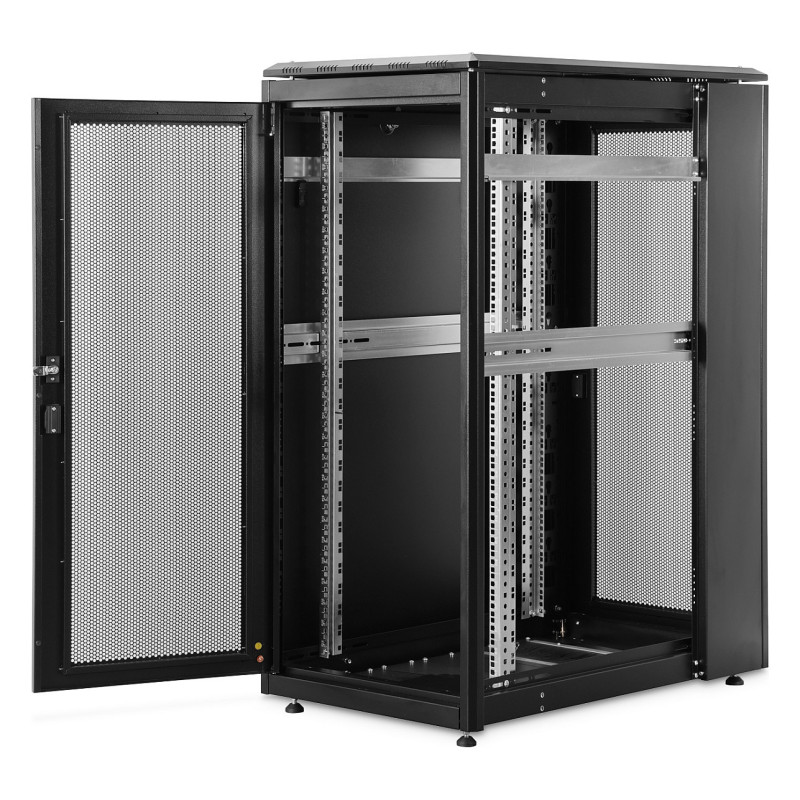

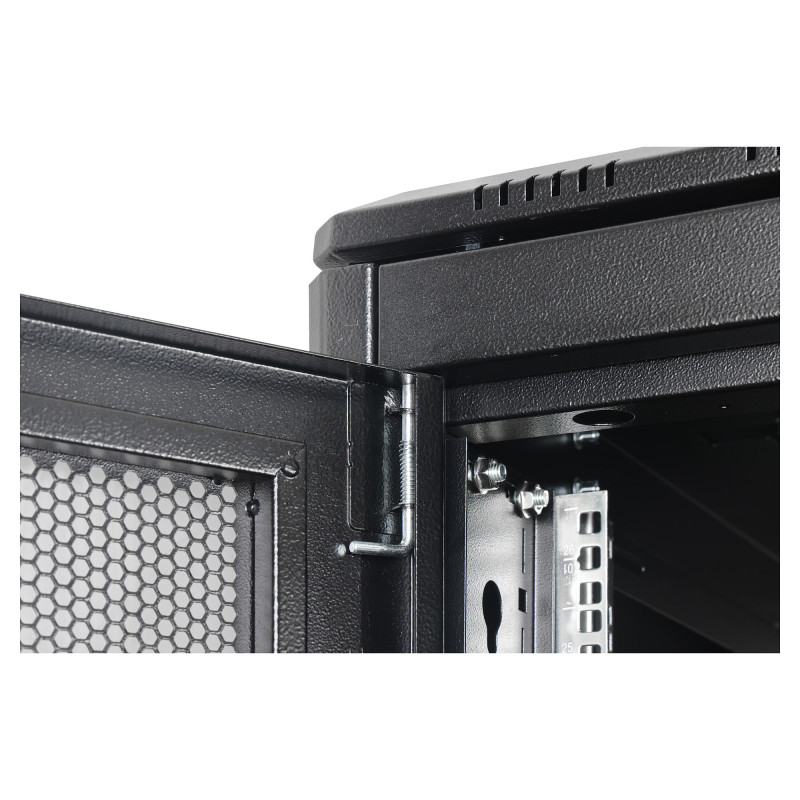

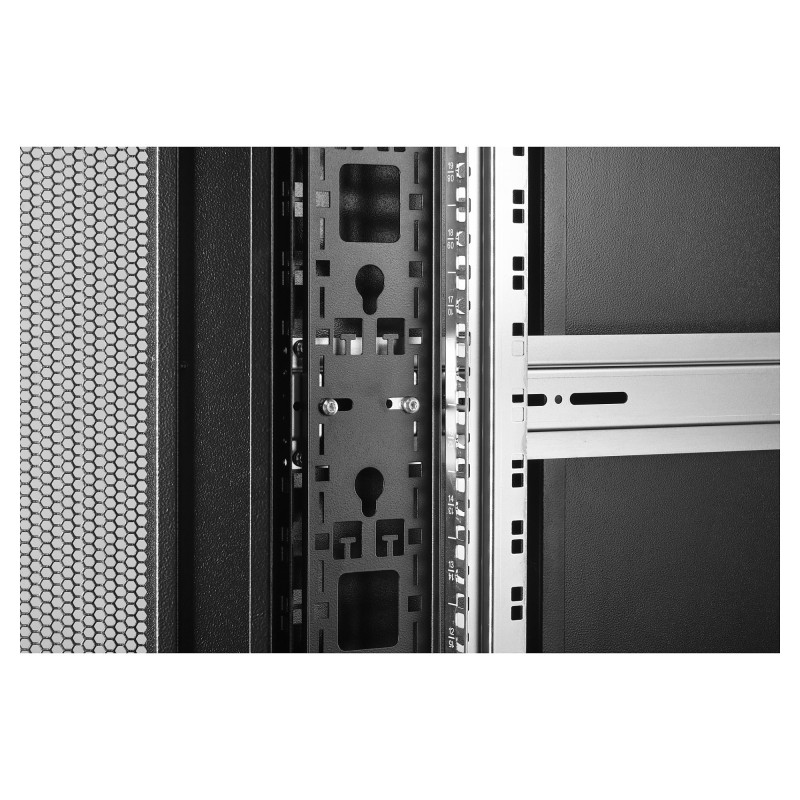

The server cabinets in the Unique Server-N series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. There are also cable inlets with brushes at the rear of the floor chassis. Generous vertical cable ducts with cable routing aids and covers, installed in the front (from 800 mm enclosure width), as well as integrated holders for socket strips in the rear enclosure area, perfectly round off the versatile features of the server enclosure. Perforated steel doors, both at the front and rear, ensure improved air circulation and therefore optimum passive cooling. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

Features

Rack capacity: 26U
Type: Freestanding rack
Maximum weight capacity: 1200 kg
Product colour: Black
Material: Steel
Back door construction: Steel
Front door construction: Perforated
Side panel construction: Steel
Removable front door: Yes
Removable side panels: Yes
Side panels included: Yes
Side panel style: Blind
Front door style: Blind
Key lock: Yes
Back door key lock: Yes
Front door key lock: Yes
Side panel key lock: Yes
Adjustable feet: Yes
Cable management: Yes
International Protection (IP) code: IP20

Weight dimensions

Size (imperial): 48.3 cm (19")
Width: 600 mm
Depth: 1000 mm
Height: 1342 mm
Weight: 77 kg
Mounting depth (min): 68.8 cm
Mounting depth (max): 94.3 cm

Packaging data

Nuts included: Yes
Screws included: Yes
Package width: 650 mm
Package depth: 1050 mm
Package height: 13920 mm
Package weight: 78 kg
