Digitus DN-19 GS-NW mounting kit

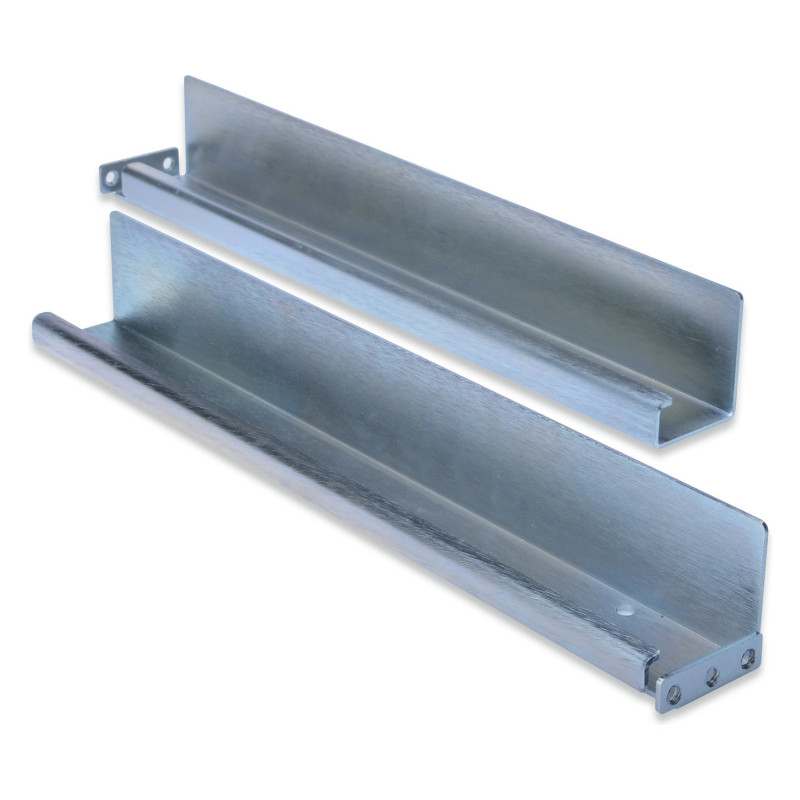

Digitus Slide rails for 482.6 mm (19") network enclosures. Maximum weight capacity: 100 kg, Material: Steel, Product colour: Stainless steel
For supporting heavy built-in components, such as UPS systems or servers. Infinitely variable depth and suitable for 19" installation.

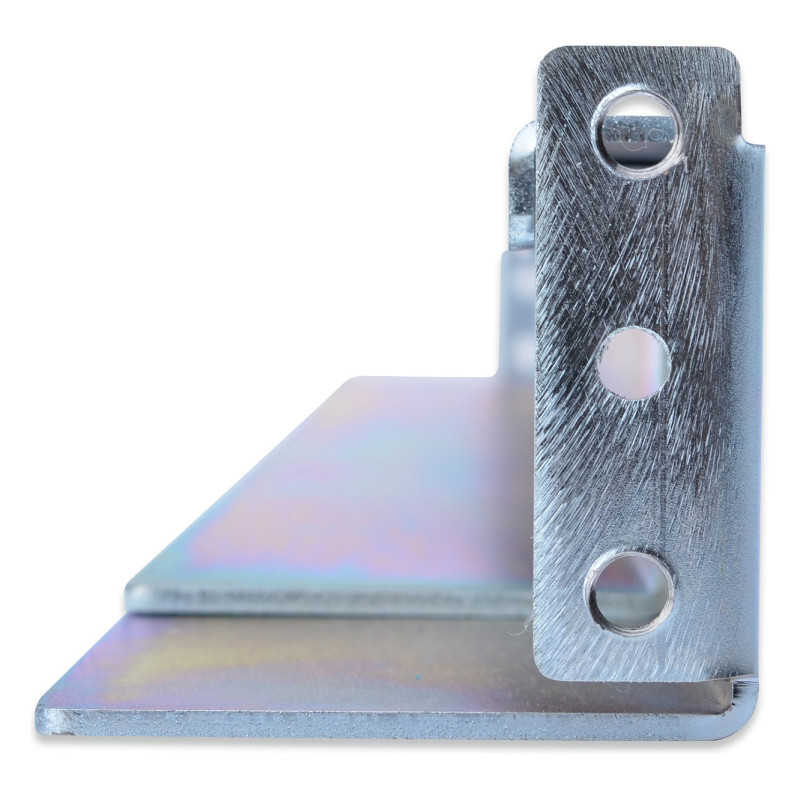

- Easy installation in the 19" level without cage nuts thanks to threaded holes.
- For DIGITUS® network cabinets Unique, Unique Light with 600 mm or 800 mm external depth.
- Infinitely variable depth: 350 mm to 600 mm
- Load capacity: 100 kg
The slide rails are used to support heavy installations in DIGITUS® network enclosures of the Unique Unique Light series. They are attached to the front and rear 482.6 mm 19" profile rails. Made of galvanized sheet steel and loadable up to 100 kg. The rails are infinitely variable in depth to adapt to individual spacing in the 19" plane.

Technical details

Product colour: Stainless steel
Material: Steel
Maximum weight capacity: 100 kg
Country of origin: Turkey

Weight dimensions

Weight: 2.65 kg
Width: 52 mm
Depth: 600 mm
Height: 44 mm
Size (imperial): 48.3 cm (19")

Packaging data

Package width: 65 mm
Package depth: 370 mm
Package height: 65 mm
Package weight: 3.2 kg
