Digitus DN-19 FAN-4-HO-SW rack accessory

Digitus Fan unit for variable 483 mm (19") installation. Type: Vented blank panel, Built-in fan, Number of fans: 4 fan(s), Airflow: 552 m³/h. Power source: AC. Product colour: Black

The DIGITUS® 483 mm (19") accessories have been developed for the high demands of IT infrastructure and are manufactured to German quality standards.

- Variable installation in the 483 mm (19") level
- The waste heat from the built-in components is actively dissipated via the fan unit
- Four built-in fans

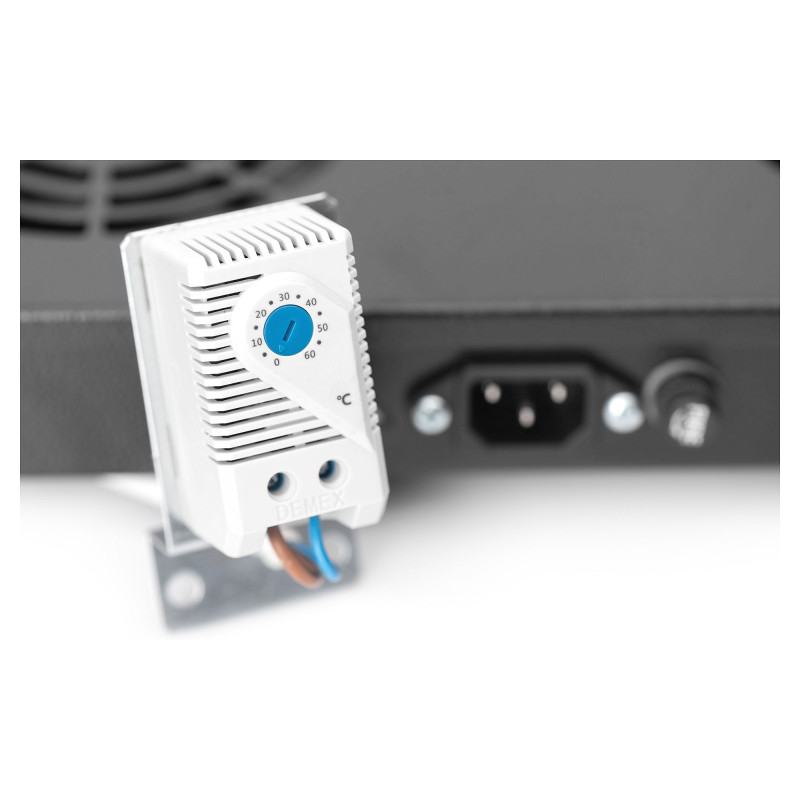

- Includes adjustable thermostat and ON/OFF switch

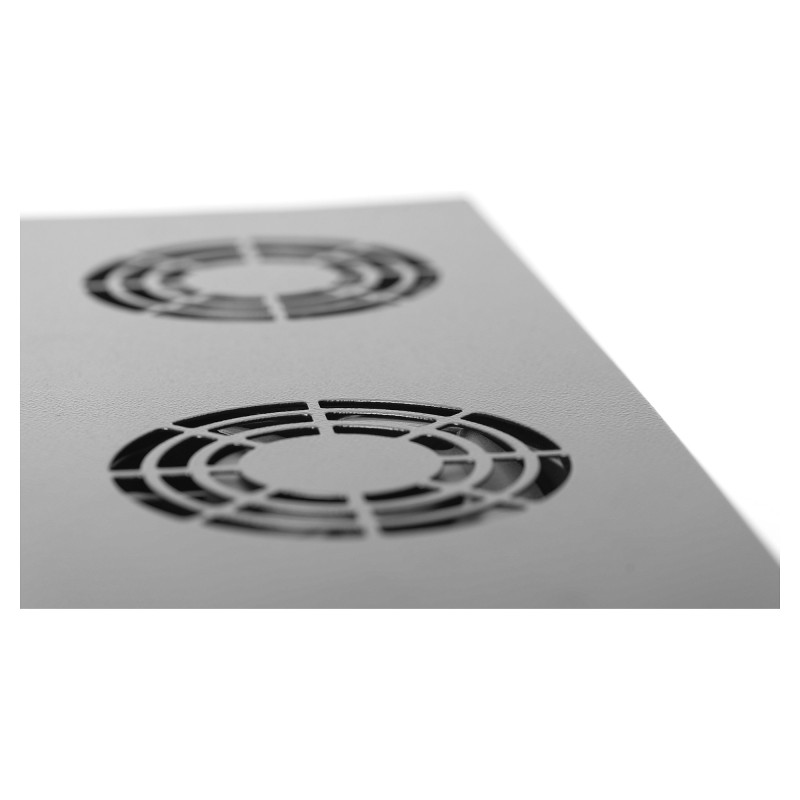

Also known colloquially as slide-in fans, the fan units can be mounted variably in the 19" grid of any network or server rack instead of under the roof. The scope of delivery includes mounting brackets for easy attachment in the 19" profile. Equipped with an ON/OFF switch and a shelf-mounted thermostat, each fan unit offers the best operational readiness according to individual requirements. The model is available in the standard colors grey (RAL 7035) and black (RAL 9005), optionally equipped with two or four fans.

Features

Type: Vented blank panel
Product colour: Black
Feature: Built-in fan
Number of fans: 4 fan(s)
Airflow: 552 m³/h

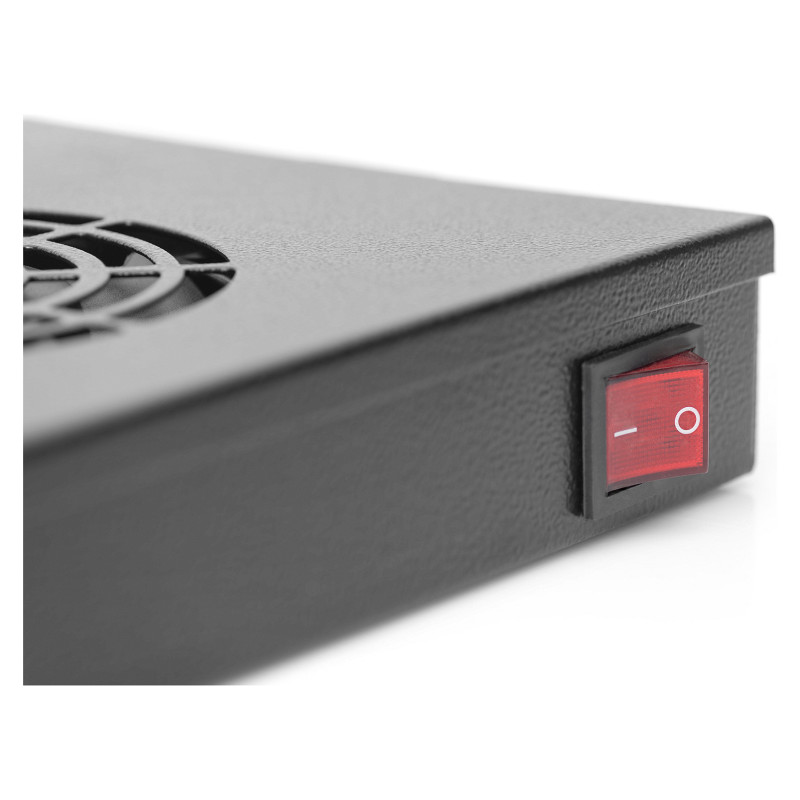

Feature: On/off switch
Cable length: 1.8 m
Frame type: Open
Country of origin: Turkey

Power

Power source: AC
Maximum input power: 13.8 W
AC input frequency: 50 - 60 Hz
Output voltage: 220 - 240 V

Weight & dimensions

Width: 483 mm
Depth: 354 mm
Height: 45 mm

Packaging data

Package width: 510 mm
Package depth: 385 mm
Package volume: 11781 cm³
Package weight: 5.98 kg

Logistics data

UK Trade Tariff code: 84145915
Harmonized System (HS) code: 85389099
