Digitus DN-19-DIN-4U mounting kit

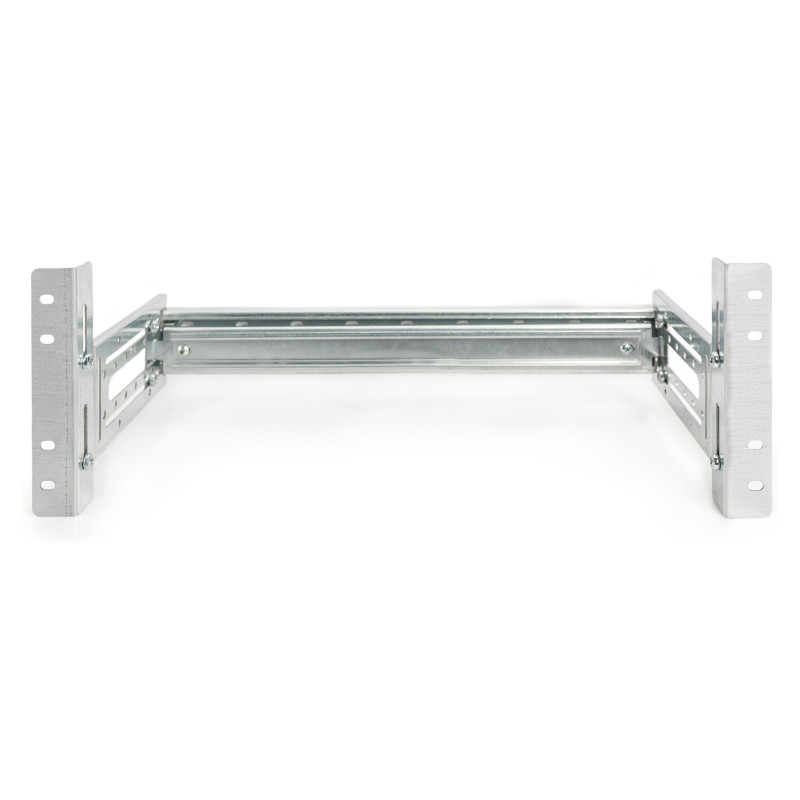

Digitus 482.6 mm (19") rack-mount DIN rail panel, 4U. Material: Galvanized steel, Product colour: Silver

- For quick, screwless mounting of 35 mm, top-hat DIN rail devices
- Incl. built-in DIN rails according to DIN EN 60715 (HxW= 35x390 mm), depth-adjustable

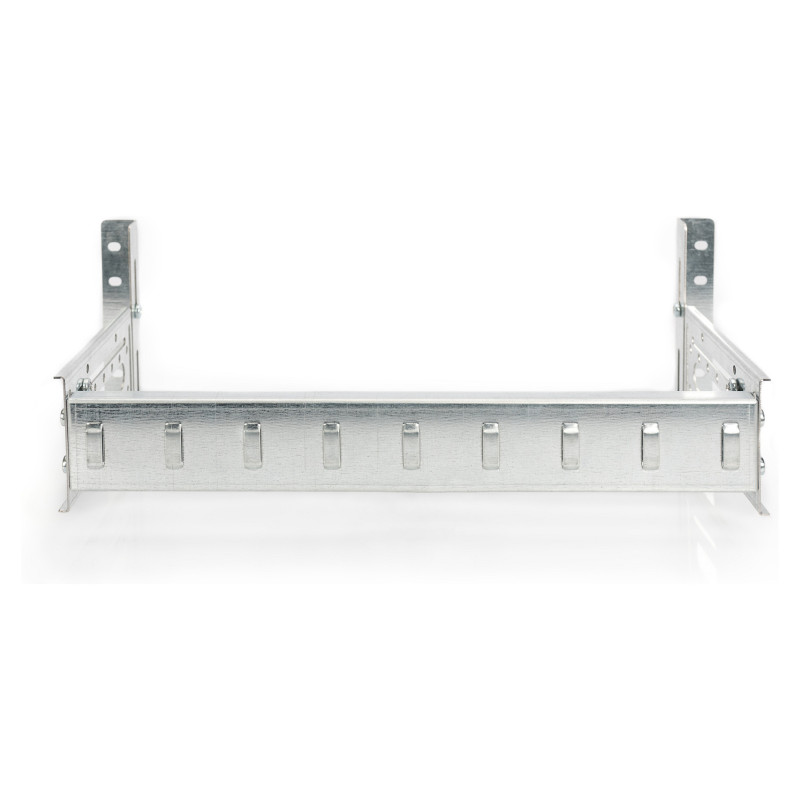

- Rear with height-adjustable C-rail for cable retention

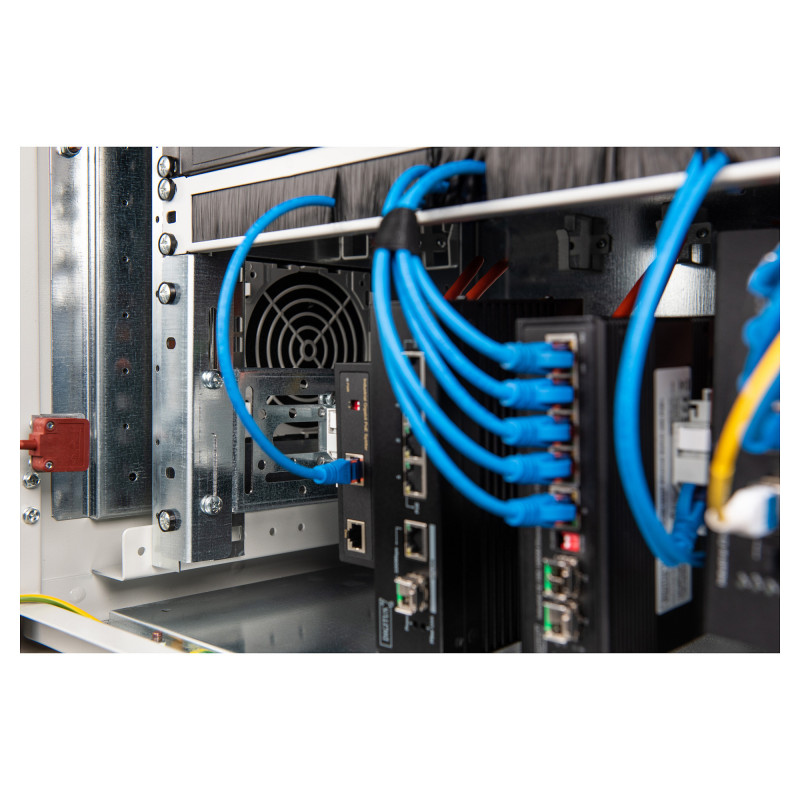

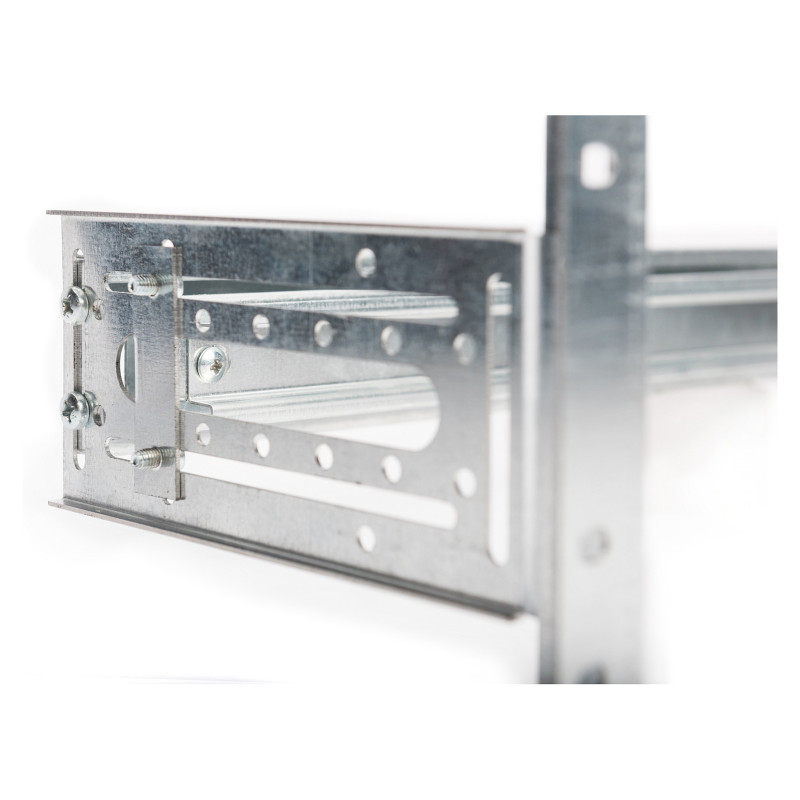

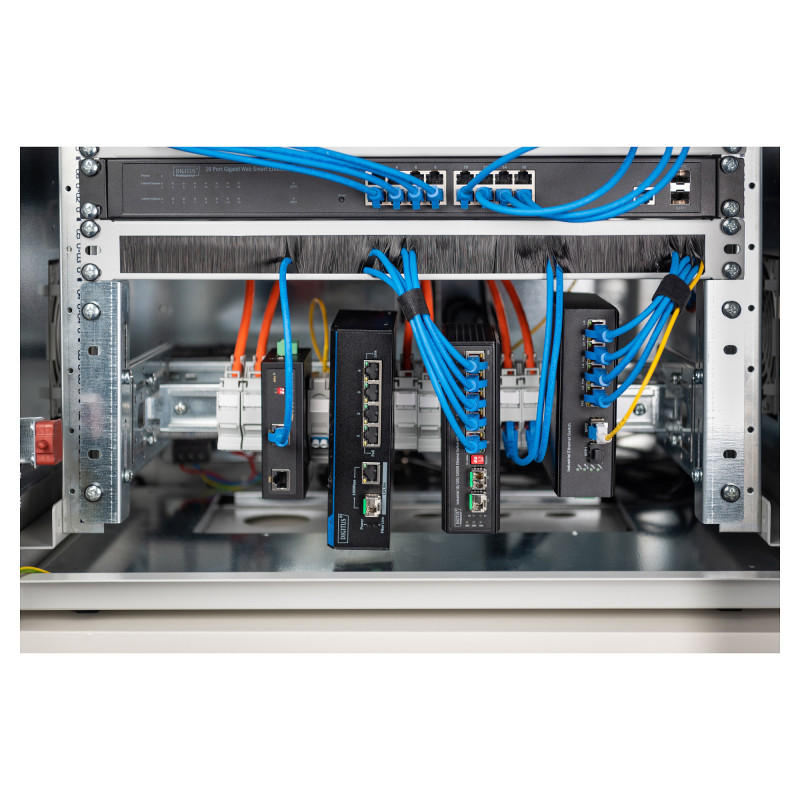

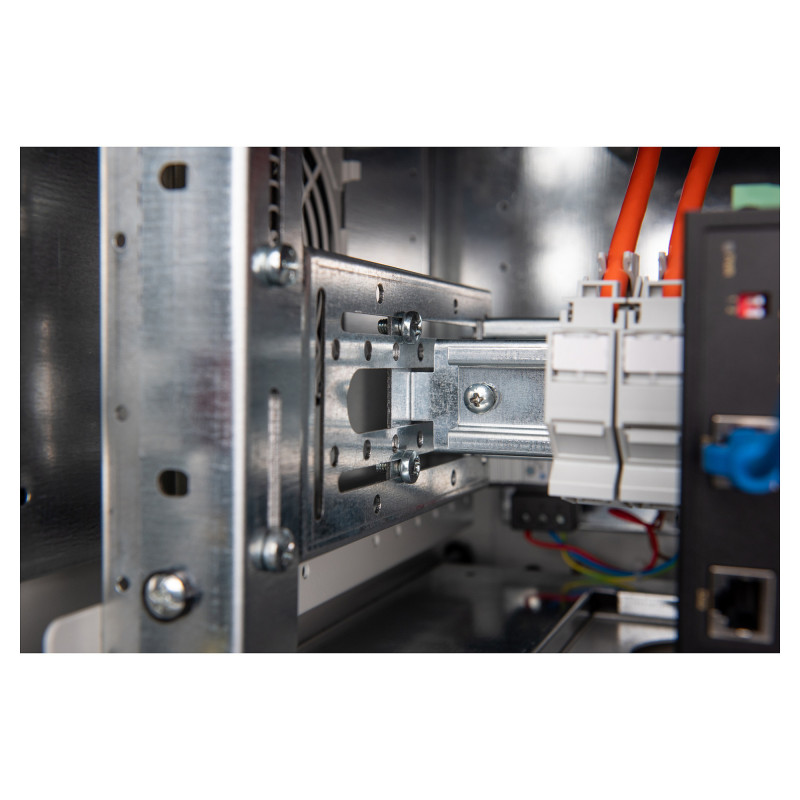

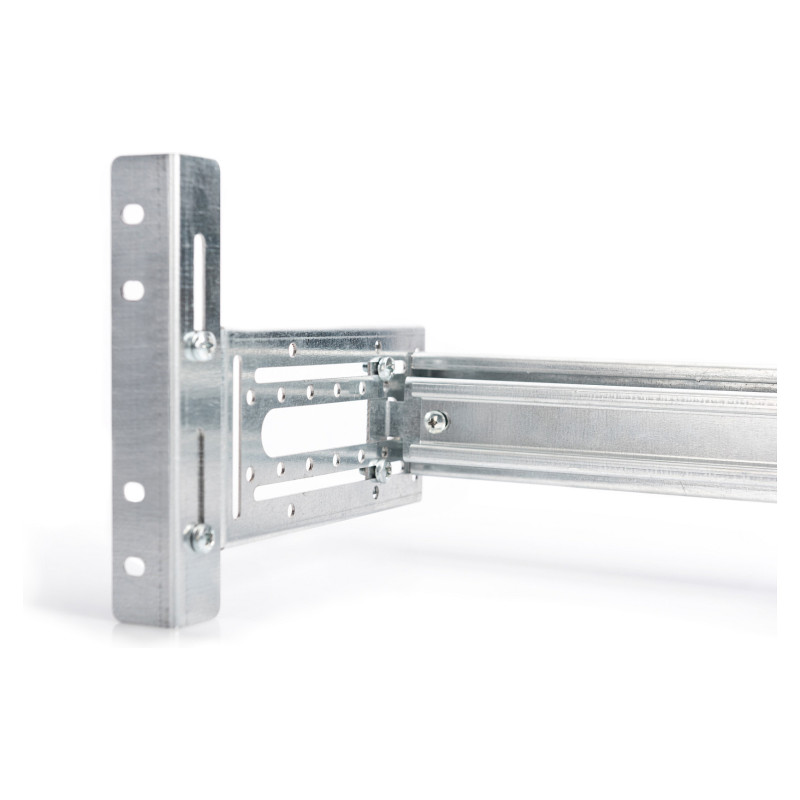

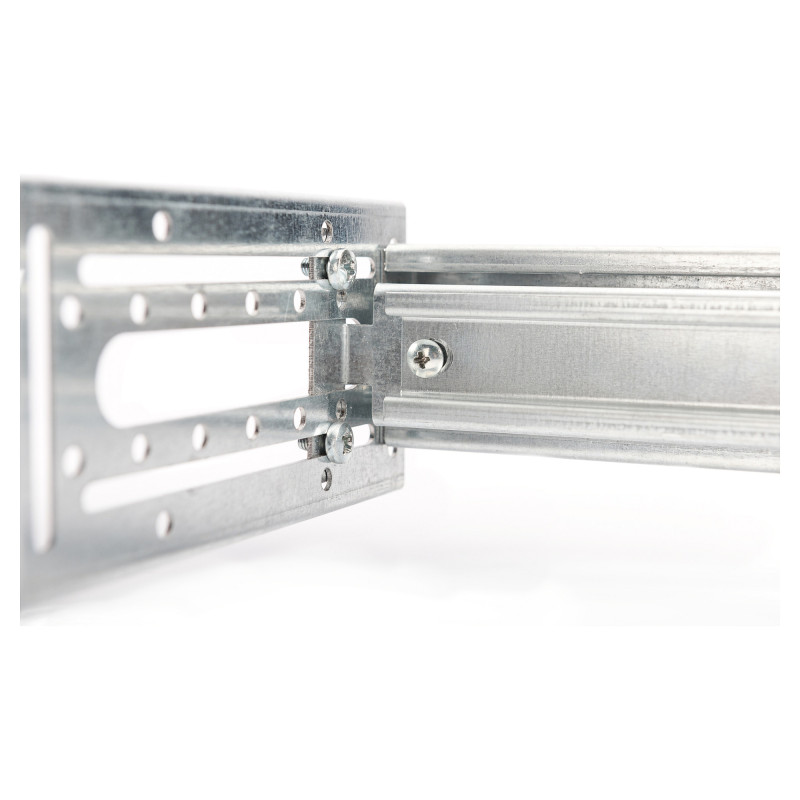

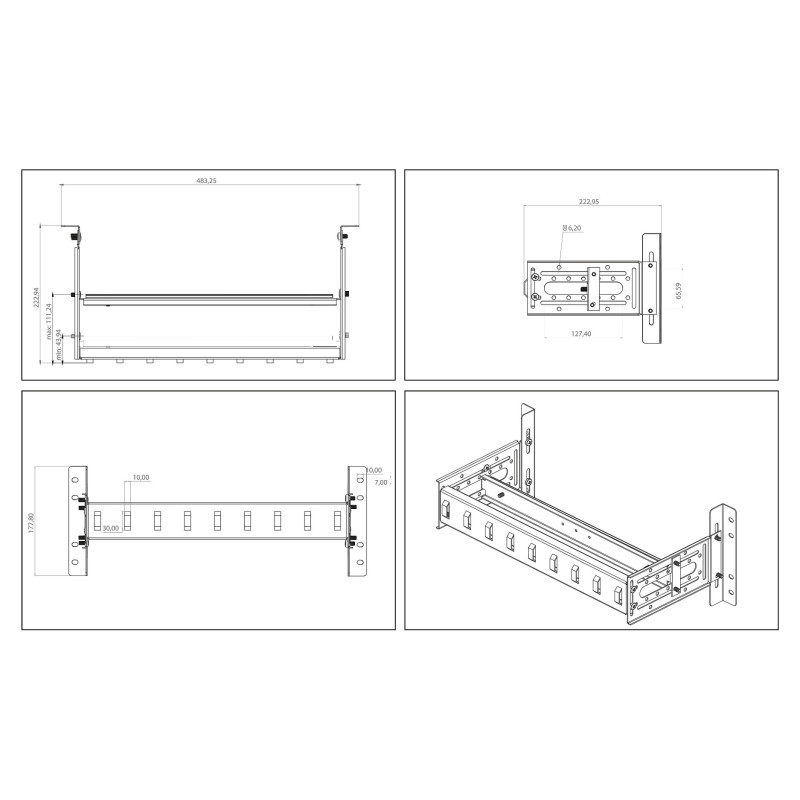

The 482.6 mm (19") rack-mount DIN rail panel (35 mm, top hat) accommodates DIN rail devices on a built-in DIN rail with a width of 390 mm. It is depth-adjustable and can also be rotated 90° upwards or downwards for horizontal device mounting if required. The rear has a height-adjustable C-rail with special attachment points for Velcro tape or cable ties, for example, for optimum cable routing. The entire support is height-adjustable for individual space requirements (the 4U mounting brackets are permanently installed in the enclosure).

Technical details

Product colour: Silver
Material: Galvanized steel
Rack capacity: 4U
Country of origin: Turkey

Weight & dimensions

Weight: 1.6 kg
Width: 483 mm
Depth: 223 mm
Height: 178 mm

Packaging data

Package width: 500 mm
Package depth: 240 mm
Package height: 200 mm
Package weight: 3.5 kg
Package volume: 24000 cm³
