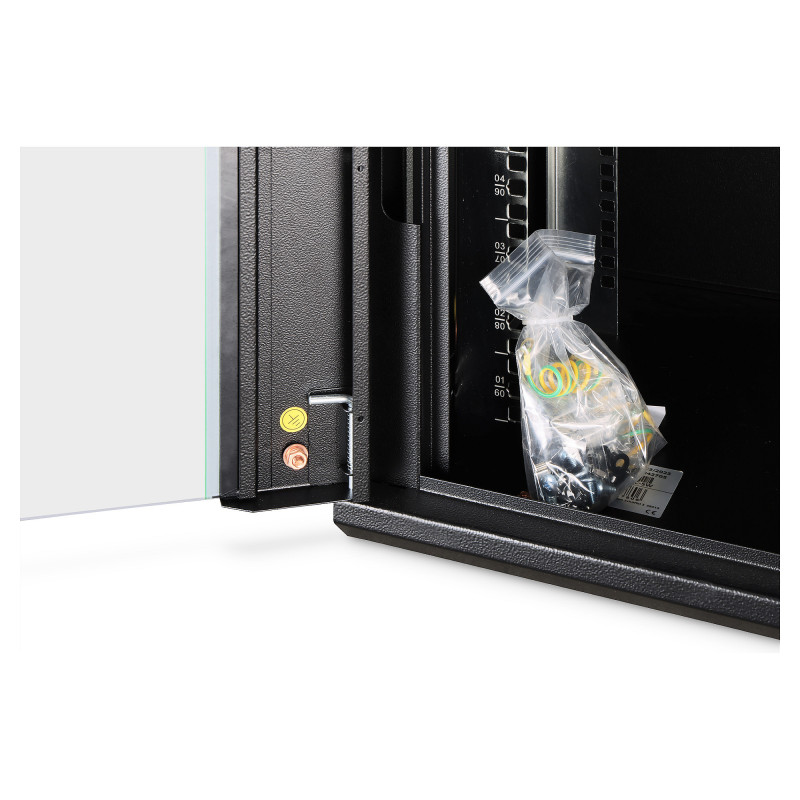

Digitus DN-19 09-U-EC-SW rack cabinet

Digitus Wall-mounted enclosure Dynamic Basic series - 600x450 mm (WxD). Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 60 kg, Key lock, International Protection (IP) code: IP20. Weight: 17.5 kg. Product colour: Black

- 450 mm depth offers space-saving installation
- Optimum ventilation and air extraction

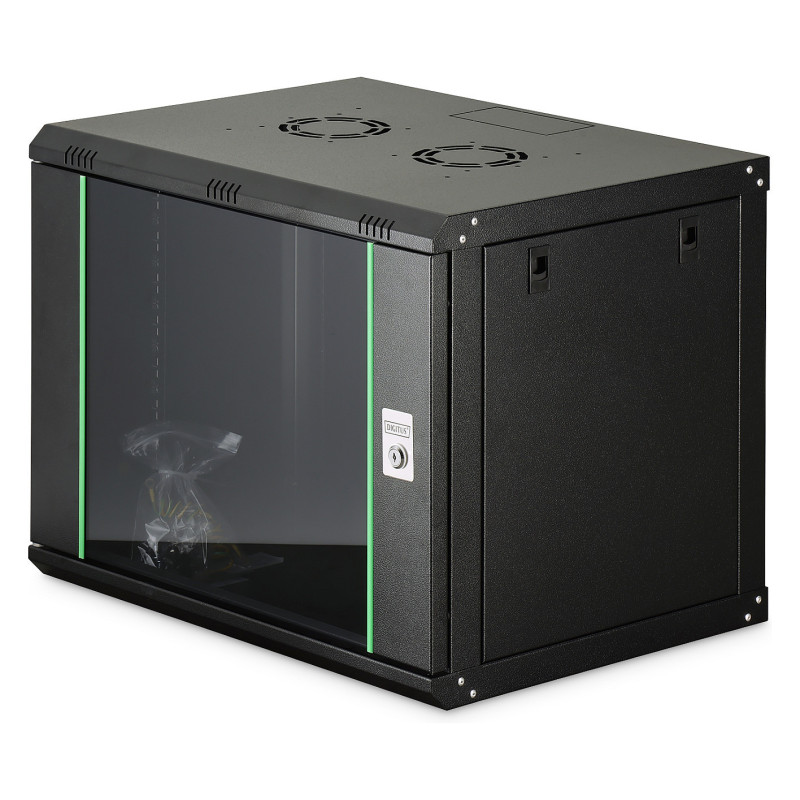

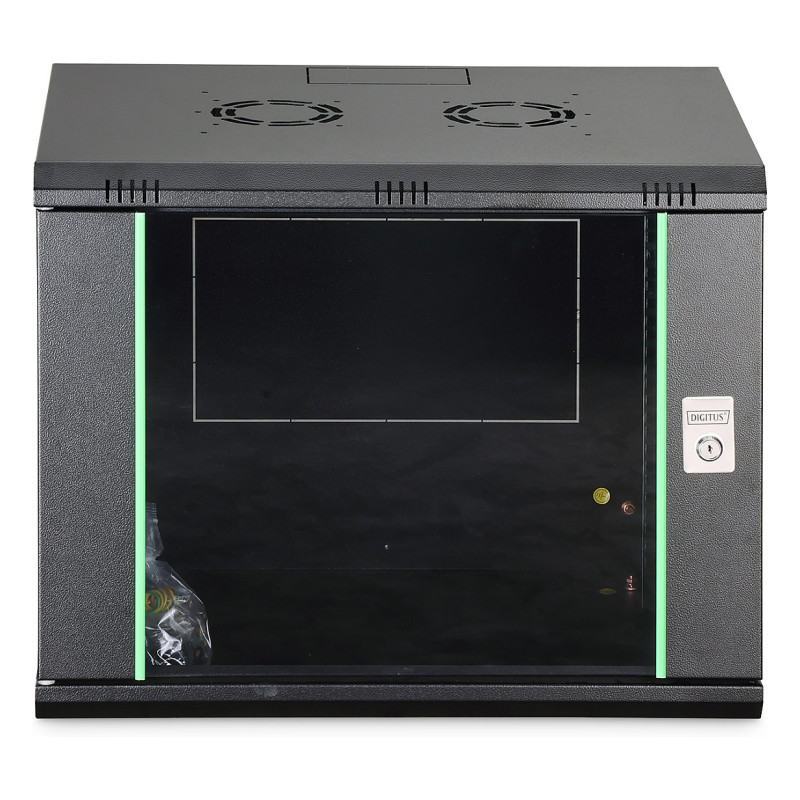

- Lockable safety glass door with steel frame

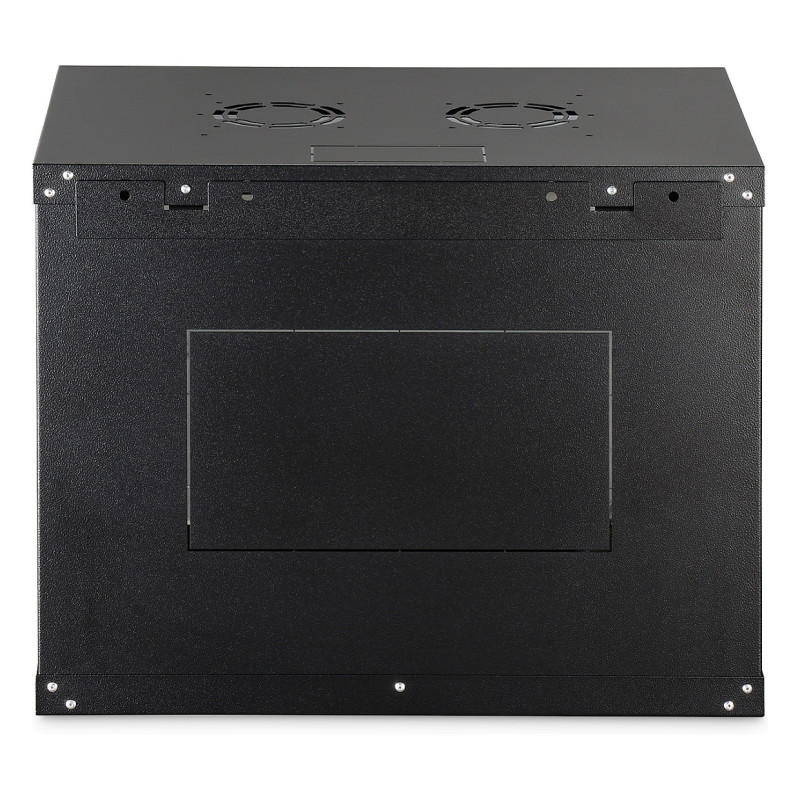

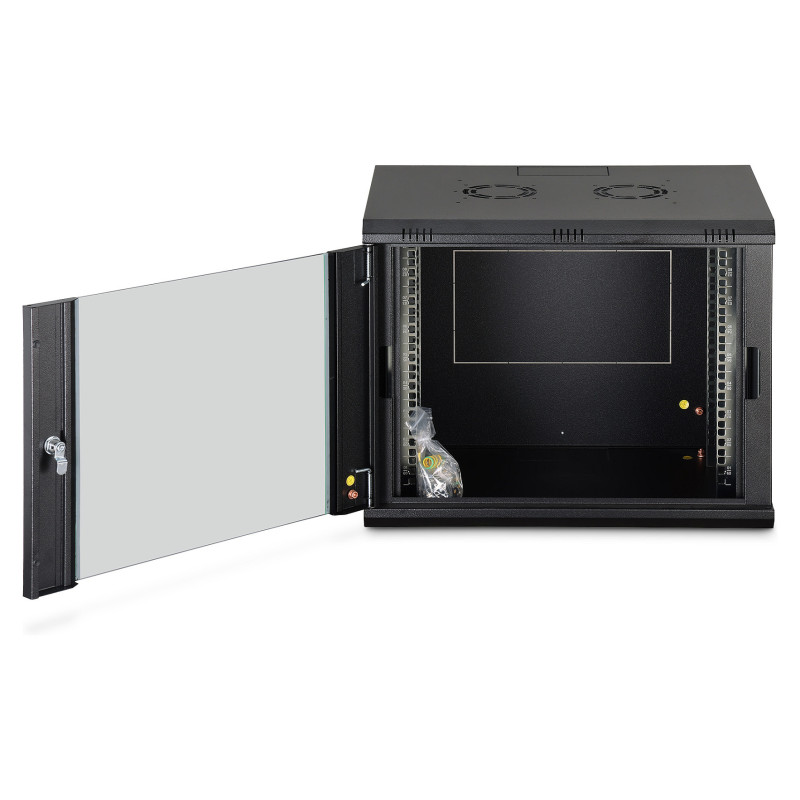

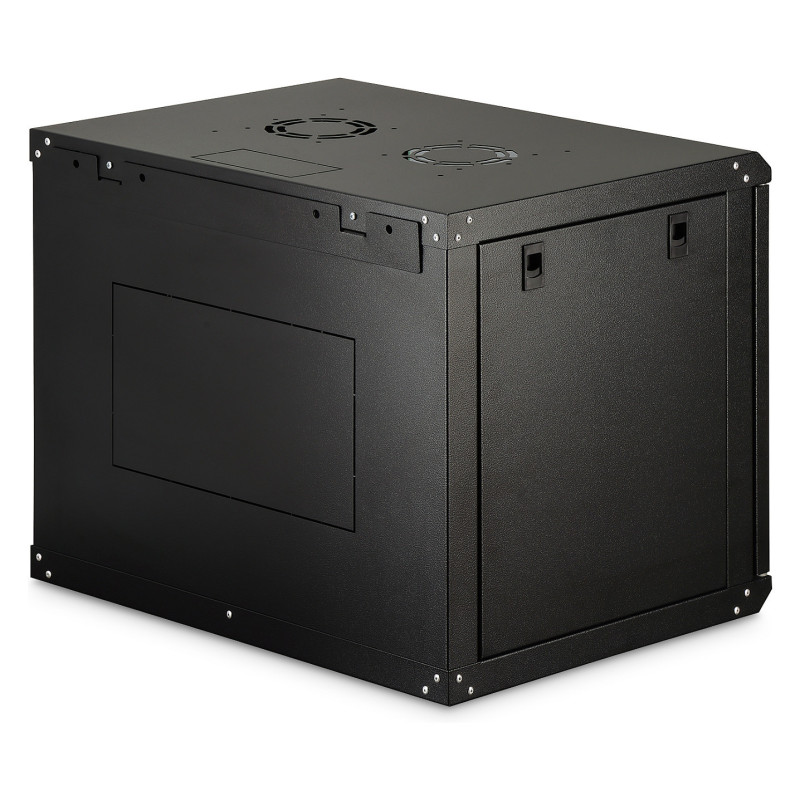

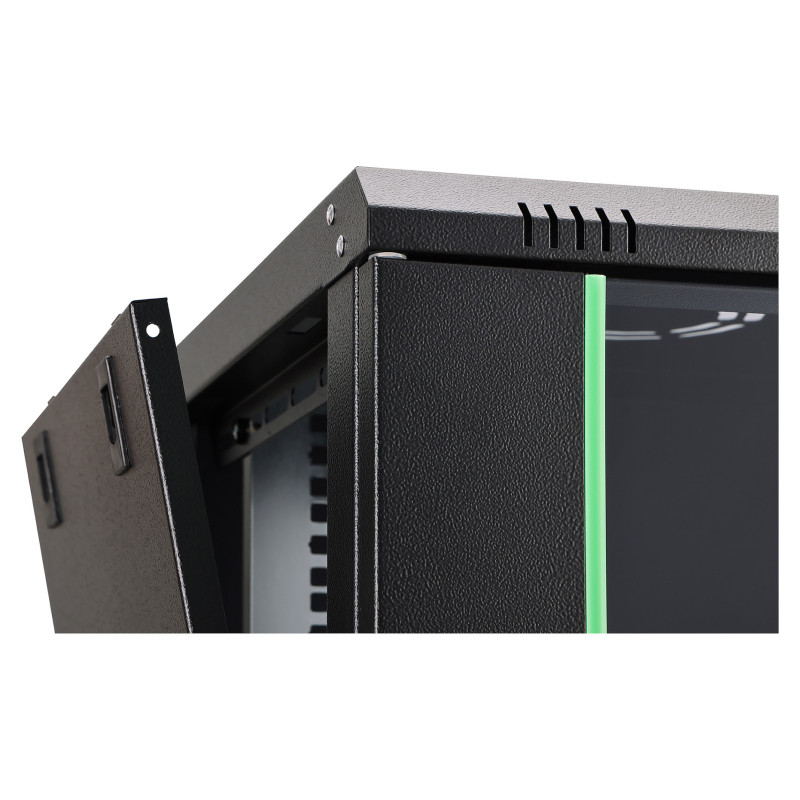

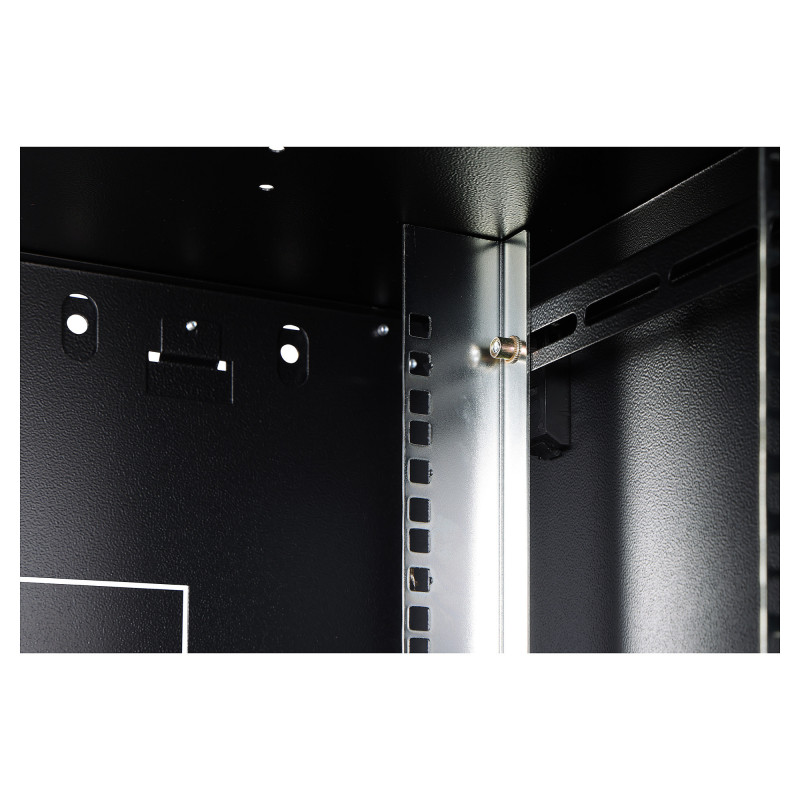

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.

Features

Rack capacity: 9U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Steel
Front door construction: Glass
Side panel construction: Steel
Feature: Removable side panels
Feature: Side panels included

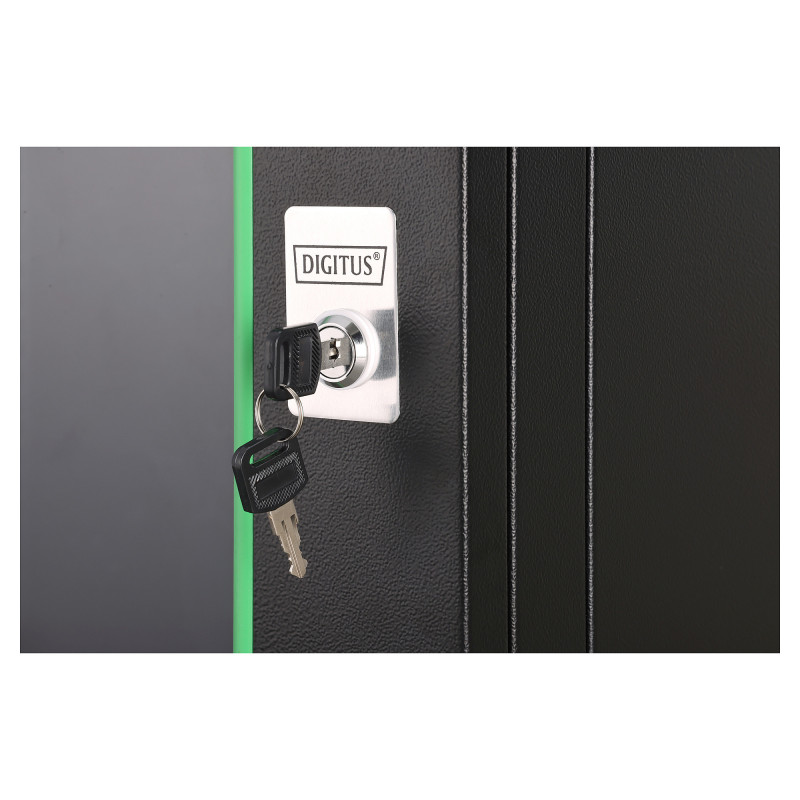

Feature: Key lock
Feature: Front door key lock
International Protection (IP) code: IP20

Weight & dimensions

Width: 600 mm
Depth: 450 mm
Height: 505 mm
Weight: 17.5 kg

Packaging data

Package width: 480 mm
Package depth: 520 mm
Package height: 565 mm
Package volume: 154752 cm³
Package weight: 17 kg

Logistics data

UK Trade Tariff code: 94032080
Country of origin: China
Harmonized System (HS) code: 85381000
