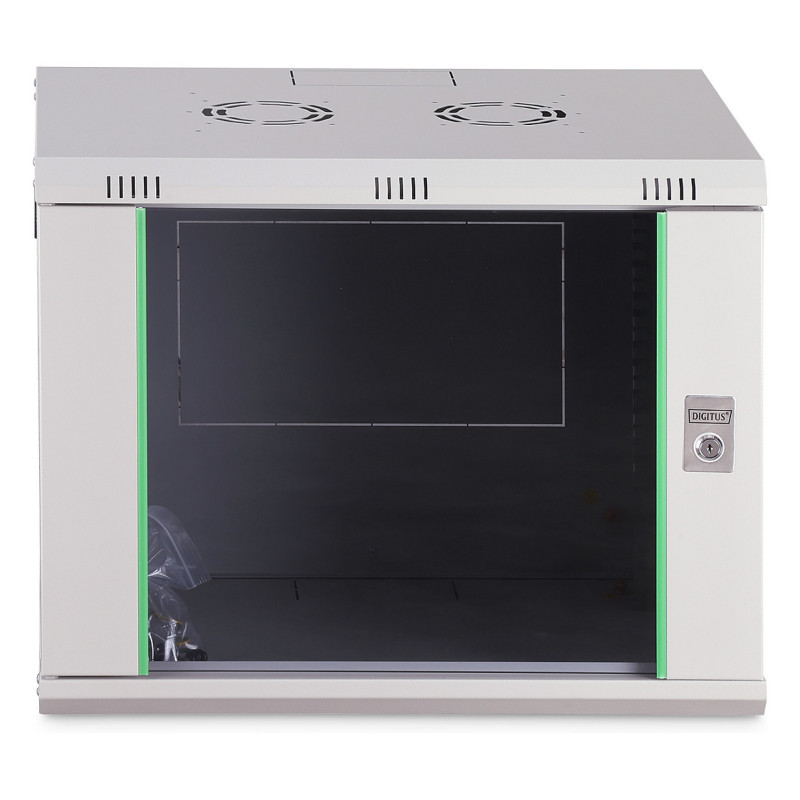

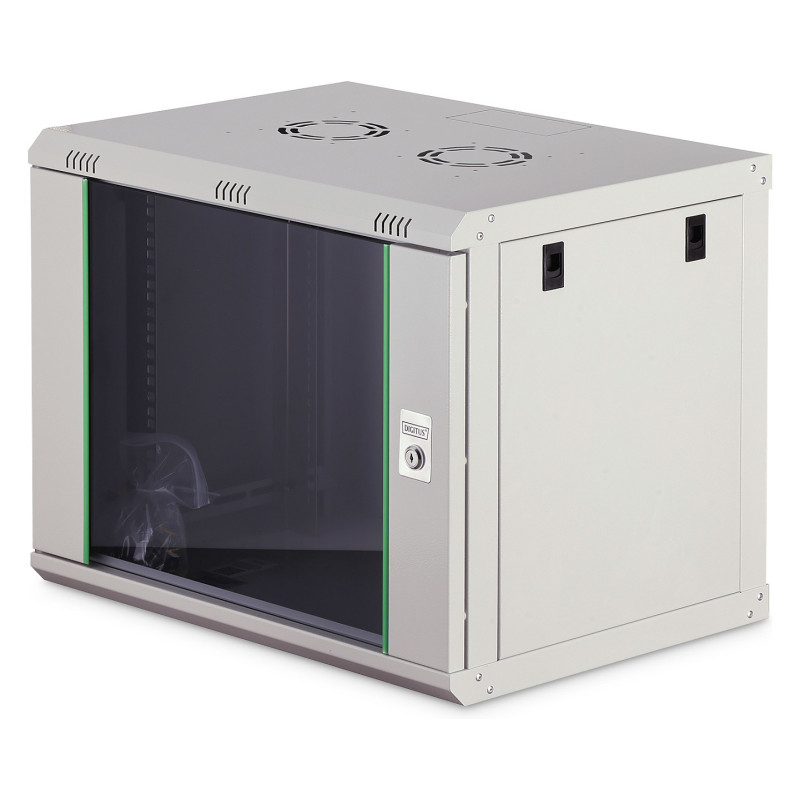

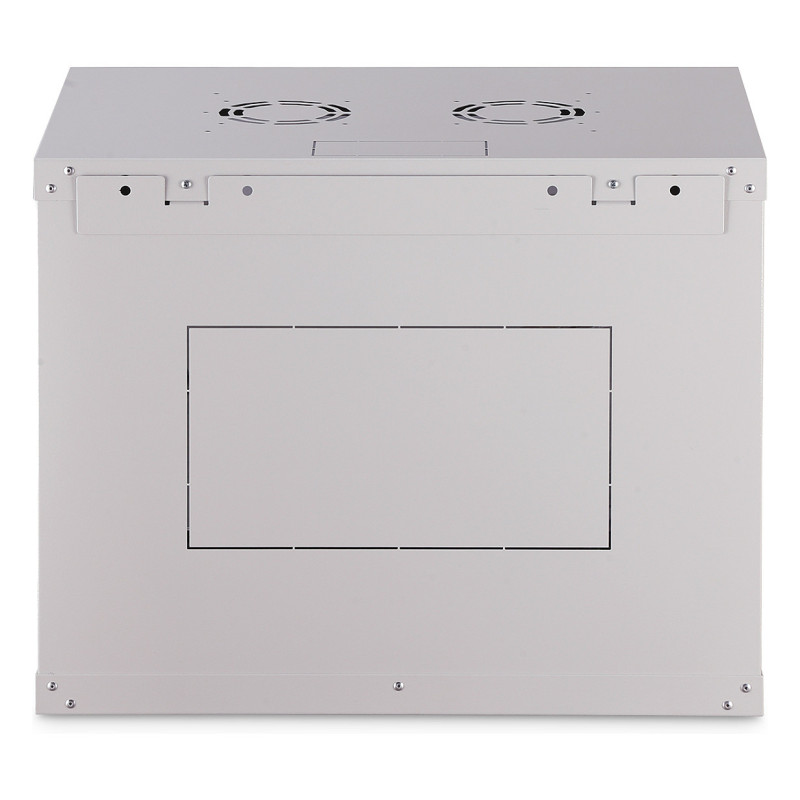

Digitus DN-19 09-U-EC rack cabinet

Digitus Wall-mounted enclosure Dynamic Basic series - 600x450 mm (WxD). Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 60 kg, International Protection (IP) code: IP20, Product colour: Grey

- Ready for immediate use: Delivery is assembled
- Quick and easy wall installation thanks to the enclosed mounting plate

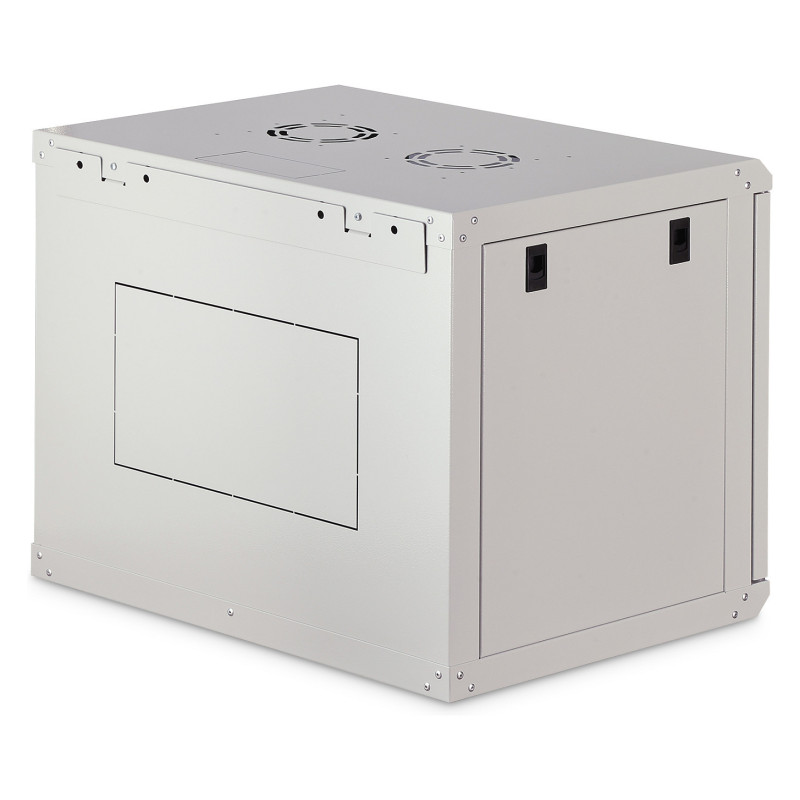

- Flexible cable routing options thanks to pre-punched openings in the roof, base and rear wall

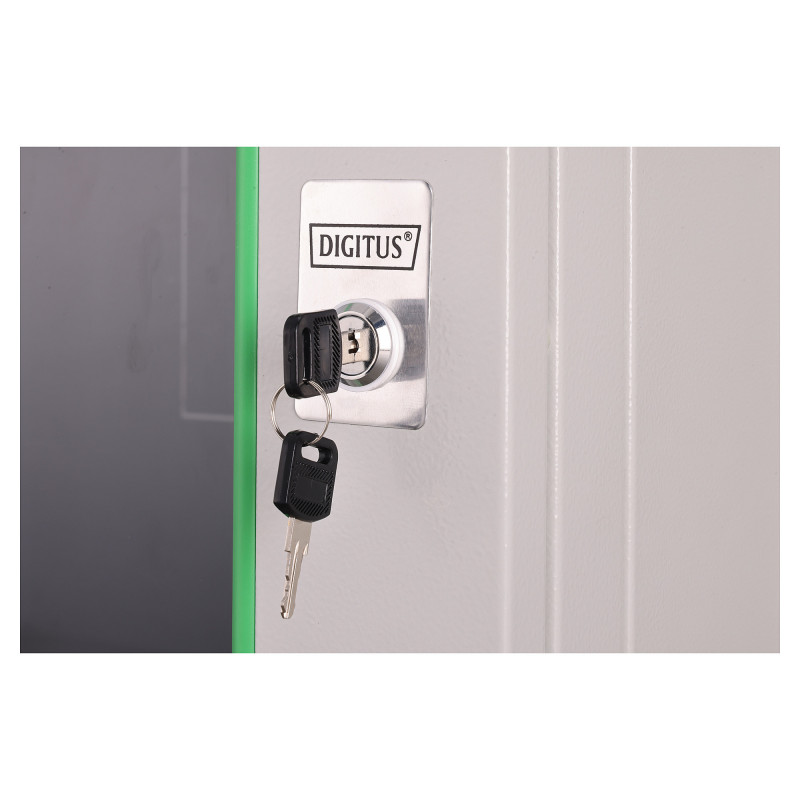

- Lockable safety glass door with 235° door opening angle

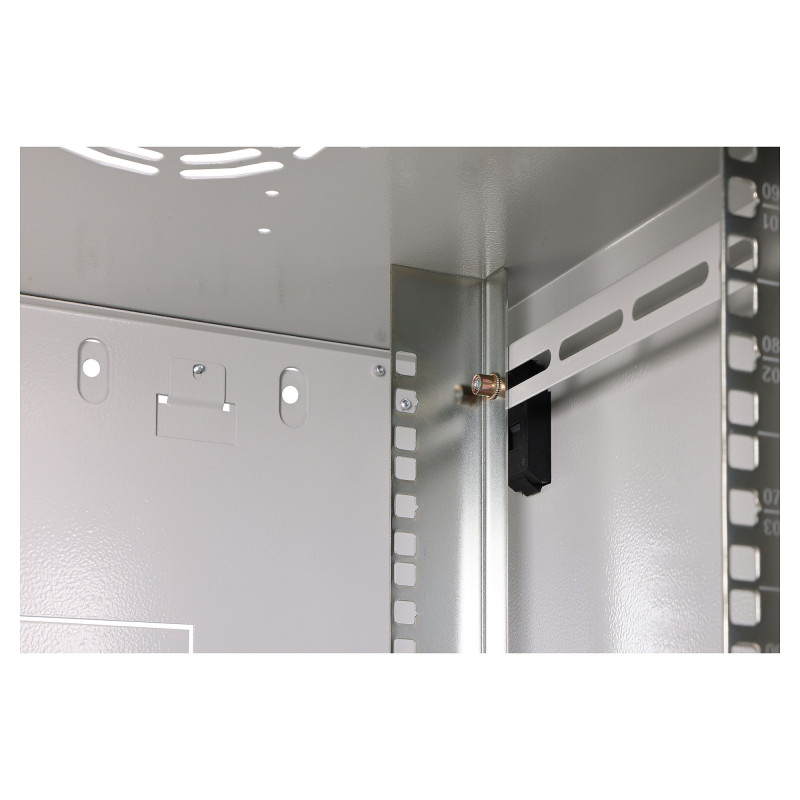

- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg

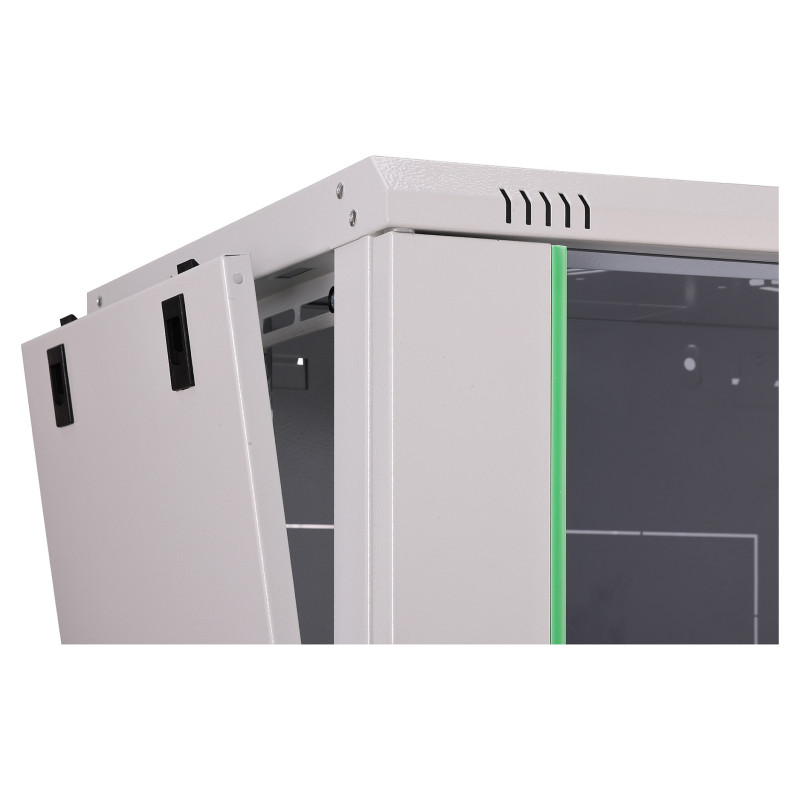

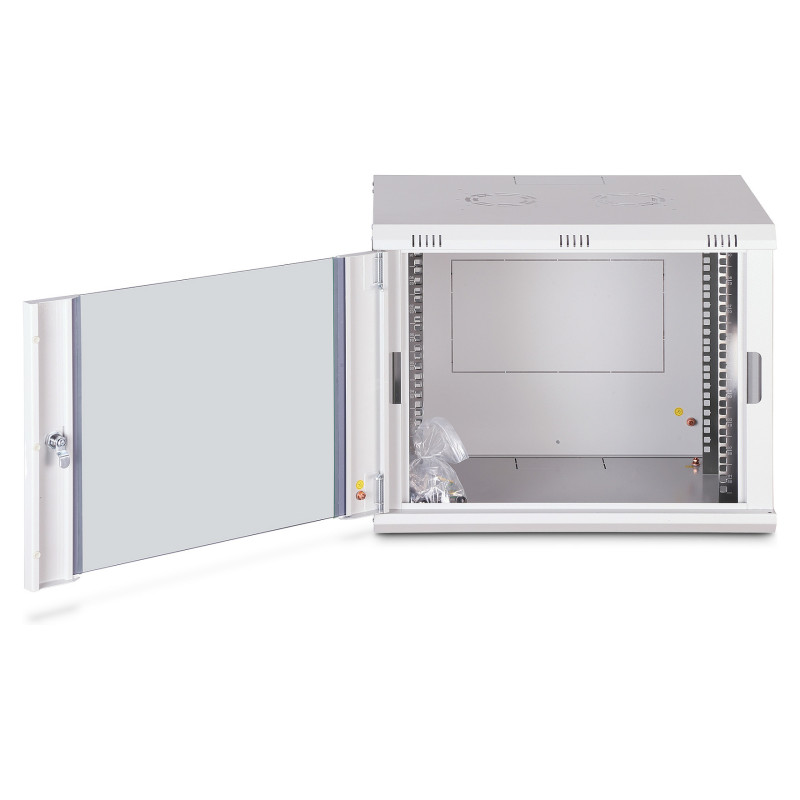

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.

Features

Rack capacity: 9U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Grey
Front door construction: Glass
Feature: Side panels included
International Protection (IP) code: IP20

Weight & dimensions

Width: 600 mm
Depth: 450 mm

Packaging data

Package width: 480 mm
Package depth: 520 mm
Package volume: 154752 cm³
Package weight: 17 kg

Logistics data

UK Trade Tariff code: 94032080
Country of origin: China
Harmonized System (HS) code: 85381000
