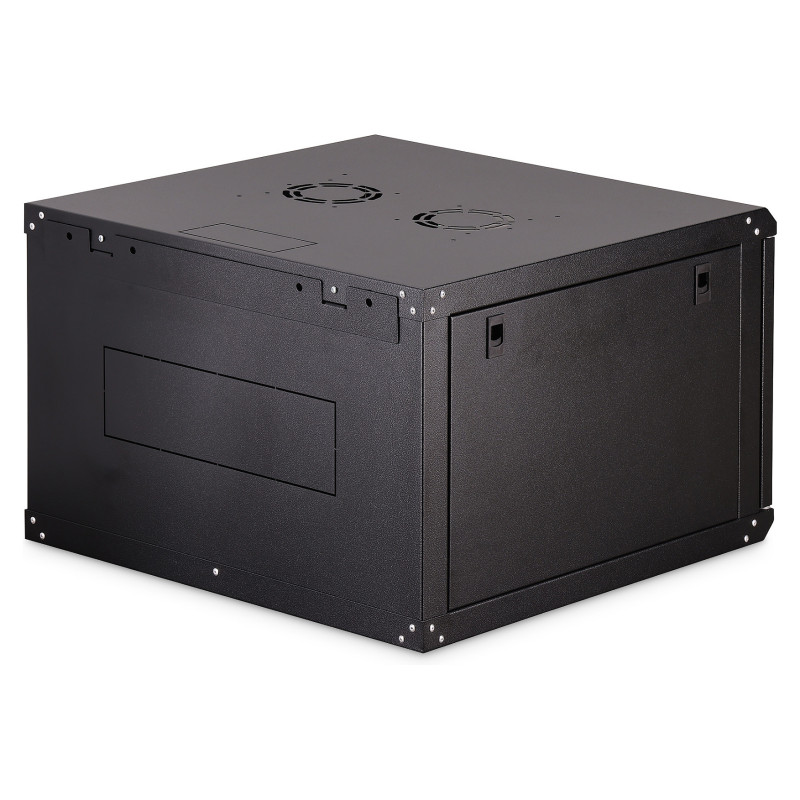

Digitus DN-19 07U-6 / 6-EC-SW rack cabinet

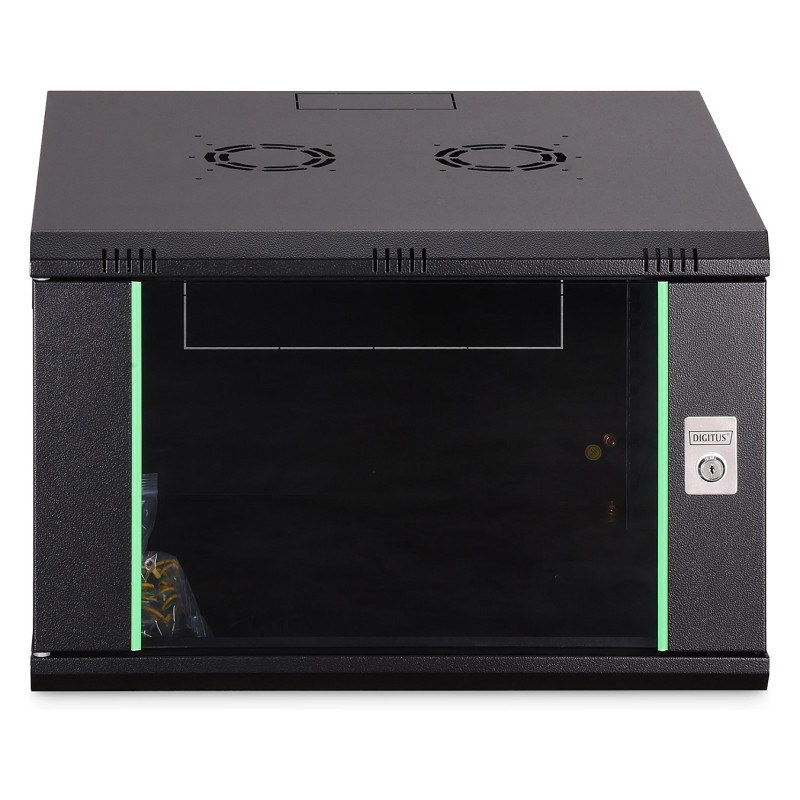

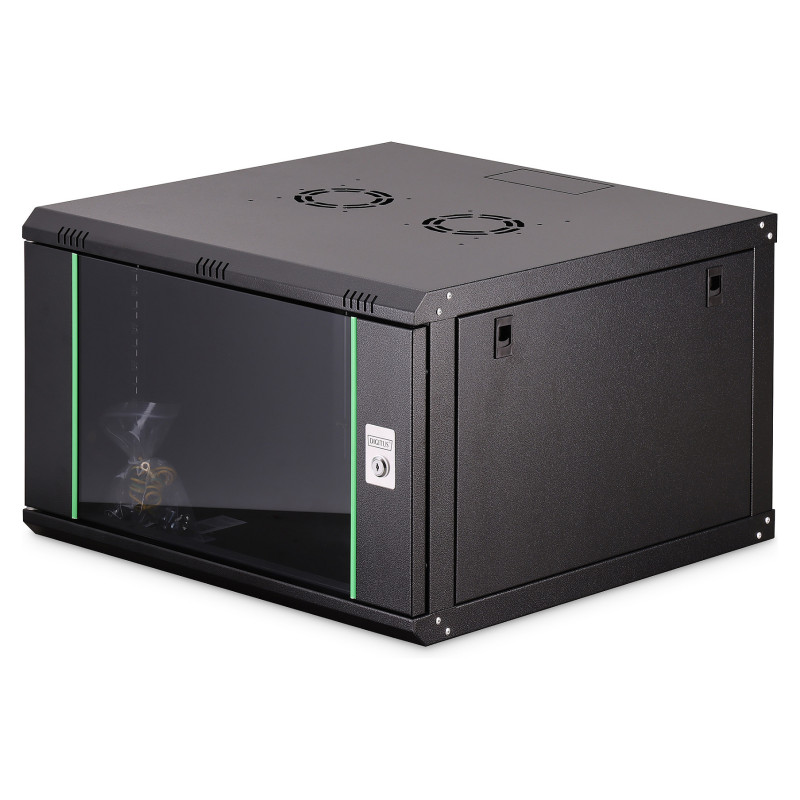

Digitus Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD). Type: Wall mounted rack, Rack capacity: 7U, Maximum weight capacity: 60 kg, Key lock, International Protection (IP) code: IP20. Weight: 24 kg. Product colour: Black
- Optimum ventilation and air extraction
- Lockable glass door guarantees security

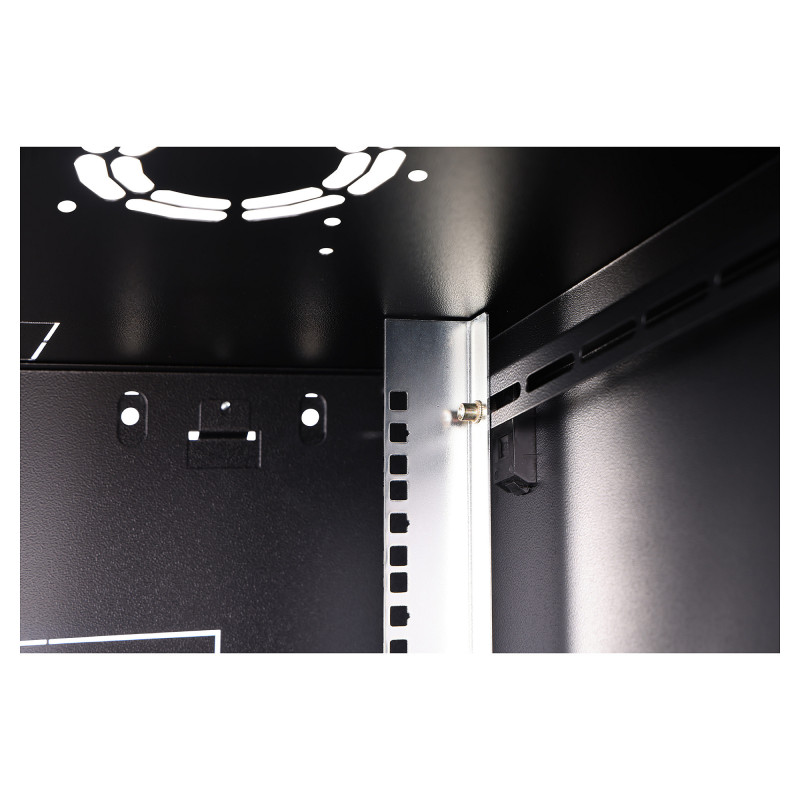

- 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

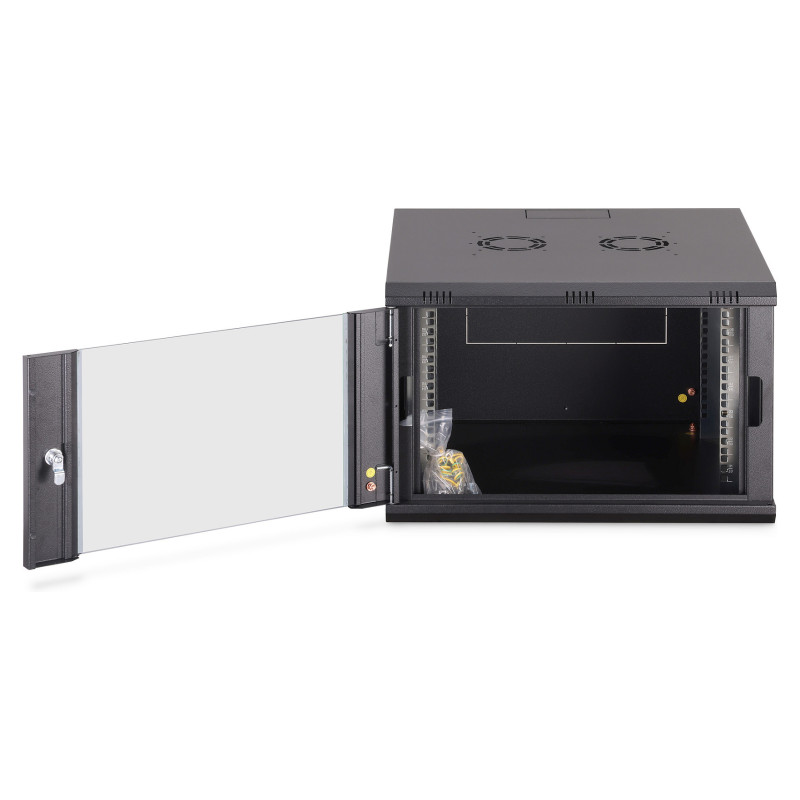

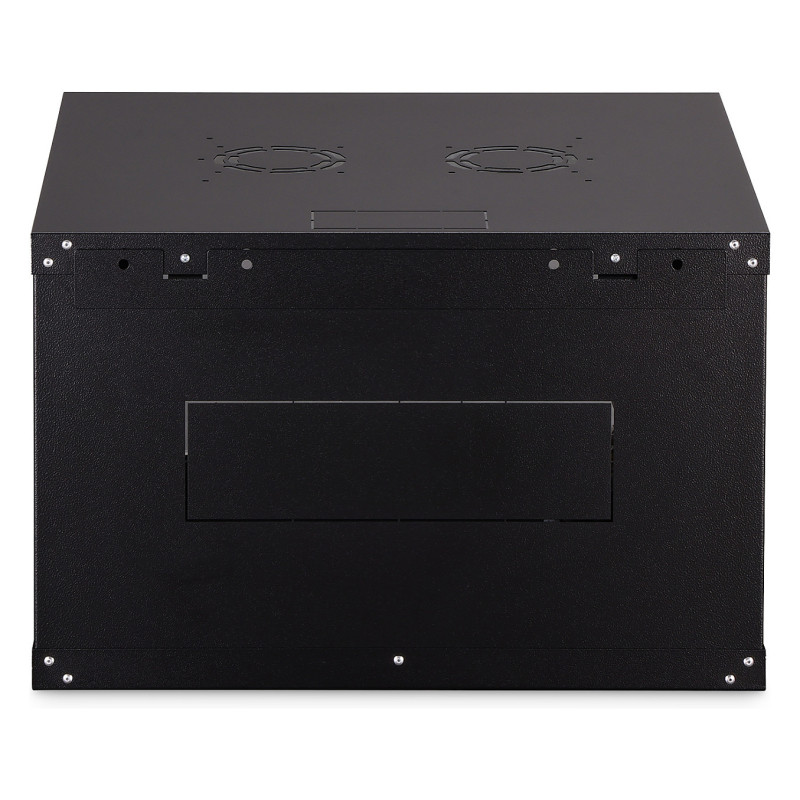

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.

Features

Rack capacity: 7U
Type: Wall mounted rack
Maximum weight capacity: 60 kg
Product colour: Black
Material: Steel
Front door construction: Glass
Side panel construction: Steel

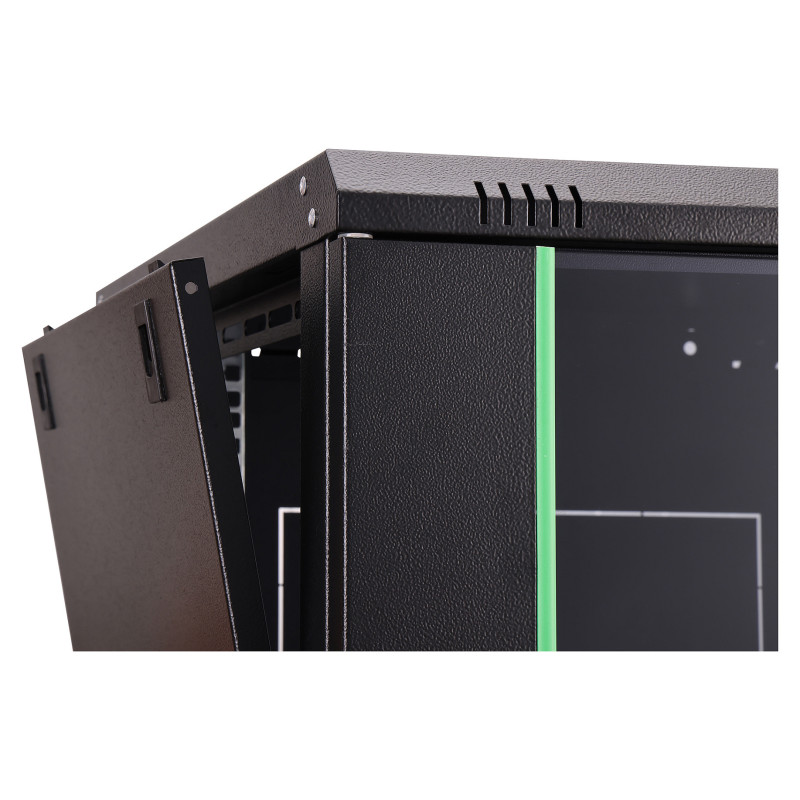

Removable side panels: Yes
Side panels included: Yes

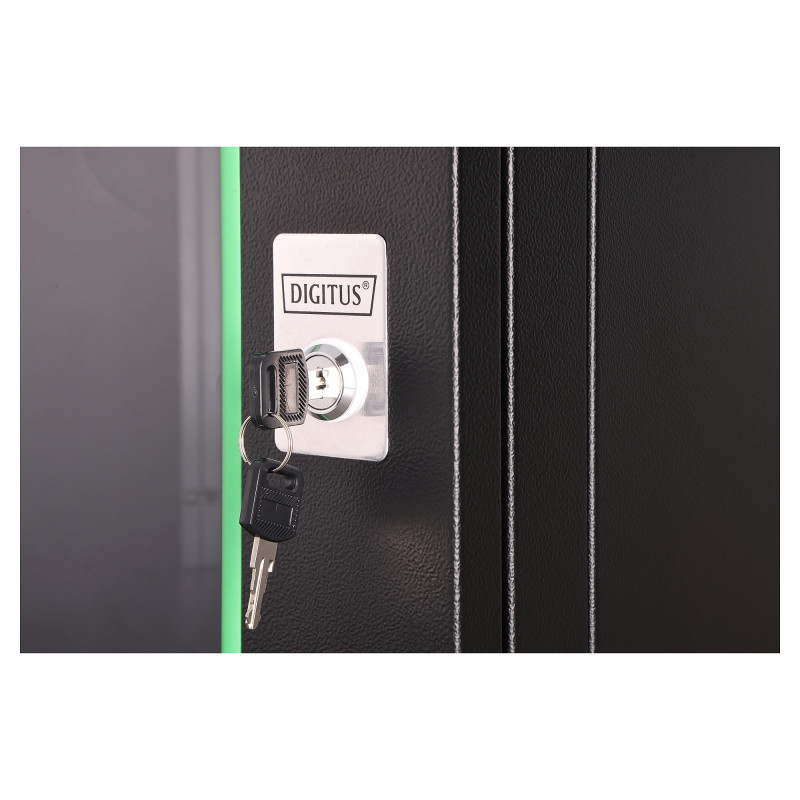

Key lock: Yes
Front door key lock: Yes
International Protection (IP) code: IP20

Weight dimensions

Width: 600 mm
Depth: 600 mm
Height: 416 mm
Weight: 24 kg

Packaging data

Package width: 630 mm
Package depth: 430 mm
Package height: 480 mm
Package volume: 167958 cm³
Package weight: 18 kg

Logistics data

UK Trade Tariff code: 94032080
Country of origin: China
Harmonized System (HS) code: 85381000
