Digitus DN-1019 rack cabinet

Digitus Combination wall-mounted housing 254 mm (10") and 482.6 (19") mm. Type: Wall mounted rack, Rack capacity: 10U, Maximum weight capacity: 30 kg, Key lock, Cable management, International Protection (IP) code: IP20. Weight: 10.3 kg. Product colour: Grey

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.

- Can be used for 254 mm (10") or 483 mm (19") applications

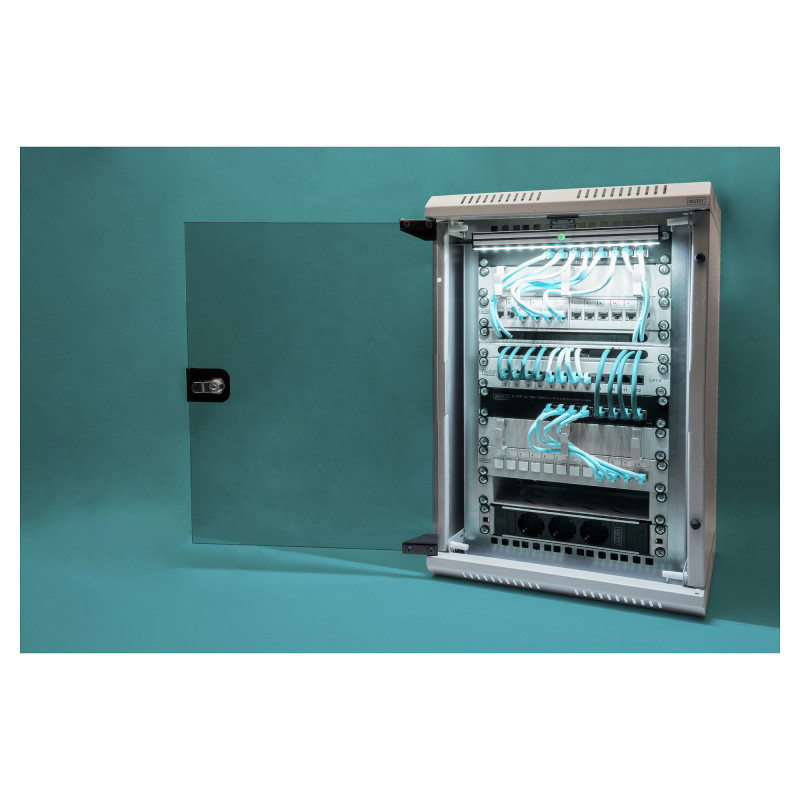

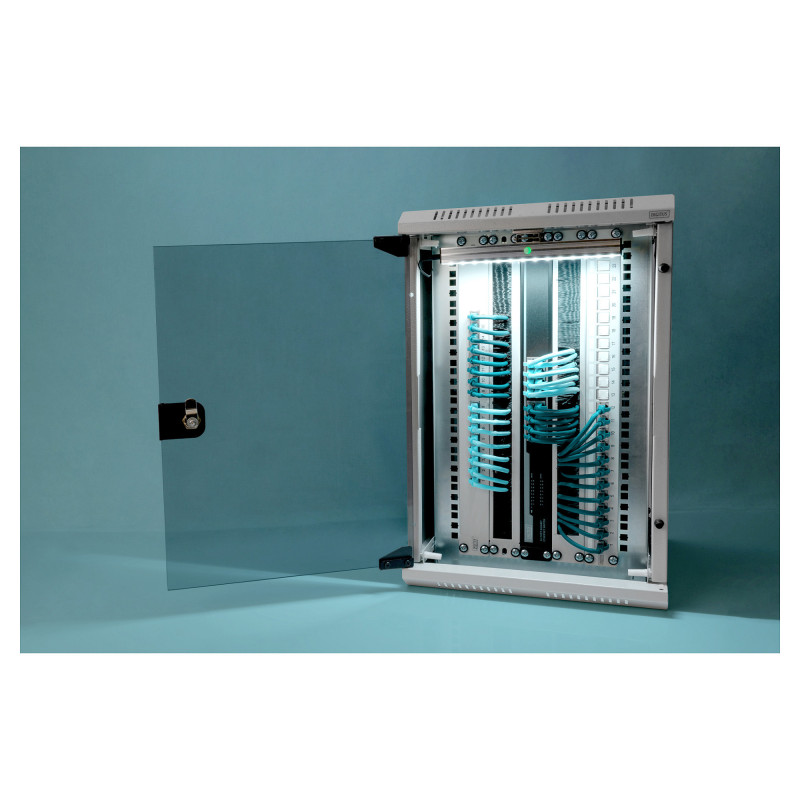

- Round profile frame: 254 mm (10") 10U horizontal or 482.6 mm (19") 5U vertical
- Additional 254 mm (10") 10U profile perforation in the rear area

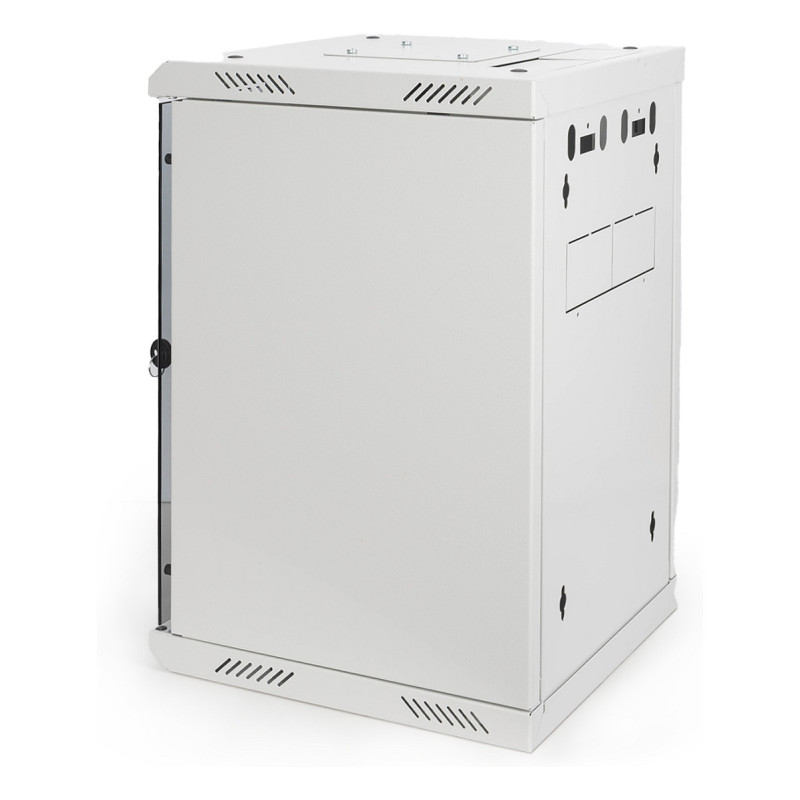

- Removable side panels from the inside
- Ready for immediate use: Delivery is assembled

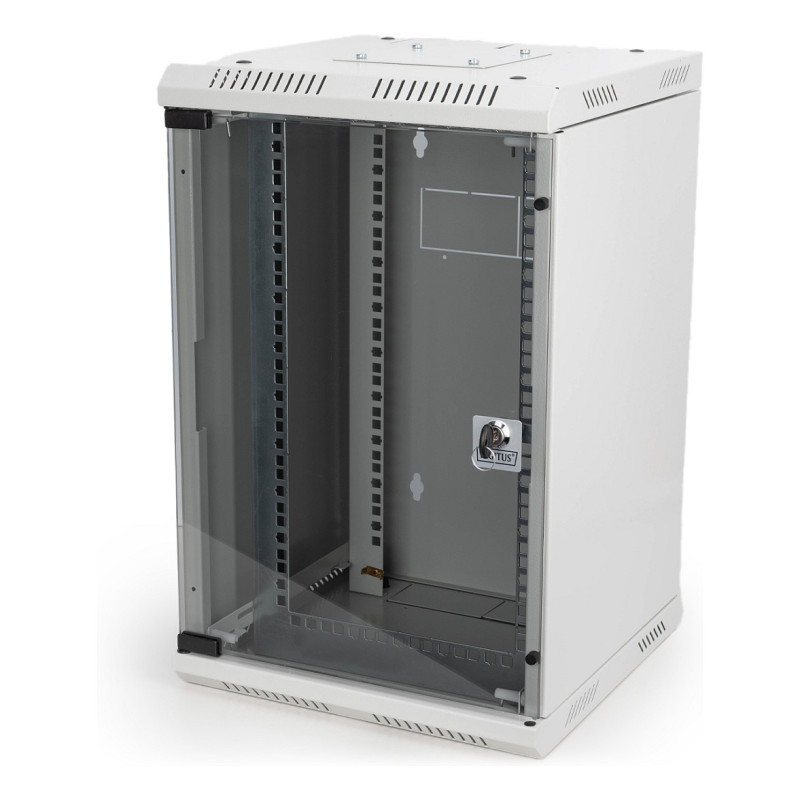

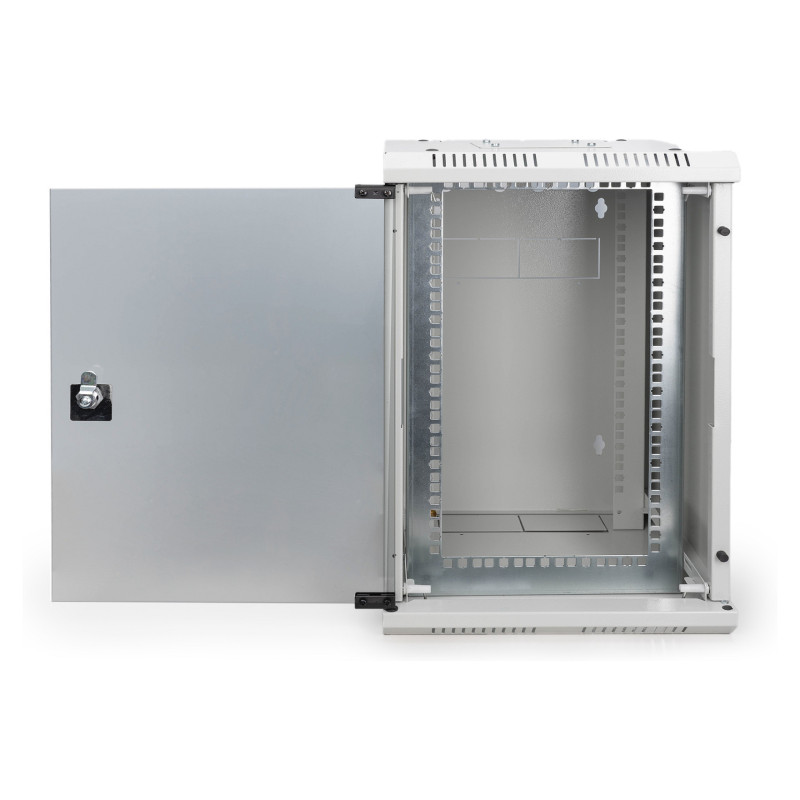

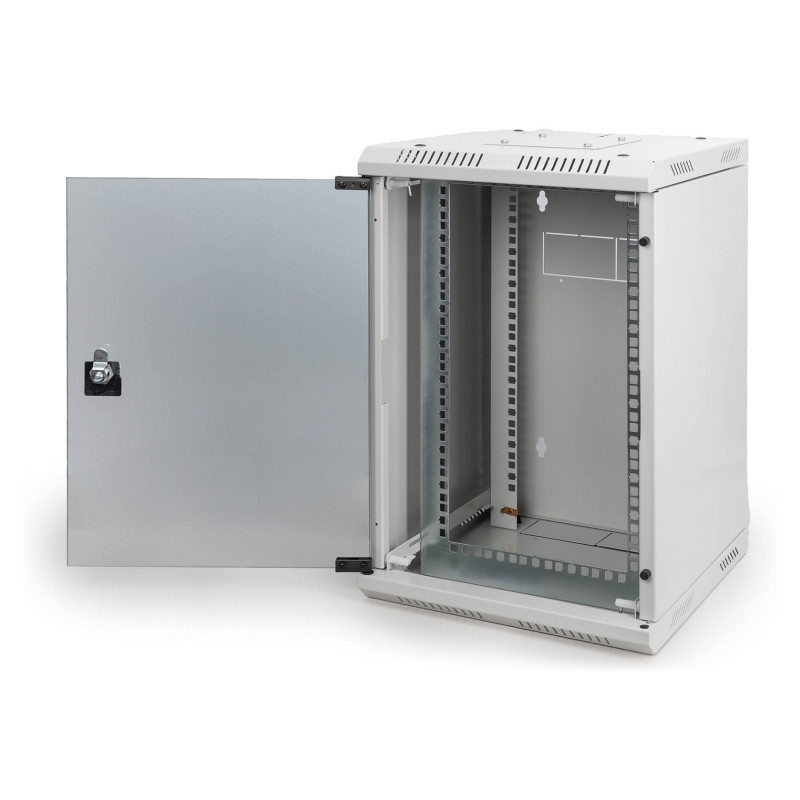

- Lockable safety glass door with 200° door opening angle

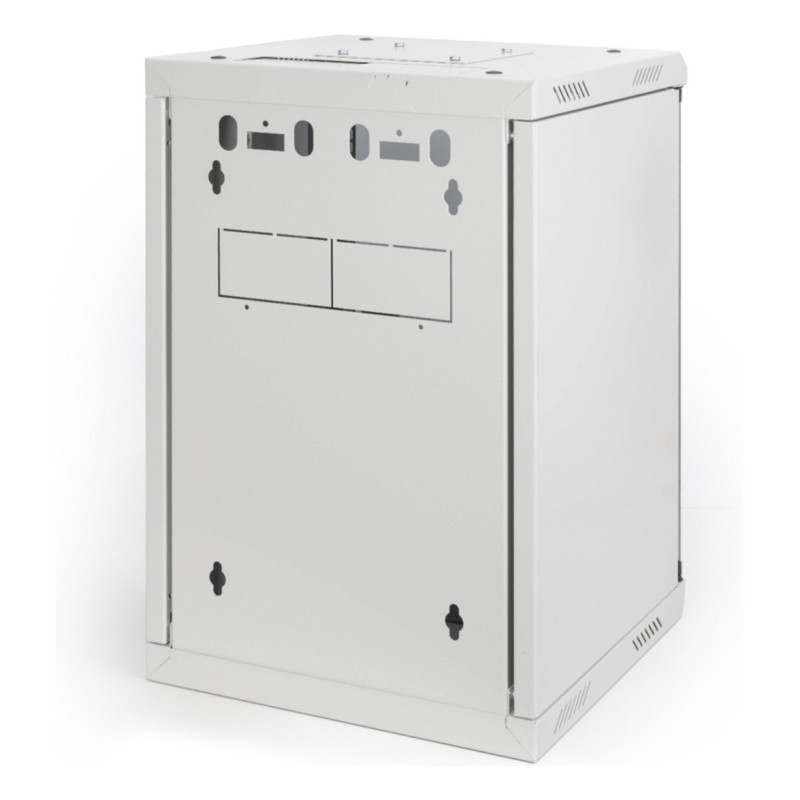

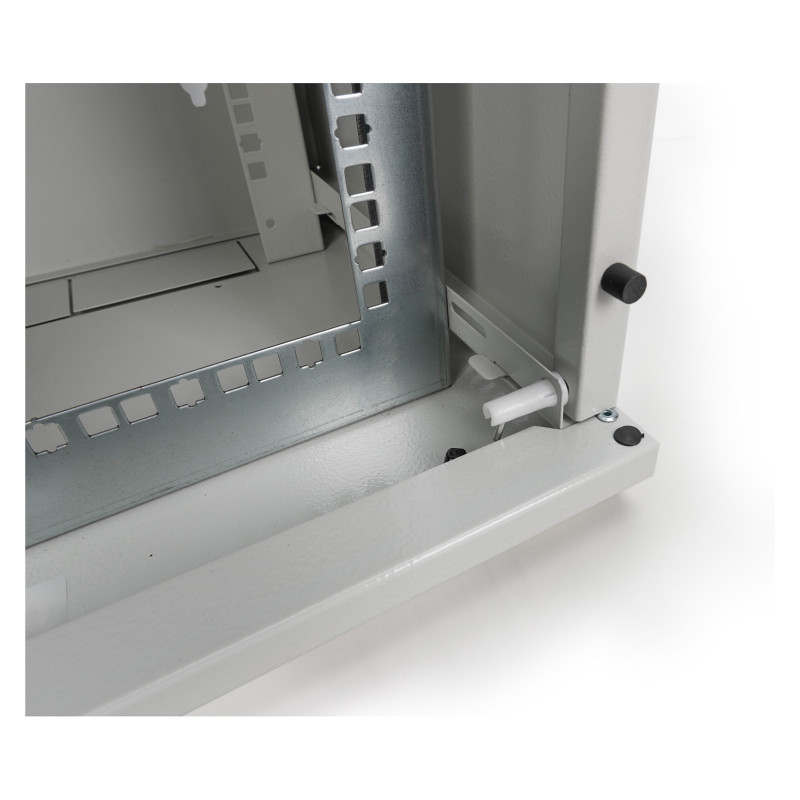

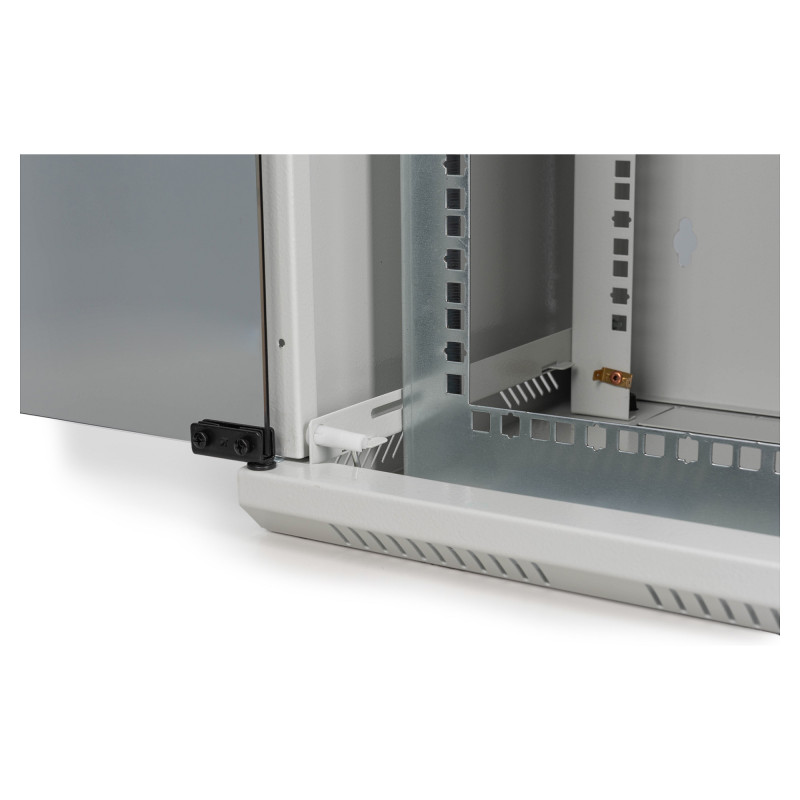

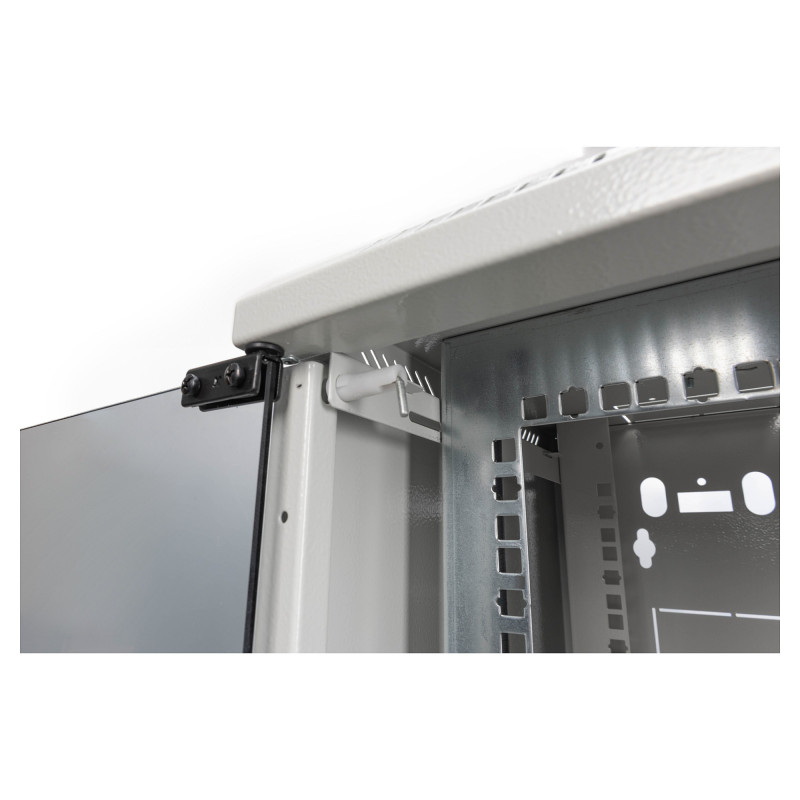

With a round profile frame installed at the front, the wall-mounted enclosure offers the option of horizontal mounting of 254 mm (10") components (10 height units) and, alternatively, vertical mounting of 482.6 mm (19") components (5 height units). The front profile frame is depth-adjustable. There is also a profile hole integrated into the rear section of the enclosure frame for mounting additional components with 254 mm (10") dimensions. The enclosure is made from a robust steel construction. The cable entry openings in the roof, base and rear provide the best options for tidy cable management. The compact enclosure is therefore ideal for all common IT and telecommunications applications, especially where space is limited and in private households.

Features

Rack capacity: 10U
Type: Wall mounted rack
Maximum weight capacity: 30 kg
Product colour: Grey
Material: Steel
Frame type: Closed
Front door construction: Glass
Feature: Side panels included
Feature: Key lock
Cooling type: Passive
Feature: Cable management
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 25.4 cm (10")
Width: 350 mm
Depth: 350 mm
Height: 550 mm
Weight: 10.3 kg

Packaging data

Package width: 355 mm
Package depth: 355 mm
Package height: 560 mm
Package volume: 70574 cm³
Package weight: 11.5 kg

Logistics data

UK Trade Tariff code: 94032080
Country of origin: Turkey
Harmonized System (HS) code: 85381000
Master (outer) case width: 355 mm
Master (outer) case length: 355 mm
Master (outer) case height: 560 mm
Master (outer) case gross weight: 11.5 kg
Master (outer) case volume: 70574 cm³
