Digitus DN-10-09U network equipment enclosure

Digitus Wall-mounted housing 254 mm (10") - 312x300 mm (WxD). Installation options: Wall-mounted, Suitable for: Indoor, Material: Steel. Width: 312 mm, Depth: 300 mm, Height: 464 mm. Country of origin: China
DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.
- Compact housing for installations where space is limited
- Ready for immediate use: Delivery is assembled
- Flexible cable routing options thanks to protected openings in the roof and floor

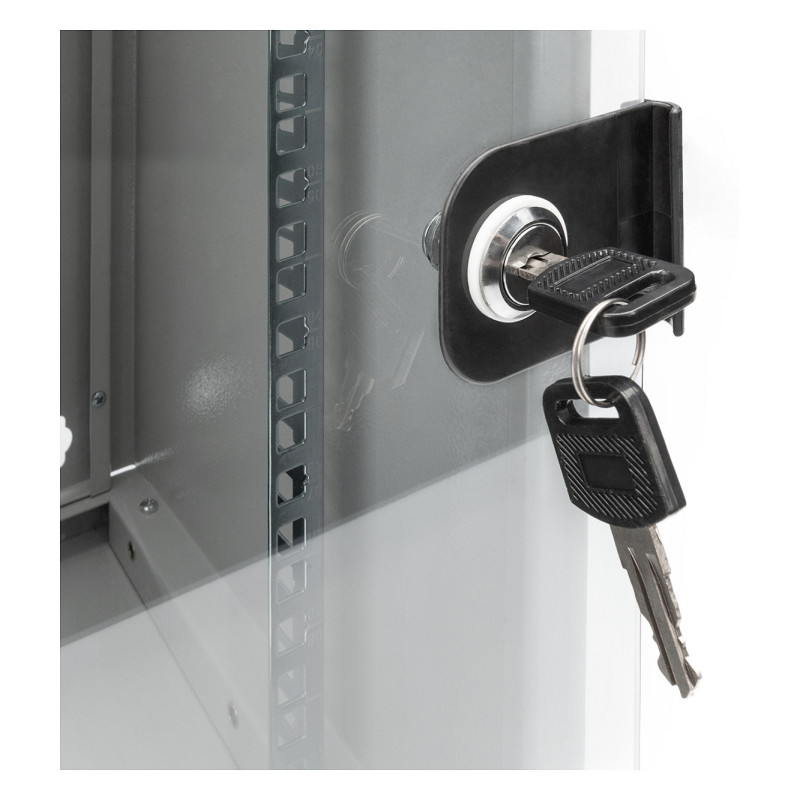

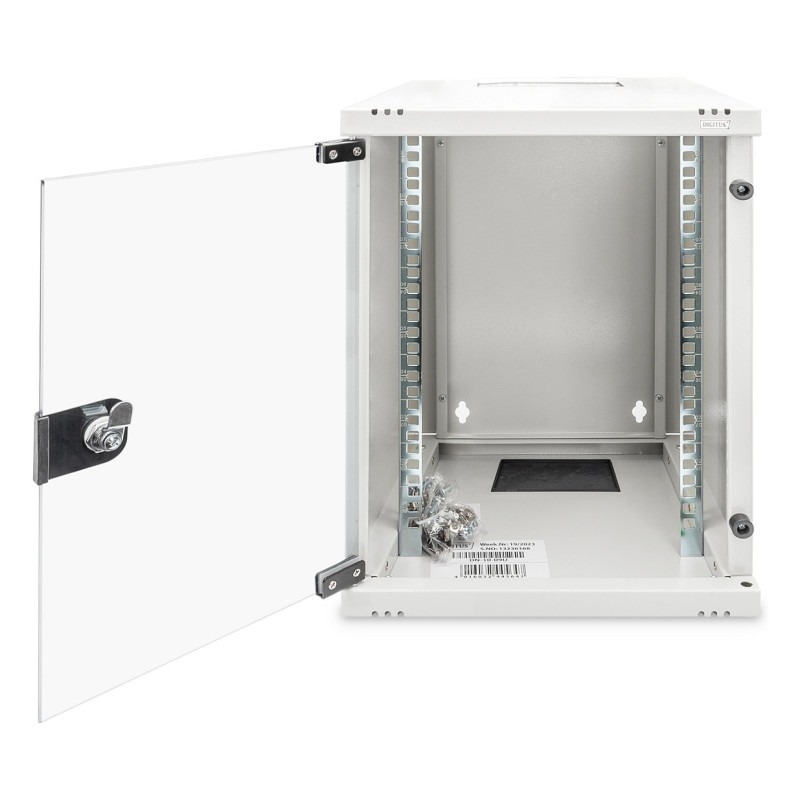

- Lockable safety glass door with 200° door opening angle

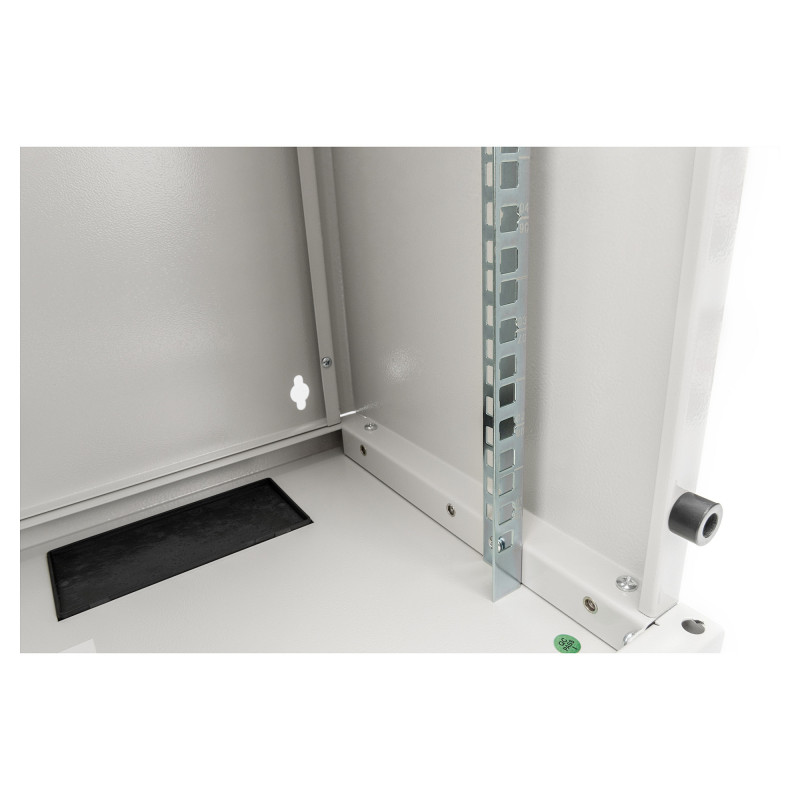

- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg

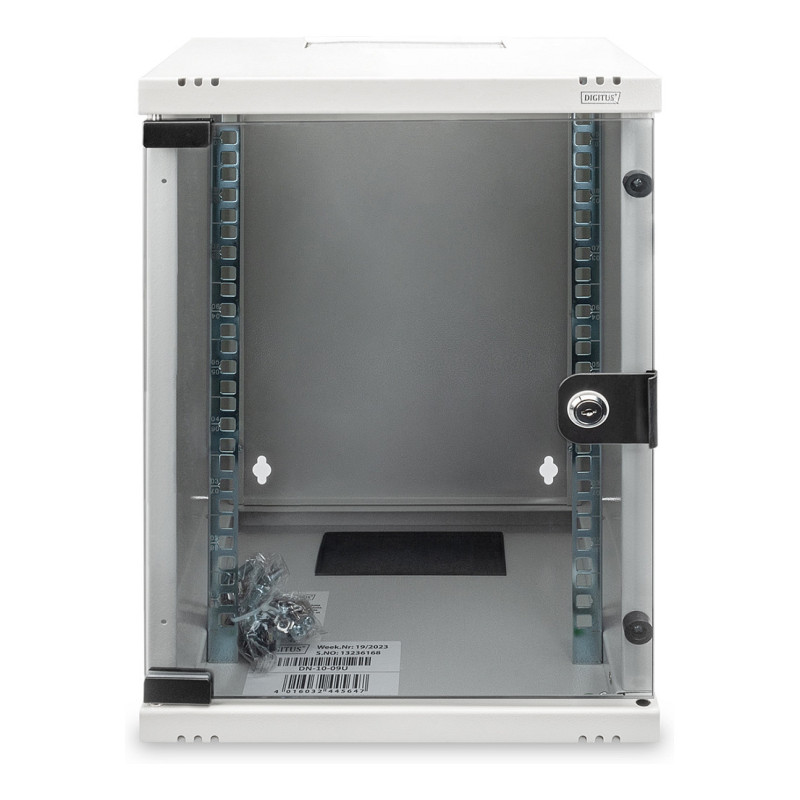

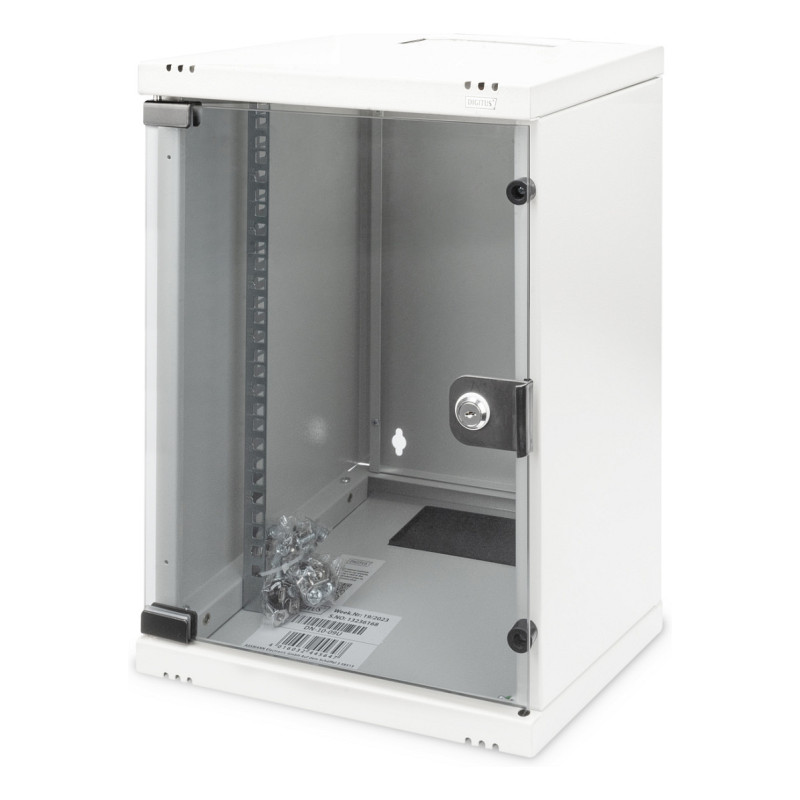

Whether at home, in the office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the roof and base. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

Features

Material: Steel
International Protection (IP) code: IP20
Installation options: Wall-mounted
Suitable for: Indoor

Weight dimensions

Width: 312 mm
Depth: 300 mm
Height: 464 mm
Weight: 7 kg
Package width: 370 mm
Package depth: 360 mm
Package weight: 10 kg

Technical details

Package volume: 69264 cm³

Logistics data

UK Trade Tariff code: 94032080
Country of origin: China
