Digitus DN-10-05U-1 rack cabinet

Digitus Wall-mounted housing 254 mm (10") - 312x300 mm (WxD). Type: Wall mounted rack, Rack capacity: 6U, Maximum weight capacity: 30 kg, International Protection (IP) code: IP20, Product colour: Grey

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.

- Compact housing for installations where space is limited
- Ready for immediate use: Delivery is assembled
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg

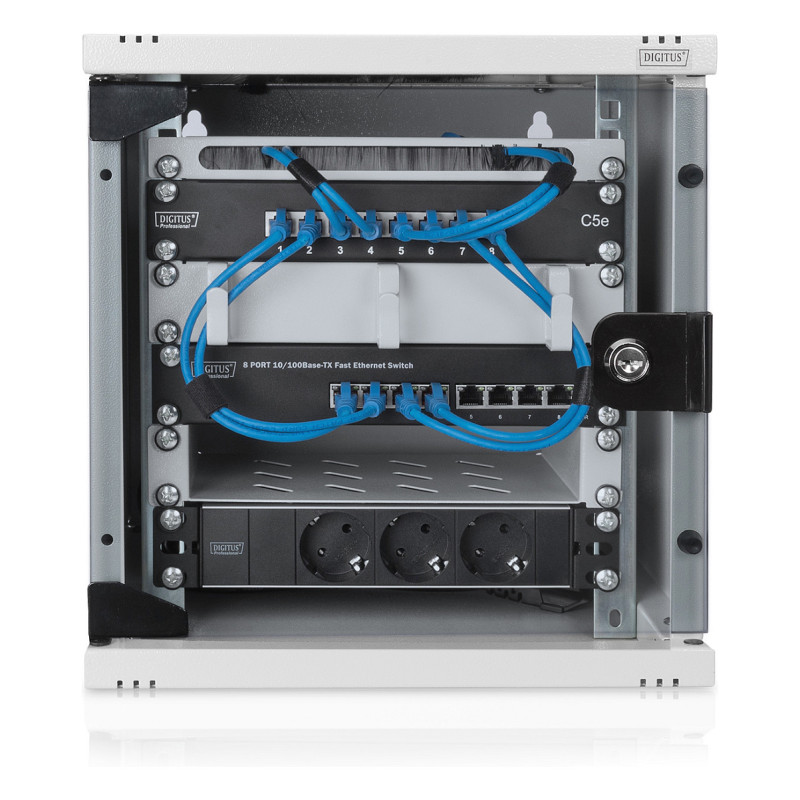

Whether at home, in the office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the roof and base. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

Features

Rack capacity: 6U
Type: Wall mounted rack
Maximum weight capacity: 30 kg
Product colour: Grey
Material: Steel
Front door construction: Glass
Feature: Side panels included
International Protection (IP) code: IP20

Weight & dimensions

Size (imperial): 25.4 cm (10")
Width: 312 mm
Depth: 300 mm
Height: 310 mm
Width (imperial): 32 cm (12.6")
Depth (imperial): 34 cm (13.4")
Height (imperial): 31 cm (12.2")

Packaging data

Package width: 350 mm
Package depth: 360 mm
Package volume: 50400 cm³
Package weight: 8 kg

Logistics data

UK Trade Tariff code: 94032080
Country of origin: China
Harmonized System (HS) code: 85381000

Other features

Dimensions (WxDxH): 320 x 340 x 310 mm
