EFB Elektronik 691703VWS rack cabinet

EFB Elektronik 691703VWS. Type: Wall mounted rack, International Protection (IP) code: IP20

Steel sheet housing for wall mounting, completely pre-assembled, self-ventilated
Wall raising (overall depth) only 150 mm
3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm

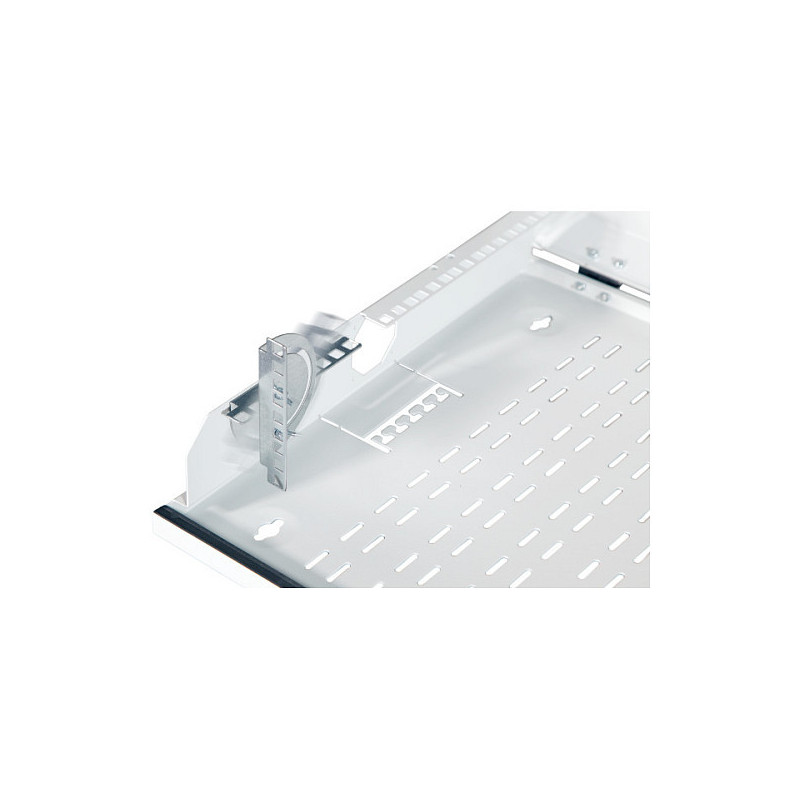

3U level 180° swiveling

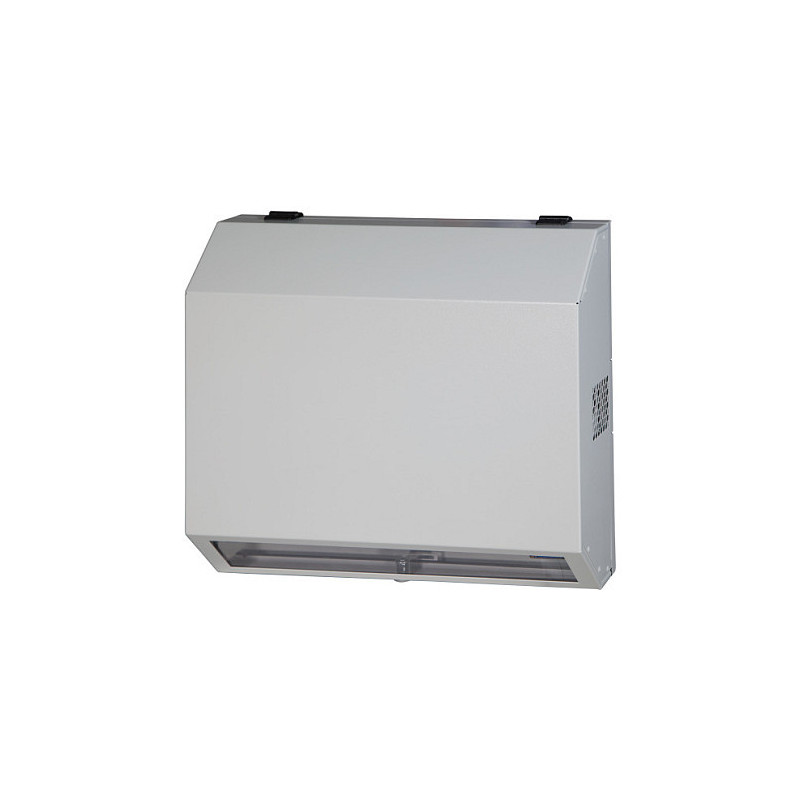

Cover with window, hinged and lockable
Pre-punched ventilation openings in housing

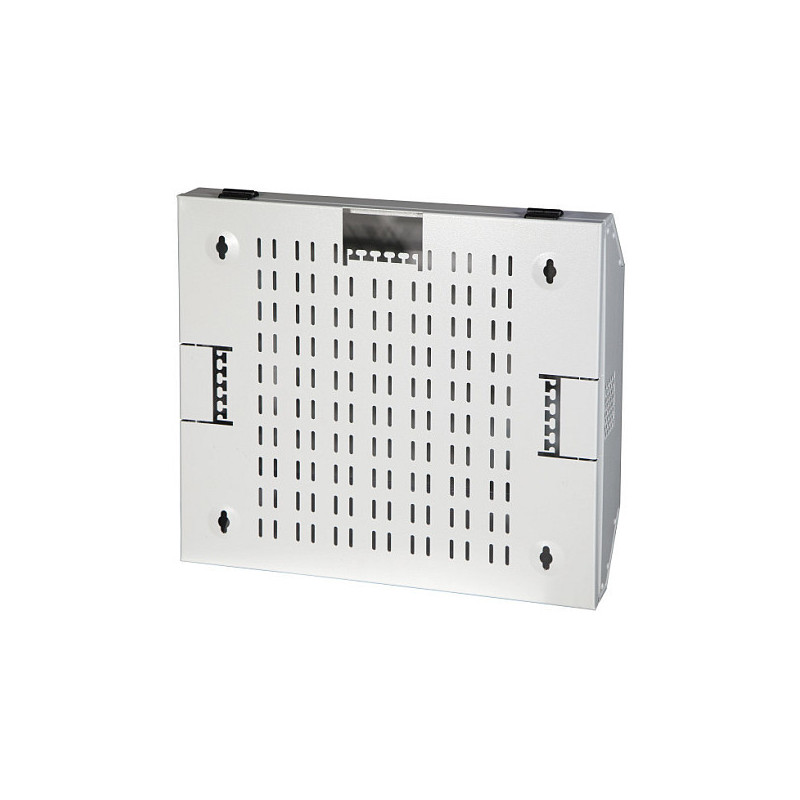

Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20
Included in delivery: 1 x key

Features

Type: Wall mounted rack
Material: Steel
International Protection (IP) code: IP20

Weight & dimensions

Width: 537 mm
Depth: 146 mm
Height: 475 mm

Logistics data

Harmonized System (HS) code: 85381000
