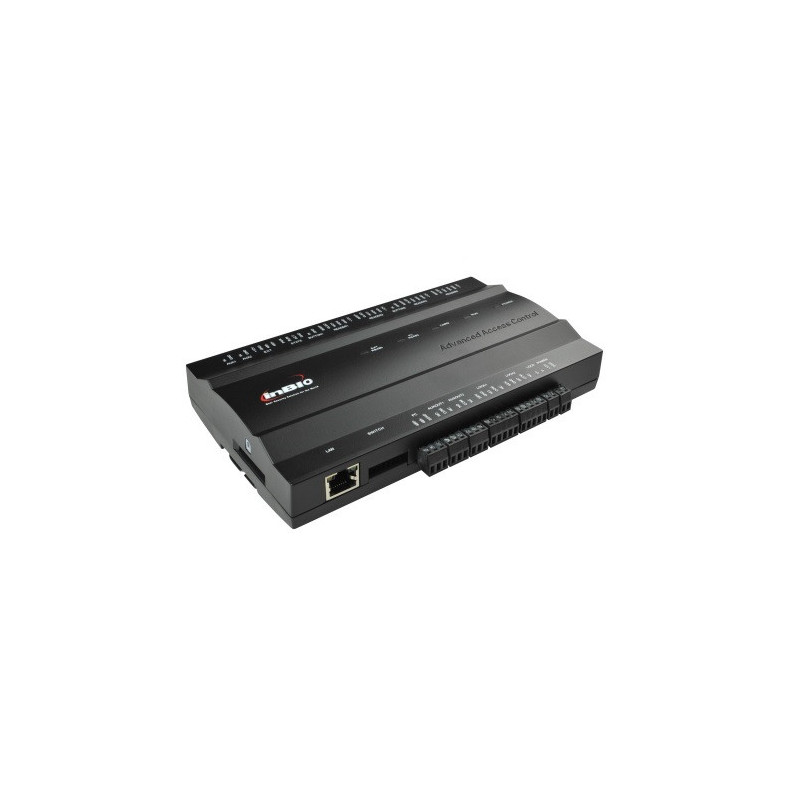

ZKTECO Two-door access controller INBIO260

Two-door access controller INBIO-260, Wiegand 26bit, LAN, RS-485.
Features:

• An access controller with unique features such as fingerprint verification and advanced access control functions that can be managed via TCP/IP communication over LAN or WAN networks.


• The distance between the controller and the RS485 readers may be greater than the 800m.


• Data is saved even in the event of a power failure. The controller continues to operate if the network connection is lost.


• By connecting the RS485 reader, the controller can authenticate users with multiple verification modes, such as fingerprint, card, and password, to ensure a higher level of security.

Technical data:

• Number of users: 30,000.


• Event database capacity: 100,000.


• Fingerprint capacity: 3,000.


• Number of doors supported: 2.


• Number of supported readers: 8 (4x RS-485 readers, 4x Wiegand 26bit).


• Reader types: 26bit Wiegand, RS-485 FR series.


• Inputs: 6 (2x exit buttons, 2x door sensors, 2x aux input).


• Relays: 4 (2x for lock + 2x aux output).


• Connections: TCP/IP; RS-485.


• Processor: 400MHz 32bit CPU.


• Memory: RAM 32MB / Flash 128MB.


• Catering: 9.6V-14.4V DC.


• Weight: 3.6 kg.


• Mounting: on the wall.


• Dimensions: 350x90x300 mm.


• Operating temperature: 0°C~ +45°C.


• Operating humidity: 20%-80%RH.
