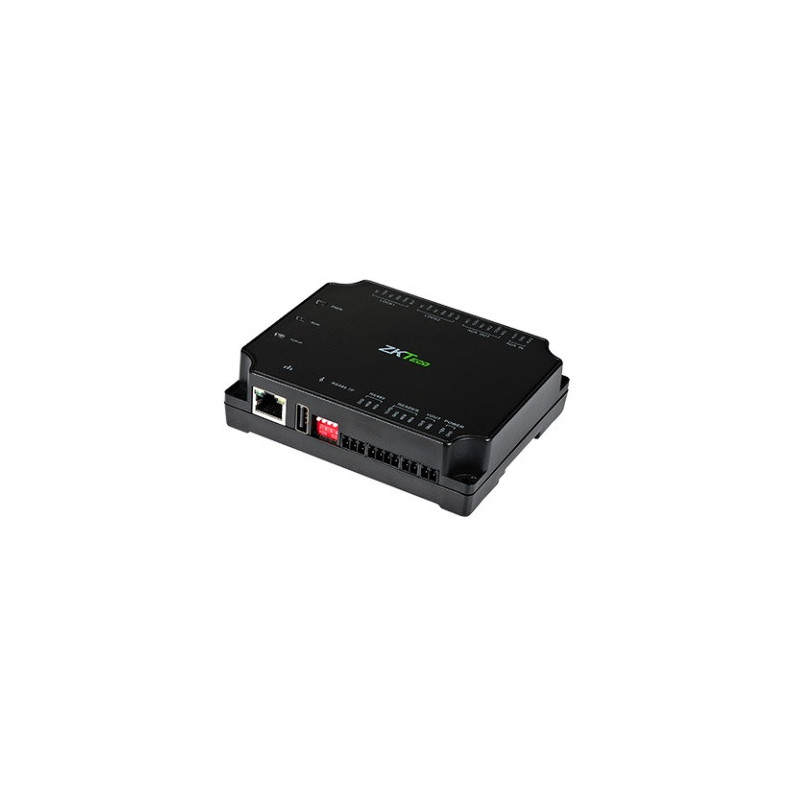

ZKTECO Two-door access controller C2-260
Product reference: 14-9990000990856
C2-260 is an IP-based two-door compact controller. It supports TCP/IP communication over LAN or WAN network and RS485 communication, which allows connecting RS485 devices such as DM10, AUX485, WR485. This series works perfectly with the software 'ZKBioAccess' (does not work with 'ZKBiosecurity'). By default, C2-260 can control two doors on each side. It can be expanded to 10 doors (with the help of DM10).
ZKTECO Two-door access controller C2-260
ZKTECO Two-door access controller C2-260
ZKTECO Two-door access controller C2-260
ZKTECO Two-door access controller C2-260

ZKTECO Two-door access controller C2-260

Product reference: 14-9990000990856
C2-260 is an IP-based two-door compact controller. It supports TCP/IP communication over LAN or WAN network and RS485 communication, which allows connecting RS485 devices such as DM10, AUX485, WR485. This series works perfectly with the software 'ZKBioAccess' (does not work with 'ZKBiosecurity'). By default, C2-260 can control two doors on each side. It can be expanded to 10 doors (with the help of DM10).
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
140,55 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Two-door entrance controller C2-260.
Features:



  • C2-260 is an IP-based two-door compact controller.

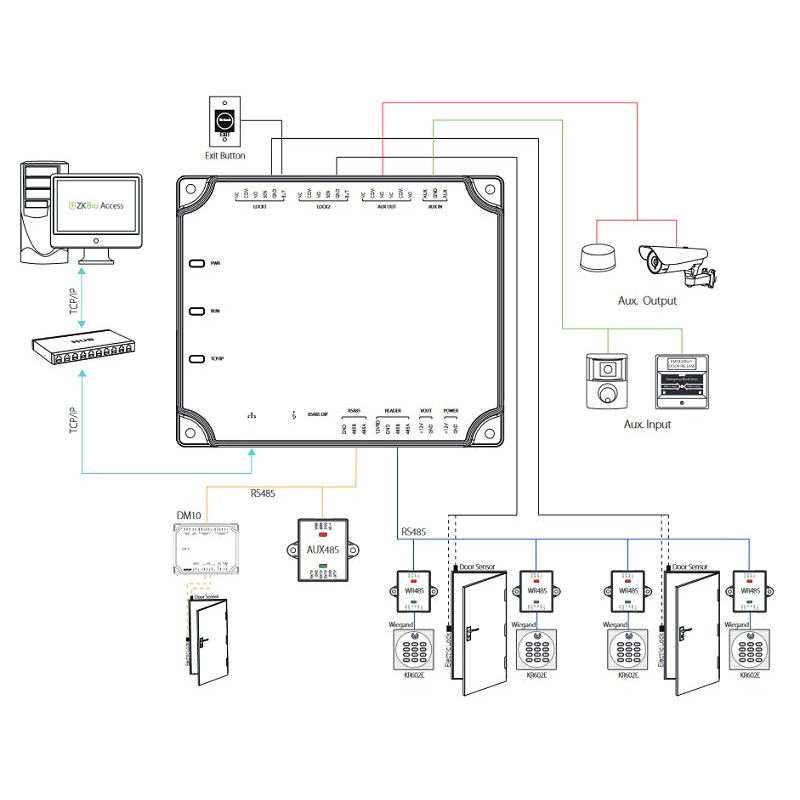

  • Supports TCP/IP communication over LAN or WAN network and RS485 connection, which allows connecting RS485 devices such as DM10, AUX485, WR485. This series works perfectly with the software "ZKBioAccess" (does not work with "ZKBiosecurity").

  • By default, C2-260 can control two doors on each side. It can be expanded to 10 doors (with the help of DM10).



Technical data:



  • Number of users (cards): 30,000.

  • Event database capacity: 200,000 transactions.

  • Number of supported doors: 2 (default).

  • Number of supported readers: 4 (RS485, Wiegand (WR485).

  • Inputs: 6 (2x exit button, 2x door sensor, 2x aux input).

  • Relays: 4 (2x for lock and 2x for aux output).

  • Number of DM10 supported: max. 8.

  • Number of AUX485 supported: 2.

  • Number of WR485 supported: 4.

  • RS485 expansion port: 1.

  • RS485 scanner port: 1.

  • Connection: TCP/IP, RS485.

  • Catering: 9.6V - 14.4V DC.

  • CPU: 32bit, 1.0GHz.

  • RAM: 64Mb.

  • Mounting: in a box on the wall.

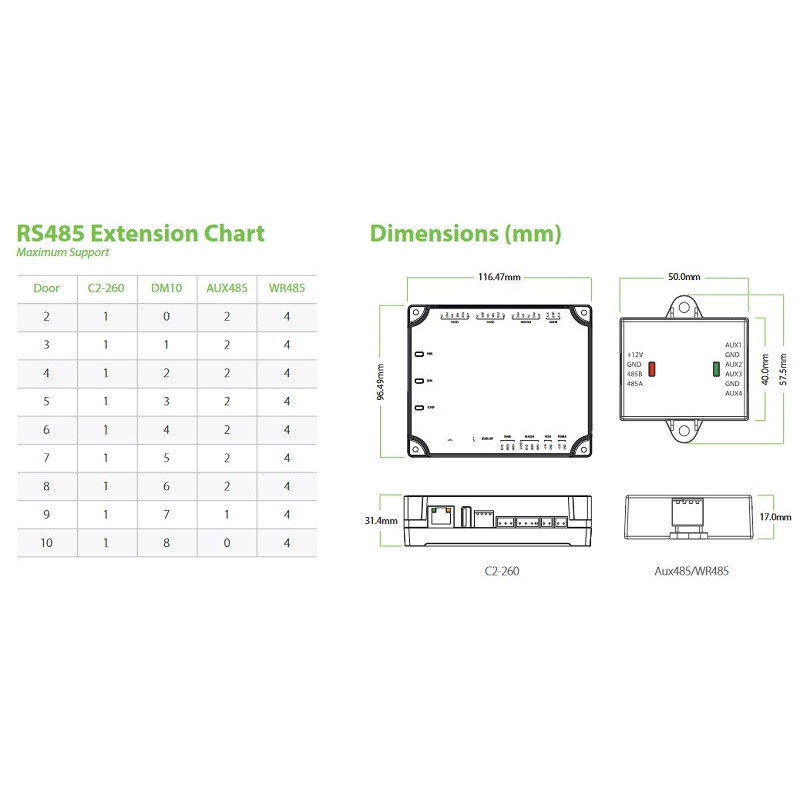

  • Dimensions: 116.47 x 96.49 x 31.40 mm.

  • Operating temperature: -10°C~ +50°C.

  • Operating humidity: 20%-80%RH.




Height38 mm
Length242 mm
Weight800g
Width95 mm
